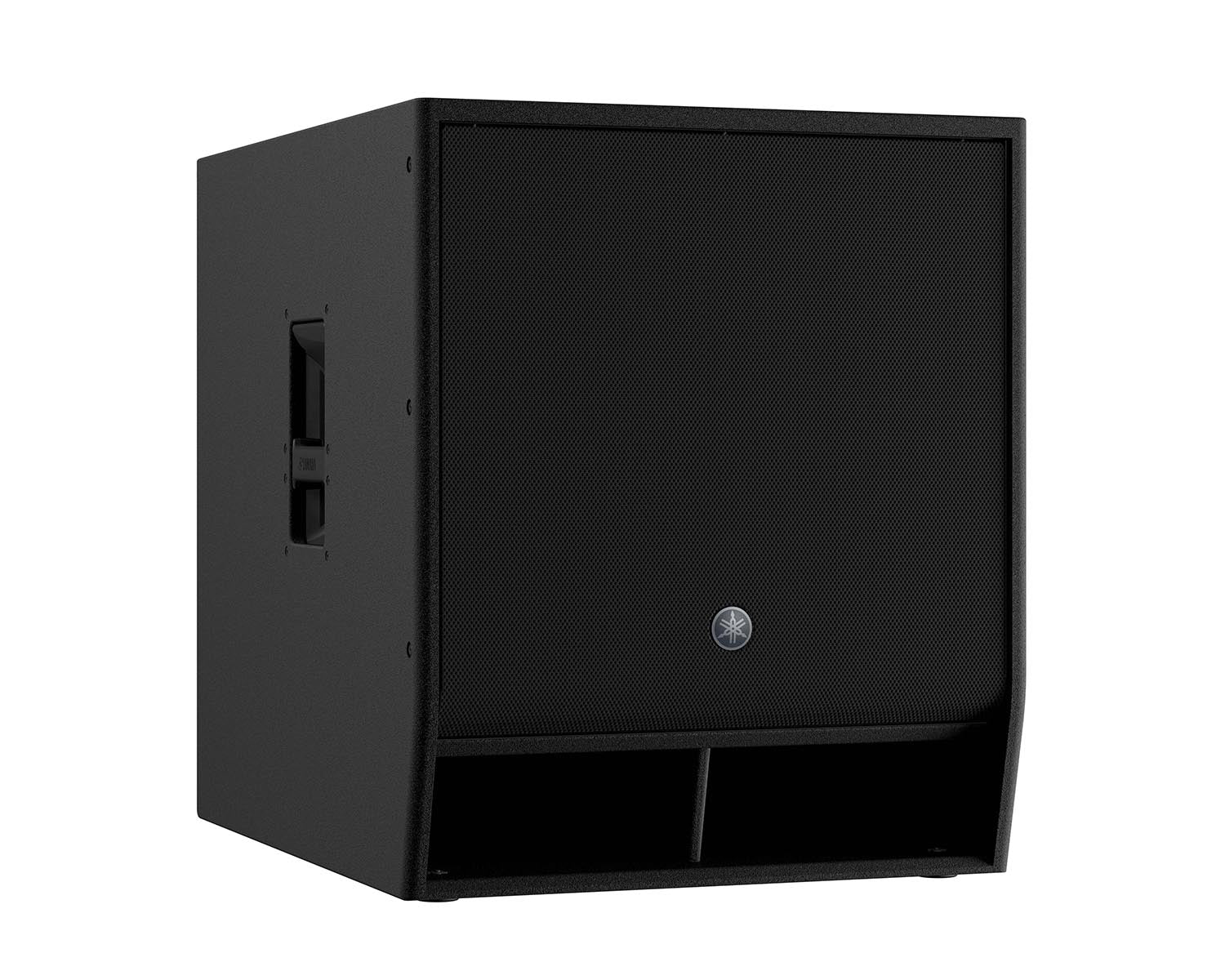

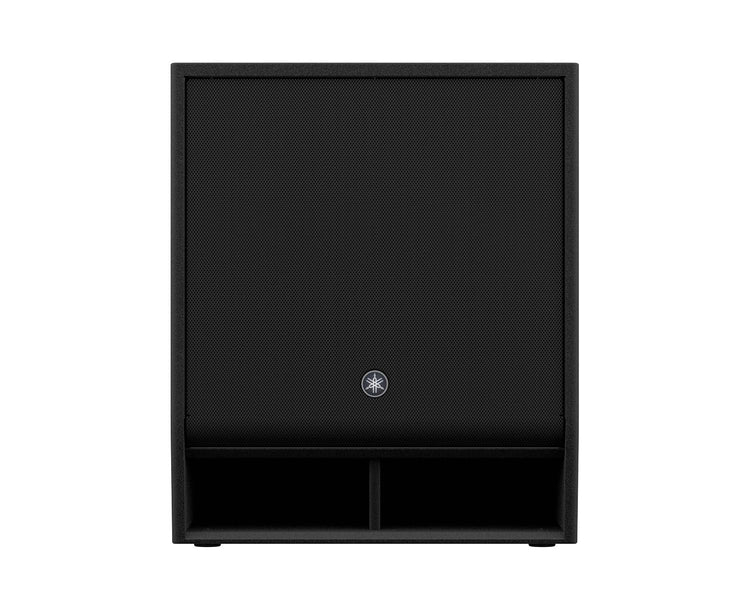

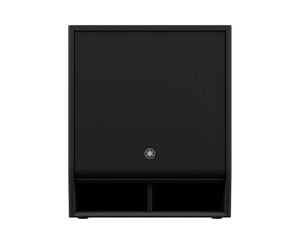

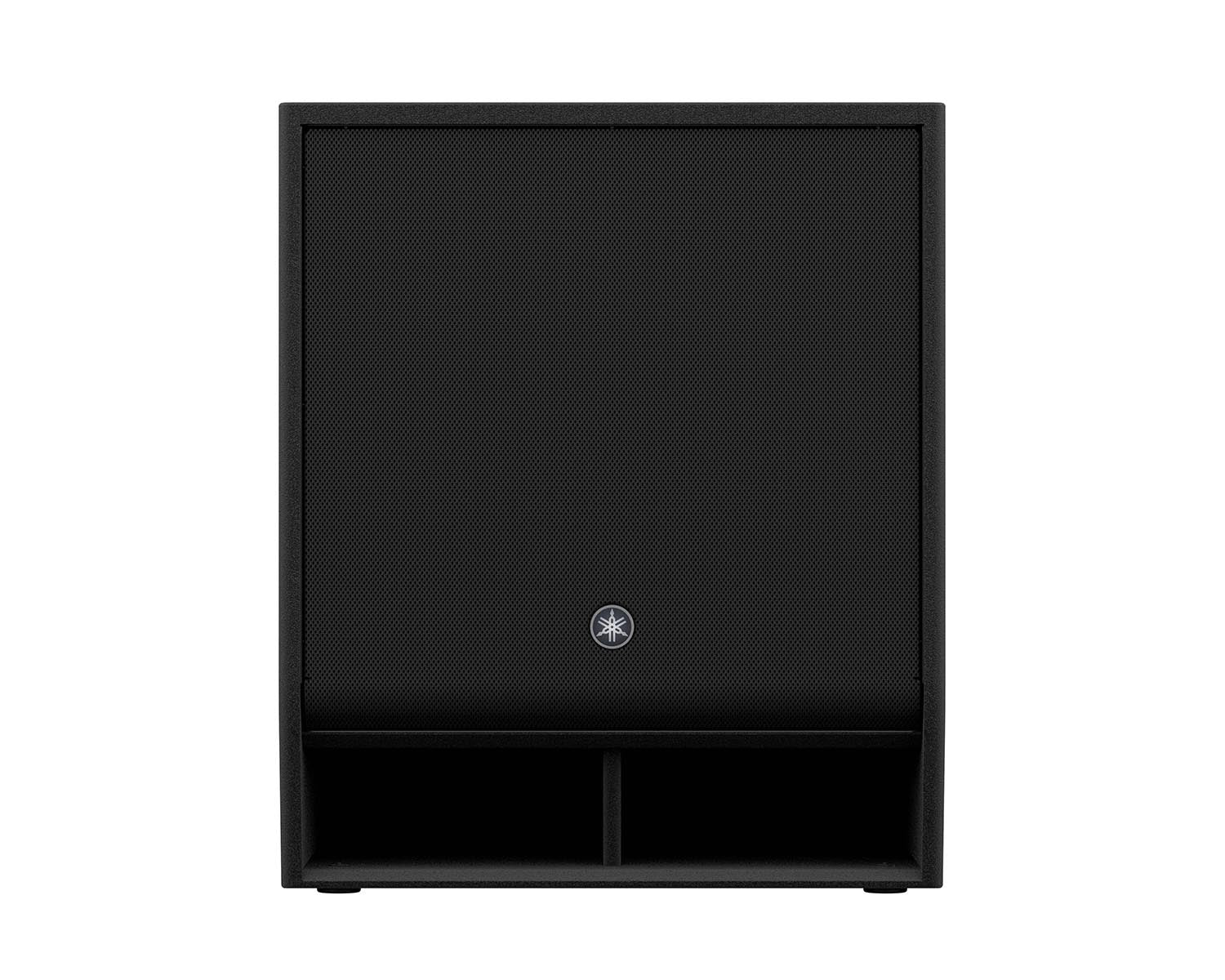

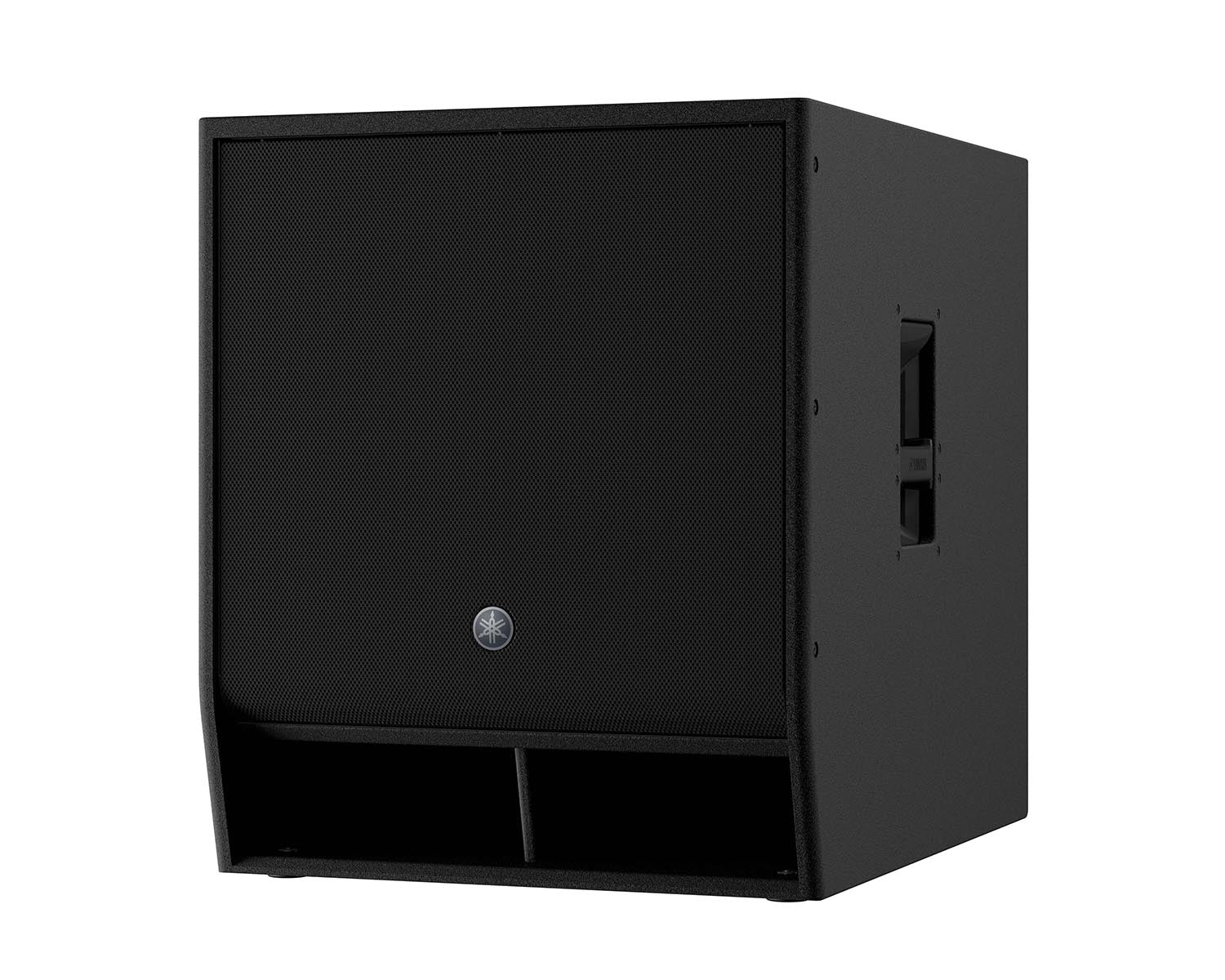

Perfectly suited for use with DZR full-range speakers, the DXS18XLF/ DXS18XLFW is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136 dB with superb clarity and power.

Product Features

• Powered 18" subwoofer with 4" Voice Coil
• Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
• High power 1600W Class-D amplifier module
• 96kHz DSP for true high-resolution sound with super low latency
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• Equipped with D-XSUB processing and cardioid mode capability
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

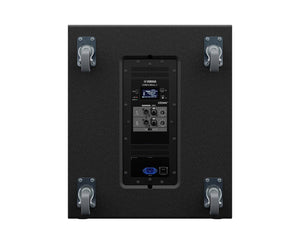

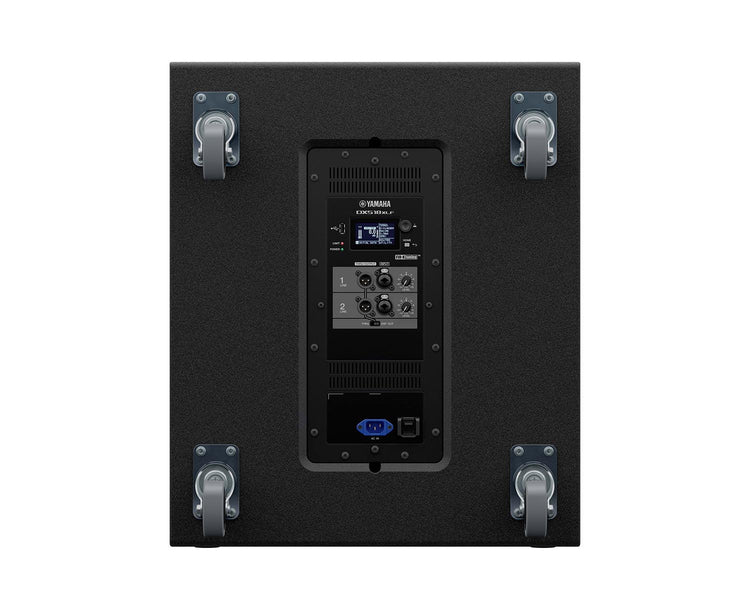

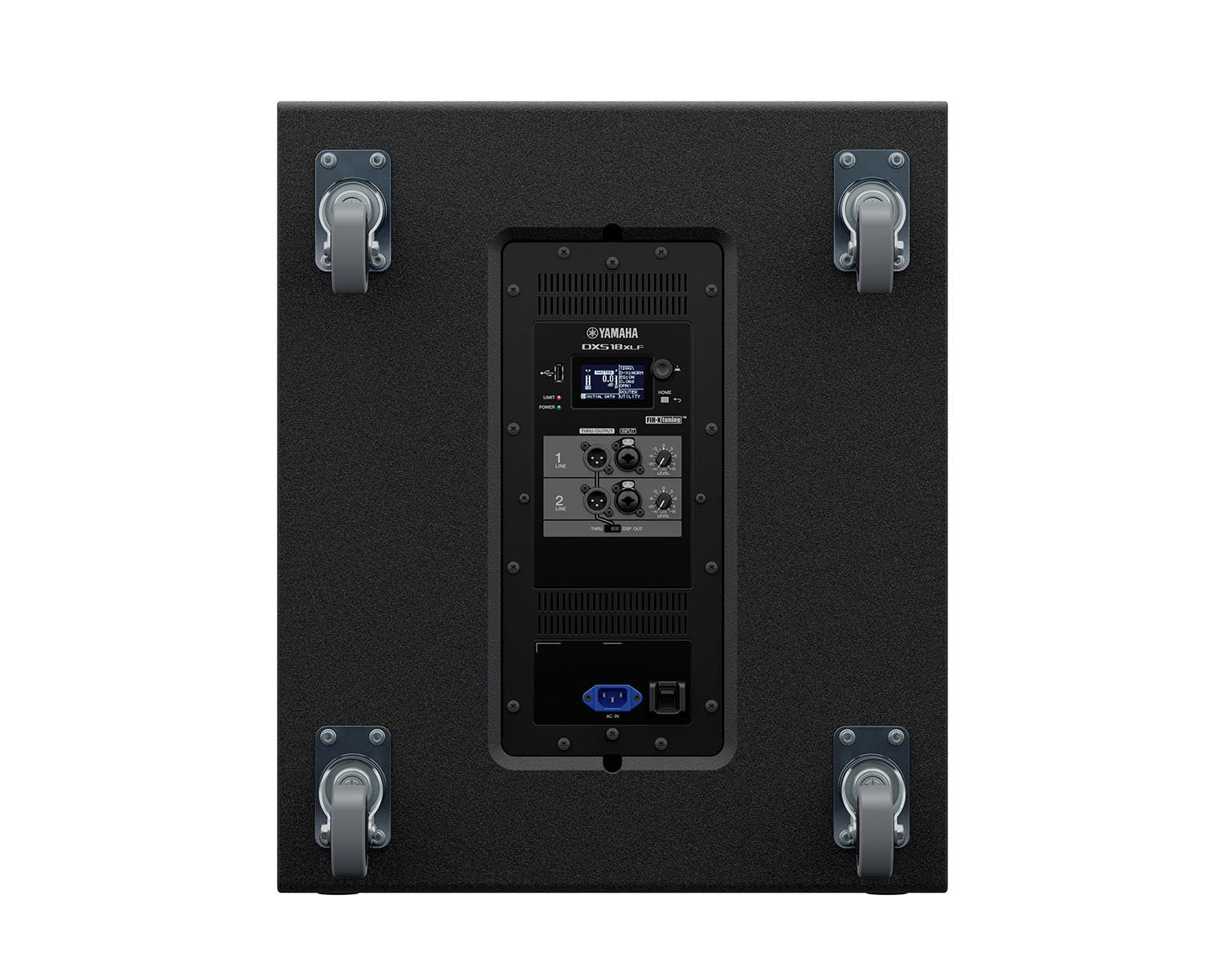

• Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
• Dual pole socket - For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.
• Durable black or white finish

Product Specifications

General

• Speaker Type: Powered Subwoofer, bass-reflex
• Frequency Range (-10dB): 30Hz - 150Hz
• Components

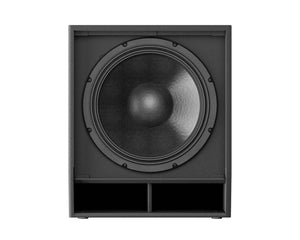

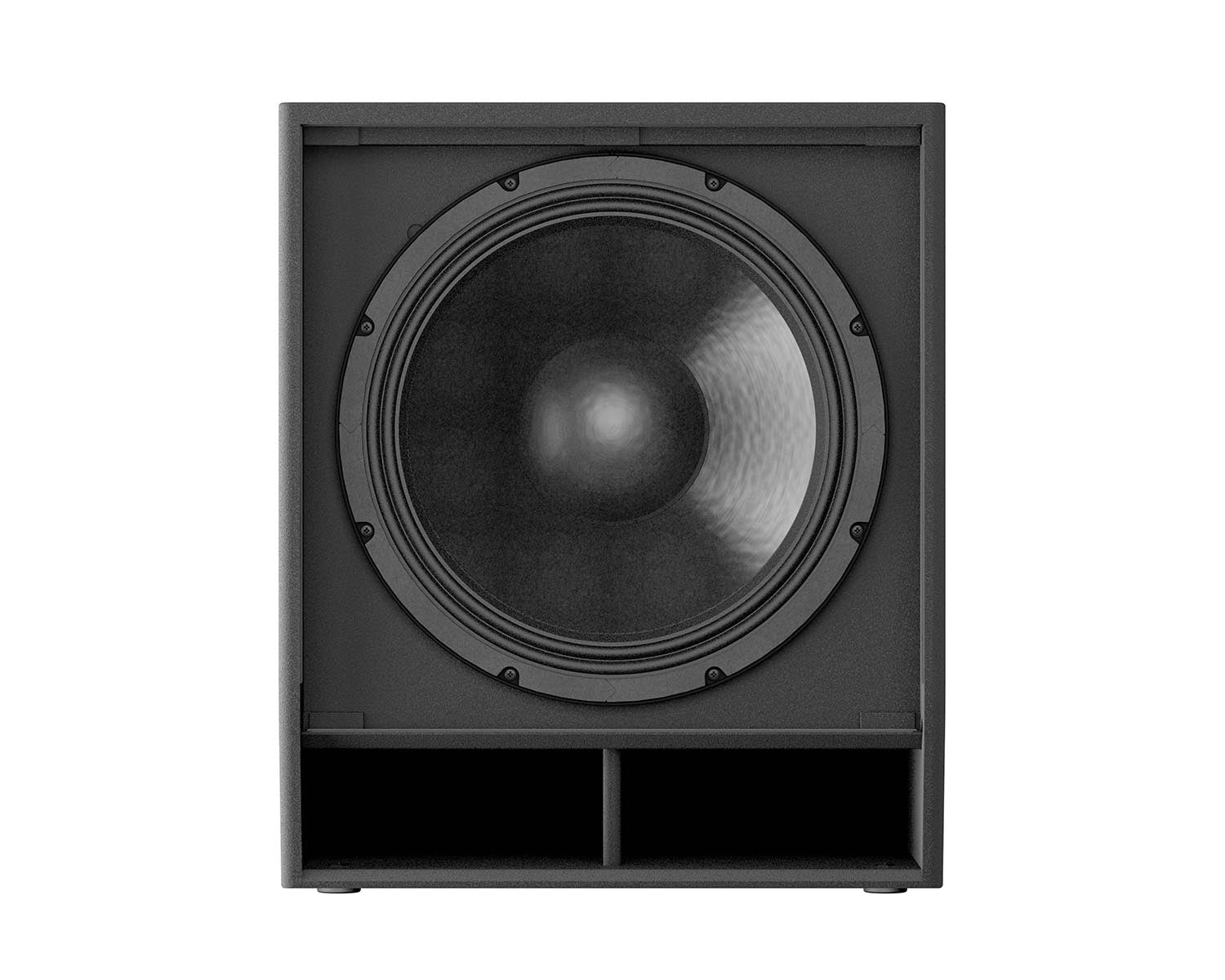

  • LF 18" Cone, 4" Voice Coil, Ferrite magnet
• Sampling Frequency Rate: Internal: 96kHz and FIR Filter
• A/D D/A Converters: 96kHz AD/DA
• Maximum Output Level (1m; on axis): 136dB SPL *1
• Power Rating
  • Dynamic: 1600W *2
  • Burst (20ms): 1300W
  • Continuous: 1200W

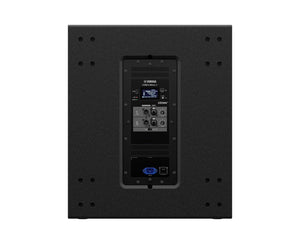

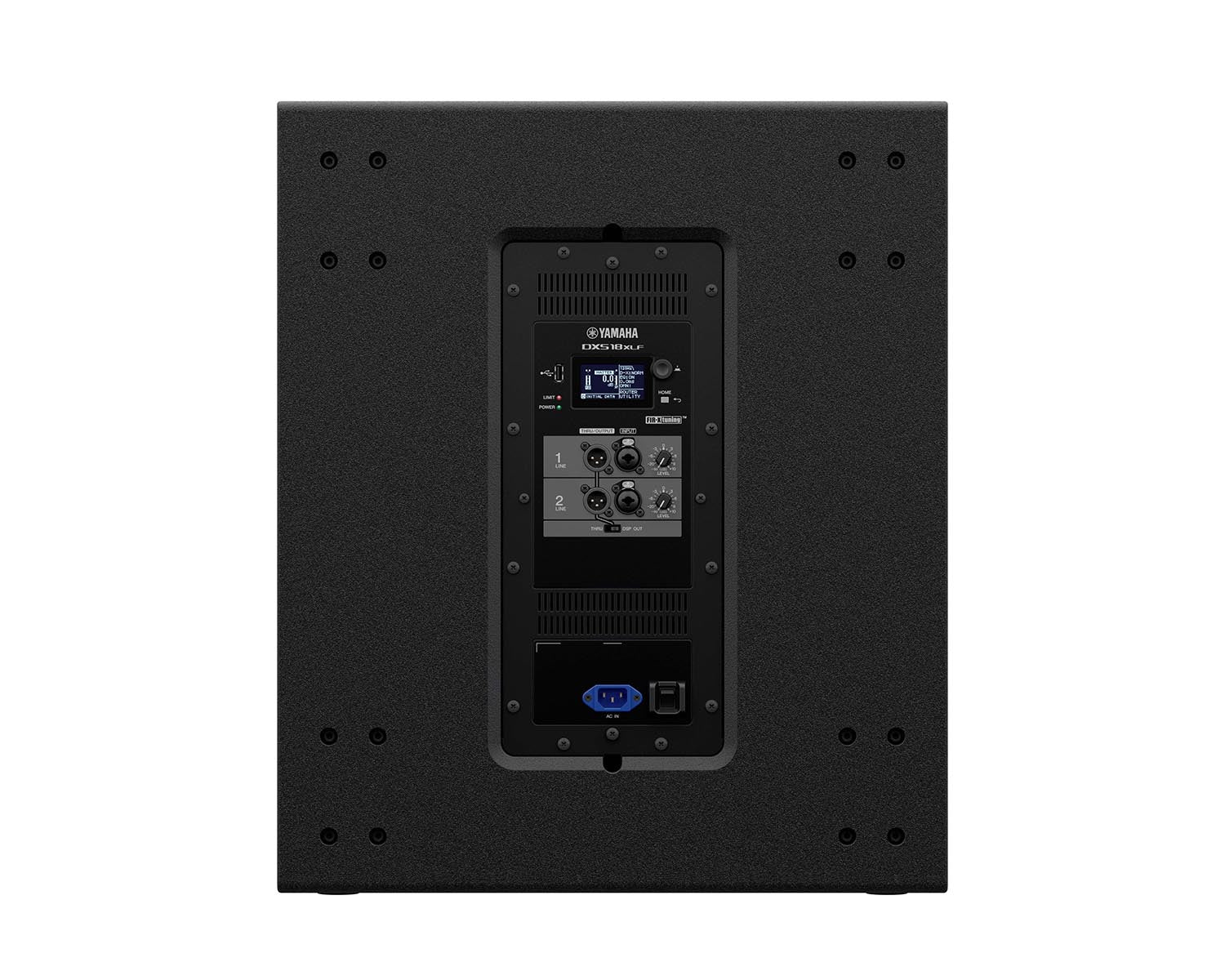

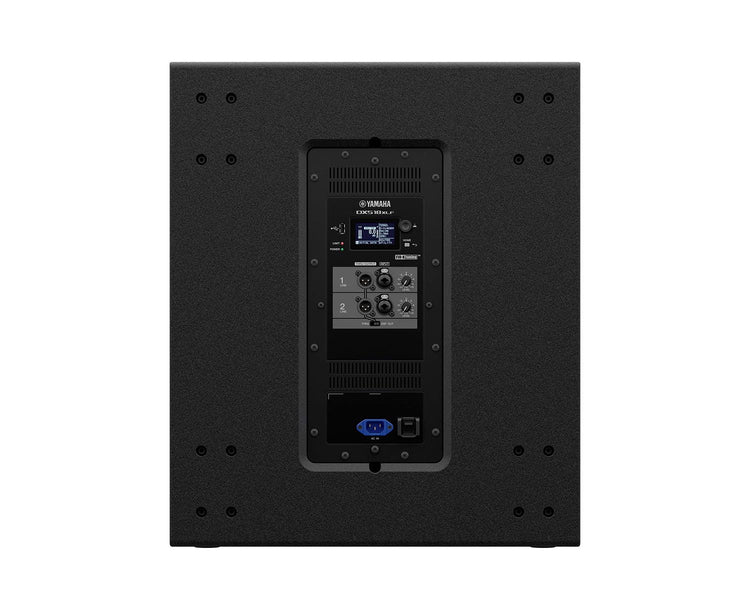

• I/O Connectors
  • Analog I/O
    • Analog IN: Combo x 2, Line level (Maximum +24dBu), Input impedance 20kΩ,
    • Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC: IEC AC inlet x 1 (V-Lock)
• Amplifier Class: Class-D
• Cooling: Fan cooling, Variable speeds
• Power Consumption: 40W (Idle), 180W (1/8)

Physical

• Handle: Aluminium die-cast, Side x 2
• Dimensions (W x H x D): 550mm x 657mm (with rubber feet) x 720mm (21.7" x 25.9" x 28.3")
• Net Weight: 48.9kg (107.8lbs)
• Options: Cover: SPCVR-DXS18X, Caster: SPW-1
• Others: Enclosure Material, Finish, Colour: Plywood, Durable Polyurea Painting, Black/White
• Pole Socket: Ø35mm (depth 80mm), M20 Threaded (depth 25mm)

*1 Measured peak SPL with pink noise @1m.

*2 Total peak power of individual outputs (AC 120V, 25°C). This value was measured at minimum load impedance, with protection released.
