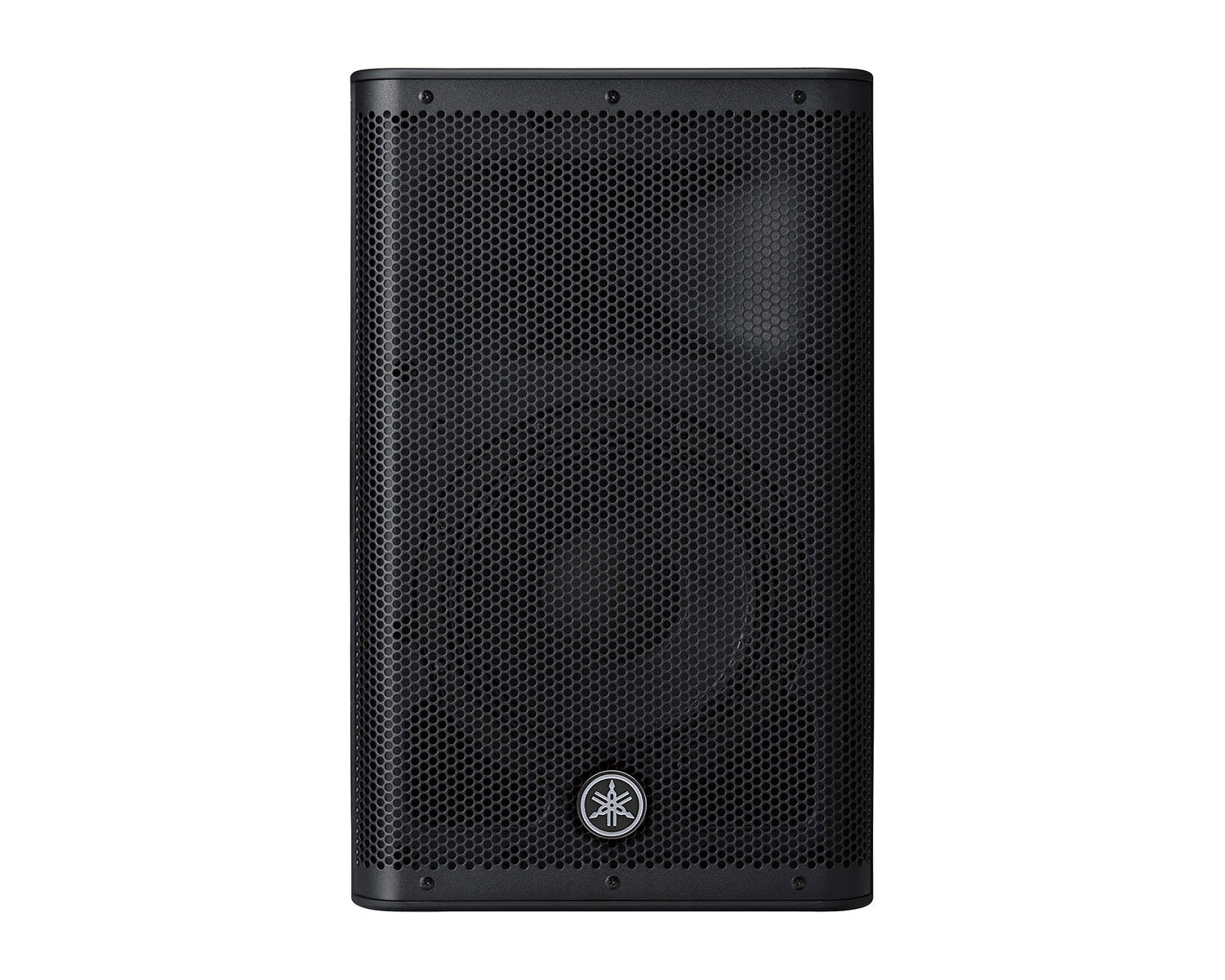

YAMDXR10MKII - Yamaha DXR 10 MKII 10inch 2 Way Class D Active Speaker 1100W Image 1

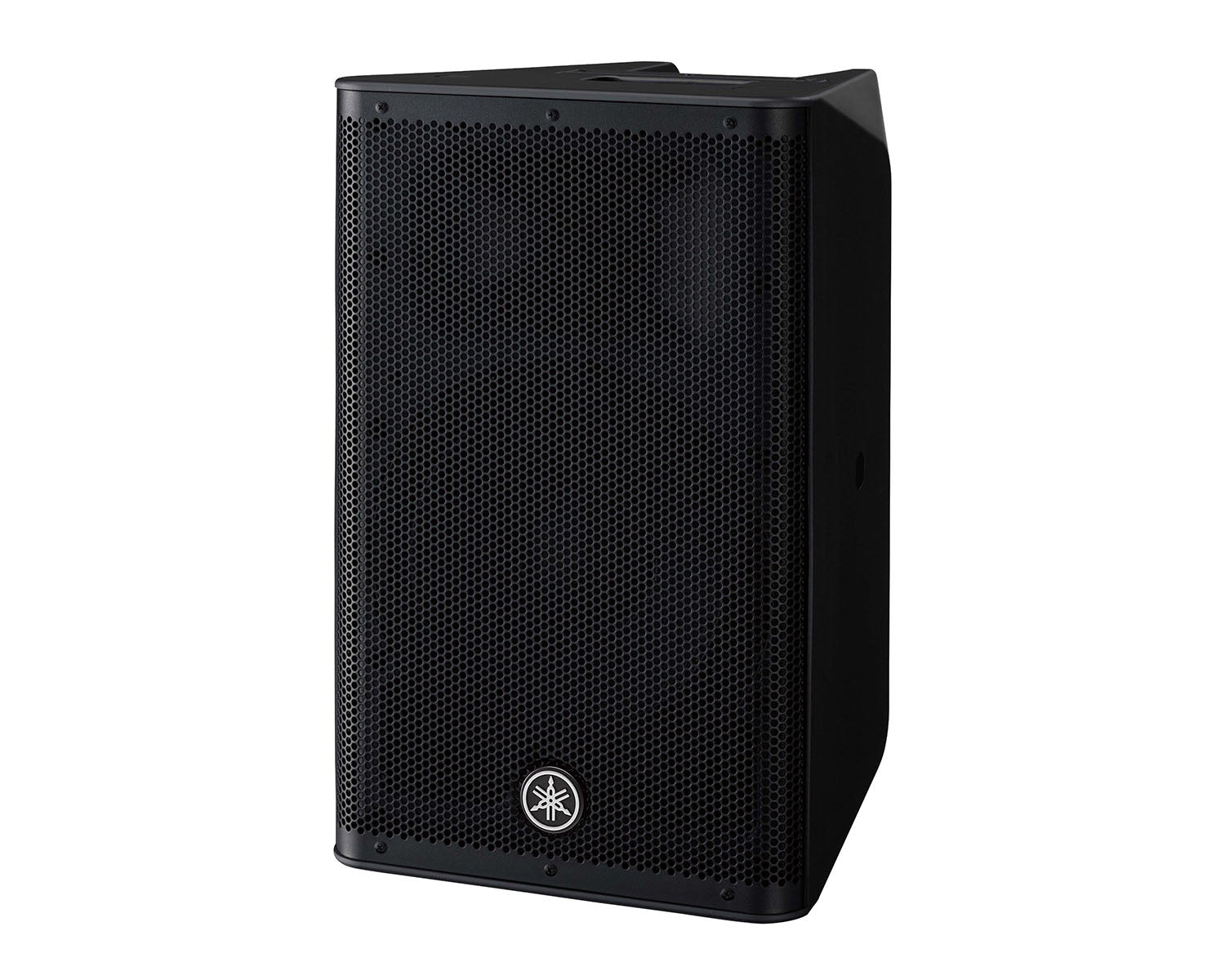

YAMDXR10MKII - Yamaha DXR 10 MKII 10inch 2 Way Class D Active Speaker 1100W Image 2

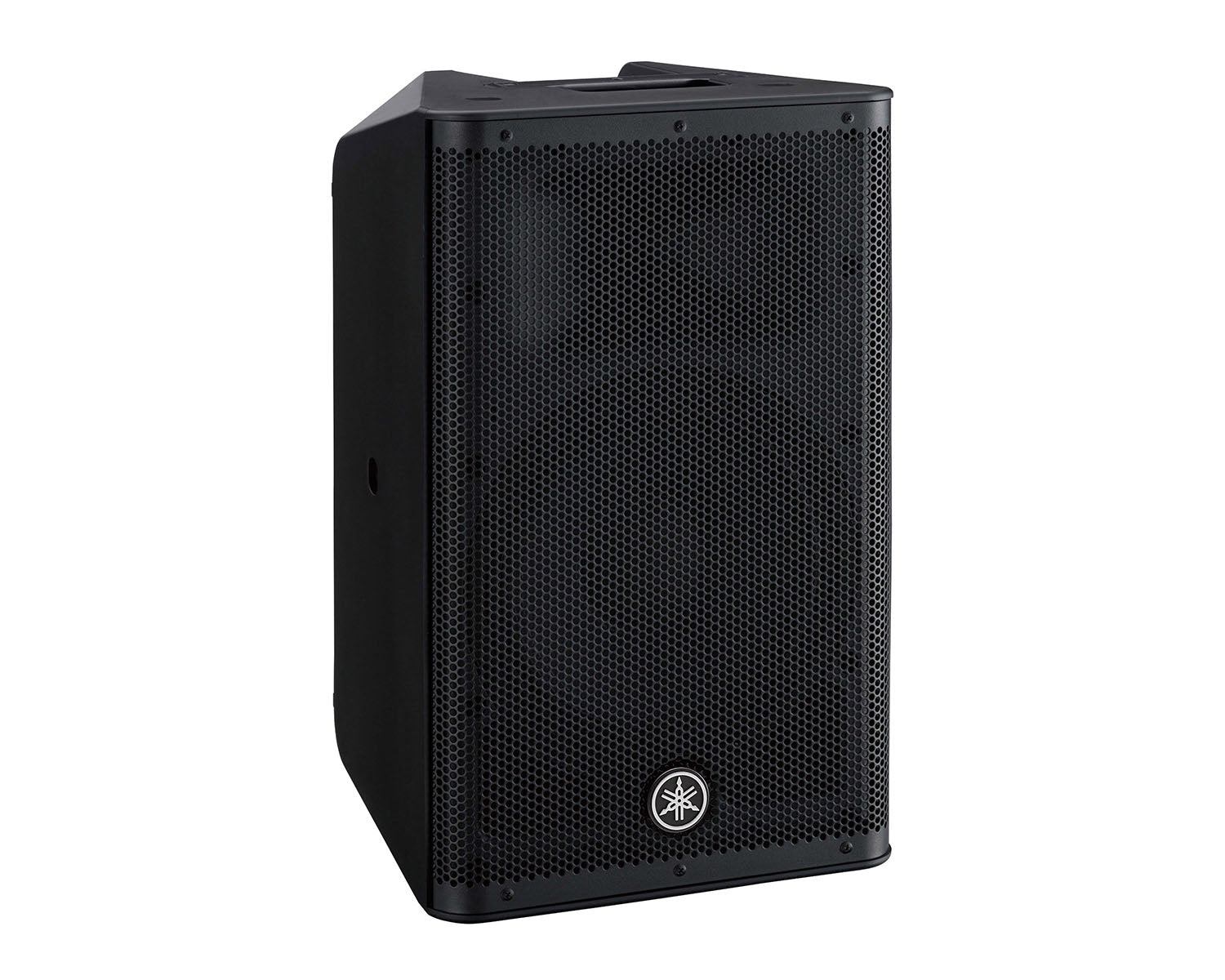

YAMDXR10MKII - Yamaha DXR 10 MKII 10inch 2 Way Class D Active Speaker 1100W Image 3

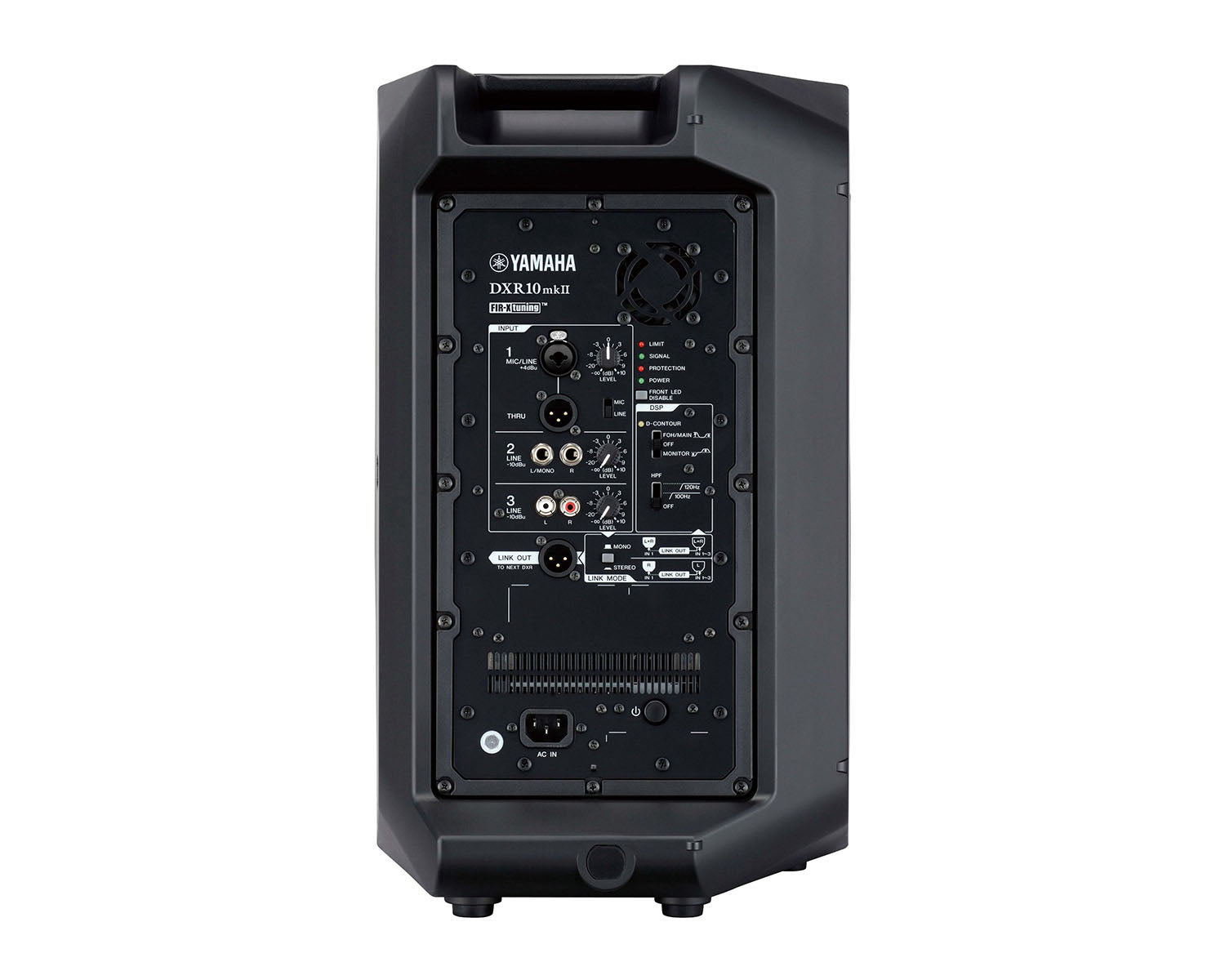

YAMDXR10MKII - Yamaha DXR 10 MKII 10inch 2 Way Class D Active Speaker 1100W Image 4

Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII’s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.

Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.

Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you’ve come to expect from the DXR Series… only MORE.

Product Features

10" Powered loudspeaker
1100W Class-D power amplifier
DSP-controlled advanced protection system
FIR-X tuning™ sound-processing technology
Dynamically control the level of each frequency range according to the application with D-CONTOUR
Finish: Black

Product Specifications

General

Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB): 56Hz - 20kHz
Nominal coverage:
- H: 90°
- V: 60°
Components:
- LF: Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
- HF Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
Crossover: FIR-X tuning™ (linear phase FIR filter)
Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis): 132dB SPL
I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
Power requirements: 100V - 240V, 50Hz/60Hz
Power consumption: 90W
