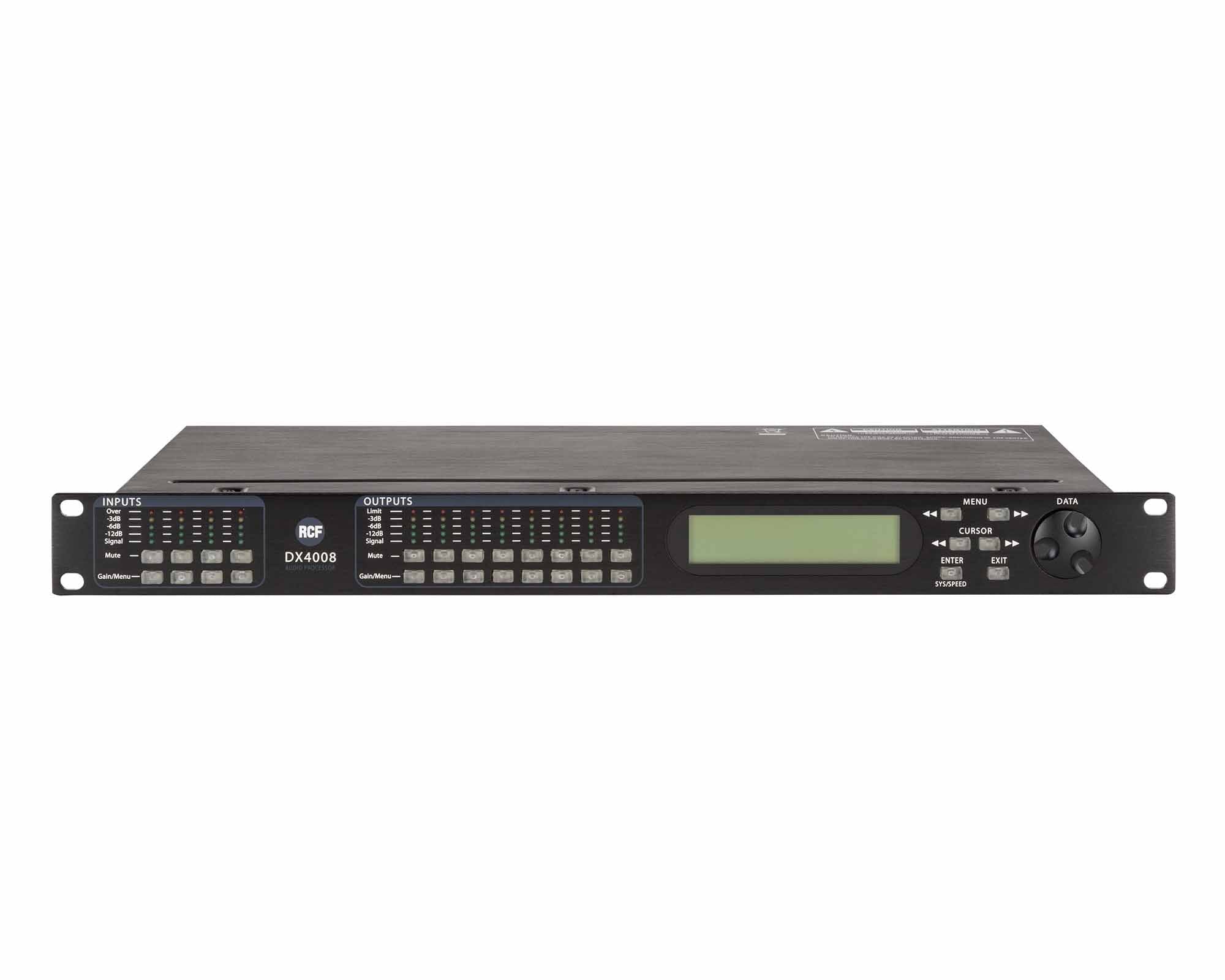

RCFDX4008 - RCF DX4008 Digital Processor 4x Inputs and 8 x Outputs with RS232 1U Image 1

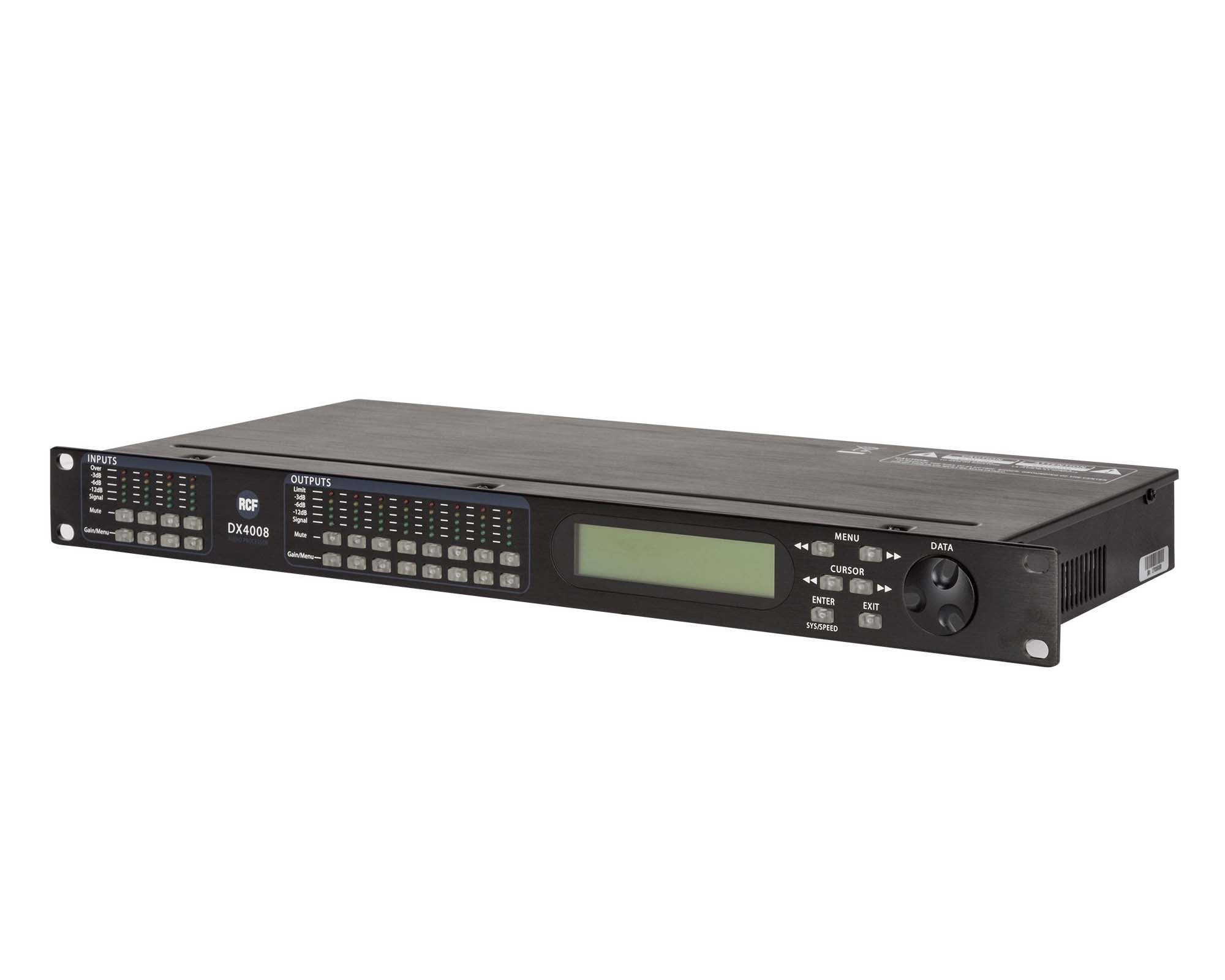

RCFDX4008 - RCF DX4008 Digital Processor 4x Inputs and 8 x Outputs with RS232 1U Image 2

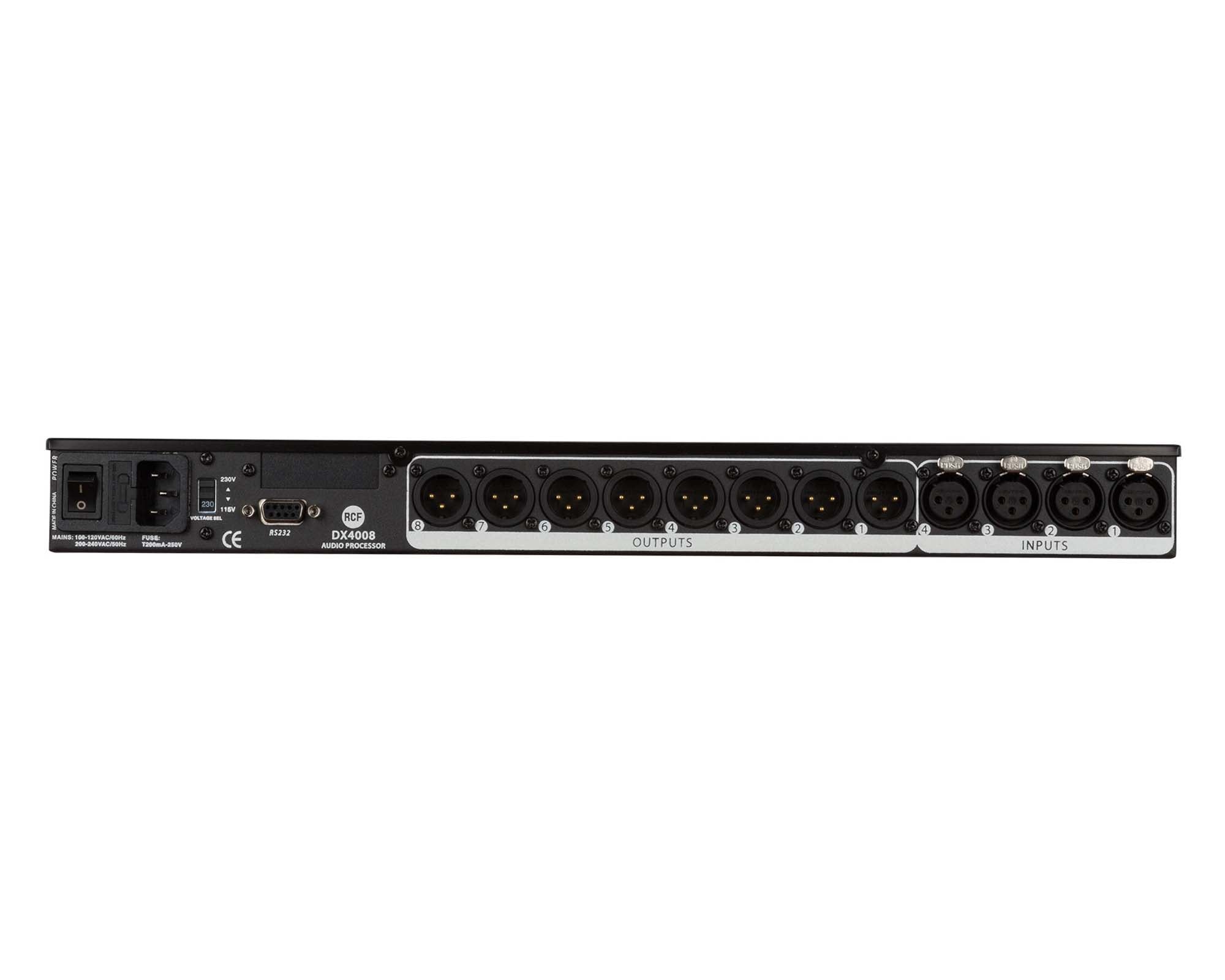

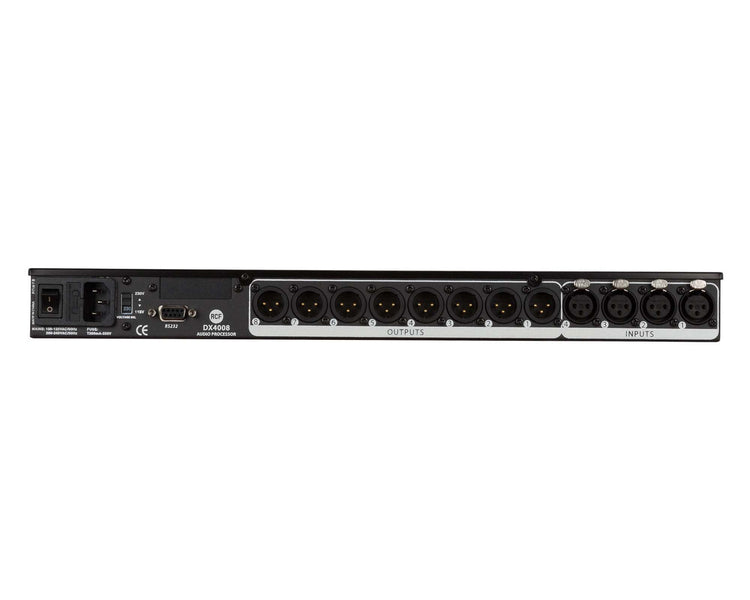

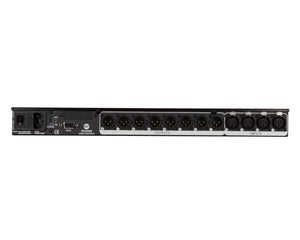

RCFDX4008 - RCF DX4008 Digital Processor 4x Inputs and 8 x Outputs with RS232 1U Image 3

The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets.

The absolute latest in available technology is utilized with 32-bit (40-bit extended) floating point processor and high performance 24-bit Analog Converters. The high-bit DSP prevents noise and distortion induced by truncation errors of the commonly used 24-bit fixed-point devices. A complete set of parameters include I/O levels, delay,polarity, 6 bands of parametric EQ per channel, multiple crossover selections and full function limiters. The DX 4008 can be controlled or configured in real time on the panel or with the intuitive PC GUI accessed via the RS 232 interface. Software upgrade for CPU and DSP via PC keeps the device current with newly developed algorithms and function once available. Multiple setup storage and system security complete this professional package.

Product Features

The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets
Sampling rate can be set to 96kHz
Precise frequency control is achieved with its 1 Hz resolution
Inputs and outputs can be routed in multiple configuration to meet any requirements
The DX 4008 is shipped with a special PC Graphic User Interface (GUI) application - XLink
XLink gives the user an option to control the DX 4008 unit from a remote PC via the RS232 serial communication link
The GUI application makes much easier control and monitor the device, allowing the user to get the whole picture on one screen
Programs can be recalled and stored from/to PC hard drive, thus expanding the storage to become virtuality limitless

Product Specifications

General

Audio performance
- COMMON MODE REJECTION RATIO (50 HZ TO 10 KHZ): >60 dB
- CROSSTALK: <-100 dB
- DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER: <0.001 %
- DYNAMIC RANGE: >115 dB
- FREQUENCY RESPONSE (-3DB): 20 Hz ÷ 20 kHz
Controls
- CONFIGURATION: Front panel, PC Software
- NUMBER OF PROGRAMS/PRESETS: 30
- PROTOCOLS FOR SYSTEM INTEGRATION: ASCII
- Digital audio performance
- A/D - D/A CONVERTERS (BIT): 24
- PROPAGATION DELAY (MS): 3
- RESOLUTION (DB): 40
- SAMPLING RATE (KHZ): 96
Input section
- BALANCED: 4
- LINE CONNECTORS: XLR
- LINE INPUTS: 4
- MONO: 4
- TOTAL NUMBER OF INPUTS: 4
- Output section
- SIGNAL OUTPUT CONNECTORS: XLR
- SIGNAL OUTPUT NUMBER: 8
Power requirement
- OPERATING VOLTAGE: 220-240/115 V~ 50/60Hz
- POWER CONSUMPTION (W): 20 W
- VOLTAGE SELECTION: External
Processing
- CROSSOVER: 20 ÷ 20000 Hz
- DELAY: Yes
- DSP: Yes
- EQ FILTERS: Yes
- HIGH-PASS FILTER: 20 ÷ 20000 Hz
- TONE CONTROLS: Yes
Protections:
- COOLING: Convection
- FUSES: Yes
