The Desono™ DX surface mount loudspeakers provide high efficiency, high output, high intelligibility and low distortion in an attractive design. These loudspeakers install quickly and have the same components and voicing as the DX ceiling loudspeakers. The DX surface mount loudspeakers are equipped with a built-in 70 V/100 V autoformer and low impedance input.

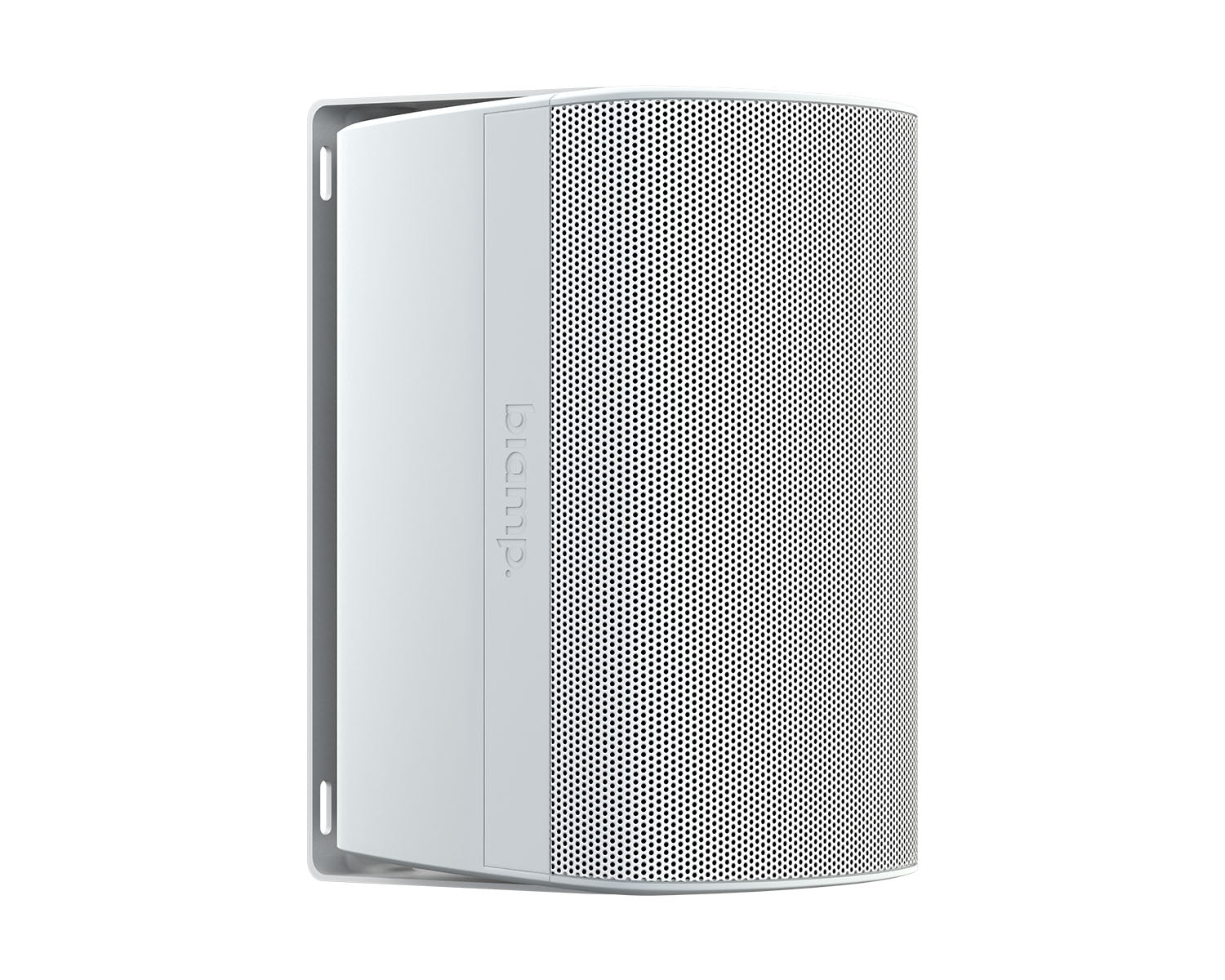

For larger installations, the 8" coaxial DX-S8 provides higher sound pressure levels, higher sensitivity and greater bass extension. The DX-S8 also easily outperforms competitive 10" format loudspeakers. With a modern appearance that merges well in most environments, combined with weather-resistant capability suitable for direct outdoor use, the DX-S8 can be used in a wide variety of speech and music applications.

Product Features

• 8" surface mountable speaker
• The same components and voicing as the DX ceiling speakers
• Built-in 70 V/ 100 V autoformer
• Low impedance input
• Wether-resistant capability
• Uniform coverage from coaxially mounted HF/LF drivers
• High efficiency, high output, high intelligibility, low distortion
• Choice of models with ClickMount™

Product Specification

• Operating Mode: Single Amplified with DSP
• Operating Environment: Indoor / Outdoor Direct Exposure
• Operating Range (-10dB): 62 Hz to 18 kHz
• Nominal Beamwidth (H x V): 110° x 110 °
• Transducers: LF 1 x 8" (203 mm) | HF 1 x 1.25" (32 mm) exit compression driver
• Sensitivity: 95 dB (2.83 V) 94 dB (1 W at rated impedance)
• Nominal Continuous Power: Handling4 Passive 35 V (175 W @ 7 Ω)
• Nominal Maximum SPL5: Passive | Peak: 122 dB | Continuous: 116 dB
• Rated Continuous Voltage: Passive | 29.2 V (29 dBV)
• Rated Maximum SPL(Processed): Passive | Peak: 126 dB | Continuous: 114 dB
• Autoformer: 70 V: 120 W, 60 W, 30 W, 15 W; 100 V: 120 W, 60 W, 30 W
• Recommended Amplifiers: Passive | 175 W - 350 W into 8 Ω, (37 V - 53 V)
• Crossover Frequency: 1.4 kHz
• Required Accessory: 60 Hz, 12 dB/oct. electronic high pass filter

PHYSICAL

• Input Connection : Lever-actuated wire clamping 4-position terminal block with pass-through
• Controls: Wattage / low impedance selector switch
• Mounting Provisions: ClickMount pan-tilt bracket or U-Bracket
• Certifications: ETL listed, certified to CSA STD C22.2# 62368-1
• Environmental Rating: IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation), IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2), IEC 60068-2-60 (Chlorine)
• Dimensions H x W x D: 385 x 255 x 260 mm (15.16" x 10.04" x 10.24")
• Weight: 7.71 kg (17.0 lbs) - loudspeaker only
