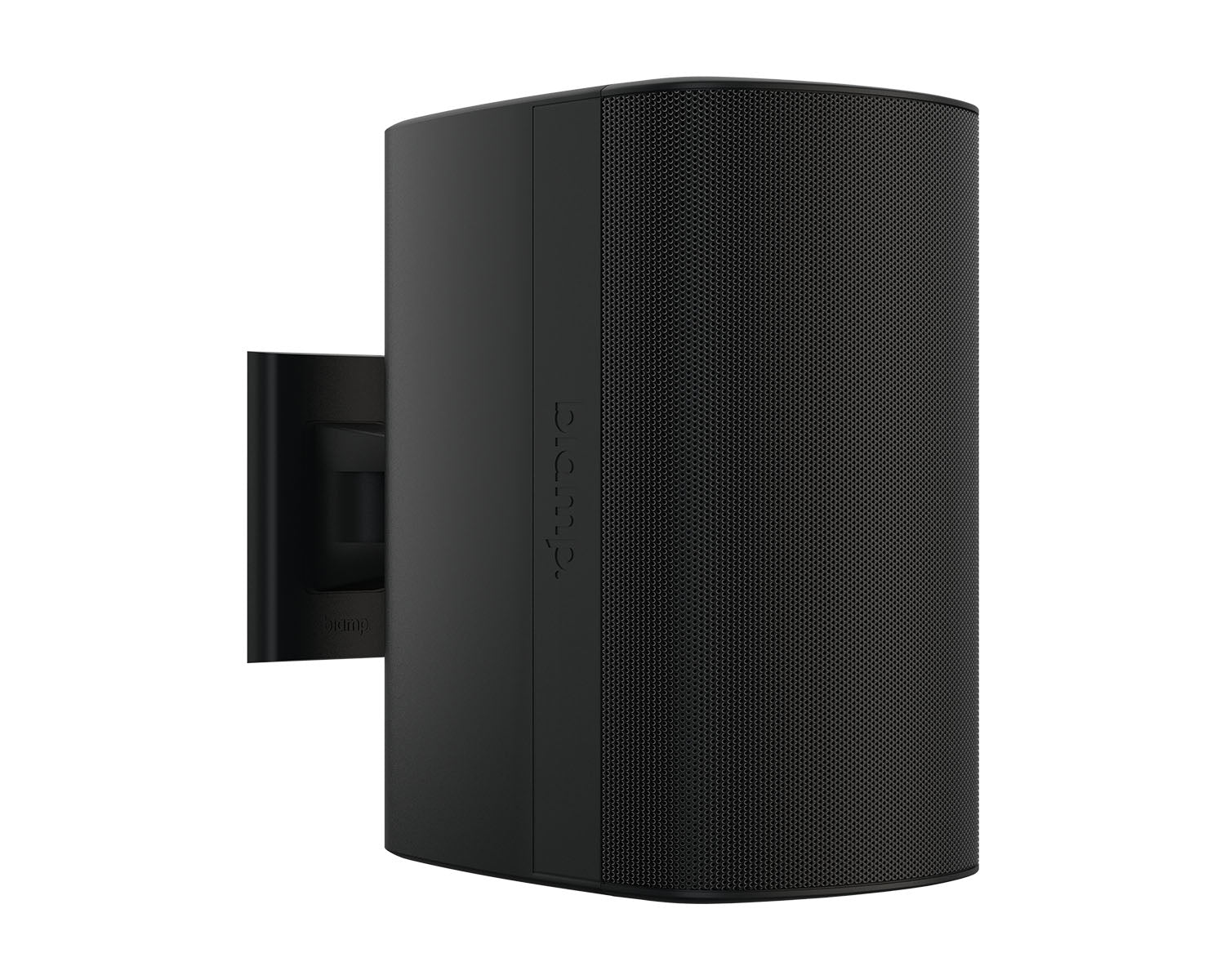

The Desono™ DX surface mount loudspeakers provide high efficiency, high output, high intelligibility and low distortion in an attractive design. These loudspeakers install quickly and have the same components and voicing as the DX ceiling loudspeakers. The DX surface mount loudspeakers are equipped with a built-in 70 V/100 V autoformer and low impedance input.

For larger installations, the 8" coaxial DX-S8 provides higher sound pressure levels, higher sensitivity and greater bass extension. The DX-S8 also easily outperforms competitive 10" format loudspeakers. With a modern appearance that merges well in most environments, combined with weather-resistant capability suitable for direct outdoor use, the DX-S8 can be used in a wide variety of speech and music applications.

Product Features

• High efficiency, high output, high intelligibility, low distortion
• Uniform coverage from coaxially mounted HF/LF drivers
• Innovative ClickMount™ pan-tilt bracket makes installation and aiming easy
• Uniform voicing with DX ceiling loudspeakers
• ETL listed to comply with UL 1480A, CE marked, and RoHS compliant
• Finish: Black

Product Specifications

• Operating Mode: Passive with DSP
• Operating Environment: Indoor / Outdoor
• Operating Range (-10dB): 60 Hz to 20 kHz
• Nominal Beamwidth (H x V): 115°, conical
• Transducers:
  • LF 1 x 8" (203 mm)
  • HF 1 x 1.25" (32 mm) exit compression driver
• Sensitivity: 95 dB (2.83 V), 95 dB (1W at rated impedance 8 Ω)
• Nominal Continuous Power Handling: Passive, 35V (150W @ 8 Ω)
• Nominal Maximum SPL: Passive, Peak 123 dB, Continuous 117 dB
• Autoformer:
  • 70V: 120 W, 60 W, 30 W, 15 W;
  • 100V: 120 W, 60 W, 30 W
• Recommended Amplifiers: Passive, 150W - 300W @ 8 Ω, (35V - 49V)
• Crossover Frequency: 1.3 kHz
• Required Accessory: 60 Hz 24 dB/ Oct Electronic high pass filter
• Input Connection: Lever-actuated wire clamping 4-position terminal block with pass-through
• Controls: Wattage / low impedance selector switch
• Mounting Provisions: ClickMount pan-tilt bracket
• Certifications ETL listed to comply with UL 1480A and CSA 62368-1
• Environmental Rating:
  • IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation),
  • IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2),
  • IEC 60068-2-60 (Chlorine)
• Dimensions (H x W x D): 385 x 255 x 260 mm ( 15.16" x 10.04" x 10.24")
• Weight: 8.05 kg
• Finish: Black
• Accessories (included): ClickMount wall mount

What's in the Box?

• ClickMount wall mount
