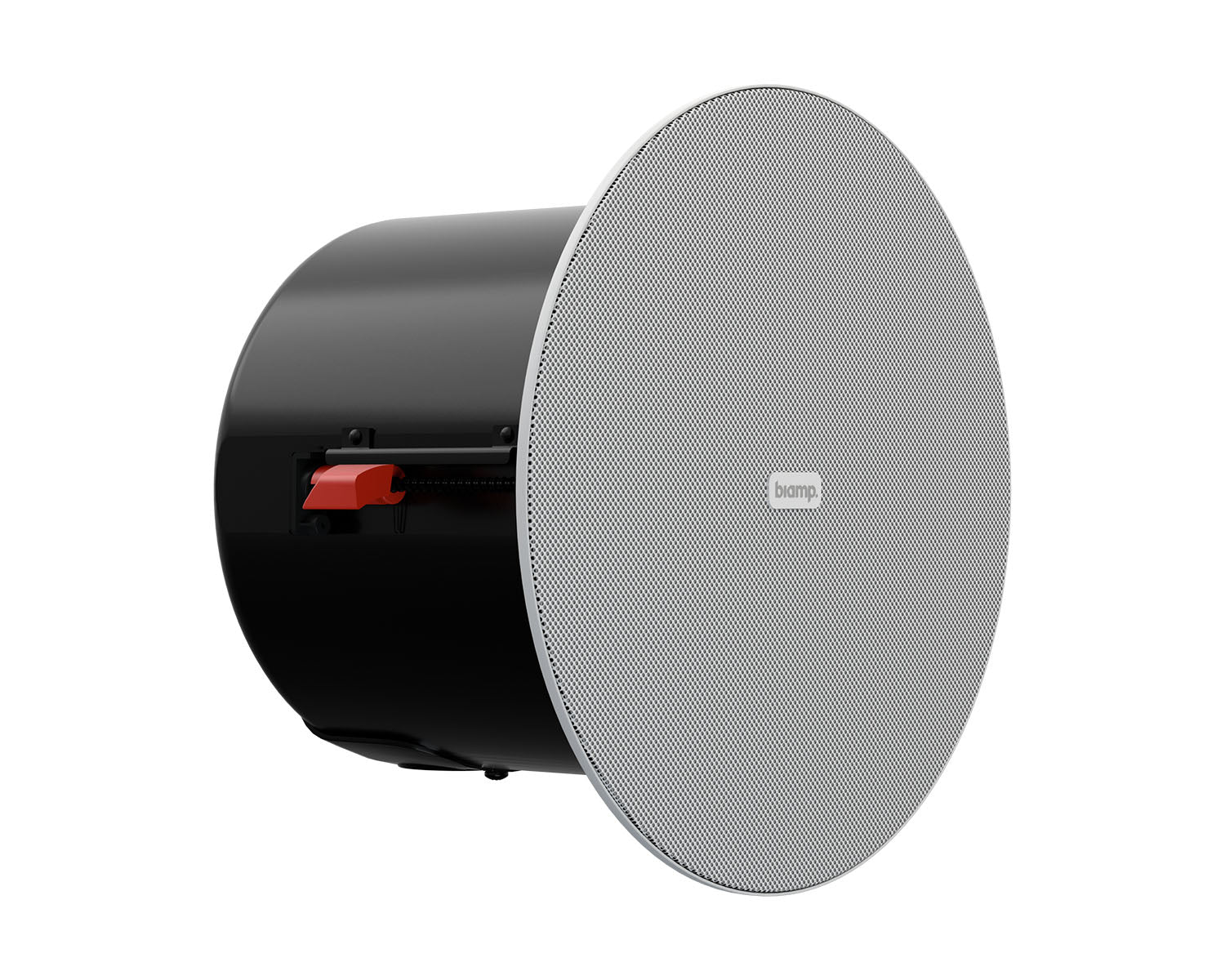

The smallest member of the Desono DX ceiling loudspeakers, the DX-IC4 possesses the advanced features of its larger siblings with performance that belies its small size. Suitable for paging, background music, or to augment larger systems, the DX-IC4 is a versatile performer. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC4 apart from other products in its size and price range. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC4 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.

Product Features

• High intelligibility with exceptional uniform coverage
• Fast installation with SpringLock™ mounting clamps
• Consistent, wide dispersion up to 16 kHz
• Attractive edgeless magnetic grille design
• Conduit knock-outs on the input cover meet plenum air space handling requirements
• Finish: White

Product Specifications

• Operating Mode: Passive with DSP
• Operating Environment: Indoor
• Operating Range (-10dB): 62 Hz to 18.5 kHz
• Nominal Beamwidth (H x V): 130°, conical
• Transducers:
  • LF 1 x 4.5" (114 mm)
  • HF 1 x 0.75" (19 mm) exit compression driver
• Sensitivity: 91 dB (2.83 V), 91 dB (1W at rated impedance 8 Ω)
• Nominal Continuous Power Handling: Passive, 22 V (60W @ 8 Ω)
• Nominal Maximum SPL: Passive, Peak 115 dB, Continuous 109 dB
• Autoformer: 70V: 30 W, 15 W, 7.5 W, 3.75 W; 100V: 30 W, 15 W, 7.5 W
• Recommended Amplifiers: Passive, 60W - 120W @ 8 Ω, (22V - 31V)
• Crossover Frequency: 2 kHz
• Required Accessory: 62 Hz Electronic high pass filter
• Input Connection: 4-position Euroblock connector
• Controls: Front-face wattage / low impedance selector switch
• Mounting Provisions: 2 SpringLock mounting clamps with 3-inch grip range
• Certifications: ETL listed to comply with UL1480, UL2043 and CSA62368-1. Suitable for use in air handling spaces per NFPA 70 and NFPA 90
• Dimensions: W x D 258 mm x 172 mm ( 10.16" x 6.76")
• Weight: 3.625 kg
• Accessories (included): C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver

What's in the Box?

• C-Ring supporting plate
• Tile support bridge rails
• Grille
• Paint mask
• Cut-out template
• Flat screwdriver
