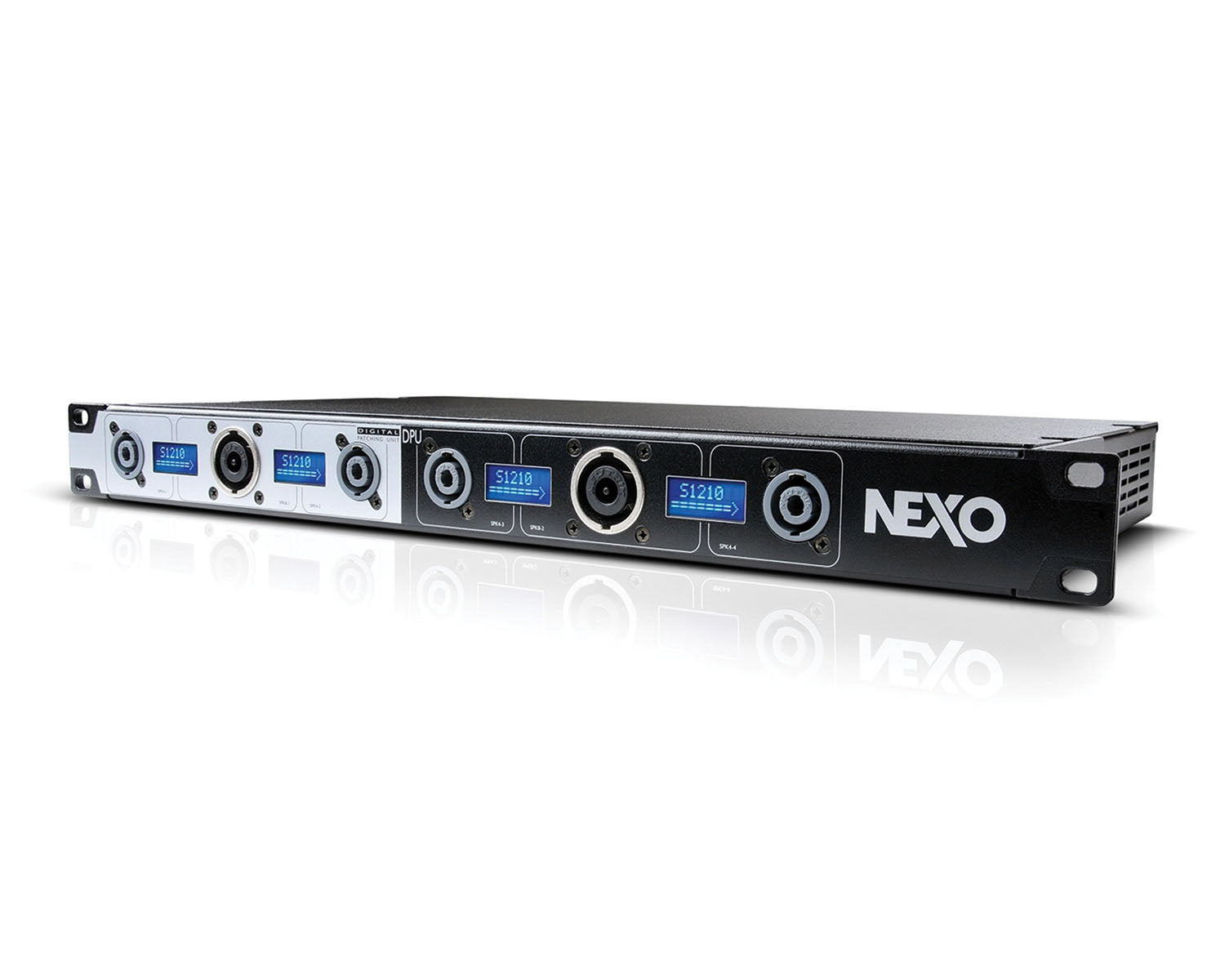

The DPU optimises the NXAMP or NXAMPMK2’s channel by channel preset selection by automatically routing its outputs to any of six output connectors on the DPU front panel. Cabinet names and bridging status are displayed alongside each output, making it easy to wire the system.

The DPU is a unique tool that will perfectly fit your NXAMPs when used on the road. It offers all the necessary tools to ensure easy patching of the NXAMP power outputs.

World-first intelligent output patch

Forget about the classical static output patch panel full of sticky tape and unreadable inscriptions. The DPU communicates directly with the NXAMP and knows which loudspeaker setup is currently running.

It can then automatically route the amplifier’s power outputs to the correct output speakon on its front panel, whatever Nexo speaker is connected, in bridge mode or not.

Ultimately, it offers the possibility to link two NXAMP together on the same output, for systems where more than one amplifier is needed.

Fully redundant design

The DPU is powered through a dual fully certified medical grade power supply system. Any of the two lockable power cords can be unplugged anytime without any drop on the audio signal.

The heavy-duty ultra-low impedance switching matrix used for audio routing is also implemented using a redundant design, ensuring maximum security.

Zero configuration

Using the DPU is extremely easy; not only there is nothing to set up, as all routing parameters are automatically configured, but it tests also that all connections to NXAMP are correct.

Useful display

The DPU provides also crucial information when connecting your Nexo speakers to the NXAMP.

When the NXAMP is muted, the four individual LCD display for each output the name of the speaker, its pin-out and the NXAMP inputs in use. When unmuted, the LCD turns into four easy readable output meters.

Product Features

• Intelligent output patch panel offering digital communication with NXAMPs.
• Provide automatic output speakons wiring regarding the configuration of the NXAMP.
• Four individual LCD for easy labelling of the outputs speakons.
• Fully redundant design for maximum safety, including dual power socket and dual universal power supplies.
• Plug and play operation, totally driven by the host NXAMP.

Product Specifications

ROUTING FEATURES

• Routing Matrix: Route any of the four input channels to one or several Speakon pins pairs on the front

FRONT PANEL FEATURES

• Power outputs: 4 Neutrik Speakon-4 and 2 Neutrik Speakon-8.
• LCD Displays: 4 LCD displays, 2 x 8 characters.

BACK PANEL FEATURES

• NXAMP power inputs: 2 Neutrik Speakon-4 for connecting the NXAMP Powered TDcontroller.
• NXAMP interface: RS232 interface for communication with the NXAMP Powered TDcontroller.
• Mains inputs: 2 IEC connectors with security latch.

DISPLAYED INFORMATION

• When muted: Connected speaker name, speaker pin-out, connected NXAMP inputs names.
• When unmuted: Connected speaker name, output meter.

SPECIFICATIONS

• Power supply: Fully redundant, dual universal 100 ~ 240 Volts, 50 or 60 Hz, 25 Watts
• Dimensions: 1U 19" Rack - 248 mm (10") Depth
• Weight: 4.7 Kg (10.4 lbs) net
• Electrical Safety Certification: cETLus, CB (CE)
• EMC Certification: CE, FCC
• Green status: Compliant with ROHS and REACH directive

ORDERING INFORMATION

• Digital Patching Unit for NXAMP NX.DPU (1 x DPU, 1 x Quick Start Guide)
• Cable Kit for DPU, 100 ~120 Volts NX.DPU.CK1 (2 x US lockable power cord, 1 x RS232 link, 2 x Speakon link 4x4 mm²)
• Cable Kit for DPU, 220 ~240 Volts NX.DPU.CK2 (2 x EU lockable power cord, 1 x RS232 link, 2 x Speakon link 4x4 mm²)
