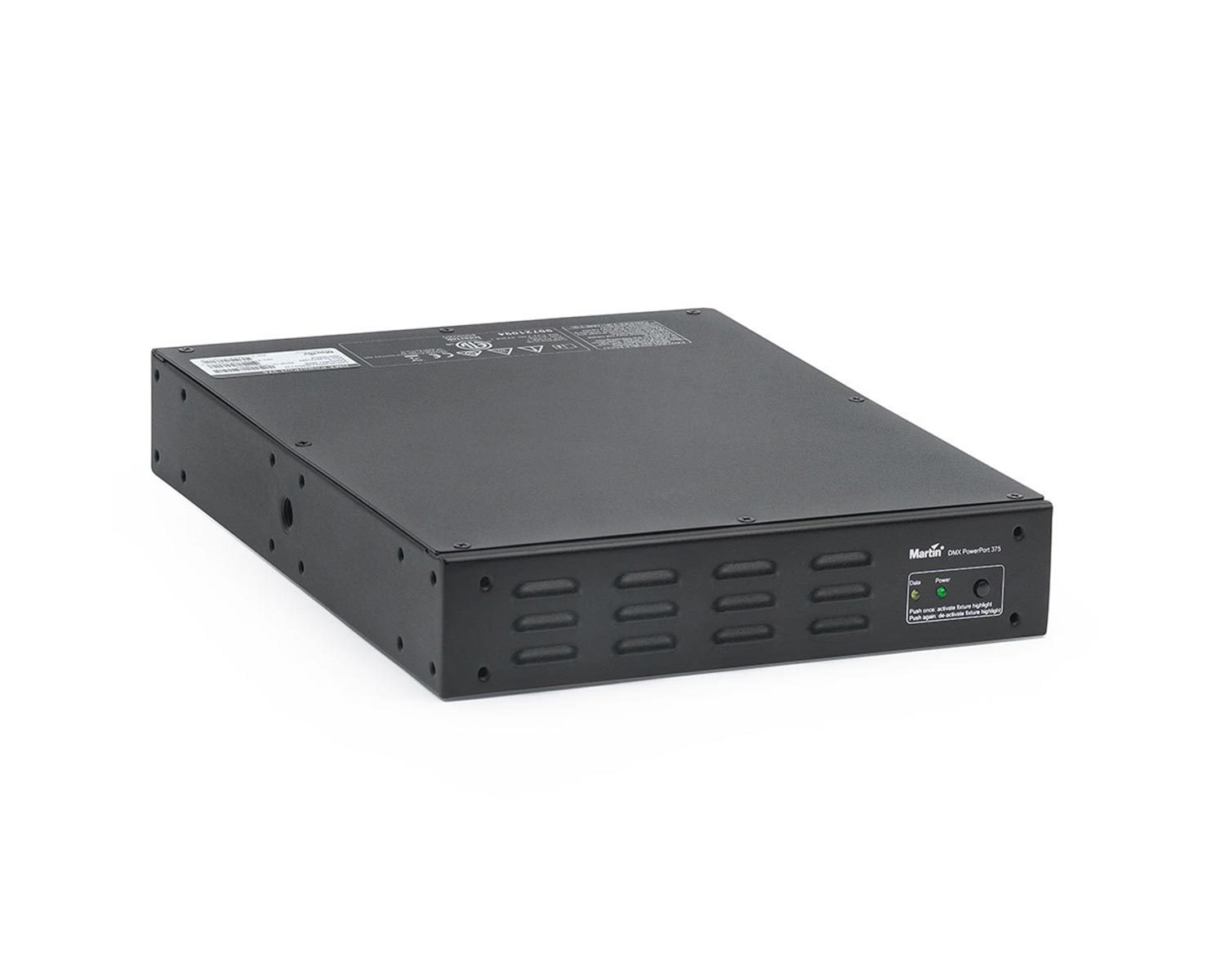

The DMX PowerPort 375 is a compact and versatile power supply for the entire Martin Creative LED Video range, to be used in DMX-based applications.

The DMX PowerPort 375’s versatile housing supports single- and dual-unit mounting in 19” racks, wall-mounting and truss-mounted hanging configurations. The robust connectors and built-in DMX/RDM compatible splitter facilitate easy daisy-chaining between units, while the local test-button provides quick system-check without running back to the console.

The DMX PowerPort 375 is compatible with these product families:

• Martin VDO Fatron
• Martin VDO Dotron
• Martin VDO Sceptron
• Martin VC-Grid
• Martin VC-Strip
• Martin VC-Dot
• Martin Exterior PixLine
• Martin Exterior Dot-HP

Product Features

• Rack, truss and wall-mountable
• Compact design
• DMX/RDM IN and THRU
• Built-in DMX/RDM splitter
• Hybrid power/data output port
• Local test button

Product Specifications

PHYSICAL

• Width: 220mm (single or double unit 19” rack-mountable with included rackmount ears)
• Height: 44mm (rack mount 1U)
• Depth: 289mm
• Weight: 2.33 kg

CONTROL AND PROGRAMMING

• Control Protocols: DMX and RDM
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• DMX/RDM Transceiver IN/THRU: Opto-Isolated RS-485
• DMX/RDM Transceiver OUT: Opto-Isolated RS-485
• Setting and Addressing of connected fixtures: RDM
• Firmware update: over DMX link using Martin Companion

CONTROL/USER INTERFACE

• Power output status: Green LED
• Data Activity Status: Yellow LED
• Fixture Test: Pushbutton to call up test pattern

CONSTRUCTION

• Housing: Steel
• Color: Matte Black
• Protection rating: IP 20
• RoHS: Compliant
• REACH: Compliant

INSTALLATION

• Orientation: Any

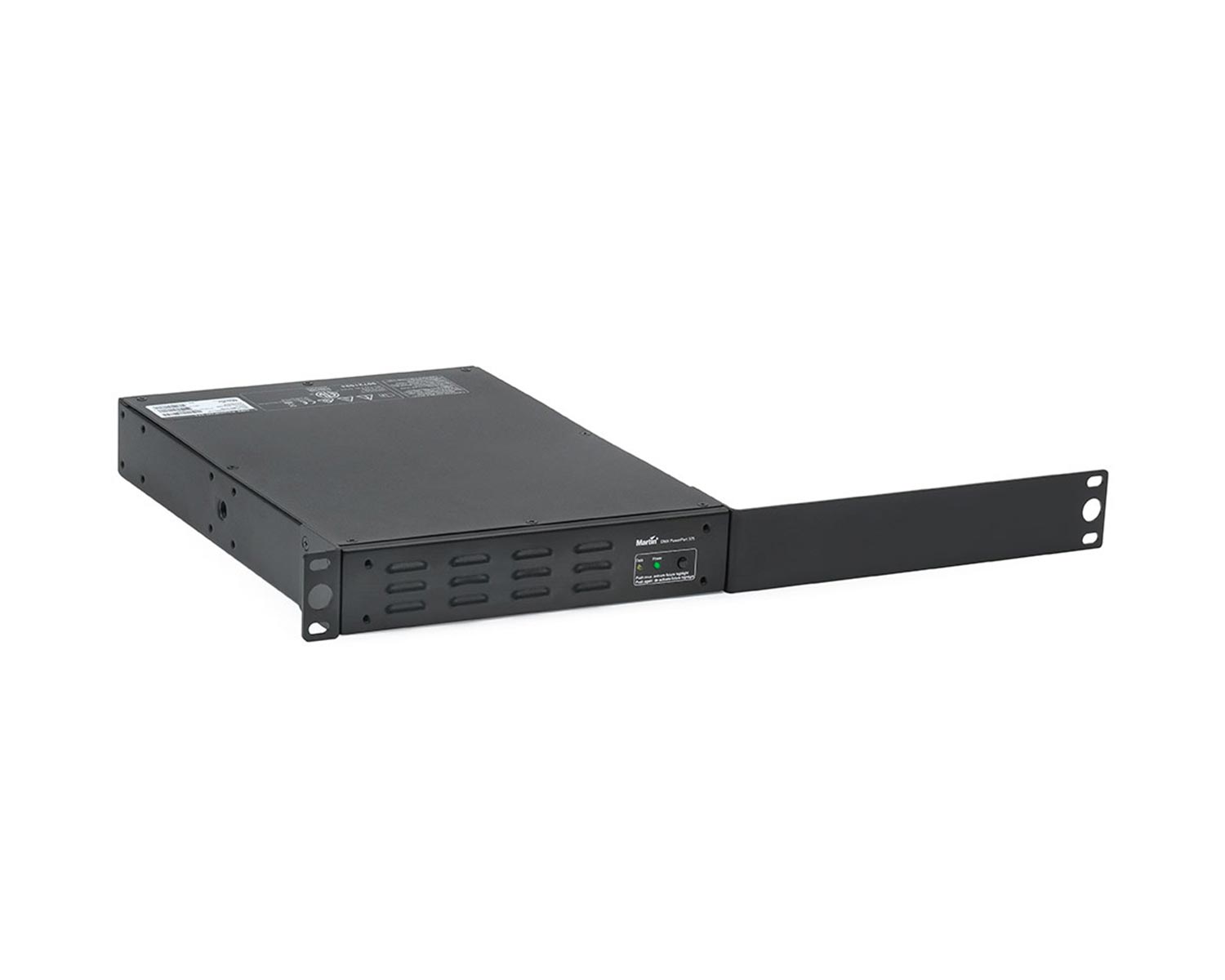

• Single Unit 19-inch Rackmount: Using supplied short and long rack mounting ears

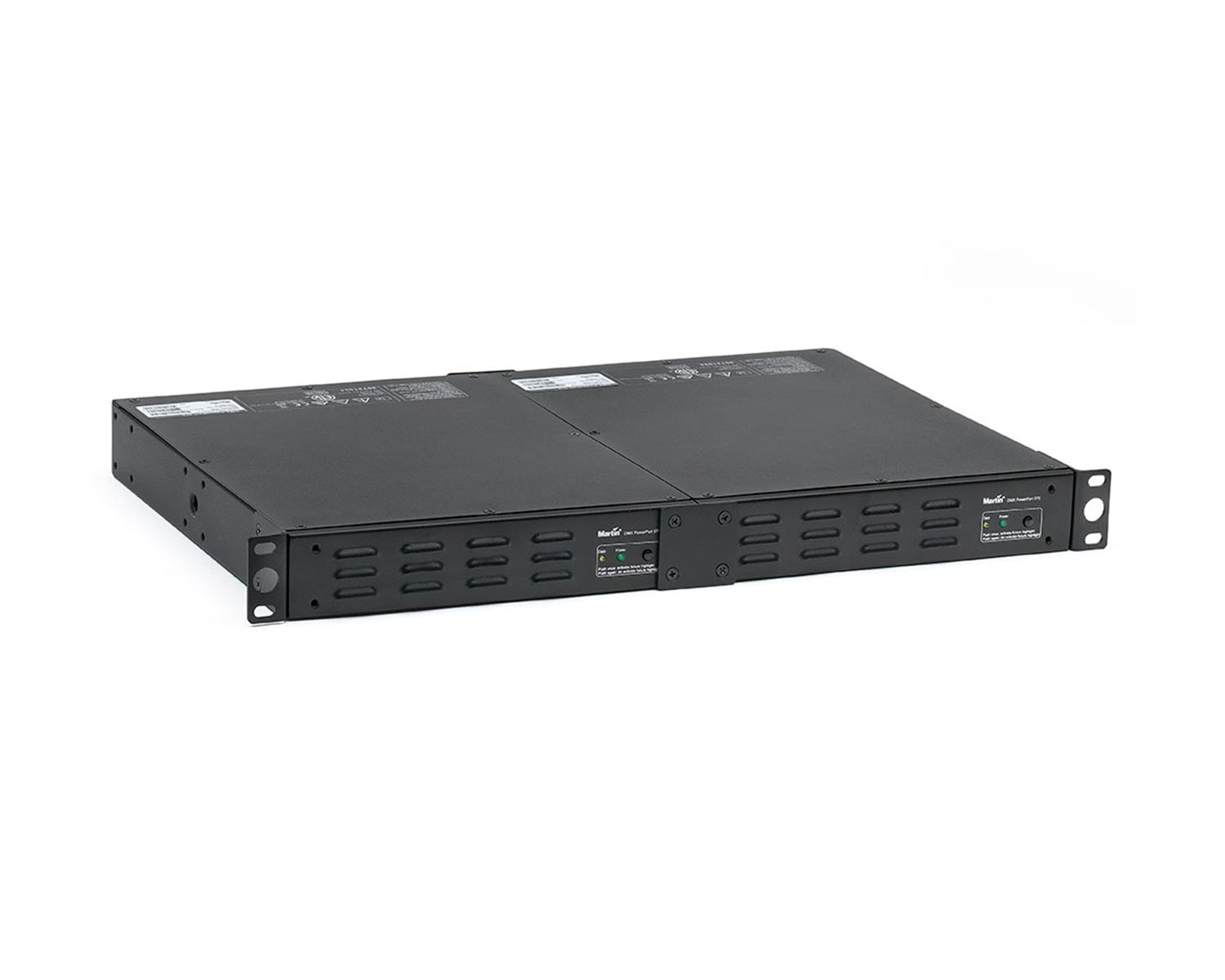

• Dual Unit 19-inch Rackmount: Using supplied coupling plates and short rack mounting ears
• Wallmount: Using supplied short rack mounting ears

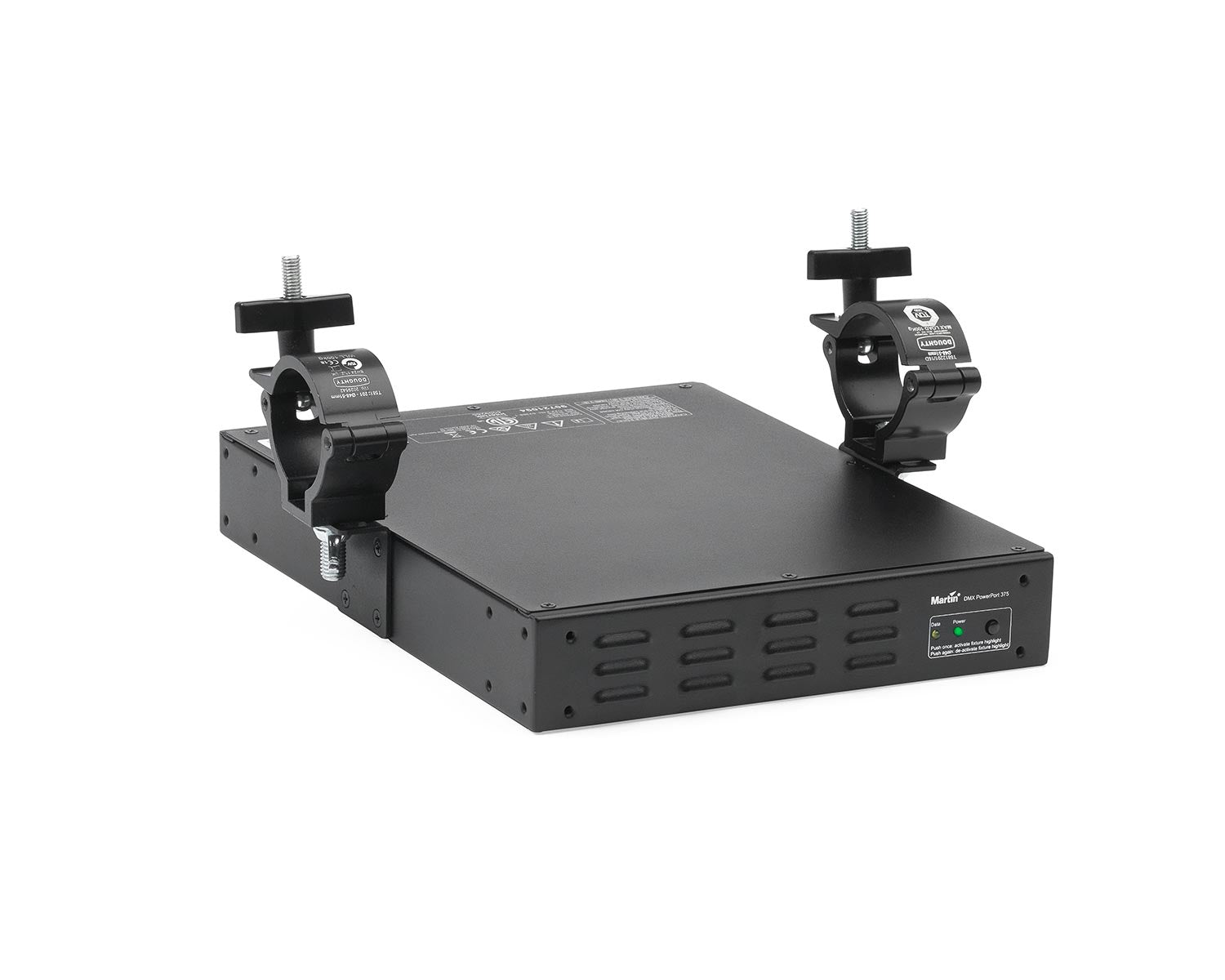

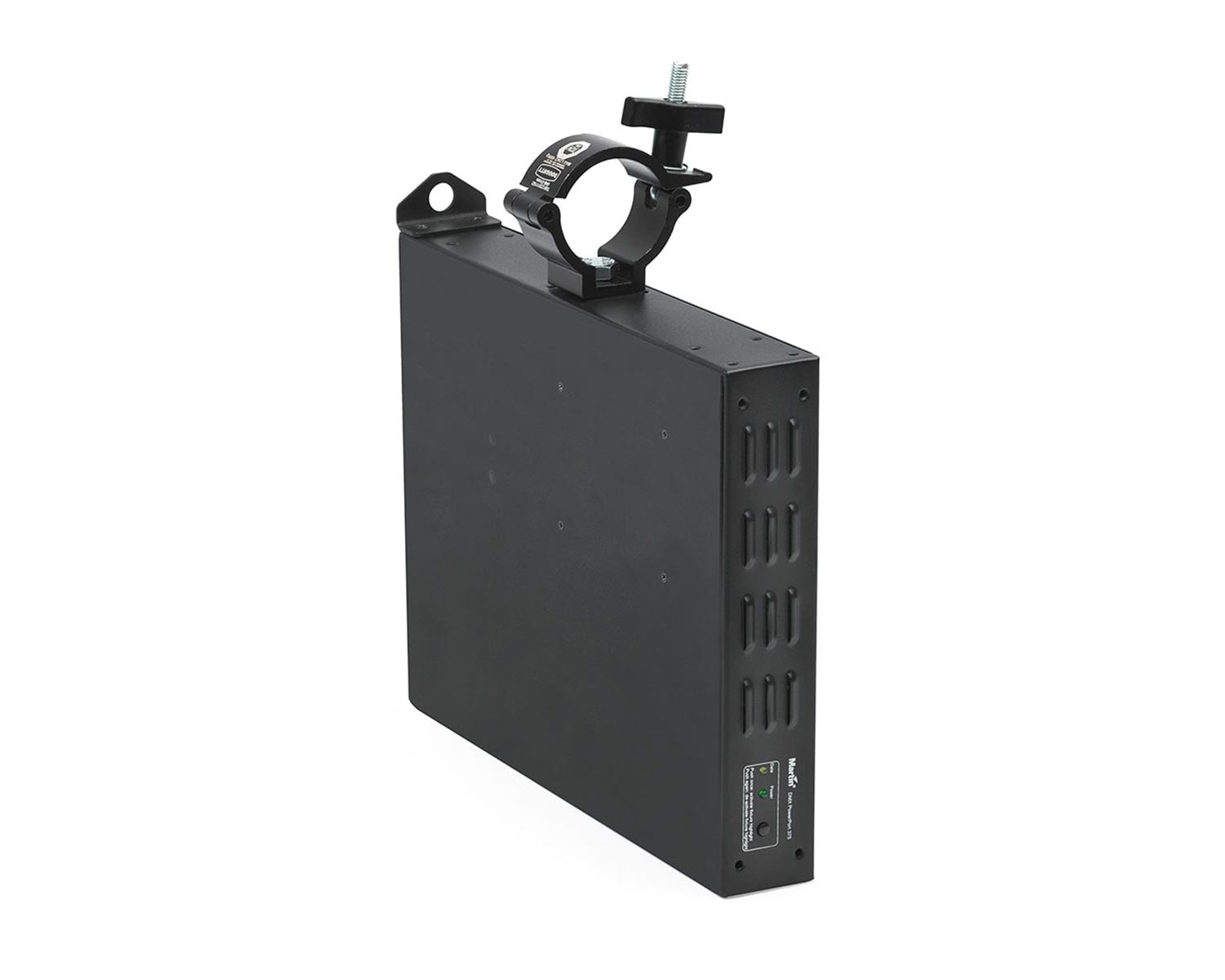

• Trussmount Vertical: Using half-coupler clamp in M10 threaded hole, max. bolt length 20 mm
• Trussmount Horizontal: Using halfcouplers in supplied short rack mounting ears

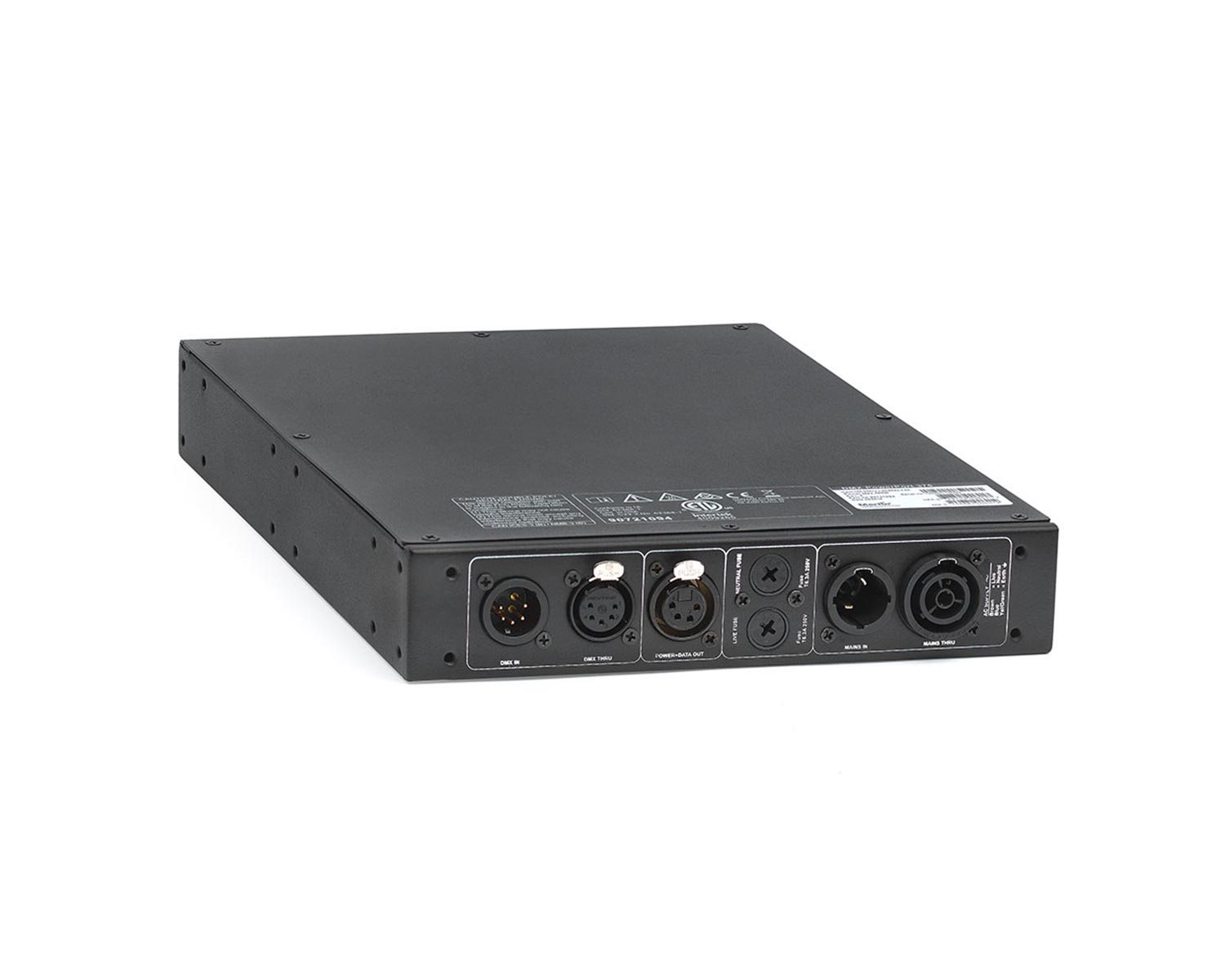

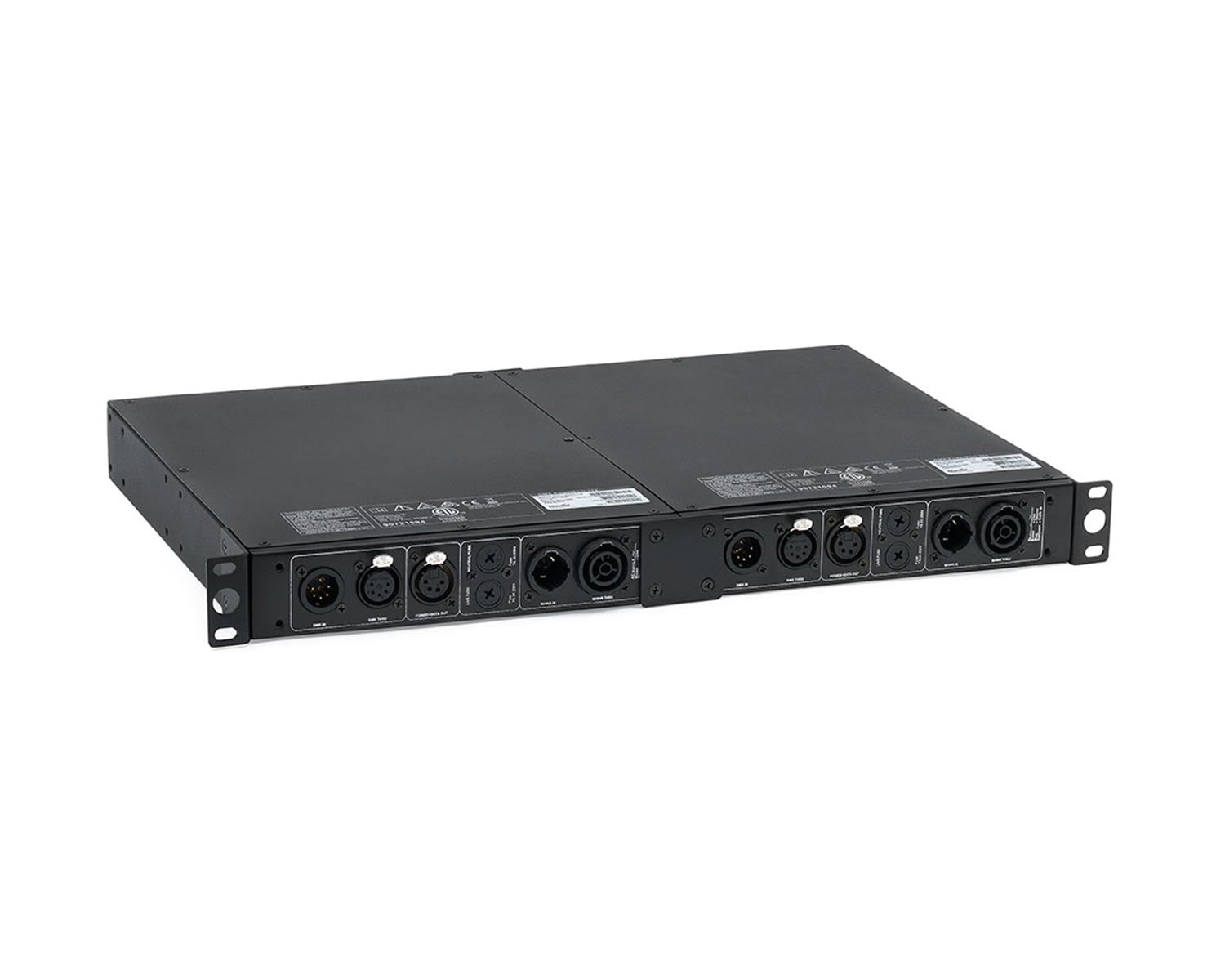

CONNECTIONS

• AC mains power IN: Neutrik powerCON TRUE1
• AC mains power THRU: Neutrik powerCON TRUE1
• DMX/RDM IN: Neutrik 5-pin male XLR socket
• DMX/RDM THRU: Neutrik 5-pin female XLR socket
• Combined power & data out:
• Neutrik 4-pin female XLR socket

^{All connections hot-plugging compatible}

ELECTRICAL

• AC mains power input: 100-240 V (nominal), 50/60Hz
• Power supply unit: Auto-ranging electronic switch mode
• Maximum permitted total current draw from 48Vdc OUT at 100-120 V mains power: 5.0 A
• Maximum permitted total current draw from 48Vdc OUT at 173-240 V mains power: 7.5 A
• Mains fuses: Double-pole/neutral fusing, 2x T6.3 A (slow-blow), 250 VAC
• Maximum total power consumption: 450 W (including full load of connected fixtures)
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 9.6 A
• Typical earth-leakage current: 1.7 mA

THERMAL

• Cooling: Filtered forced air (temperature-regulated, low noise)
• Maximum ambient temperature (Ta max.): 45 °C
• Minimum ambient temperature (Ta min.): -20 °C
• Typical heat dissipation (calculated, +/- 10%): 300 BTU/hr. (not including connected fixtures, but with system at full load)

APPROVALS

• EU safety: IEC/EN60950, IEC/EN62368-1
• EU EMC: EN55032,EN55035, EN 61000-3-2, EN 61000-3-3
• Australia/NZ: AS/NZS 62368.1:2018
• Canadian / US Safety: CAN/CSA-C22.2 No. 62368-1/UL 62368-1
• Canadian / US EMC: ICES-003,Class B / FCC 47 CRF § 15 Class B

INCLUDED ITEMS

• 1 x Safety Cable Attachment Eyelet, incl. screws
• 2 x Short Rack Mounting Ears, incl. screws
• 1 x Long Rack Mounting Ear, incl. screws
• 1 x Coupling Plate, incl. screws

User Manual

• Please note that a power input cable is not supplied with the product and must be ordered separately (see Accessories below)

SUPPORTED FIXTURES*

• Martin VDO Sceptron Family
• Martin VDO Fatron Family
• Martin VDO Dotron Family
• Martin Exterior PixLine Family
• Martin Exterior Dot-HP Family
• Martin VC-Grid Family
• Martin VC-Strip Family
• Martin VC-Dot Family (via Martin VC-Feeder)

^{Quantity of fixtures per DMX PowerPort 375 listed in Capacity Document}

ACCESSORIES

• Power Input Cables:
  • Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
  • Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
  • Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
  • Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174
• Power connectors:
  • Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
  • Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU
• Power Thru Cables:
  • Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
  • Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
  • Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
  • Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  • Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  • Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
• Installation hardware:
  • Super Lightweight Half Coupler Rigging Clamp, black (fits M10 threaded hole): P/N 91602018
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

RELATED ITEMS

• Martin Companion Cable: P/N 91616091
• P3 PowerPort 1500: P/N 90721040
• P3 PowerPort 1000 IP Rental: P/N 90721070
• P3 PowerPort 1000 IP Install: P/N 90721080
• Martin IP66 PSU 240 W: P/N 90760330

ORDERING INFORMATION

• DMX PowerPort 375: P/N 90721094
