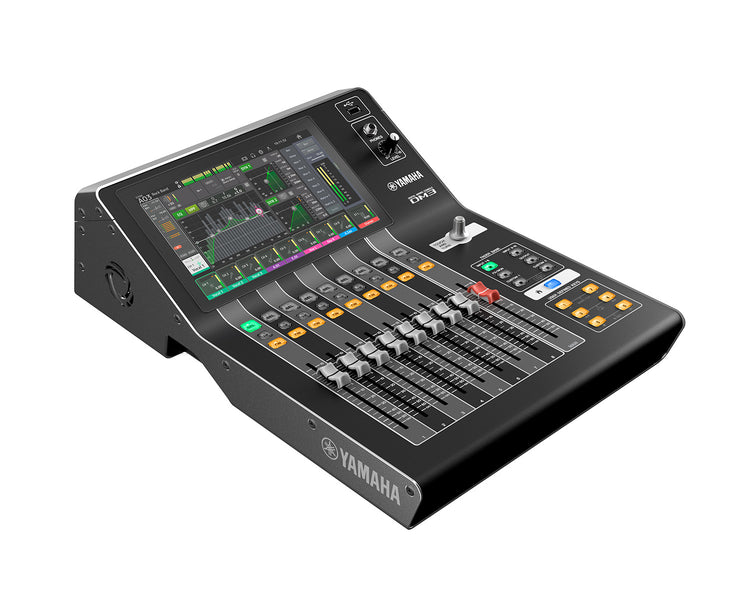

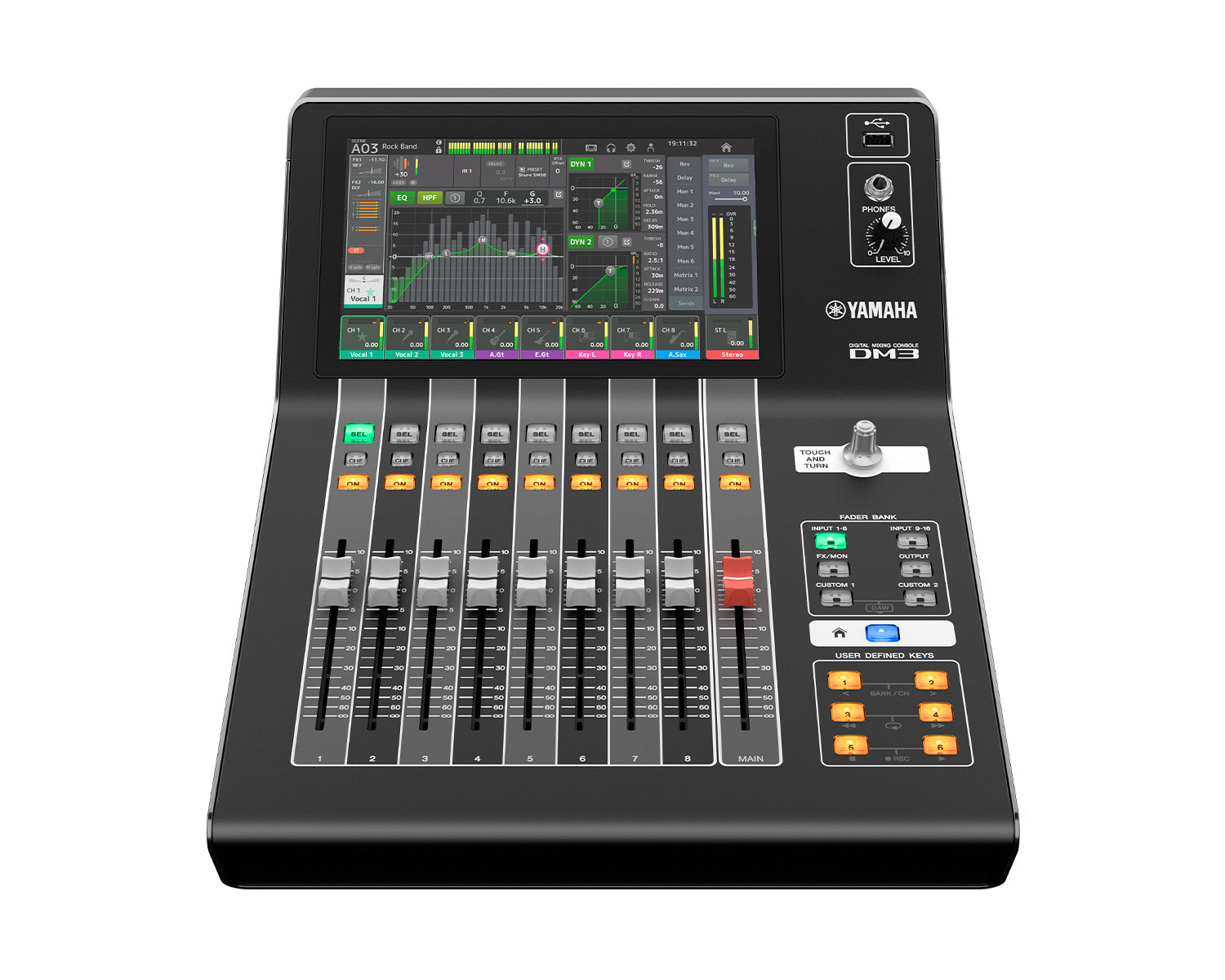

YAMDM3S - Yamaha DM3S Standard Compact Digital Mixer 16 Mono or 1 Stereo or 2 FX Return Image 1

YAMDM3S - Yamaha DM3S Standard Compact Digital Mixer 16 Mono or 1 Stereo or 2 FX Return Image 2

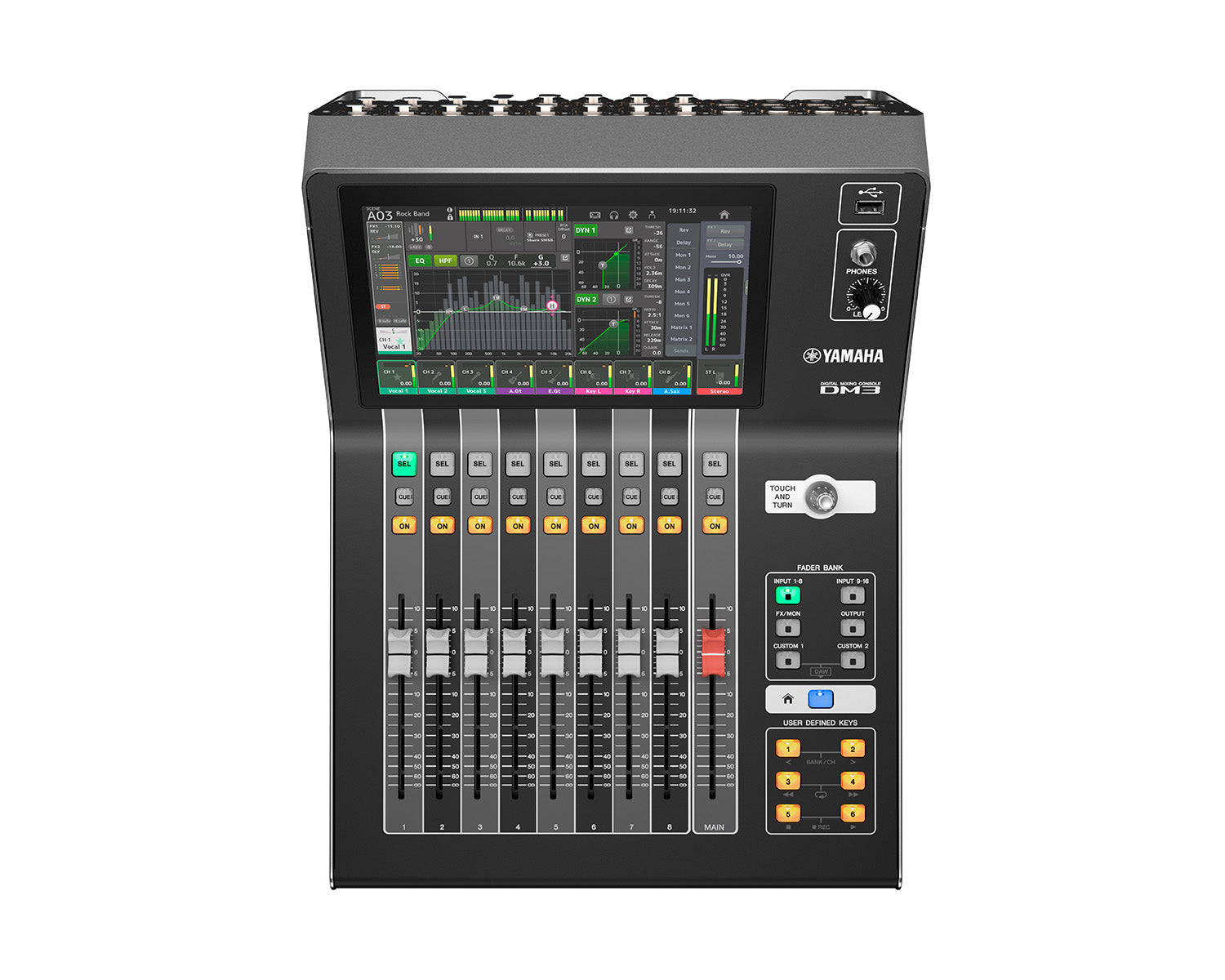

YAMDM3S - Yamaha DM3S Standard Compact Digital Mixer 16 Mono or 1 Stereo or 2 FX Return Image 3

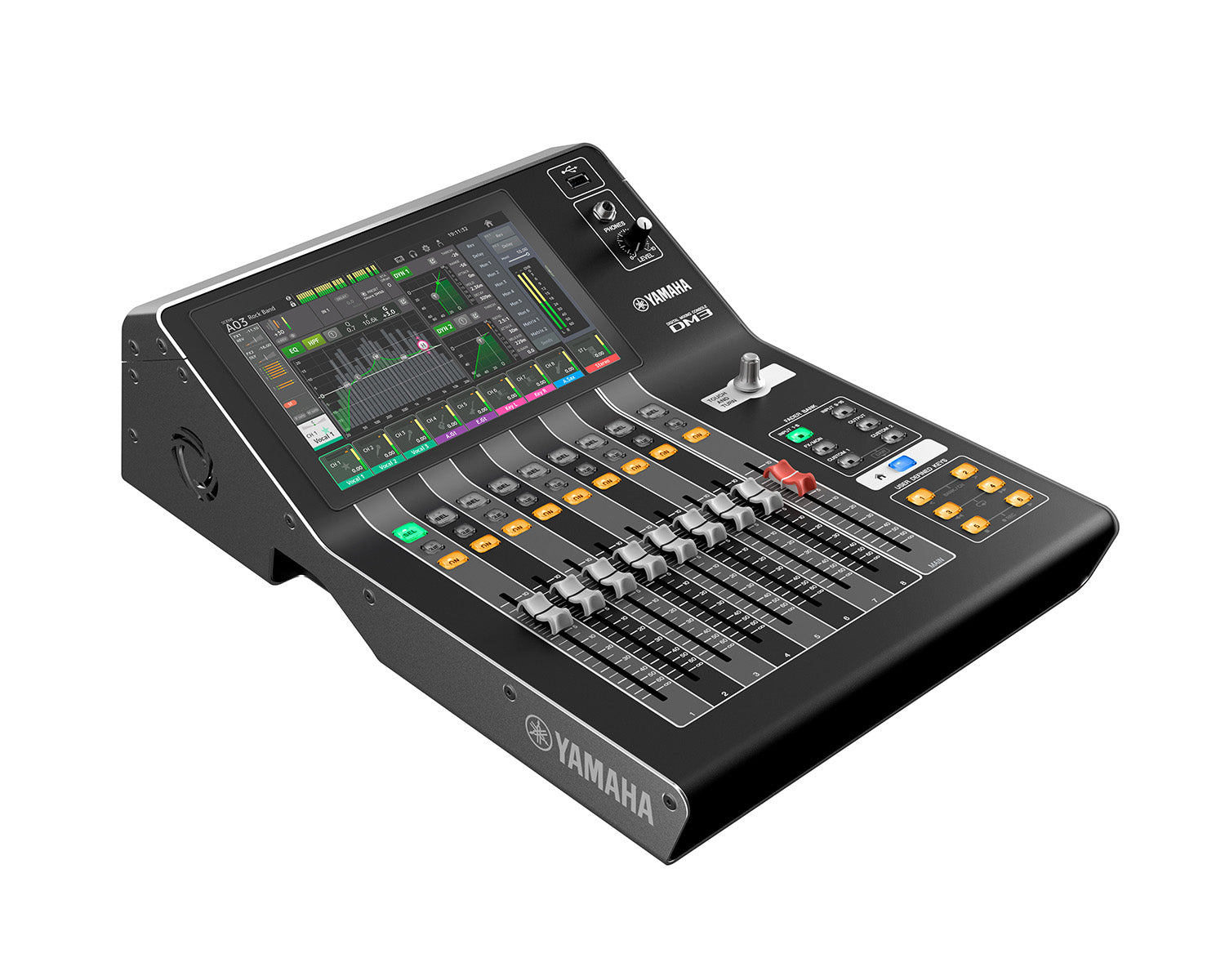

YAMDM3S - Yamaha DM3S Standard Compact Digital Mixer 16 Mono or 1 Stereo or 2 FX Return Image 4

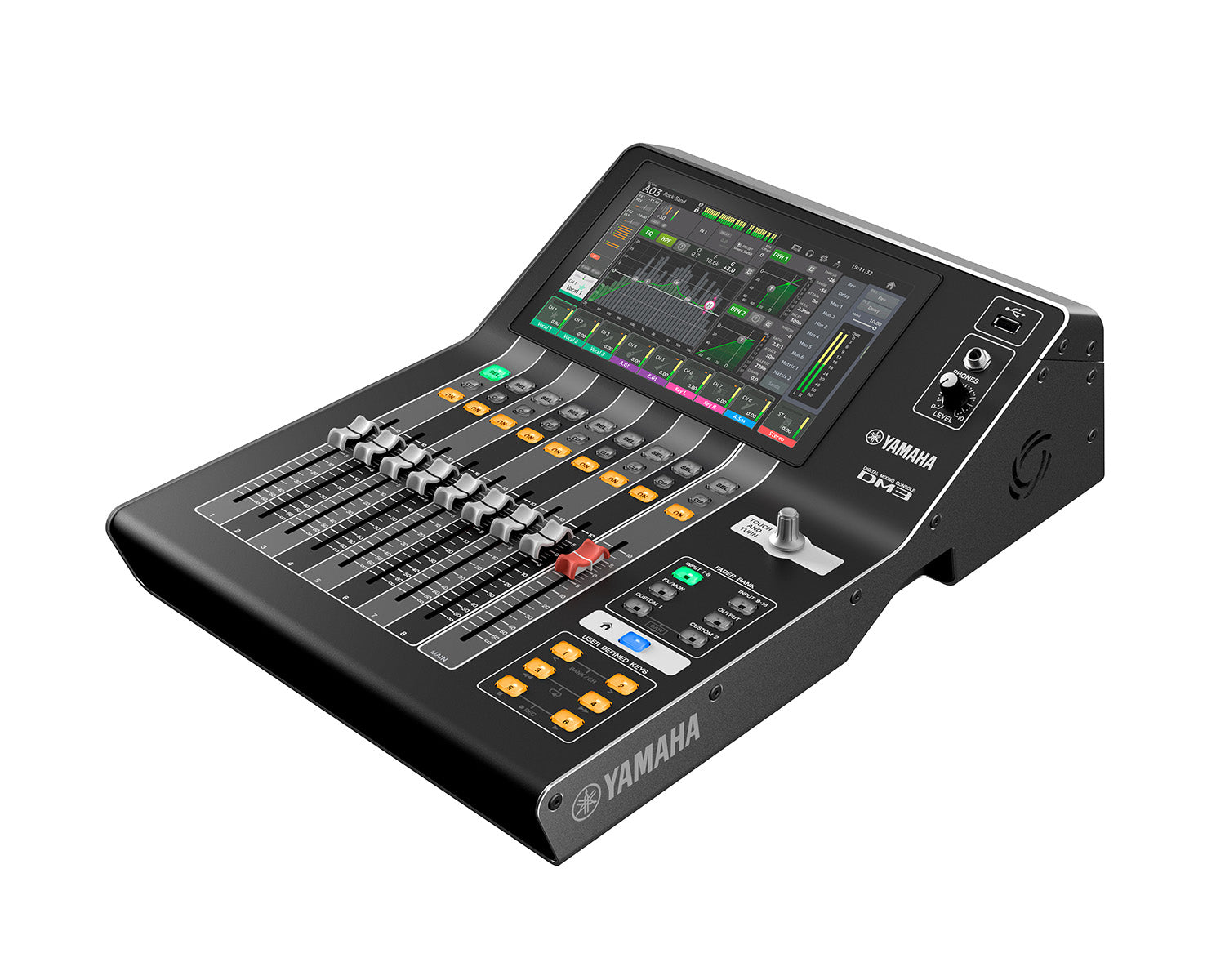

YAMDM3S - Yamaha DM3S Standard Compact Digital Mixer 16 Mono or 1 Stereo or 2 FX Return Image 5

The portable DM3 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The DM3 Standard offers superb sound quality, fast and easy setup and operation, and professional-level features.

Product Features

8 + 1 fader configuration
9-inch multi-touch screen
Input mixing channels: 16 mono + 1 stereo + 2 FX return
Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
USB: 18 inputs, and 18 outputs
8 DCA groups with Roll-out
18 Effects, and GEQ on Mix 1-6 and Stereo channels
Sampling rate: 48kHz/96kHz
Dimensions (W x H x D): 320 mm × 455 mm × 140 mm
Net weight: 14.3lbs

Product Specifications

Outline

Mixing Capacity
- Input Channels: 16 mono + 1 stereo + 2 FX return
- Mix Buses: 6
- Matrices: 2 (Supports input to matrix)
- Stereo Buses: 1
- FX Buses: 2
- Cue Buses: 1

General specifications

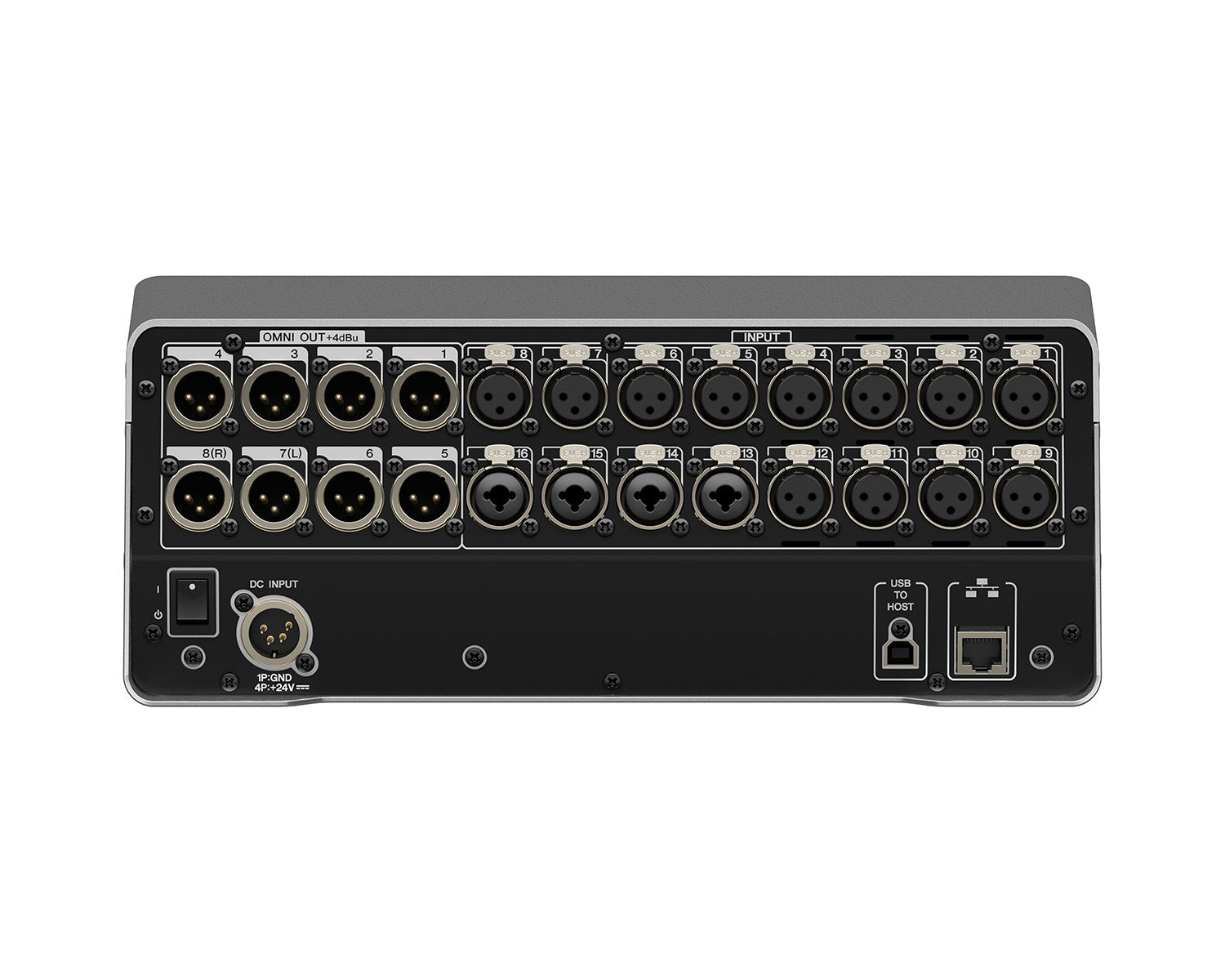

I/O Connectors
- Analog Input: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
- Analog Output: 8 (XLR)
- Network: 1 (RJ-45)
- USB TO HOST: 1 (USB Type-B, USB2.0)
- USB TO DEVICE: 1 (USB Type-A)
- Phones: 1 (TRS Phones)
- DC: 1 (XLR 4pin, DC power IN)
User Interface: 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder
Recording & Playback:
- PC/Mac: Recording 18 track, Playback 18 track
- USB storage device: Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
Sampling frequency rate: 96 kHz / 48 kHz
Signal delay: Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
Frequency response: +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
Total harmonic distortion: Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min
Hum & noise level:
- Equivalent input noise: -126 dBu typ., Input Gain= Max.
- Residual output noise: -84 dBu, ST main off
Dynamic range: 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Crosstalk: -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz
Power requirements: DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
Power consumption: 43 W
Dimensions:
- W: 320 mm (12.6")
- H: 140 mm (5.6")
- D: 455 mm (18.0")
Net weight: 6.5 kg (14.3 lb)
Operating temperature: 0 - 40 °C
Storage temperature: -20 - 60 °C
