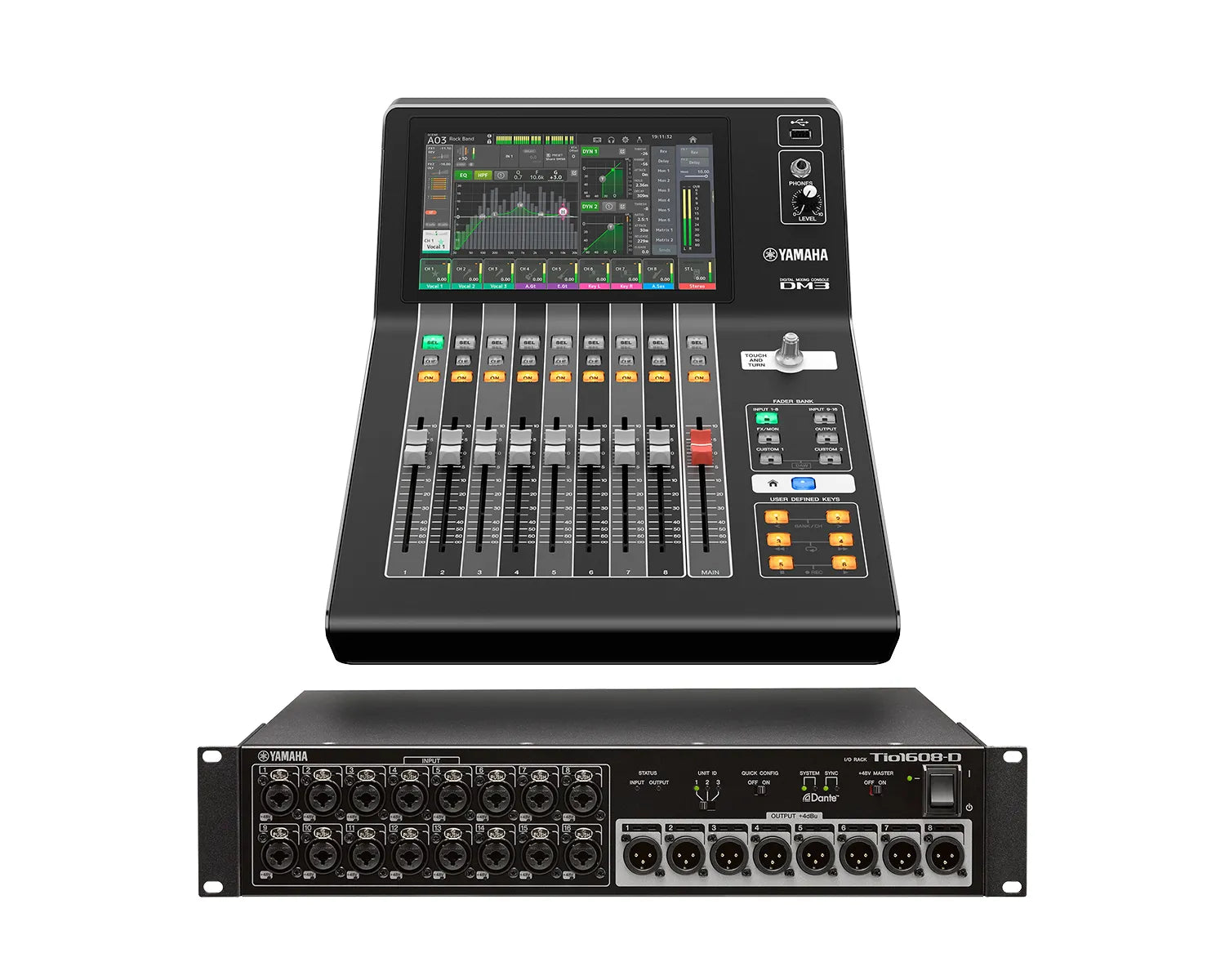

Bundle including the DM3 Dante Digtal Mixer and TIO1608-D2 Stagebox.

The DM3 is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-level features.

The TIO1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it perfect for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7.

Product Features

DM3 Features

• 8 + 1 fader configuration
• 9-inch multi-touch screen
• Input mixing channels: 16 mono + 1 stereo + 2 FX return
• Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
• Dante: 16 inputs, and 16 outputs
• USB: 18 inputs, and 18 outputs
• 8 DCA groups with Roll-out
• 18 Effects, and GEQ on Mix 1-6 and Stereo channels
• Sampling rate: 48kHz/96kHz

TIO1608-D2 Features

• Stagebox for use with TF Series or DM3
• Optional NY64-D expansion card to connect three Tio1608-D2 units
• Dante high reliability network audio protocol
• Fast and easy configuration
• Simple and flexible input selection
• Recallable D-PRE preamplifiers

Product Specifications

DM3 Specifications

• Mixing Capacity
  • Input Channels:  16 mono + 1 stereo + 2 FX return
  • Mix Buses:  6
  • Matrices:  2 (Supports input to matrix)
  • Stereo Buses:  1
  • FX Buses:  2
  • Cue Buses:  1
• I/O Connectors
  • Analogue Input:  16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
  • Analogue Output:  8 (XLR)
  • Dante:  2 (etherCON: Primary/Secondary)
  • Network:  1 (RJ-45)
  • USB TO HOST:  1 (USB Type-B, USB2.0)
  • USB TO DEVICE:  1 (USB Type-A)
  • Phones:  1 (TRS Phones)
  • DC:  1 (XLR 4pin, DC power IN)
• User Interface: 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder
• Recording & Playback:
  • PC/Mac:  Recording 18 track, Playback 18 track
  • USB storage device:  Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
• Sampling frequency rate:  96 kHz / 48 kHz
• Signal delay:  Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
• Frequency response:  +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
• Total harmonic distortion:  Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min
• Hum & noise level:
  • Equivalent input noise:  -126 dBu typ., Input Gain= Max.
  • Residual output noise:  -84 dBu, ST main off
• Dynamic range:  110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
• Crosstalk:  -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz
• Power requirements:  DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
• Power consumption:  43 W
• Dimensions:
  • W:  320 mm (12.6")
  • H:  140 mm (5.6")
  • D:  455 mm (18.0")
• Net weight:  6.5 kg (14.3 lb)
• Operating temperature:  0 - 40 °C
• Storage temperature:  -20 - 60 °C

TIO1608-D2 Specifications

• Sampling frequency rate:  External: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• Signal delay:  Less than 1.3ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=96kHz; Less than 2.6ms INPUT to OUTPUT, connect with DM3,
• Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
• Total harmonic distortion:  Less than 0.2% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB /
• Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2kHz, 96kHz; Less than 0.1% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18 dB/octave filter @80kHz
• Frequency response:  +0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT
• Dynamic range: 108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz; 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
• Hum & noise level:  Equivalent input noise -128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz *Measured with A-weighting filter
• Residual output noise:  -86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off *Measured with A-weighting filter
• Crosstalk:  -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
• Heat dissipation:  100-240V, 50/60Hz, 43.5kcal/h
• Power requirements:  100-240V, 50/60Hz
• Power consumption:  50W
• Dimensions:  W: 480mm (18.9”) H : 88mm (3.5”) D: 364mm (14.4”)
• Net weight:  5.7kg (12.6lbs)
• Accessories:  Owner’s Manual, Power Cord (2.5m), Rubber stoppers (4)
• Temperature Range:  Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
• Analog Output Characteristics
  • Output Terminal:  OUTPUT 1-8
  • Actual Source Impedance:  75 Ohms
  • For use With Nominal:  600 Ohms Lines
  • Output Level: Nominal:  +4 dBu (1.23V) Max. before clip: +24 dBu (12.3V)
  • Connector:  XLR-3-32 type *1
  • Balanced/unbalanced:  Balanced
• Analogue Input Characteristics
  • Input Terminals:  INPUT 1-16
  • GAIN:  +66 Db -6 Db
  • Actual Load Impedance:  7.5kOhms
  • For Use with Nominal:  50-600 Ohms Mics & 600 Ohms lines
  • Input Level: Sensitivity:  -82 dBu (61.6μV) +10 dBu (245Mv) Nominal: -62 dBu (0.616mV) +10 dBu (2.45V) Max before clip: -42 dBu (6.16mV) +30 dBu (24.5V)
  • Connector: Combo Jack (XLR-3-31 type *2 or TRS phone *3)
  • Balanced/Unbalanced: Balanced
• Digital Input and Output Characteristics
  • Terminal:  Primary/Secondary
  • Format:  Dante
  • Data Length:  24bit or 32bit
  • Level:  1000Base-T
  • Audio:  16ch (Tio1608-D2 to other devises) 8ch (Other devises to Tio1608-D2)
  • Connector:  etherCON Cat5e

What's in the Box?

• DM3 Digital Mixer with Dante
• TIO1608-D2 Rackmount Stagebox
