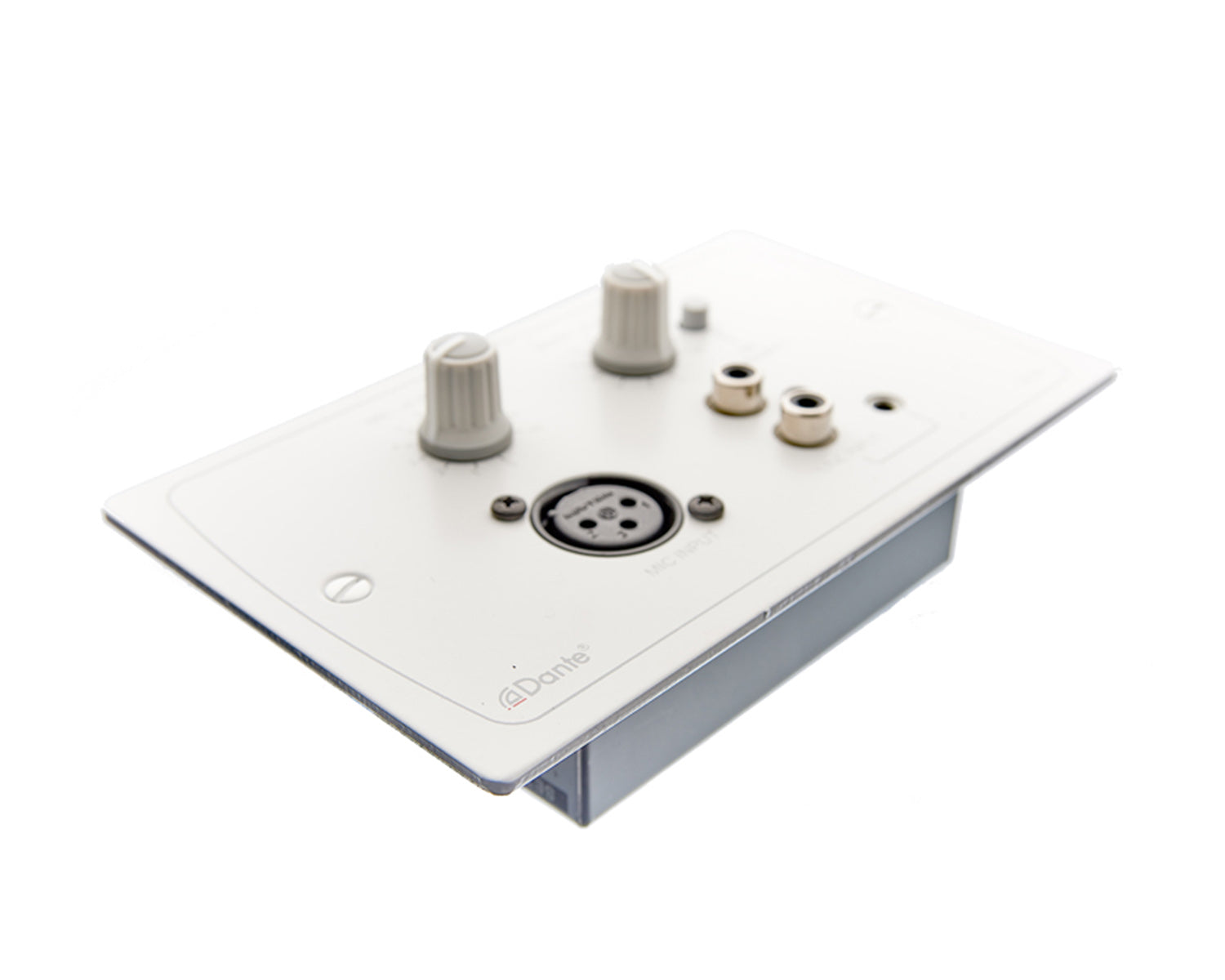

The DLM-1 Series is a range of remote mic/line input modules for use in a Dante-compatible network audio system. A DLM-1 module allows a microphone and/or a stereo music (or other line level) source to be connected at a remote location. The music input is mixed with the mic signal and the resulting output appears as a mono Dante channel at a standard RJ45 Ethernet port. Typically, the Dante channel will then be routed via the Dante network to the audio system (a Dante-equipped amplifier or mixer) feeding the speakers in the area where the module is fitted. Selectable mic-over-music priority is provided.

The DLM-1 can be used in any Dante network, or Dante-compatible network. This includes the Cloud CA Series and CV Series of advanced multichannel power amplifiers when they are fitted with a CDI-CA or CDI-CV Dante interface card.

Product Features

• Remote mic/line input module, for use with all Dante-compatible networks
• AES67 compliant for interoperability with alternative (non-Dante) networks
• Easy connection to network via RJ45 and standard Cat 5 cable

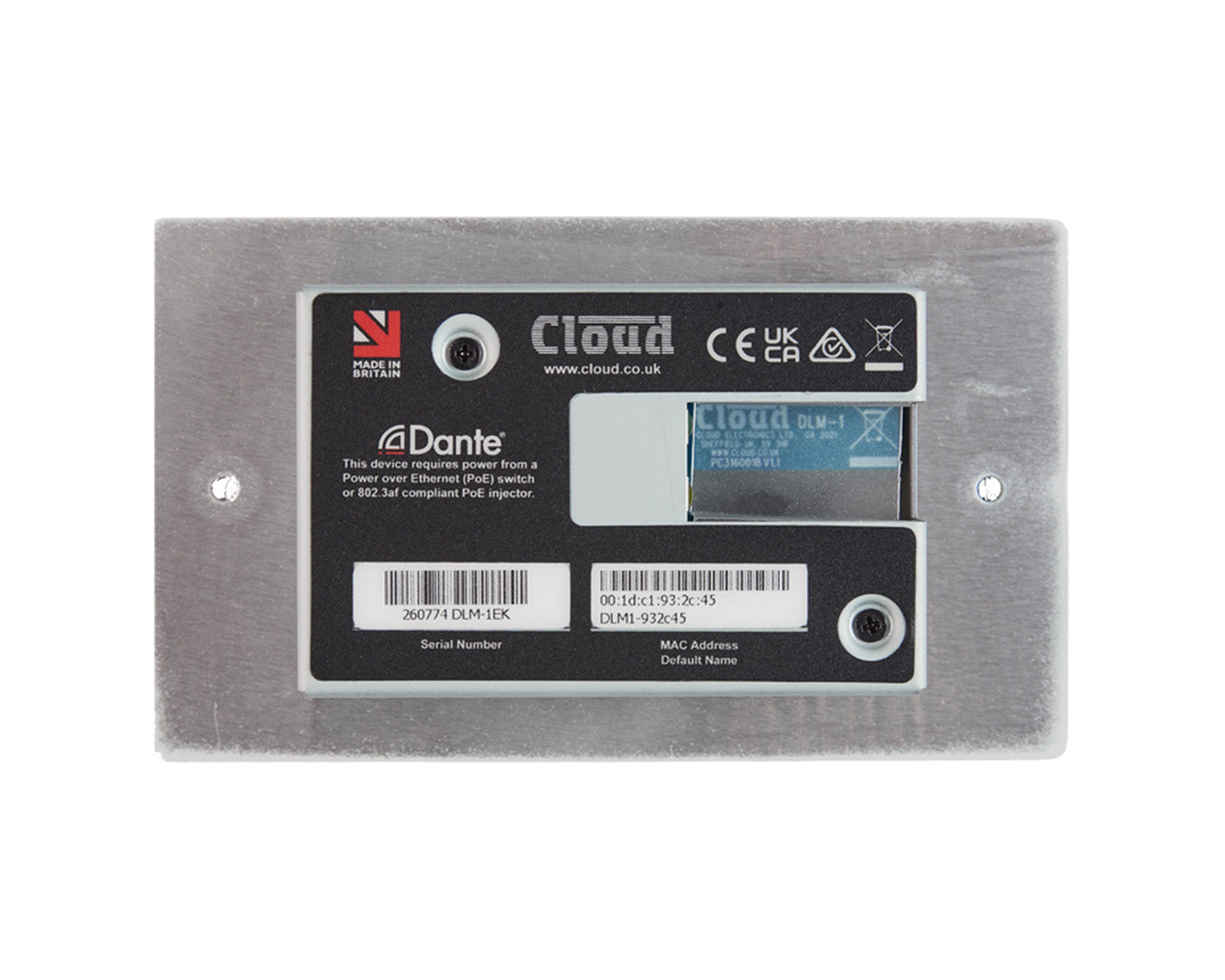

• Powered via PoE – no local PSU required
• Network speed and activity LEDs (on RJ45)

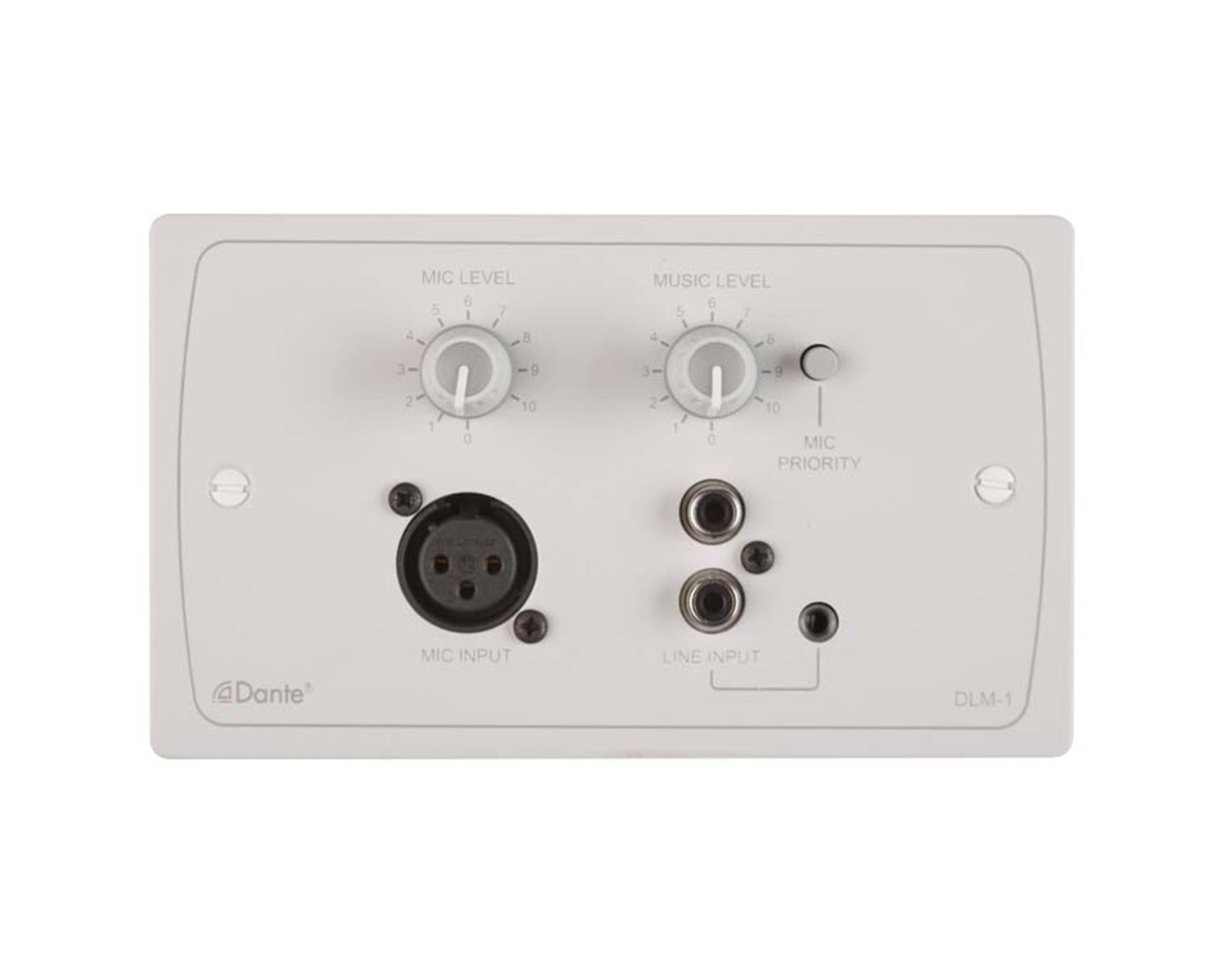

• Balanced mic input (XLR) with level control
• Stereo, unbalanced line level input (phonos/RCA), with independent level control
• Alternative line input on 3-pole 3.5 mm jack socket
• Active mixing of mic and line signals
• Selectable mic-over-music priority

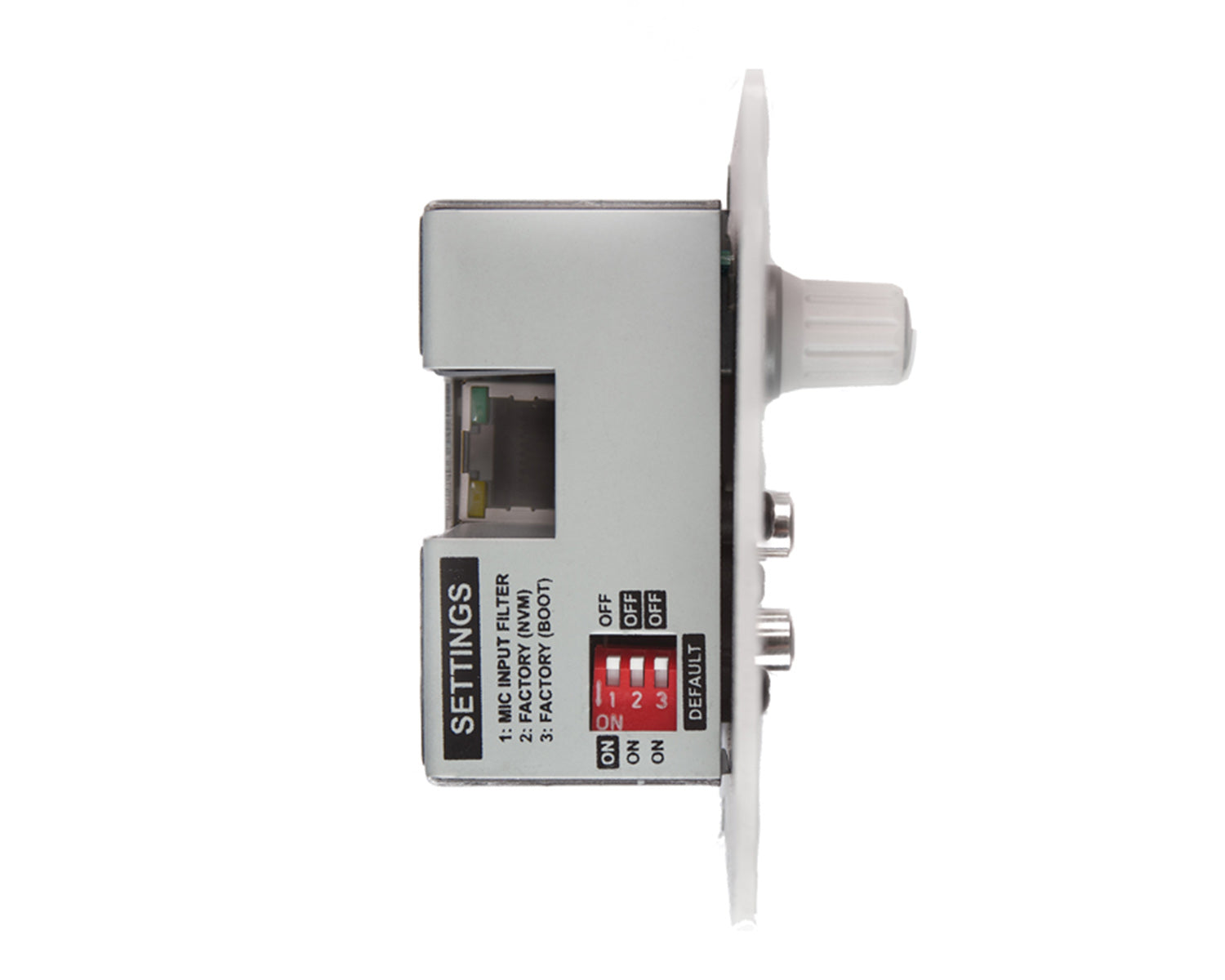

• Selectable hi-pass filter on mic input to reduce handling noise, etc.
• Multiple DLM-1s in the same Zone may be linked using Dante Controller

Product Specifications

Audio performance - mic input

• Sensitivity: -50 dBu nominal
• Gain range: 20 to 40 dB
• High pass filter: 120 Hz, 12 dB/octave
• Input headroom: 12 dB
• Frequency response: 20 Hz – 20 kHz +0.5 dB/-0 dB (HPF disabled)
• Noise: Noise gate inactive: -65 dBr, rel 0 dBFS output (Noise gate active: -95 dBr)

Audio performance – line inputs

• Sensitivity
  • via RCA/phonos: 0 dBu nominal
  • via 3.5 mm jack: -10 dBV nominal
• Maximum input level
  • via RCA/phonos: +11 dBu
  • via 3.5 mm jack: +4 dBV
• Frequency response: 20 Hz – 20 kHz +0.5 dB/-0 dB
• Noise: -90 dBr, rel 0 dBFS output

Dante specifications

• Dante transmit channels: 2
• Simultaneous receive flows: 2
• Dante receive channels: 2
• Simultaneous transmit flows: 2
• Sample rates
  • Dante: 44.1 kHz, 48 kHz
  • AES67: 48 kHz
• Encoding: 16/24/32-bit PCM (default 24-bit)
• Data rates: 10 Mb/s, 100 Mb/s
• Connector: 1 x RJ45
• LEDs: Network speed (yellow), activity (green)
• Software compatibility
  • Audinate Dante Controller (configuration and routing)
  • Audinate DDM (security and domain management)

Other

• Power requirements: Via PoE. A Class 1 (3.84 W max.) injector required for use with non-PoE switches.
• Power consumption: <1 W
• Net dimensions, inc. faceplate controls (w x h x d): DLM-1 (UK) 145 mm x 85 mm x 50mm (5.71” x 3.35” x 1.97”)
• Shipping dimensions (w x h x d): 200 mm x 145 mm x 83 mm (7.87” x 5.71” x 3.27”)
• Net weight: 252 g (8.9 oz)
• Shipping weight: 350 g (12.3 oz)
