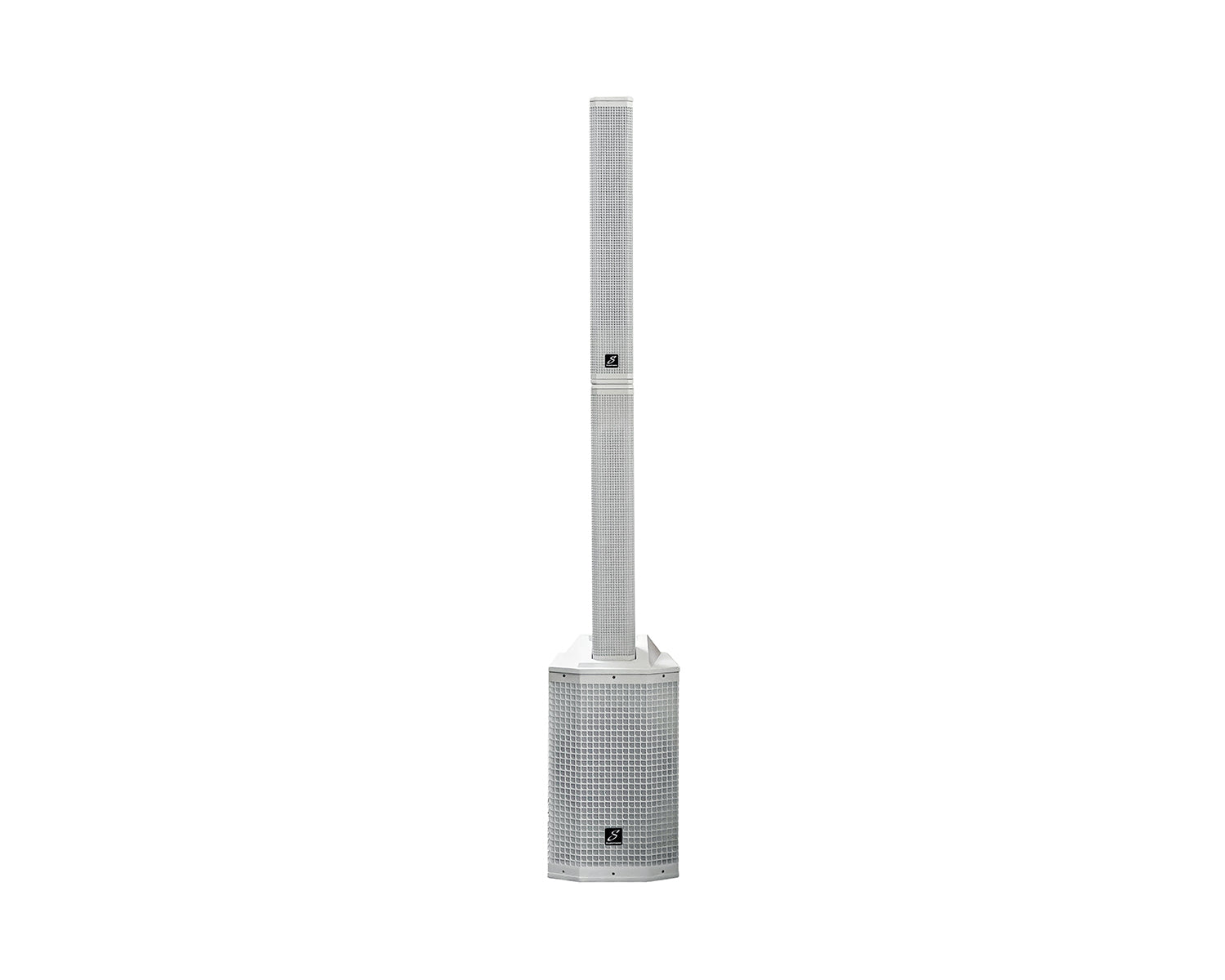

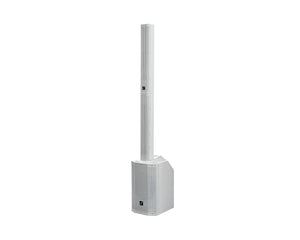

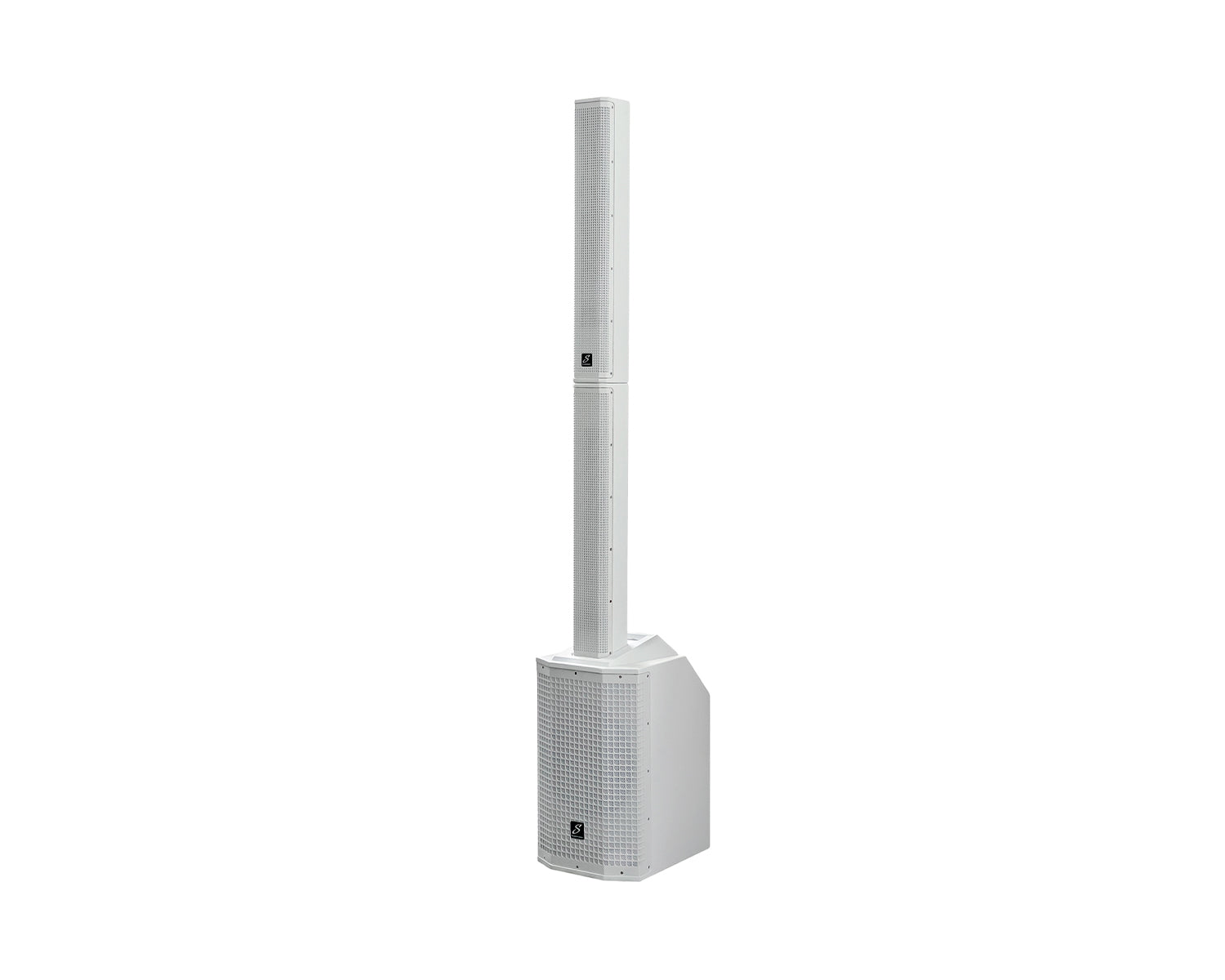

Designed for DJs, small bands, presentations, education and houses of worship, the DIRECT MX series is an all in one column array PA solution with a powerful 2000W built-in amplifier, comprehensive 4 channel mixing, Bluetooth 5.0 playback (with TWS) and reverb effects on the input channels.
Capable of reproducing very low-end frequencies and clear, musical highs through the custom designed wood enclosures, that securely connect together with a unique internal connection, so you can have your PA set-up and ready to go in seconds.All Direct models have 6 x 3″ mid range transducers combined with a 1″ compression driver to deliver clear highs and clarity of your vocals or instruments.The 12″ active sub bass gives a big punchy response capable of reproducing the lowest frequencies through its bass-reflex design.
The DirectMX comes installed with a 4-channel dsp mixer, including 2 x switchable MIC/LINE inputs with gain and reverb controls, 1 x HI-Z instrument input, 1 x RCA / Bluetooth stereo input and an XLR line output. There is also an Independent SUB LEVEL control for quick bass adjustment. A Powerful 24-bit DSP interface with display allows for the adjustment of 3 operation modes: music, dj, speech. 3 band EQ with sweepable mid frequency and storable presets, digital gain control, high-pass filtering, dual-channel limiter, Digital delay for delay zones up to 100 m (in steps of 0.25 m) and Bluetooth connection, all controlled via a simple ONE CONTROL encoder. The DirectMX utilises Bluetooth 5.0 large range stereo Bluetooth playback with TWS (true wireless stereo).
No matter your application the DIRECT MX series gives you the connection options you need. The on-board 4 channel mixer comes with 2x MIC/Line inputs with a useful vocal reverb facility, a Hi-Z instrument input for connecting electric guitars and a stereo input for playback either through the phono connections or via Bluetooth 5.0. The DSP allows simple set-up with 3 preset systems: Music, DJ or Speech, along with 3 band master EQ and a useful output delay if using as a delay speaker in a larger system.
Product Features
- 2000W Built-in Amplifier – Powerful output to handle a variety of events and venues
- 4-Channel DSP Mixer – Includes 2 MIC/LINE inputs, 1 HI-Z instrument input, RCA/Bluetooth input, and XLR line output
- Bluetooth 5.0 with TWS – High-quality wireless playback with True Wireless Stereo for seamless audio streaming
- Custom Designed Wood Enclosures – Enhances sound clarity with a unique internal connection system for quick setup
- Multi-Speaker Configuration – 6 x 3" mid-range transducers and a 1" compression driver for crisp highs and clear vocals
- Powerful Subwoofer Options – 12" active sub bass with bass-reflex design for deep, punchy lows
- Advanced DSP Processing – 24-bit digital signal processing with three operation modes: Music, DJ, and Speech
- One-Control Encoder Interface – Easy adjustments for EQ, gain, high-pass filtering, digital delay, and presets
- Independent Sub Level Control – Quick and easy bass adjustments for different performance needs
- Fast & Versatile Setup – Compact, all-in-one column array PA with quick assembly and intuitive controls
Product Specifications
- 1x Vertical array
- 1x 12″ Active subwoofer with mixer
- System power: 2000w
- Max SPL: 127dB
- Freq response: 35Hz-20kHz
- System dimensions (W/H/D): 357 / 2105 / 437mm
- System weight (NET): 32.5kg

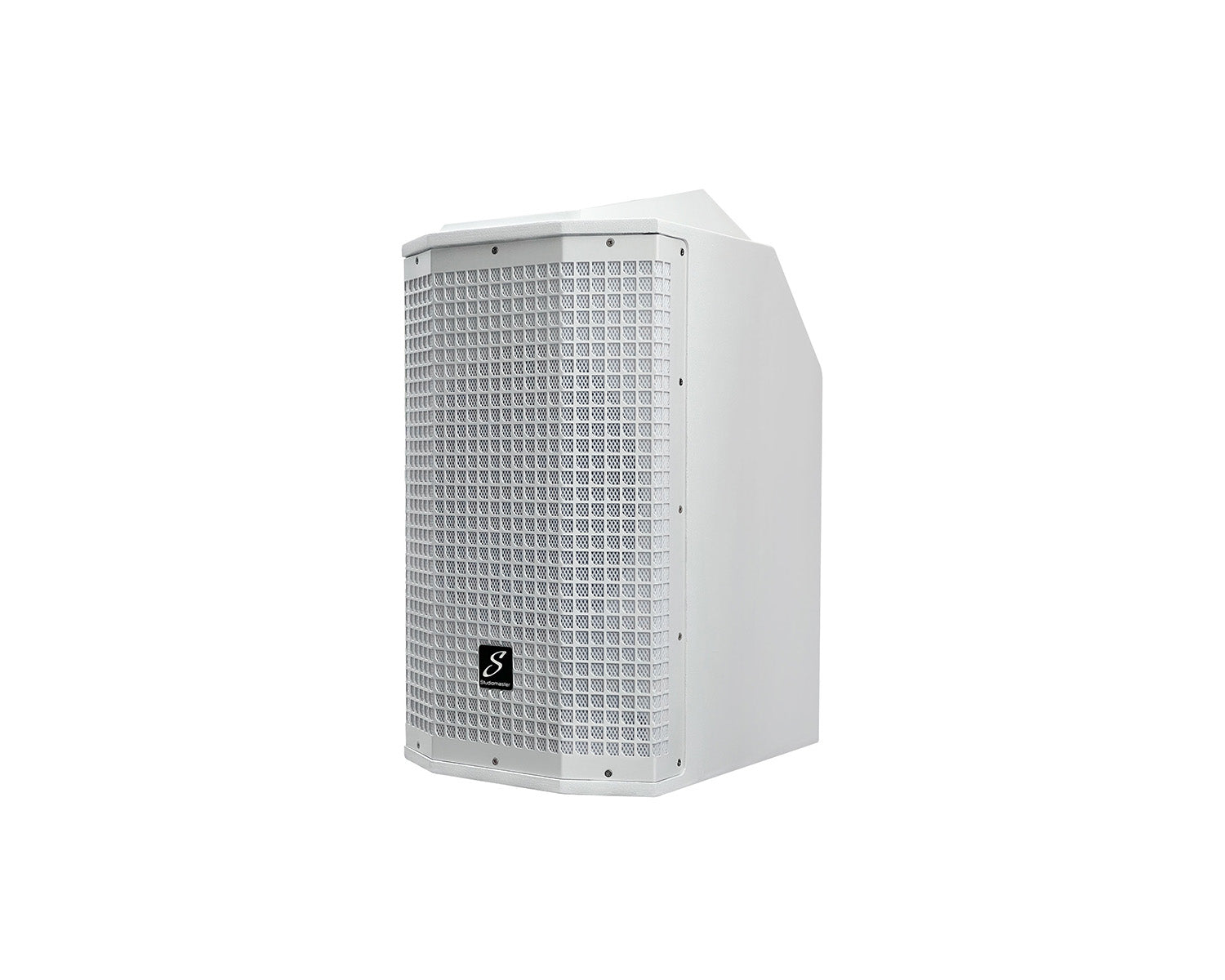

DIRECT 121MX Subwoofer
- Speaker type: 1 x 12″ transducer
- Rated Power: 300W (RMS)
- Rated Impedance: 4Ω
- Dimensions(WxHxD): 357 x 642 x 437 mm
- Net Weight (kg): 24.5kg
DIRECT 121MX Amplifier
- Rated power: 2 x 300W RMS
- Frequency range: 20Hz: 20kHz
- DSP conncection: 24 bit (1in-2out)
Vertical Array Speaker
- MF: 6 x 3″ mid-range speaker
- HF: 1 x 1″ compression driver
- Coverage (HxV): 120° x 30° advanced coverage
- Rated Power: 180 W (RMS)
- Rated Impedance: 6 Ohms
- Dimensions(WxHxD): 117x807x124.3mm (each section)
- Net Weight (kg): 8kg (total both sections)

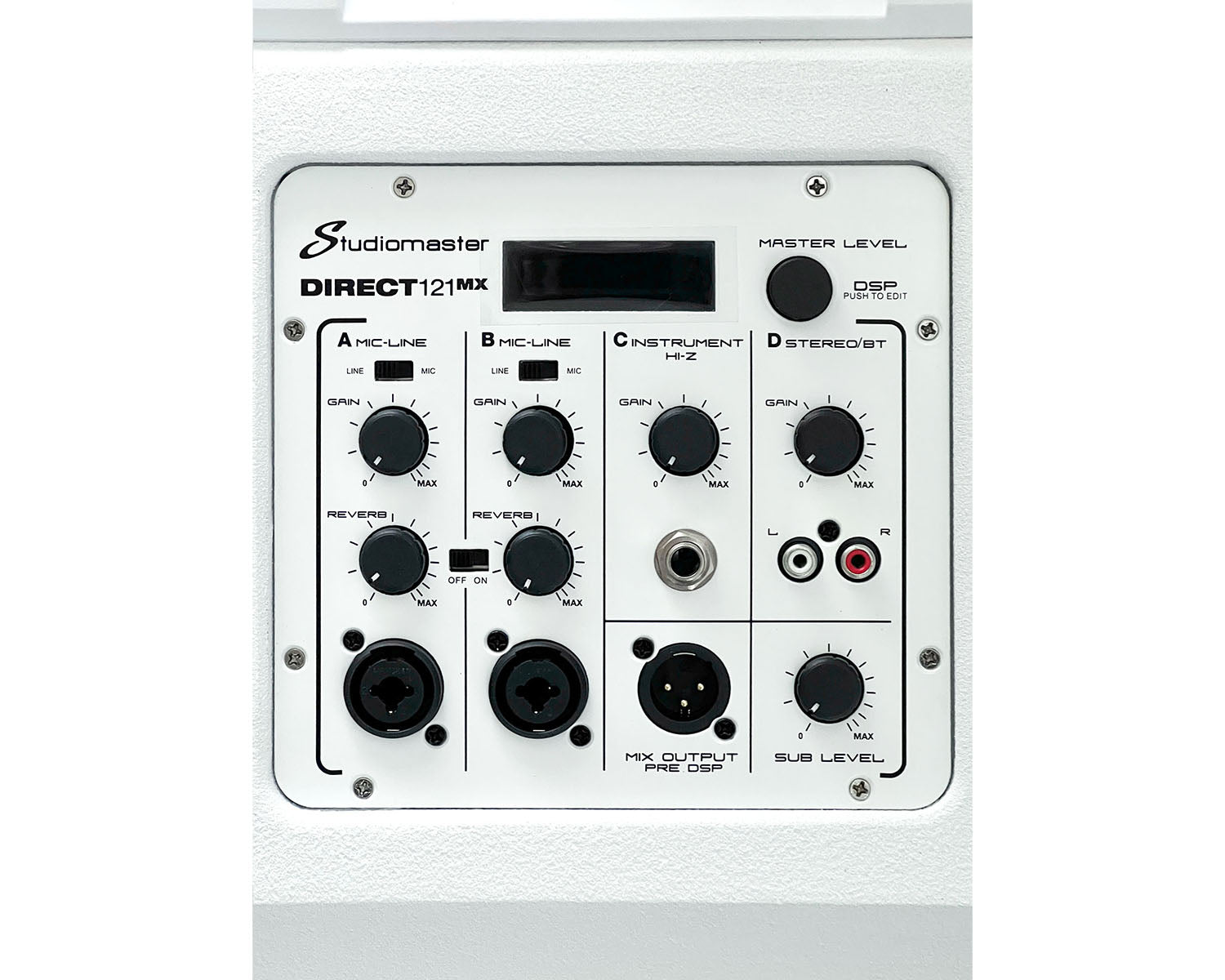

DSP Mixer with Reverb
- Inputs: 4 Channels: 2x Mic/Line, 1x Hi-Z, 1x RCA/Bluetooth)
- Input connectors: XLR/6.35mm jack combo, 6.35mm jack unbal, 1x RCA jack
- Impedance: MIC/LINE: 10k Ohms, HI-Z: 470k Ohms, RCA: 10k Ohms
- Output connector Mix output: XLR (PRE DSP)
- Controls: DSP adjust, Sub Level, Channel Gain, MIC/LINE Reverb.
- DSP: 24-bit dip with display.
- DSP functions: Mode, EQ, Gain, HPF, Limit, Delay, Bluetooth.
- Connectivity: Bluetooth 5.0.
