Created in consultation with leading visual designers, and alongside expert industrial designers, D9 is ready for the next generation of ultimate shows and beyond. With vast screen real-estate, all-new controls, and unique media integration it intuitively combines control of all visual aspects of the show. Hand-crafted in London, built upon Avolites\' heritage of quality and reliability.

The Finest Tactile Controls in Independent Banks Of 15

Motorised and touch-sensitive Penny and Giles faders: Optical high-res rotary faders:  Short-travel flash buttons with positive haptics for perfect timing.

Indicator Colours for Flawless Performance

Fader and Encoder level indicator colours can be defined to make it even easier to group and quickly recognise controls when it counts.

11-Segment Level Indicator on Every Fader

RGB level indicator on every fader which follows the halo colour of the playback. Especially useful on rotary faders when swapping pages.

Everything in its Right Place

Additional Macro buttons with a dedicated screen, right in the playback section. Flash buttons under the faders. Perfectly aligned labelling. Page banks for every section.

T-Bar for Super Smooth Transitions

The T-Bar delivers more refined control with even smoother manual fades. Paired with our unique Scene Master functionality it brings total professionalism to live creativity.

With its non-contact design, the fader remains as accurate as ever, even after years of use. The scene master function is complemented by a double-width Commit button and four further control buttons, plus a dedicated LCD screen for continuous status data.

Dedicated Master Cue List Control Section

With two motorised faders, 8 control buttons and a double-width Go button, theatrical cue list performance is at your fingertips.

Product Features

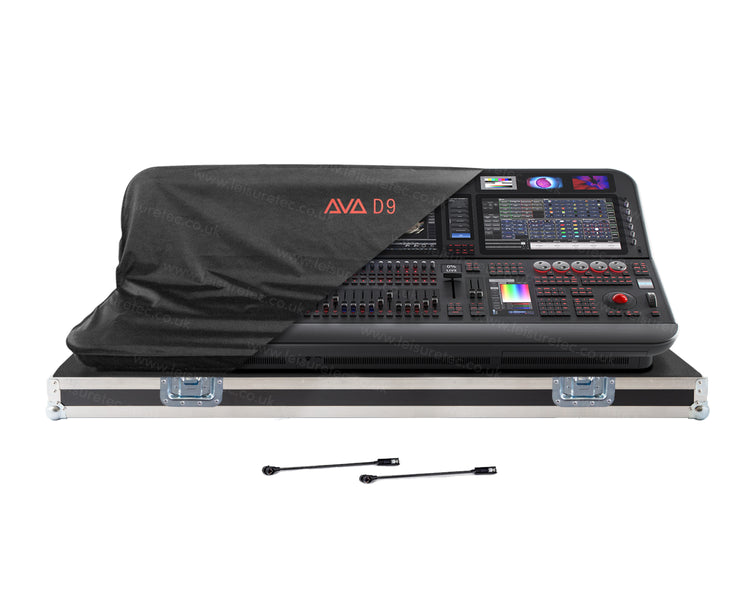

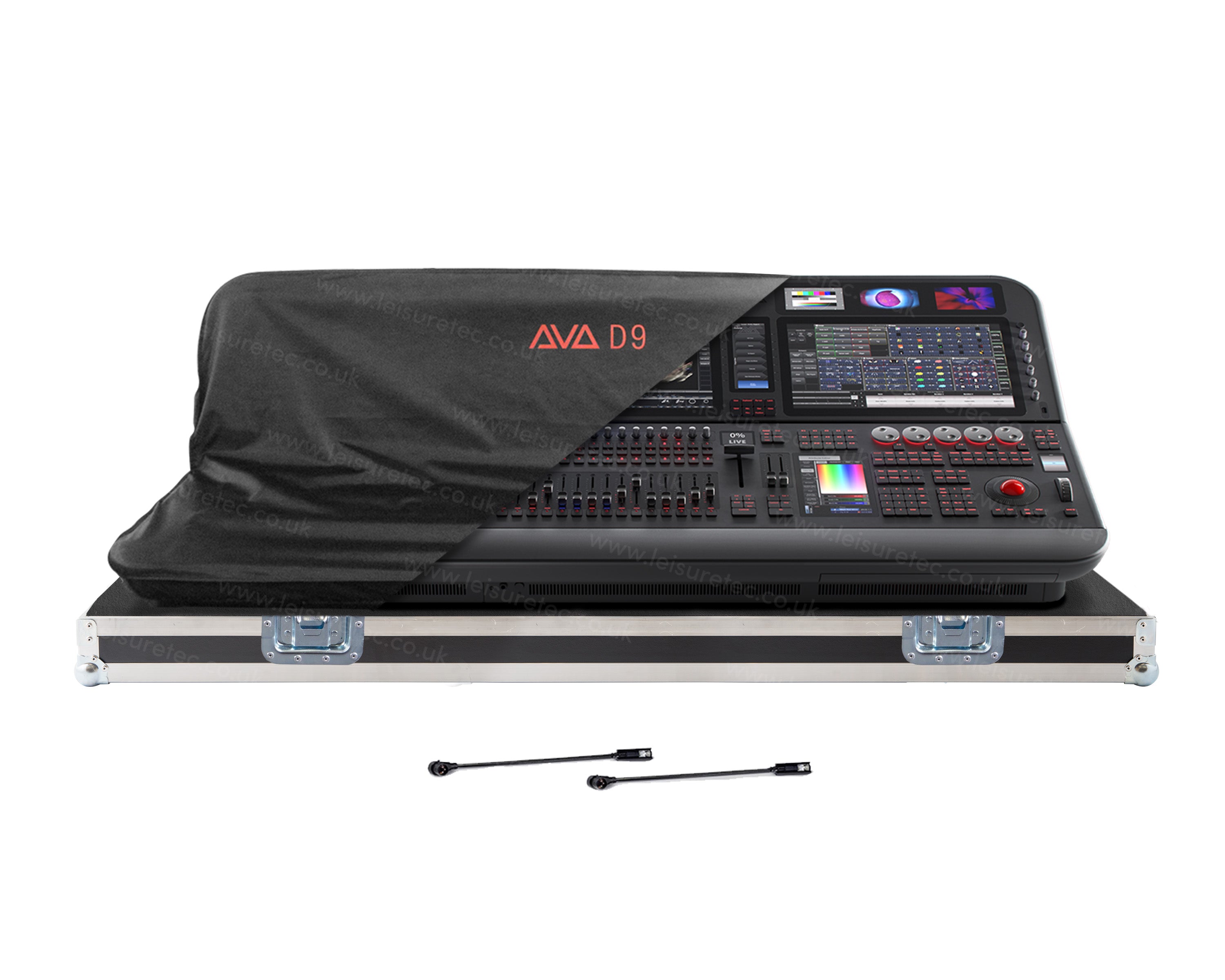

• Includes: Flight Case, Cover and 2 Lamps
• 30 Motorised Touch-Sensitive Penny & Giles Faders - Designer Fader Cap
• 11-Segment RGB Led Level Indicator Alongside Each Fader
• Halo RGB For Each Playback
• 70 Optical Rotary Touch Sensitive Playback Encoders with Push Function - Designer Knob
• 11-Segment RGB Led Level Indicator Alongside Each Encoder
• RGB Halo For Each Encoder
• 180 C&K Playback Function Buttons with Positive Haptics for Timing - Designer Button Cap
• 70 Optical Rotary Assignable Encoders with Push Function - Designer Knob
• 3 X 15.6" 1000nits 1920*1080 Capacitive Touchscreens with Adjustable Brightness
• 3 X 4.3" 1000nits 800x480 Preview Touchscreens for Media or Workspaces
• Softkey Menu Touchscreen
• Independent Paging for Each Playback Section
• Programming Buttons All RGB Backlit, Short Travel Cherry® Mx Low Profile Switches
• 5 Custom RGB Backlit Optical Attribute Encoders
• Dedicated Level Wheel, Machined Aluminium with Colour Lcd Status Screen
• T-Bar With 5 Control Buttons and A Colour Lcd Status Screen
• Dual, Motorised, Touch-Sensitive, Master Cue List Fader Control With 9 Buttons
• 7" Dual-Touch High-Brightness 800*1280 Programming Screen
• Full Custom Backlit Qwerty Keyboard in Drawer, Keys Identical to Program Panel
• X, Y, Z, Optical Trackball
• 21 Backlit Macro / Executor Keys, All Screen-Labelled
• Supports Two Additional HDMI 1920*1080 Touchscreens

Product Specifications

• Software Platform: Avolites Titan
• DMX Channels Per Device: 16,384
• DMX Channels Per System: 32,768
• Max Fixtures: Unlimited
• Keyframe Effect Engine: Custom Effects with Any Number of Keyframes
• Pixel Mapping: Video Via Synergy, Pixel Animations from Titan
• Playback Control: User Defined Using Multiple Faders, Encoders and Buttons

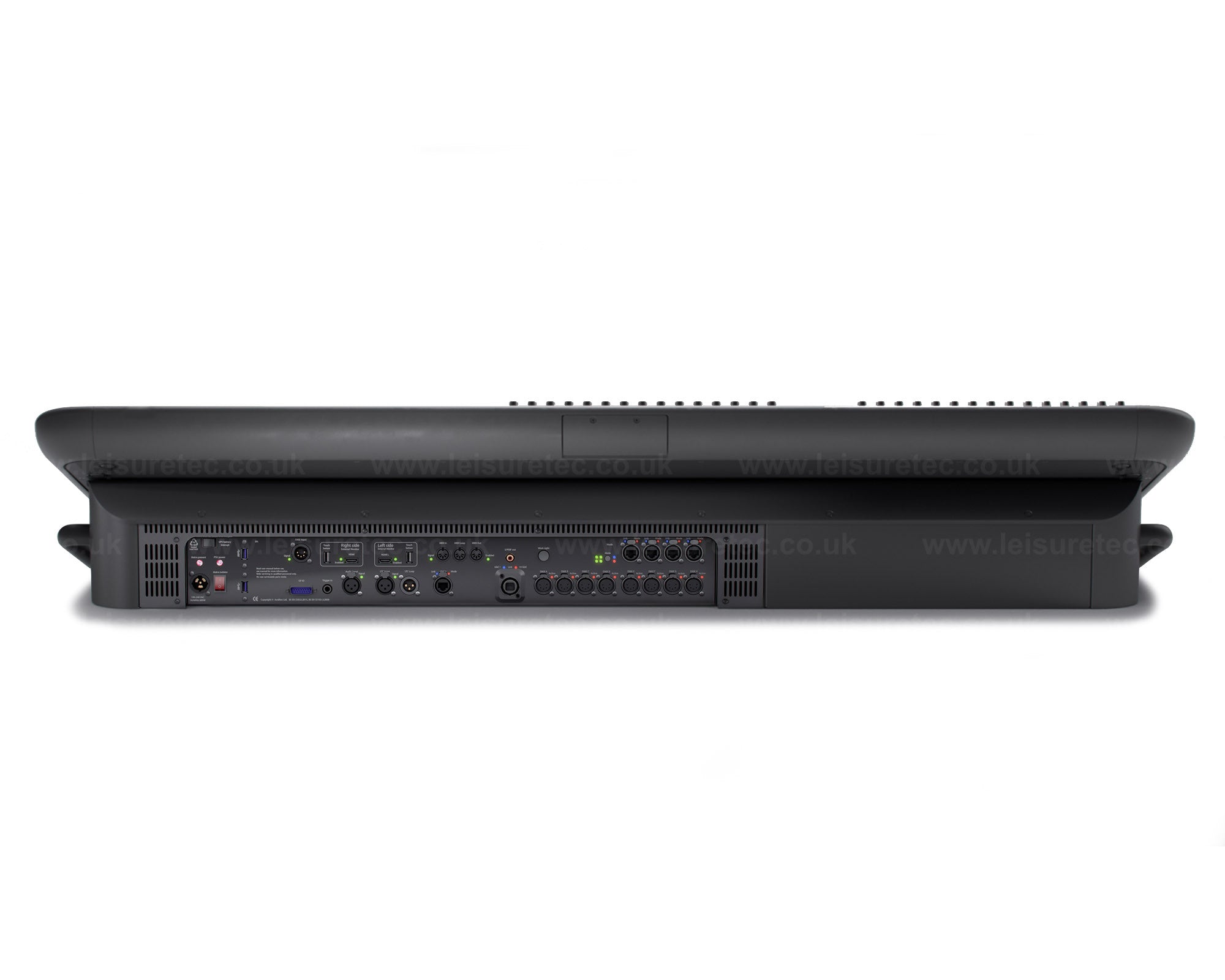

• External Controle: WEB API, SMPTE, MIDI, DMX, S-ACN, GPIO
• Titan Net: Multi-User & DMX Expansion
• Output Formats: ARTNET, S-ACN, DMX512
• Base OS: Microsoft Windows 10 Enterprise LTSC 64 Bit
• Weight: 68Kg / 150lbs
• Dimensions
  • 1380 x 640 x 455 mm (SCREENS UP)
  • 1380 x 705 x 240 mm (SCREENS DOWN)

For full specifications please find the ‘Datasheet’ located in the downloads tab above.

What's in the Box?

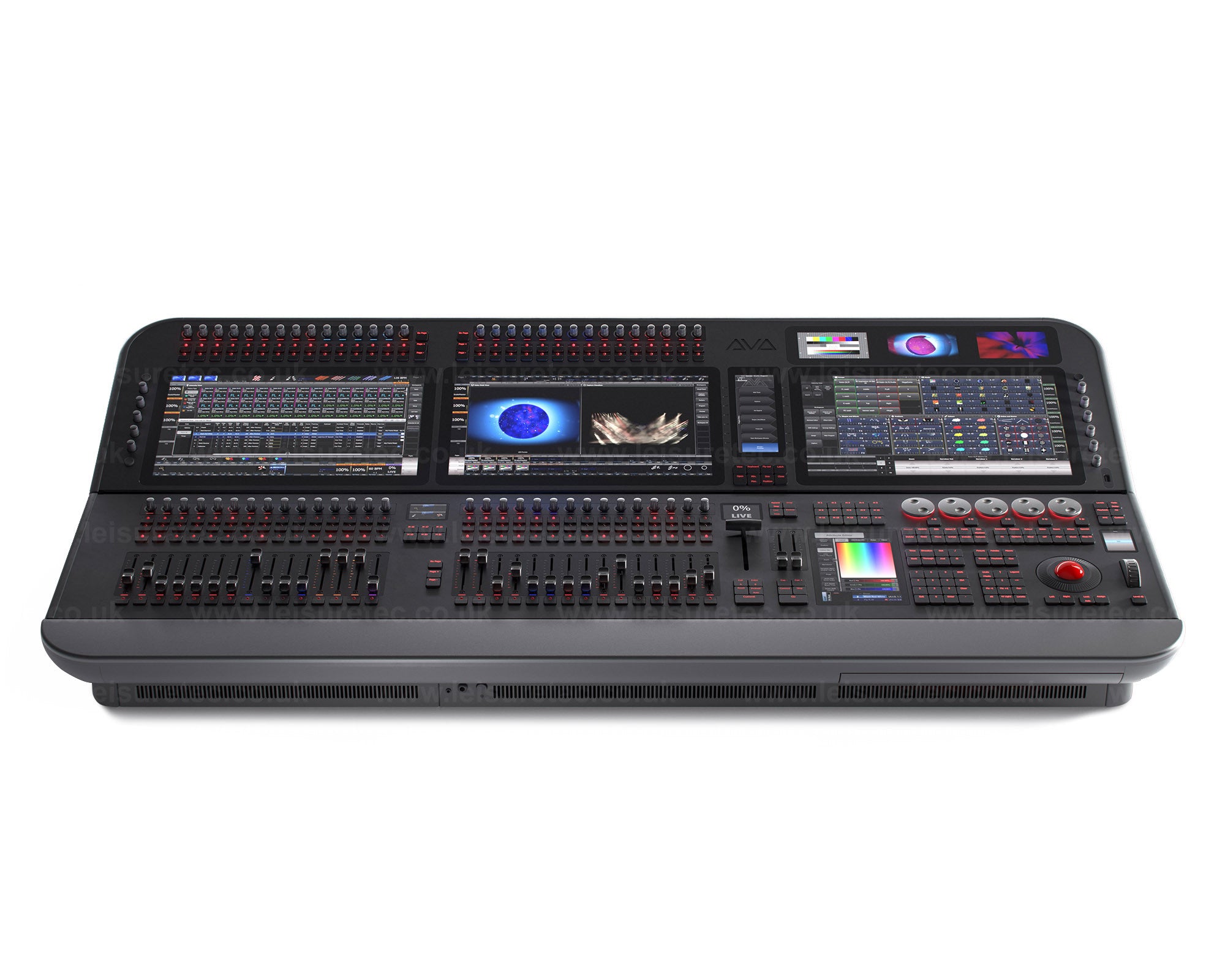

• Diamond 9 D9-330 Lighting Console
• Flight Case

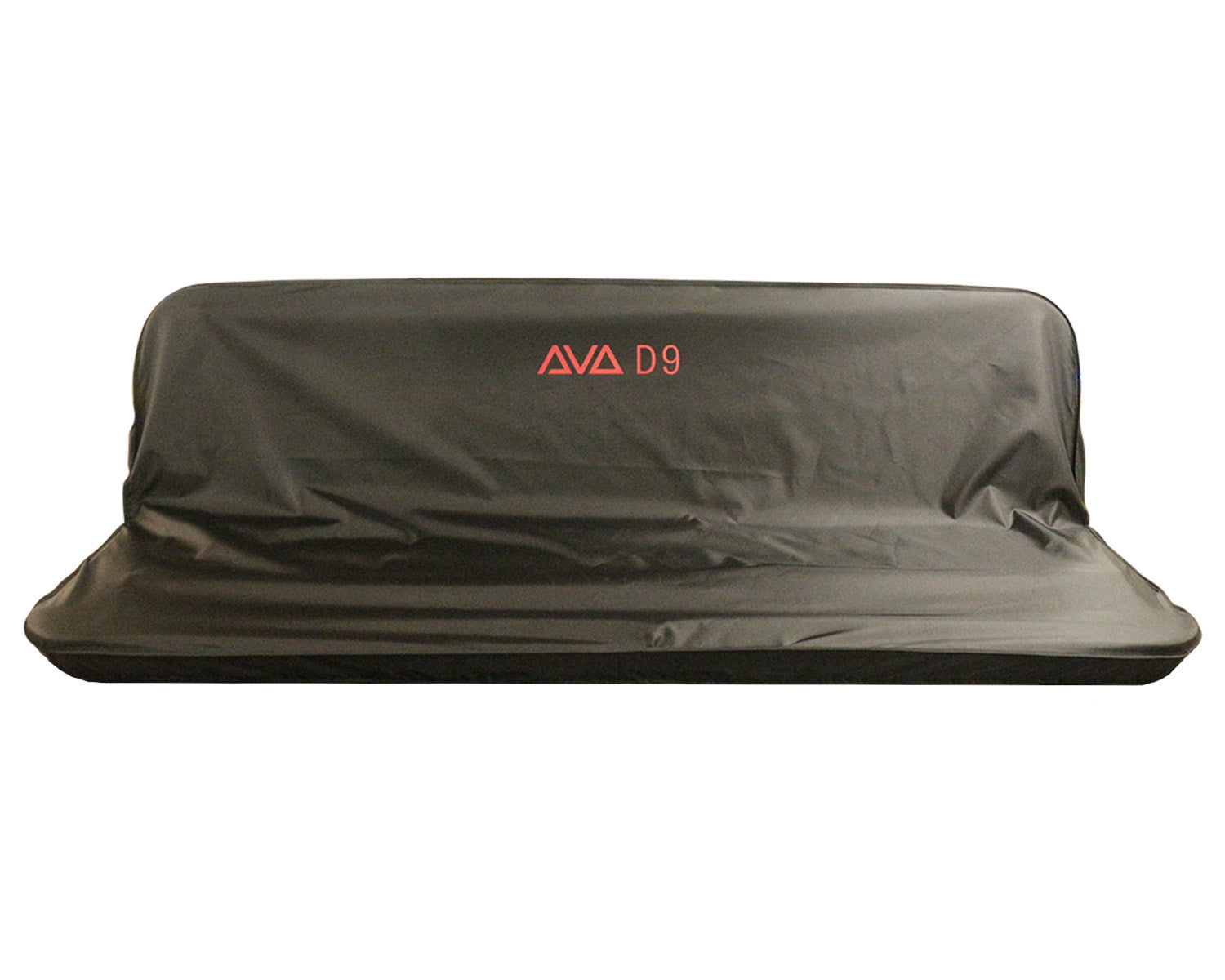

• Cover

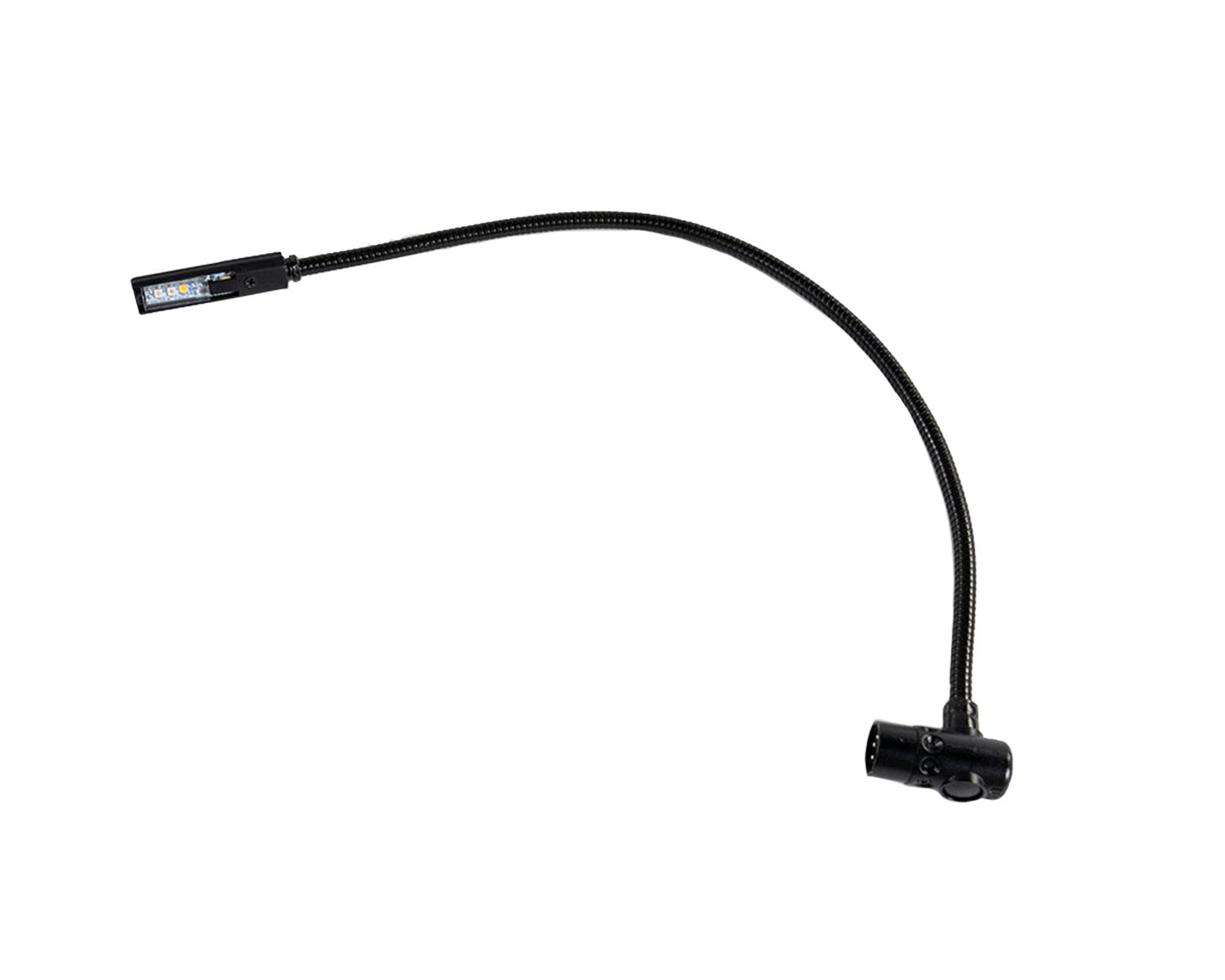

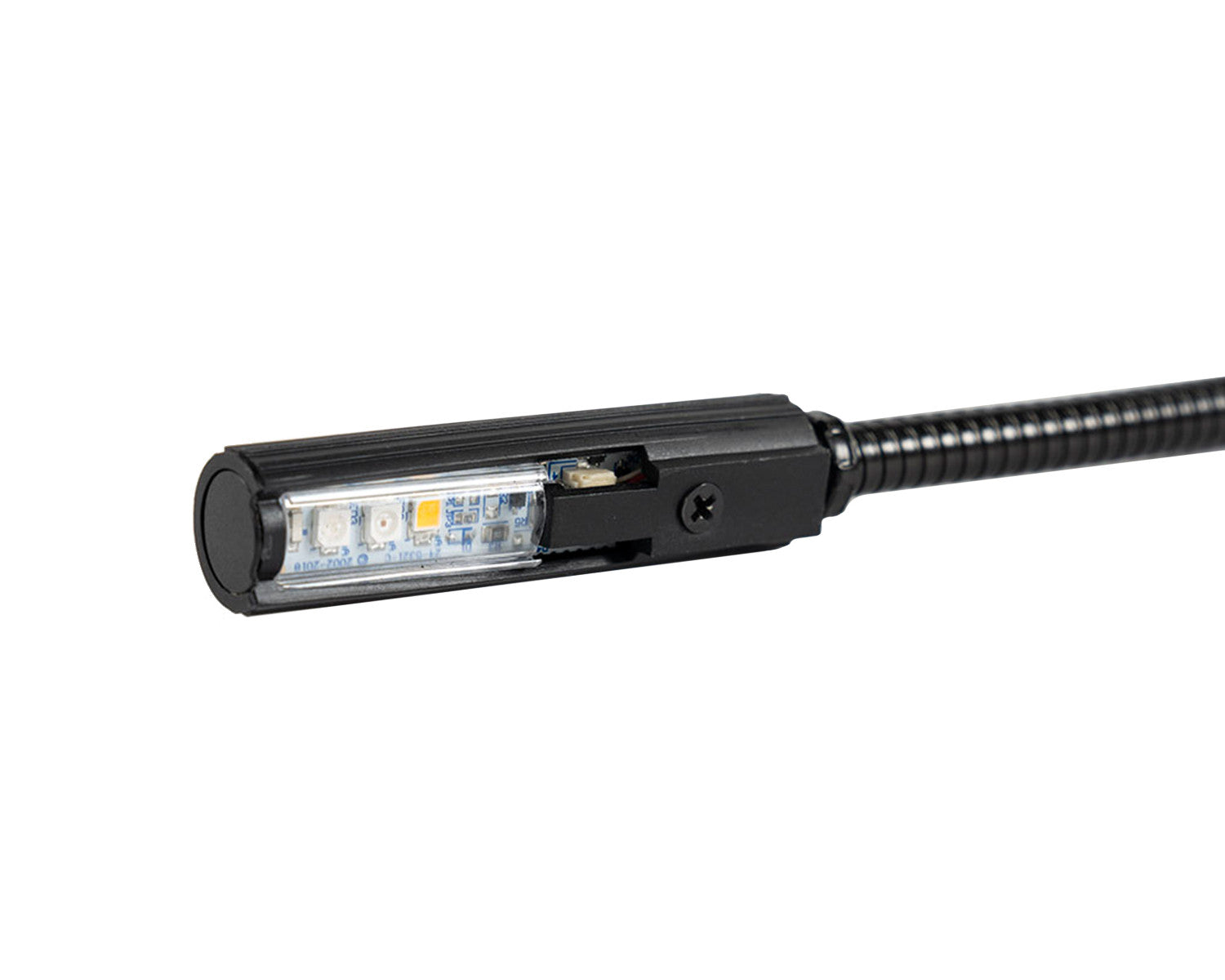

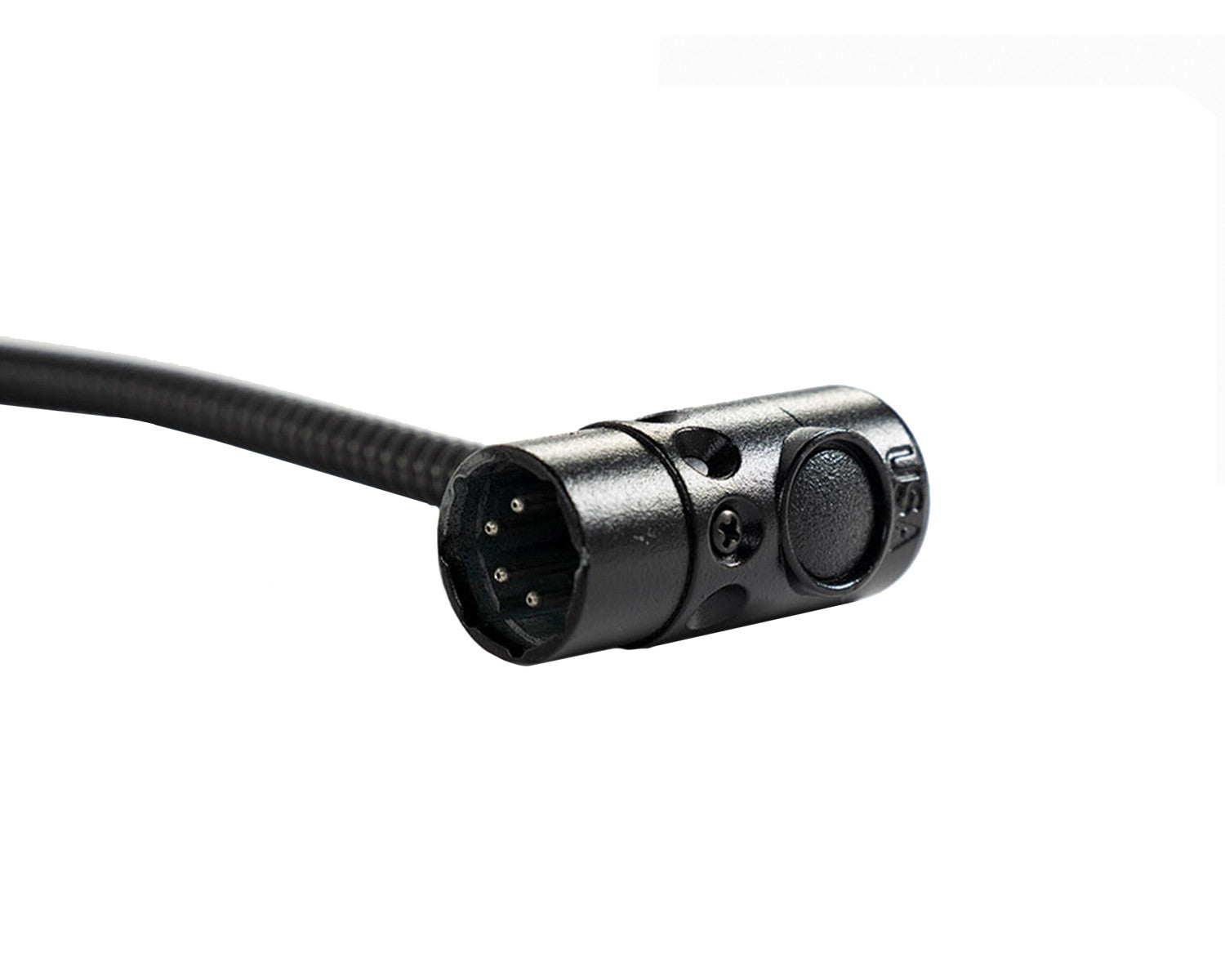

• 2 x Lamps
