Based on the D9’s design language and control capabilities, making it the perfect companion console to ensure your show integrity and continuity while travelling. Fly with your D7 to live shows without compromising sophistication of your lighting design. The latest in the Diamond series has been custom designed for multi-purpose venues, mid-sized studio and broadcast studio, and mid to high end corporate shows.

Product Features

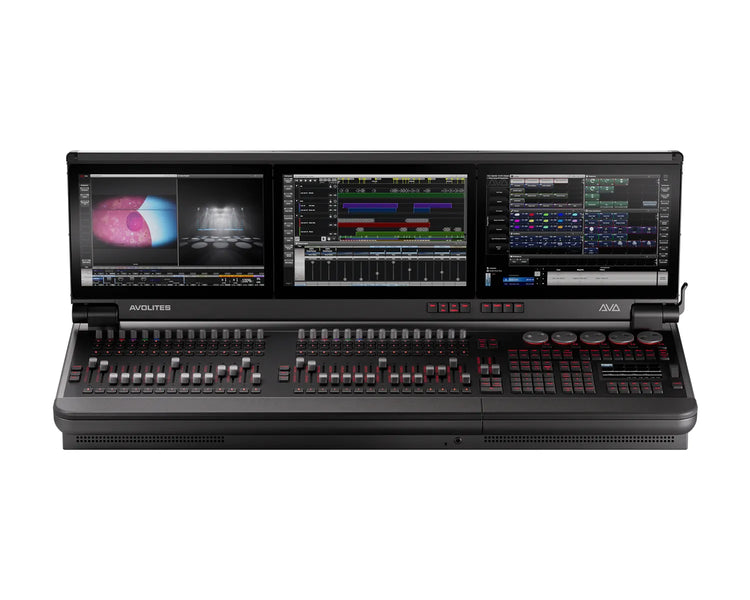

D7-330 Features

• 30 Motorised touch-sensitive faders, with designer fader cap
• Dual, motorised, touch-sensitive, master cue list fader with 9 control buttons
• Single RGB LED Halo indicator alongside each fader
• Halo RGB indicator for each playback
• 30 ultra-high resolution touch sensitive playback encoders with push function
• RGB halo indicator for each encoder
• 120 C&K playback function buttons with positive haptics for timing, designer button cap
• 3 x 14” 850 nits 1920 x 1200 capacitive touch main screens with adjustable brightness
• 1 x 4.3” 850 nits 800 x 480 capacitive
• touch macro and workspace screen with adjustable brightness
• LED desk light above LCD screen
• 10 backlit Macro / Executor key, plus
• 10 soft Macro buttons with legend on
• Macro screen Independent paging for each playback section
• Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches
• 5 custom RGB backlit attribute encoders Dedicated level wheel and onscreen level indication

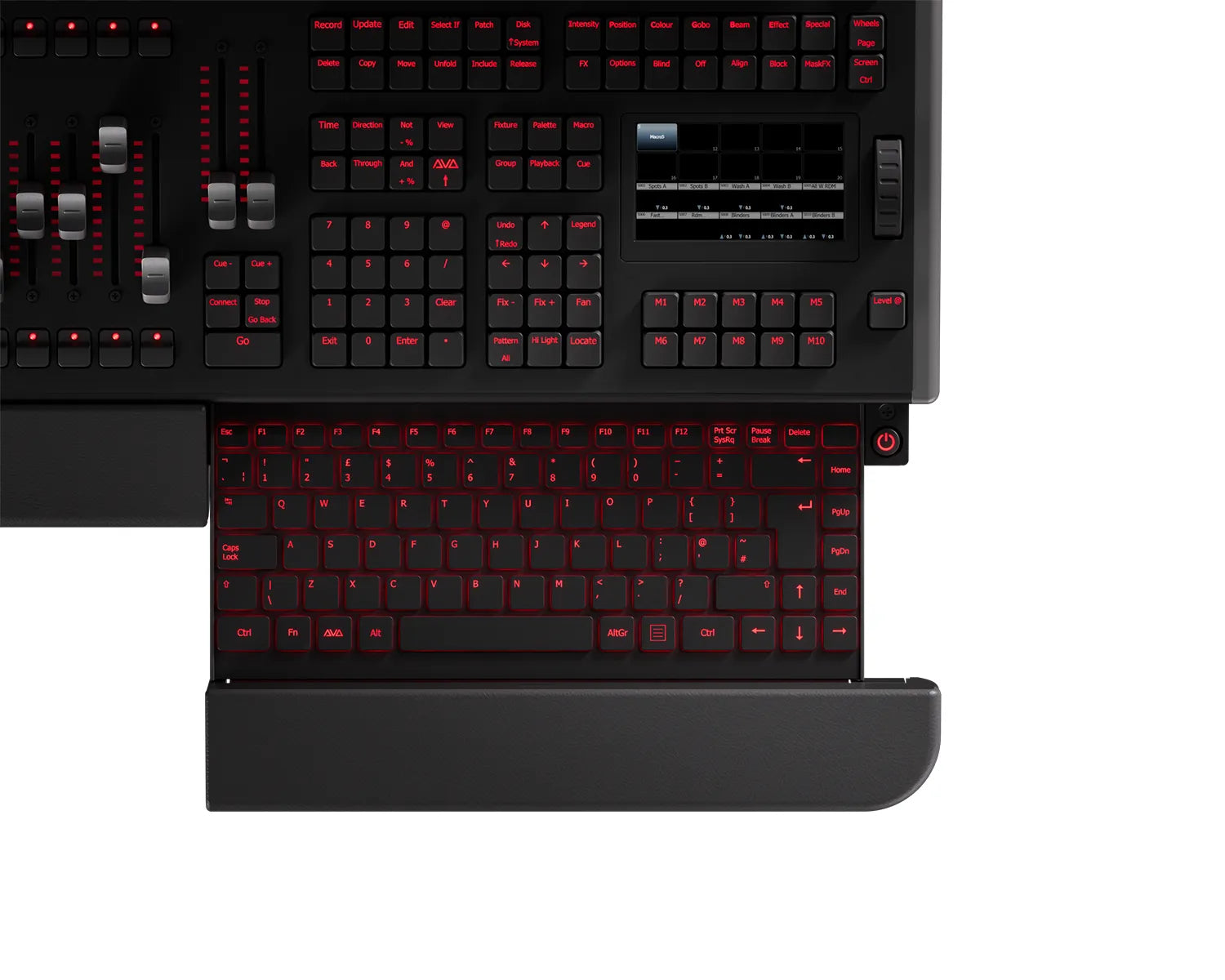

• Full custom backlit QWERTY keyboard in drawer
• Supports one additional external DisplayPort 1920*1080 touchscreen
• All aluminium construction to reduce weight
• Clam shell LCD panel design to reduce transport size, with positive locking mechanism, adjustable screen panel articulation in 6 degrees steps from – 90 to 155 degrees from vertical
• Comfortable armrest
• Exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels and level wheel
• All screens flush-mounted


Product Specifications

Software

• Platform: Avolites Titan
• DMX Slots per Device: 16,384
• DMX Slots per System: 32,768
• Max Fixtures: 32,000
• Keyframe Effect Engine: Custom effects with any number of keyframes
• Pixel Mapping: Video via synergy, pixel animations from Titan
• Playback Control: User defined using multiple faders, encoders and buttons
• External Control: Web API, SMPTE, MIDI, DMX, s-ACN, GPIO
• Titan Net: Multi-User & DMX Expansion
• Output Formats: ArtNet, s-ACN, DMX512
• Base OS: Microsoft Windows S 10 Enterprise LTSC 64 Bit
• Visualiser: Built in 3D Capture Visualizer

Hardware

• Processing: Custom processing hardware and cooling to get the best processing performance and cooling with the addition of features including industry-standard XLR connectors for networking and protected outlets
• Unit Dimensions (WxDxH):
• 1070 x 440 x 240 mm (Screens up)
• 1070 x 470 x 160 mm (Screens down)
• Power Consumption: Max 300W
• Voltage: 110 – 240 AC, 50 – 60 Hz
• Operation Environment: Operating Temp. 0 – 40 C / 32 - 104 F Max Humidity 95% Relative non-condensing
• Heat Output: Max 1024 BTU/HR
• Internal UPS: Up to 5 separate 4 – minute periods, fully software integrated

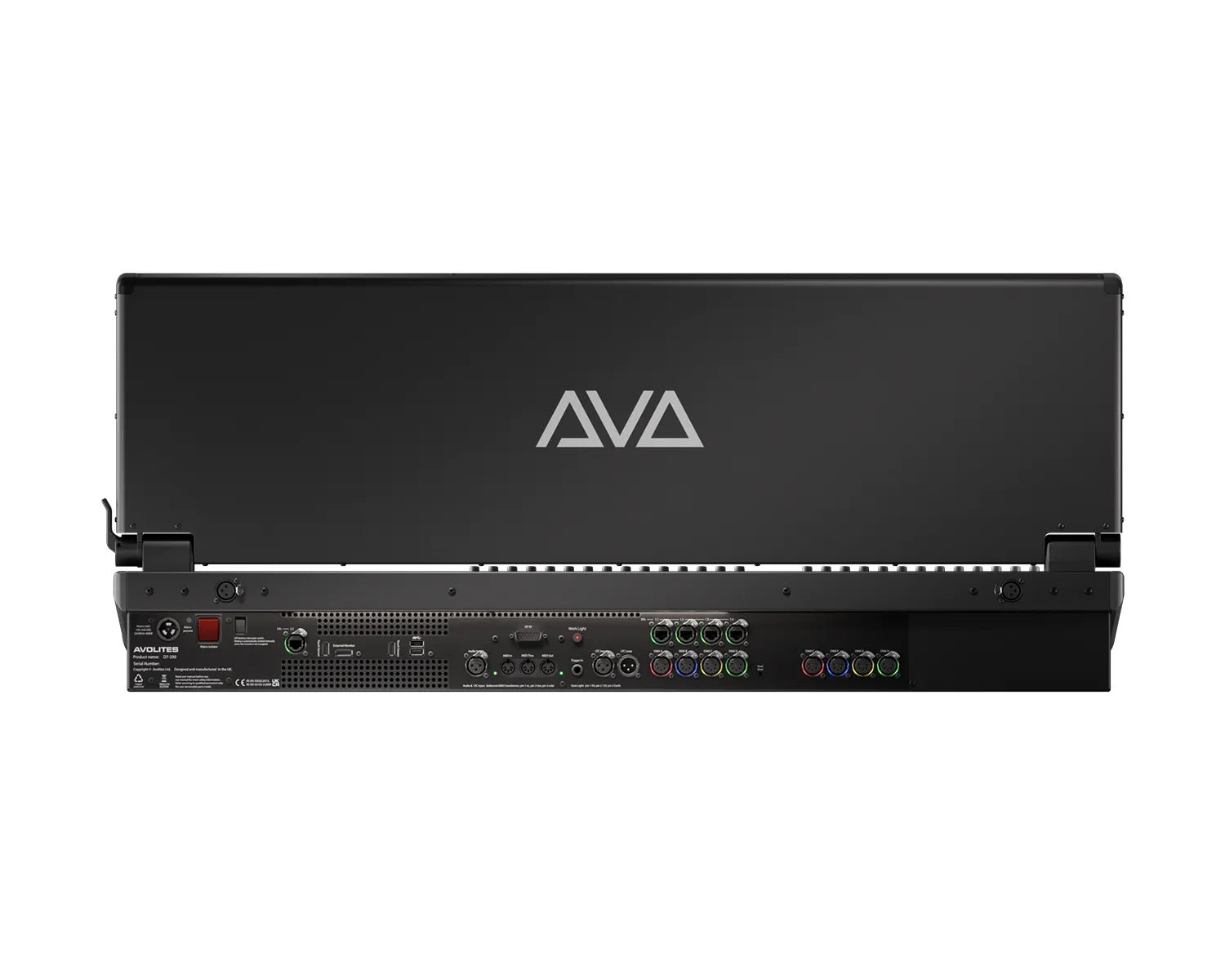

Connectivity

• DMX 512: 8 X Neutrik 5-Pin XLR, optically and galvanically isolated with halo assignment indicators
• Network:
  • 4 x Neutrik XLR on the primary port, internally switched & managed
  • 1x Neutrik XLR secondary network port
• Data/Peripherals:
  • 1 X USB 3.0 Right hand side handle
  • 2 X U SB 3.0 Back panel
  • 2 X USB 2.0 Assigned for external touch screens
• External Display: 1 X Display port up to 1920*1080
• SMPTE: 1 X 3-P in LTC timecode in and loop out XLR with transformer isolation
• Trigger Inputs:
  • GPIO 4 IN/4 OUT, Isolated, and dry contacts on 15 Pin D Sub Connector
  • ¼” Jack for foot switch
  • Audio input for 7 x Band Triggers, via 3-Pin XLR with transform isolation
• MIDI:
  • IN, THRU, OUT ON 5-PIN DIN with signal and enabled indicators
  • USB MIDI Supported
• Rear Work Light:
  • White LED strip with red LED button to aid quick location
  • 2 X 3 Pin XLR desk light sockets
• Mains Power: Neutrik True1®

What's in the Box?

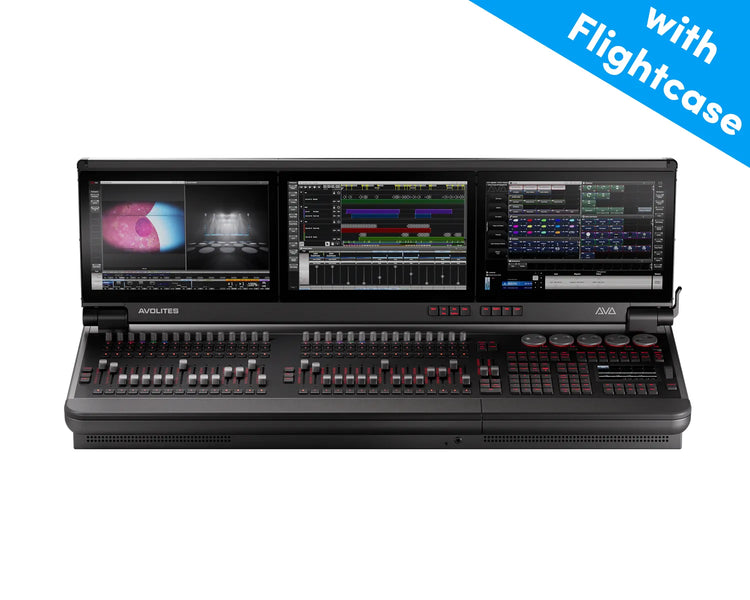

• D7-330 console (30-01-7203)

• 5-Star Flightcase (09-01-7331)
• Dust Cover
• 2m Neutrik powerCON TRUE1 cable (bare end)
