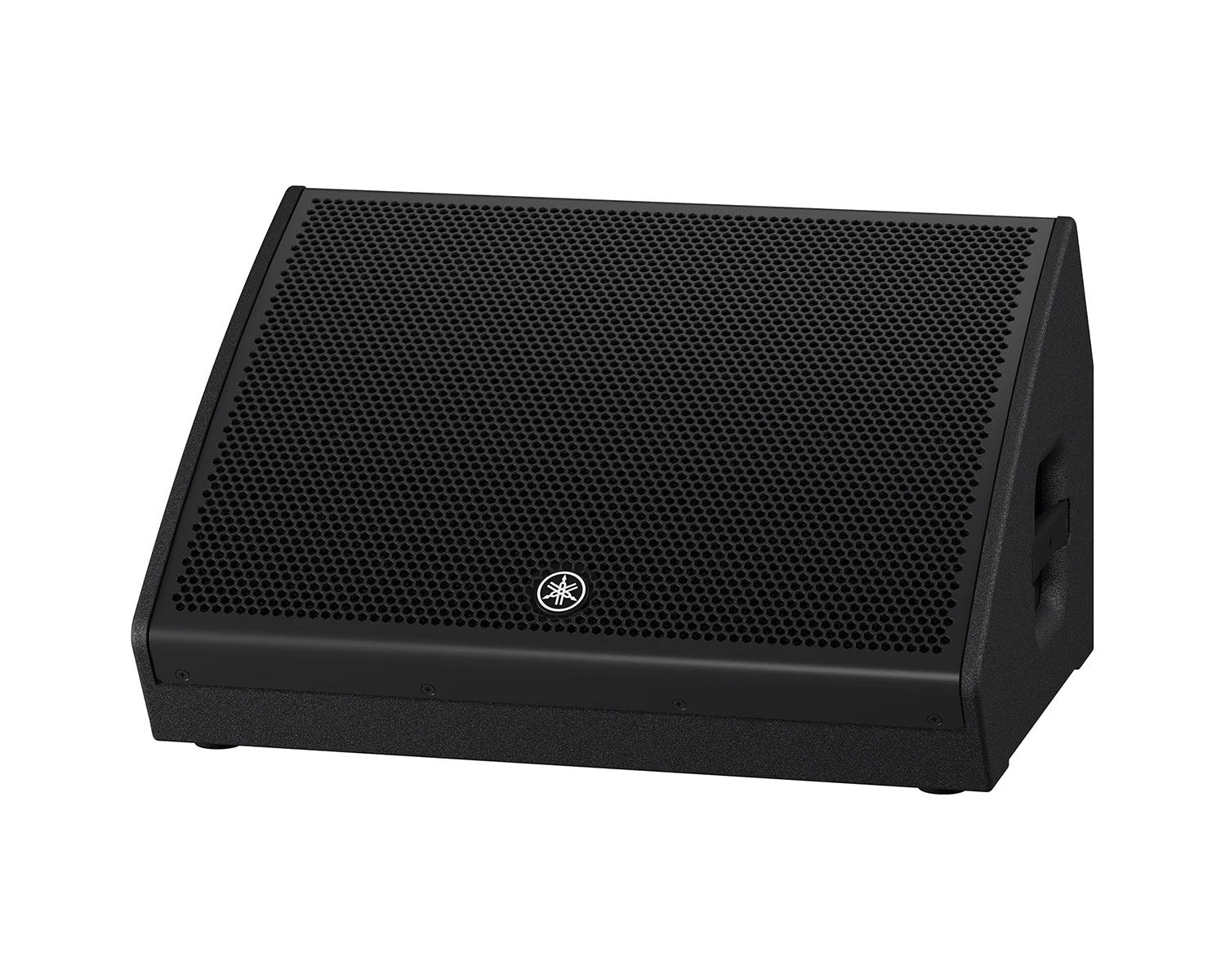

YAMDHR15M - Yamaha DHR15M 2 Way 15inch Active Stage Monitor Class D Amp 465W Black Image 1

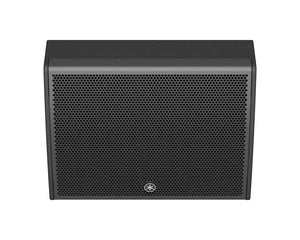

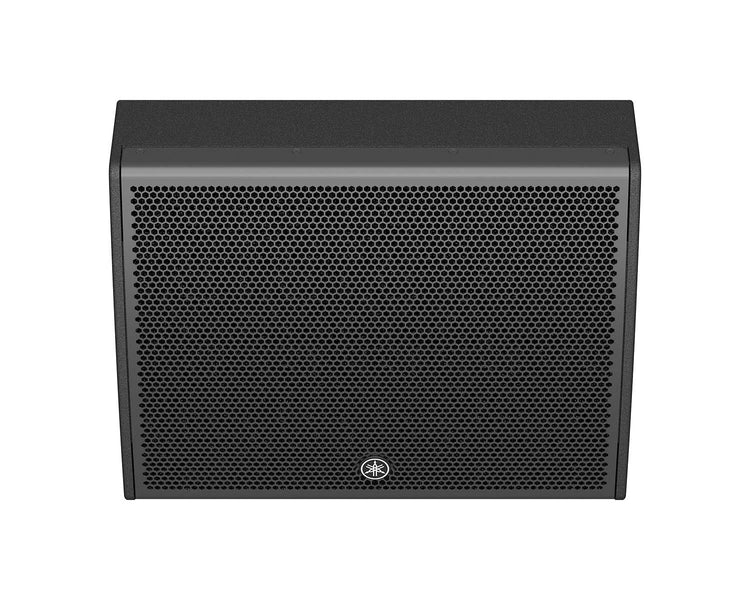

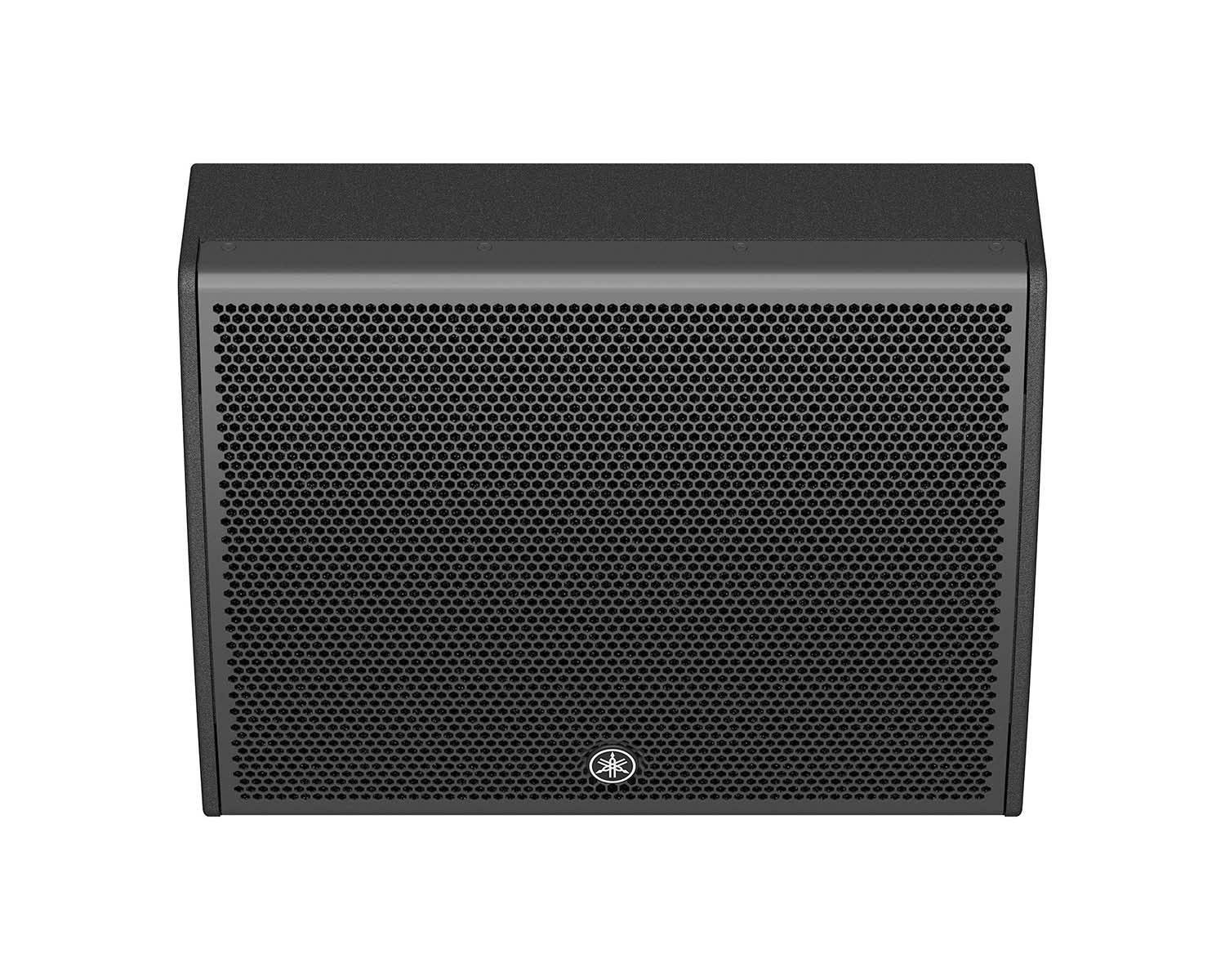

YAMDHR15M - Yamaha DHR15M 2 Way 15inch Active Stage Monitor Class D Amp 465W Black Image 2

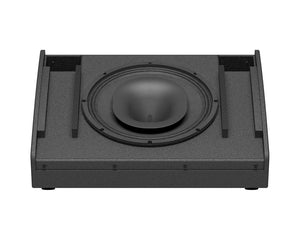

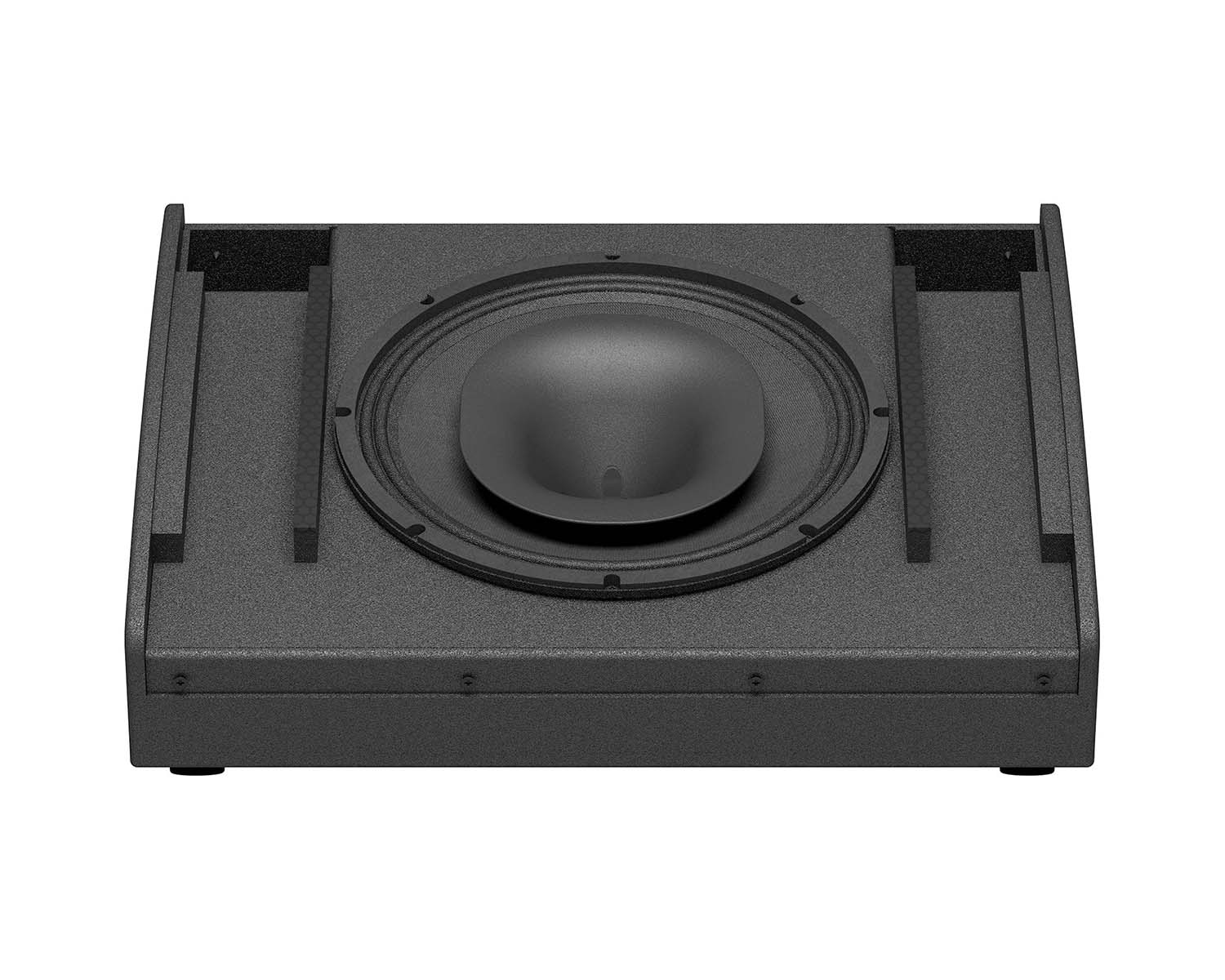

YAMDHR15M - Yamaha DHR15M 2 Way 15inch Active Stage Monitor Class D Amp 465W Black Image 3

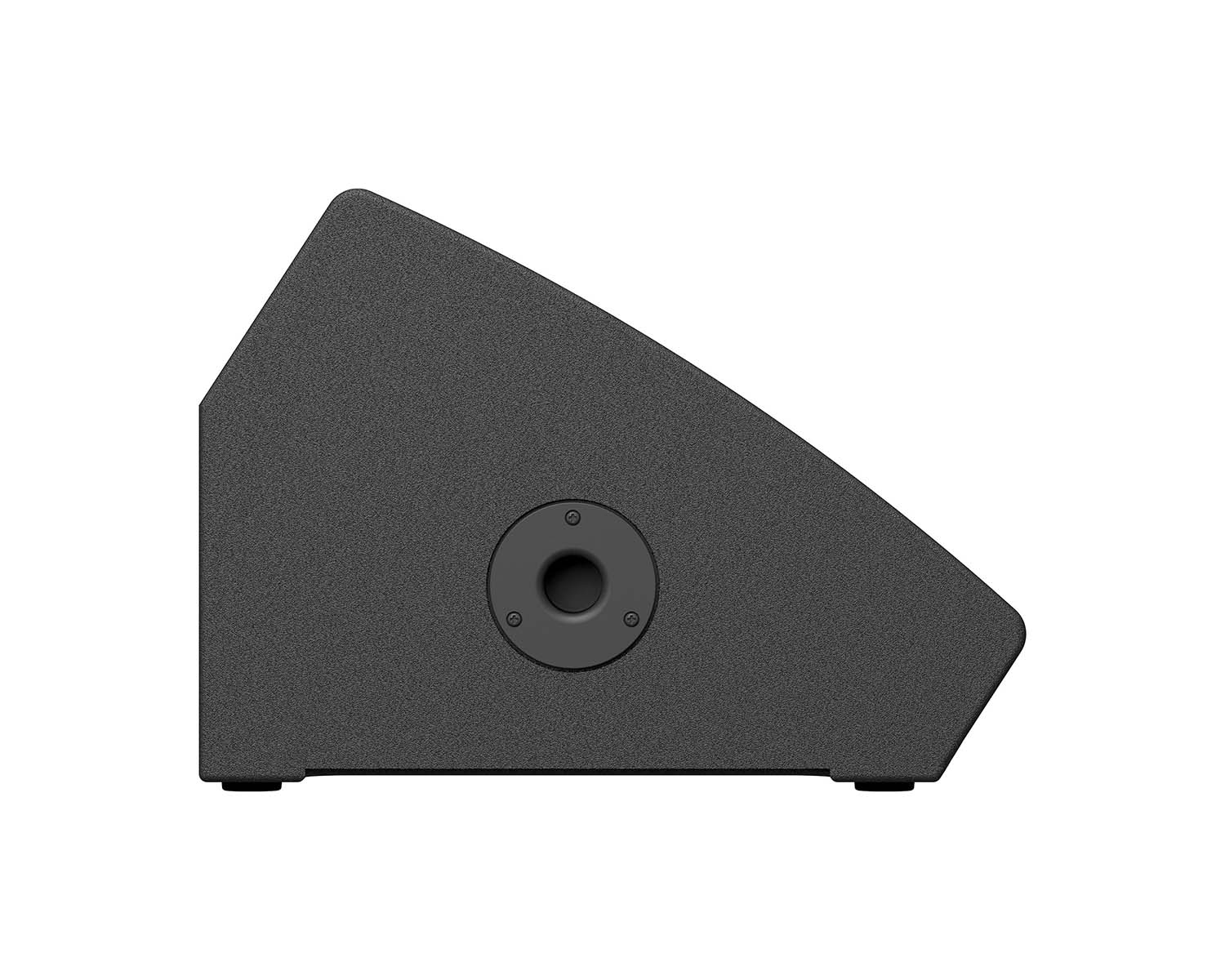

YAMDHR15M - Yamaha DHR15M 2 Way 15inch Active Stage Monitor Class D Amp 465W Black Image 4

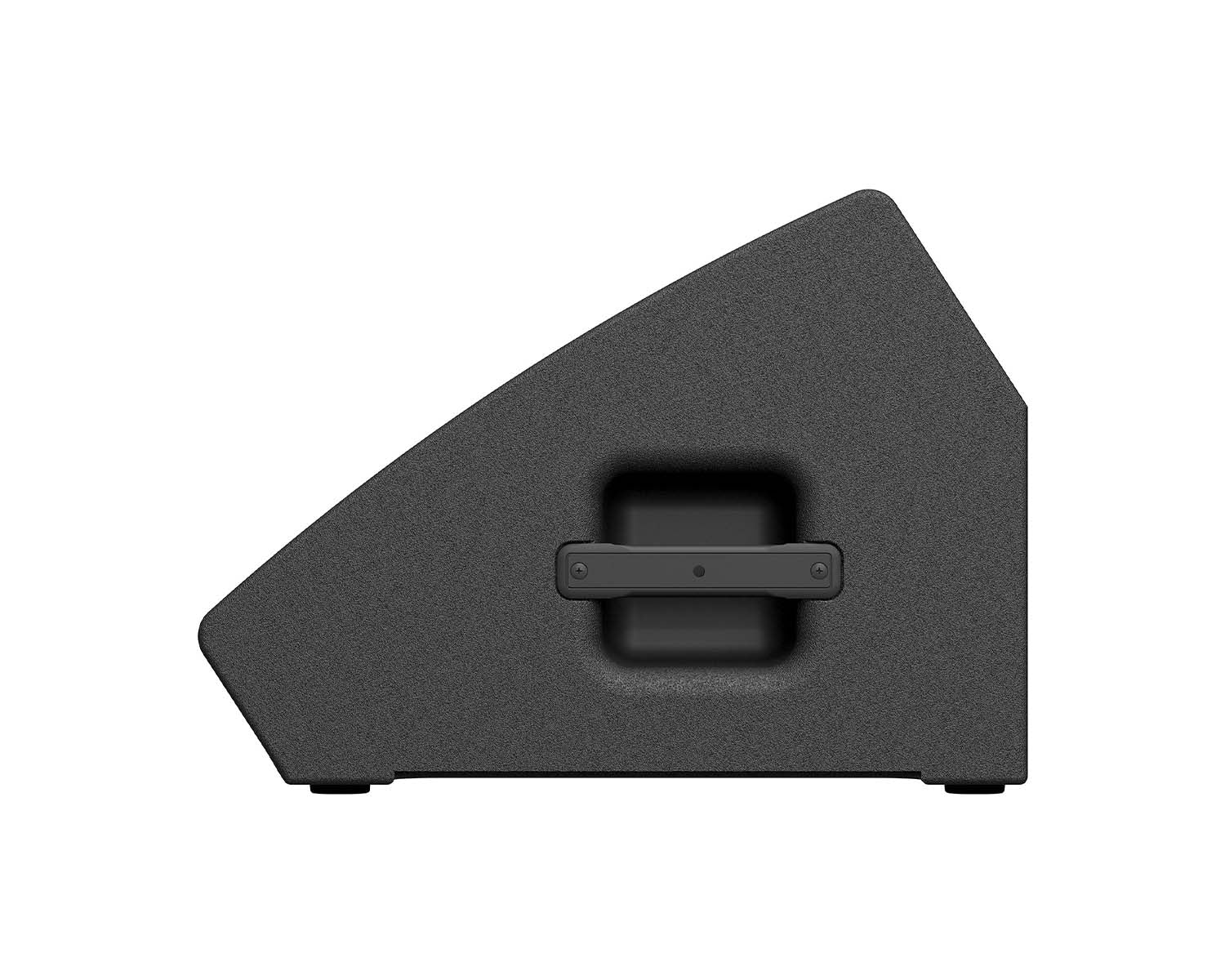

YAMDHR15M - Yamaha DHR15M 2 Way 15inch Active Stage Monitor Class D Amp 465W Black Image 5

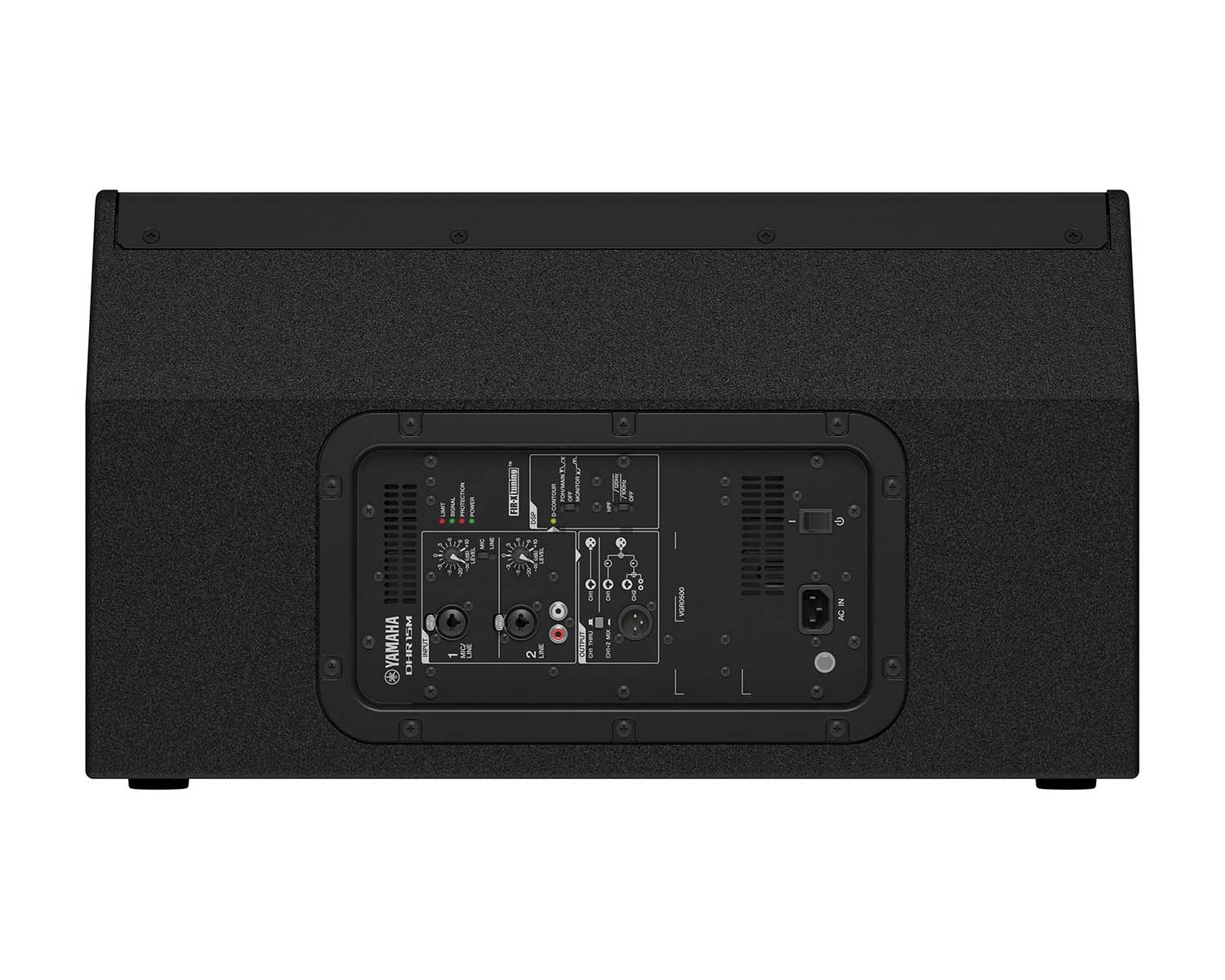

YAMDHR15M - Yamaha DHR15M 2 Way 15inch Active Stage Monitor Class D Amp 465W Black Image 6

The DHR15M is a 2-way bi-amp powered loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.

Product Features

The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
A pole socket for use on a stand
Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Product Specifications

Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 50 Hz - 20 kHz
Coverage: H65° x V75°
Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m): 131 dB SPL
Components
- LF: Diameter: 15" cone, Voice Coil: 3", Magnet: Ferrite
- HF: Diaphragm: 1.75", Type: 1" throat compression driver Coaxial, Magnet: Ferrite
Amplifier Class: Class-D
Power rating
- Dynamic: 1,000 W (LF: 800 W, HF: 200 W)
- Continuous: 465 W (LF: 400 W, HF: 65 W)
Cooling: Fan cooling, 4 speeds
Power consumption: 74 W (1/8power), 18 W (Idle)
Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
A/D D/A Converters: 24 bit 48 kHz Sampling
Processors: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet material: Plywood
Finish: Durable Polyurea Painting, Black
Handle: Side x1
Pole Socket: Φ35 mm x1 (Bottom)
Floor Monitor Angle: 57°
Dimensions
- W: 642 mm (25.3")
- H: 369 mm (14.5") (with rubber feet)
- D: 505 mm (19.9")
Net weight: 23.0 kg (50.7 lbs)
