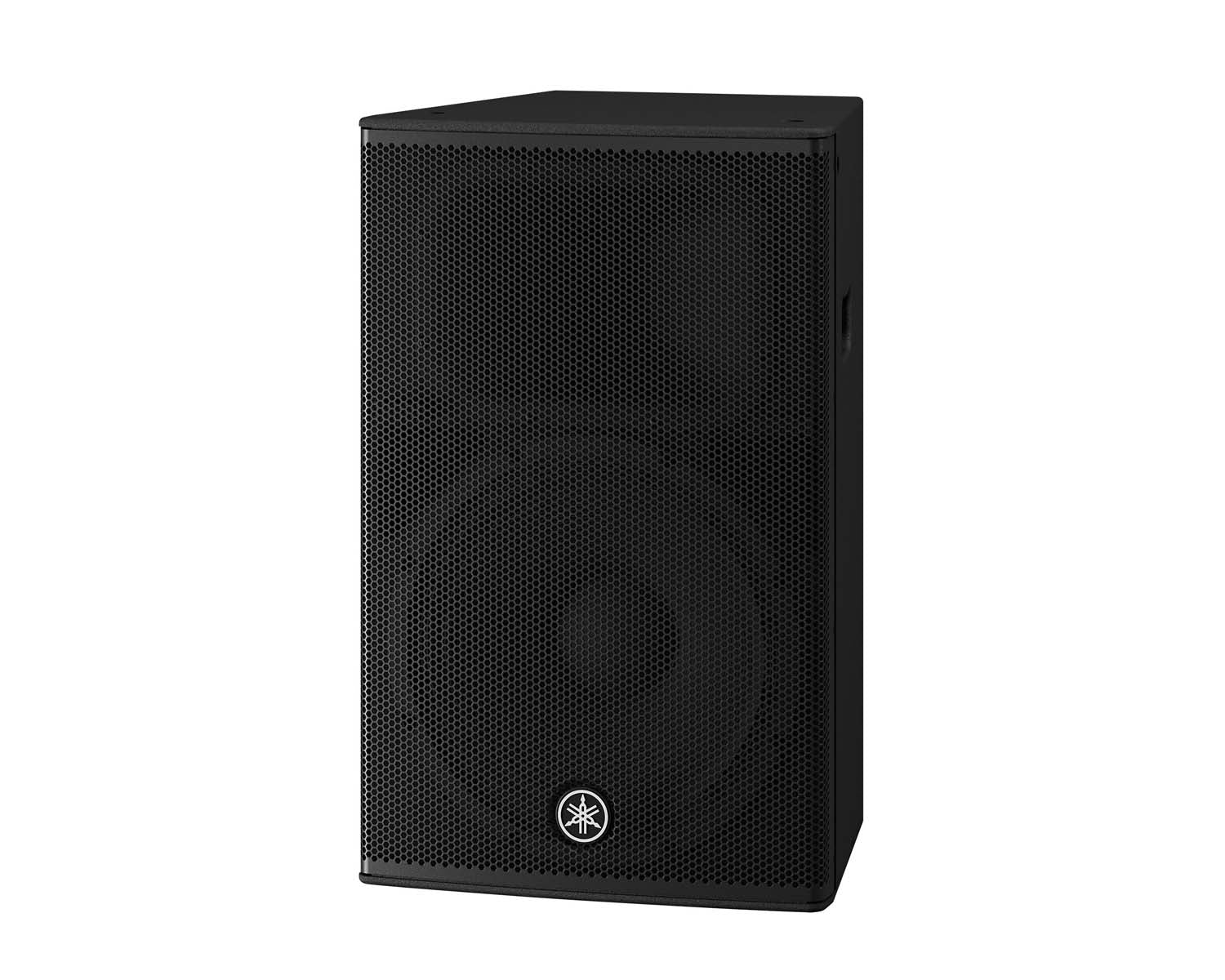

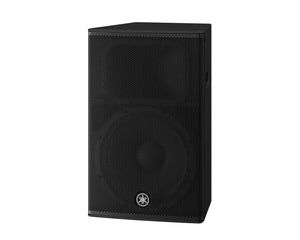

YAMDHR15 - Yamaha DHR15 2 Way 15inch Active Loudspeaker Class D Amp 465W Black Image 1

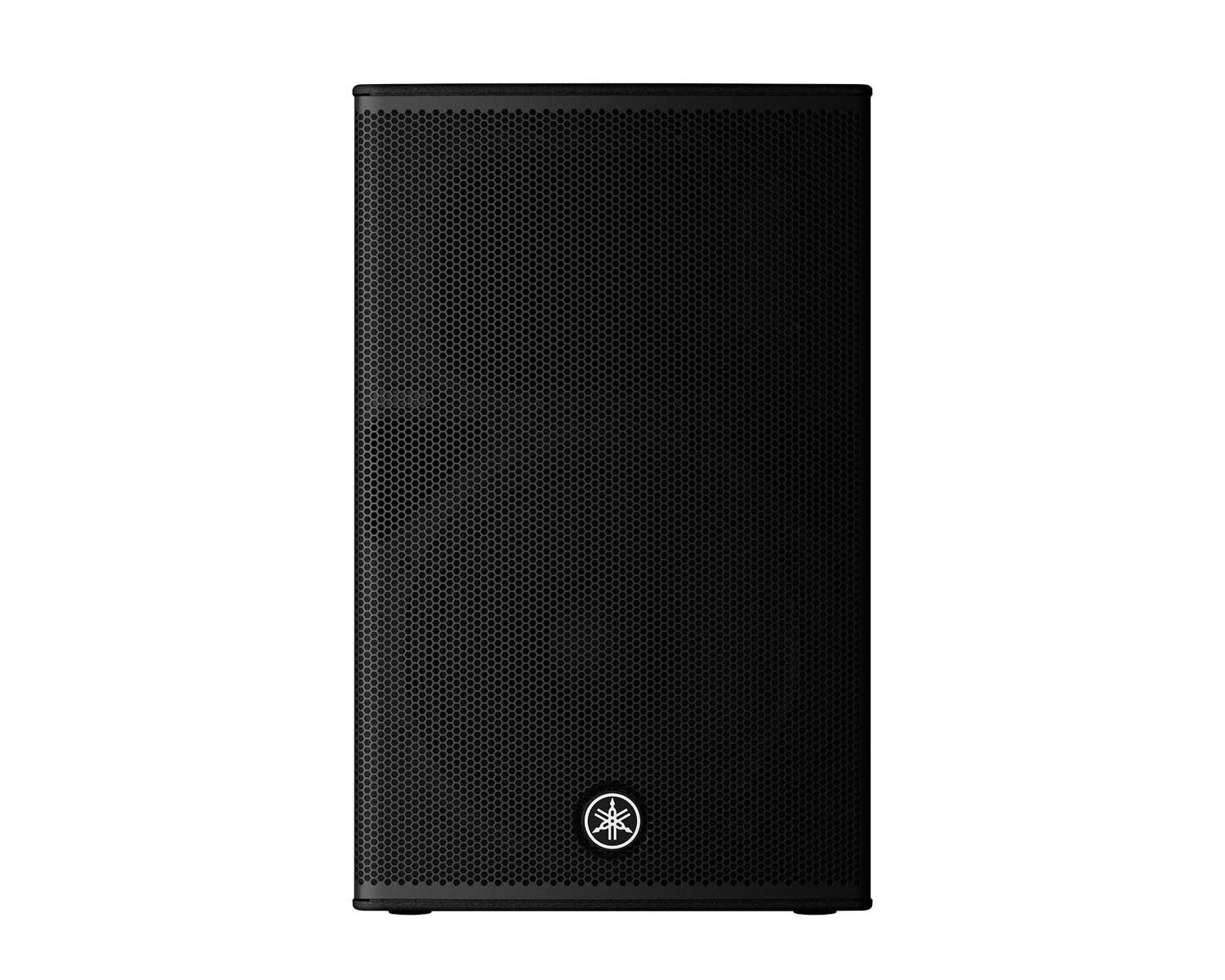

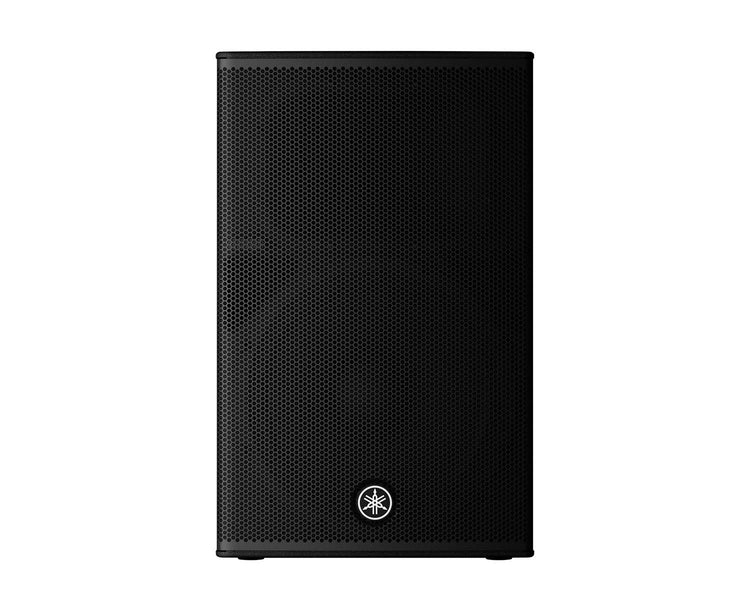

YAMDHR15 - Yamaha DHR15 2 Way 15inch Active Loudspeaker Class D Amp 465W Black Image 2

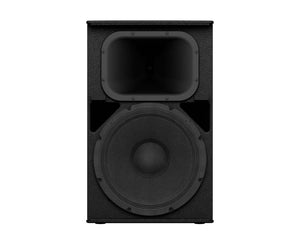

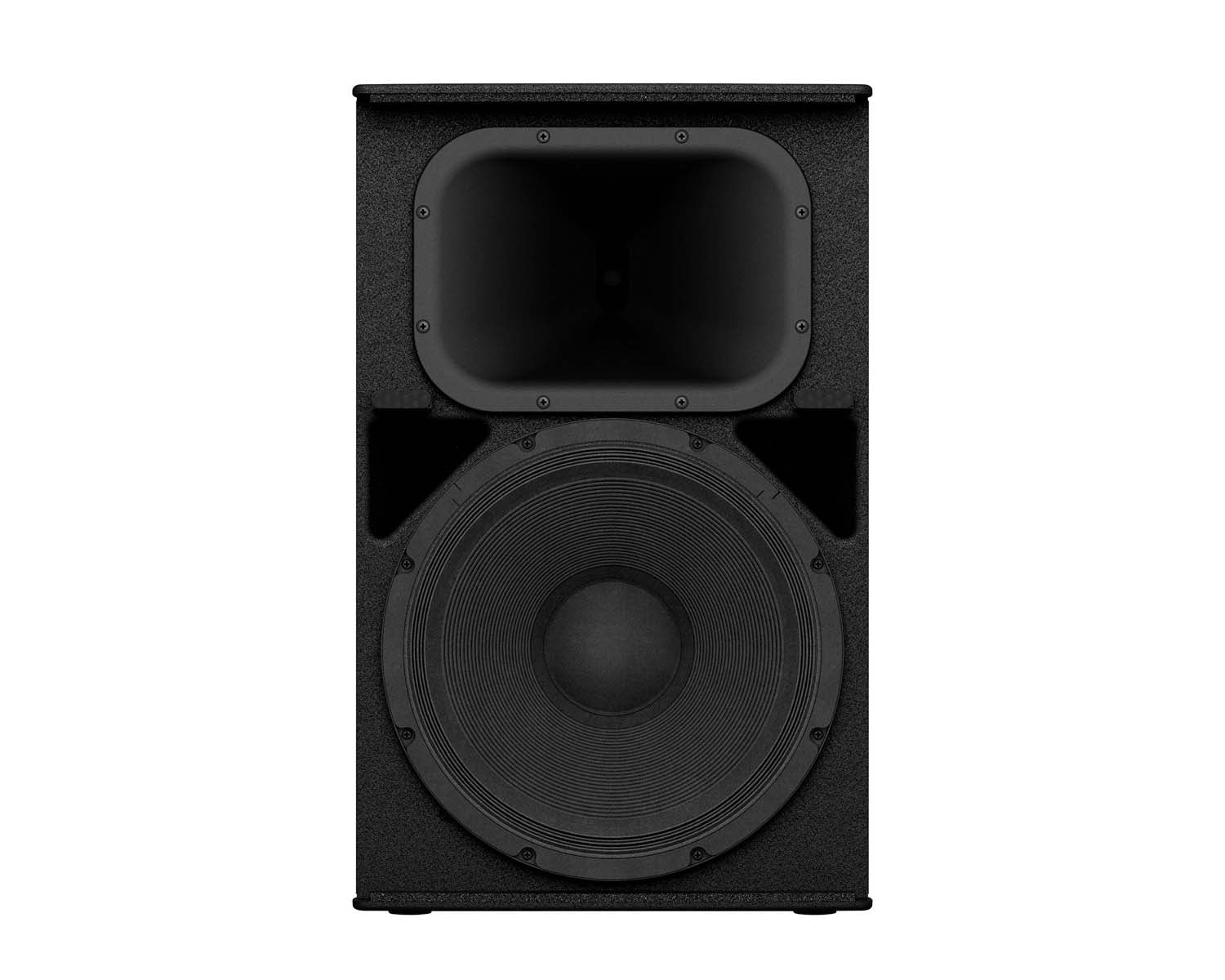

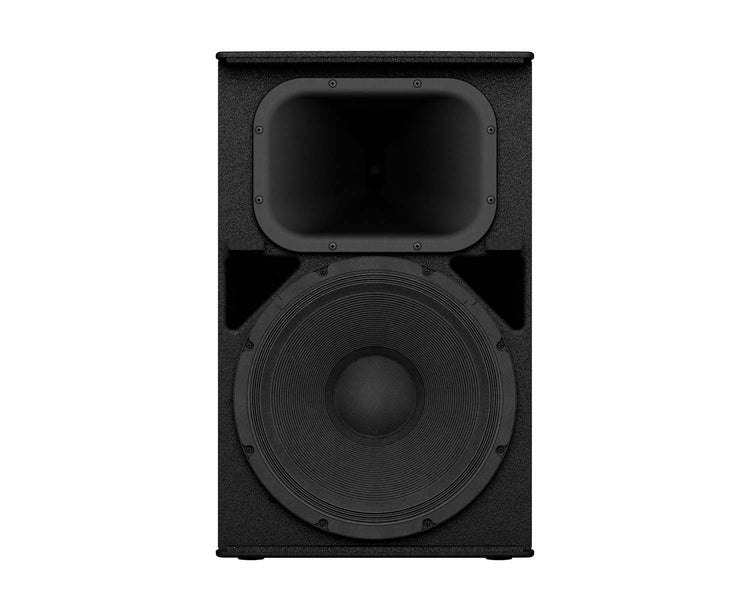

YAMDHR15 - Yamaha DHR15 2 Way 15inch Active Loudspeaker Class D Amp 465W Black Image 3

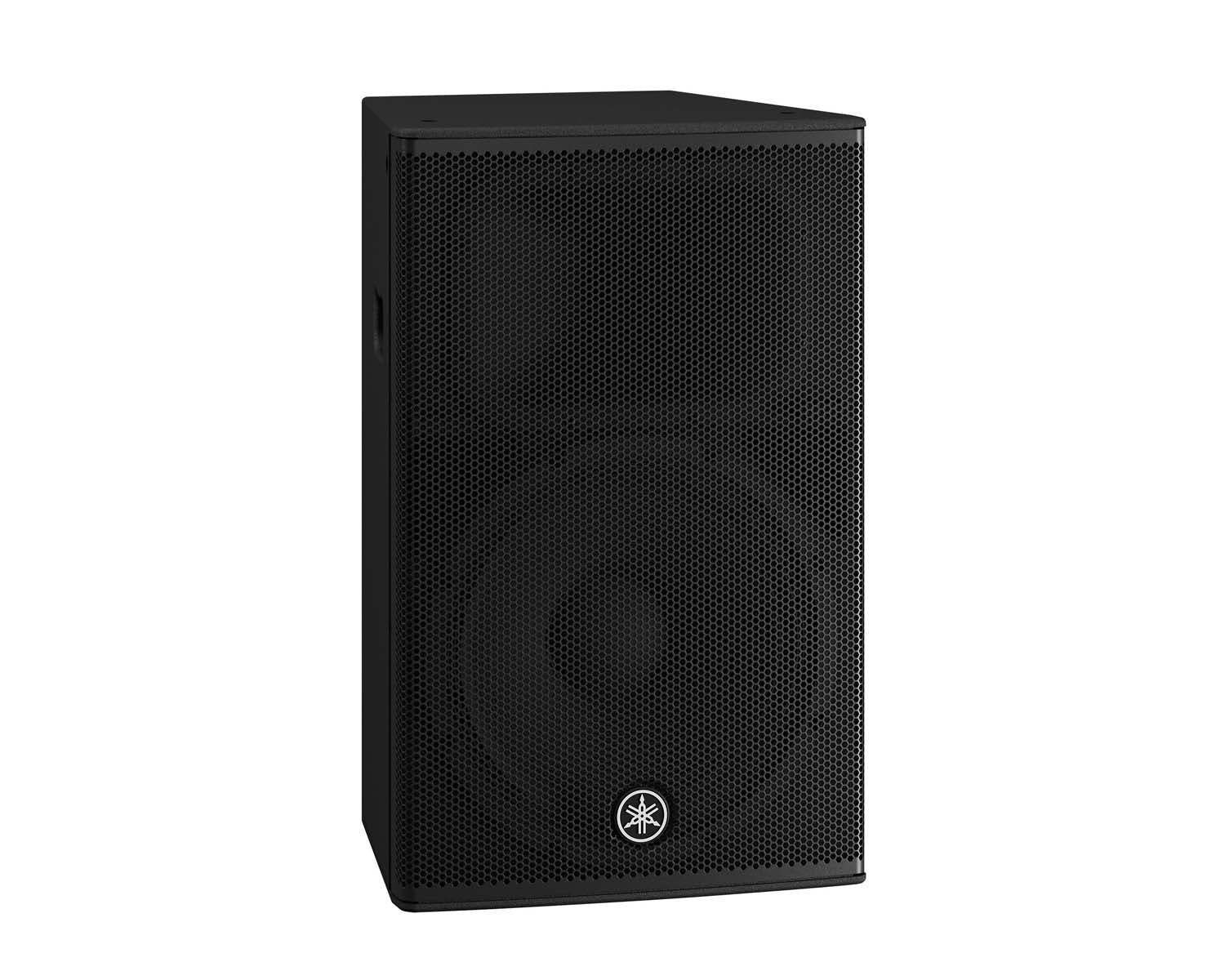

YAMDHR15 - Yamaha DHR15 2 Way 15inch Active Loudspeaker Class D Amp 465W Black Image 4

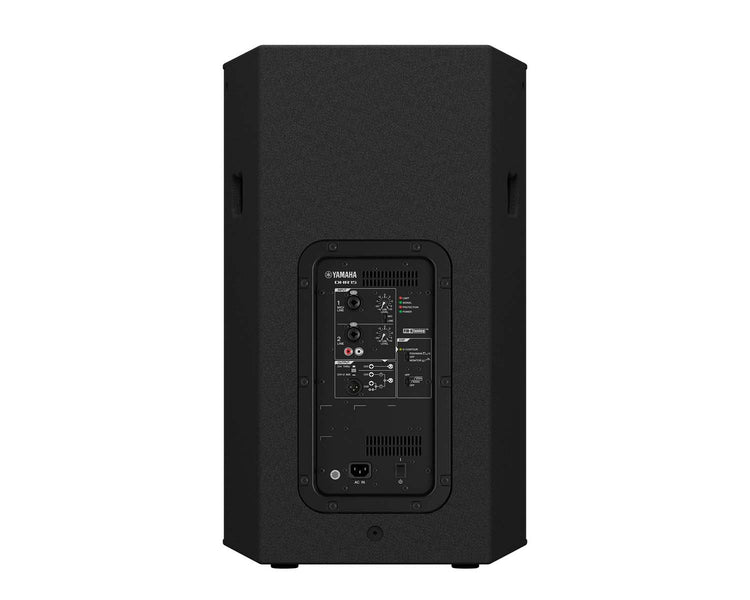

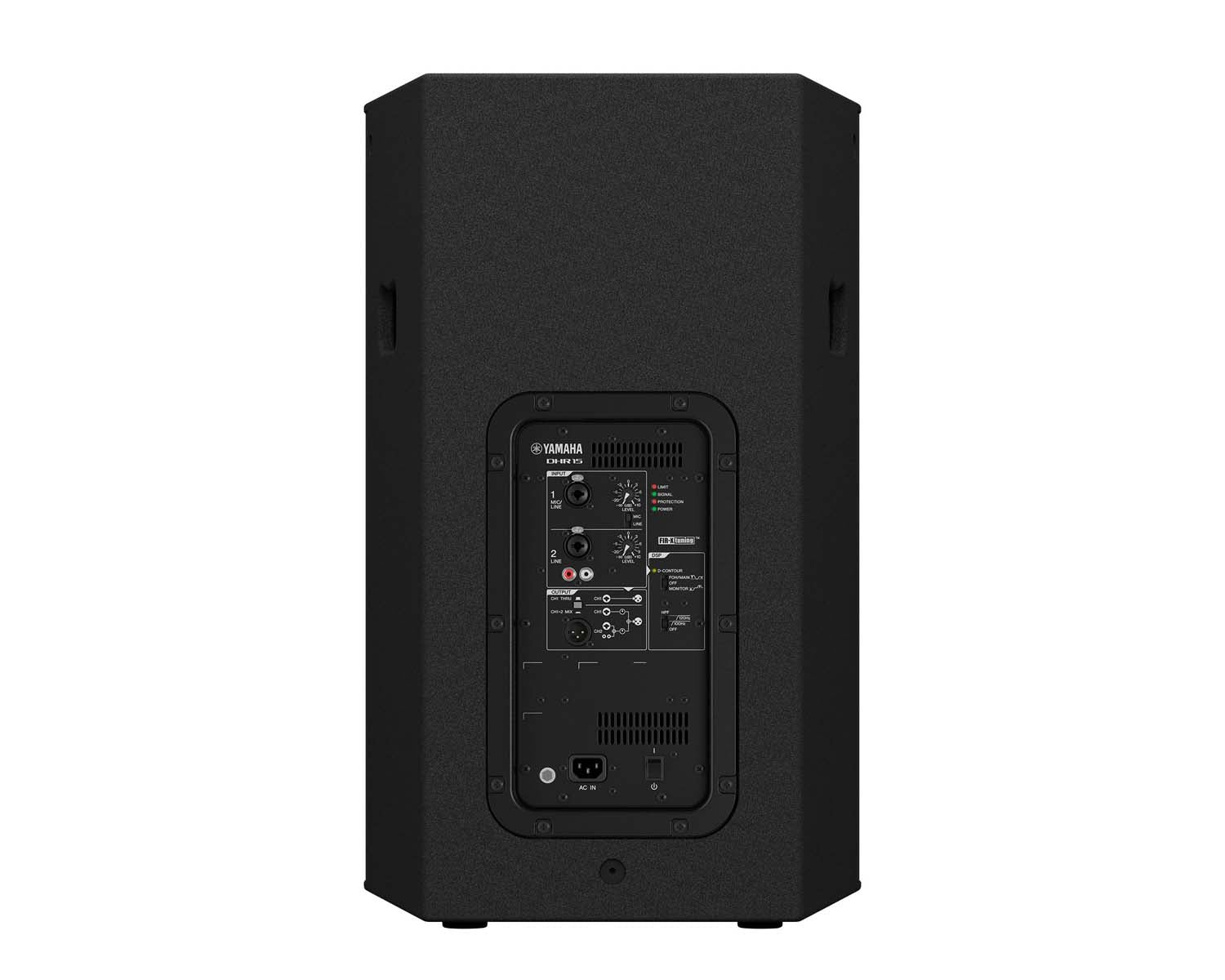

YAMDHR15 - Yamaha DHR15 2 Way 15inch Active Loudspeaker Class D Amp 465W Black Image 5

The DHR15 is a 2-way bi-amp powered loudspeaker equipped with a 15-inch woofer and a 1.4-inch HF driver, perfect for use as a main speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR15 offers best-in-class sound quality and durability.

Product Features

Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
Compact size despite the 15-inch LF driver that provides excellent low frequency response
Dual-angle pole sockets offer both 0° or a -7° down tilt
Rigging points for use with eye bolts
Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Product Specifications

Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 44 Hz - 20 kHz
Coverage: H90ﾟ x V60ﾟ
Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m): 131 dB SPL
Components
- LF: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
- HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
Amplifier Class: Class-D
Power rating
- Dynamic: 1,000 W (LF: 800 W, HF: 200 W)
- Continuous: 465 W (LF: 400 W, HF: 65 W)
Cooling: Fan cooling, 4 speeds
Power consumption: 74 W (1/8power), 18 W (Idle)
Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
A/D D/A Converters: 24 bit 48 kHz Sampling
Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet material: Plywood
Finish: Durable Polyurea Painting, Black
Handle: Side x2
Pole Socket: Φ35 mm x2 (Bottom, 0° or -7°)
Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
Dimensions
- W: 432 mm (17.0")
- H: 692 mm (27.2") (with rubber feet)
- D: 405 mm (15.9")
Net weight: 24.0 kg (52.9 lbs)

What's in the Box?

DHR15 Active Loudspeaker
AC power cord
Owner’s manual
