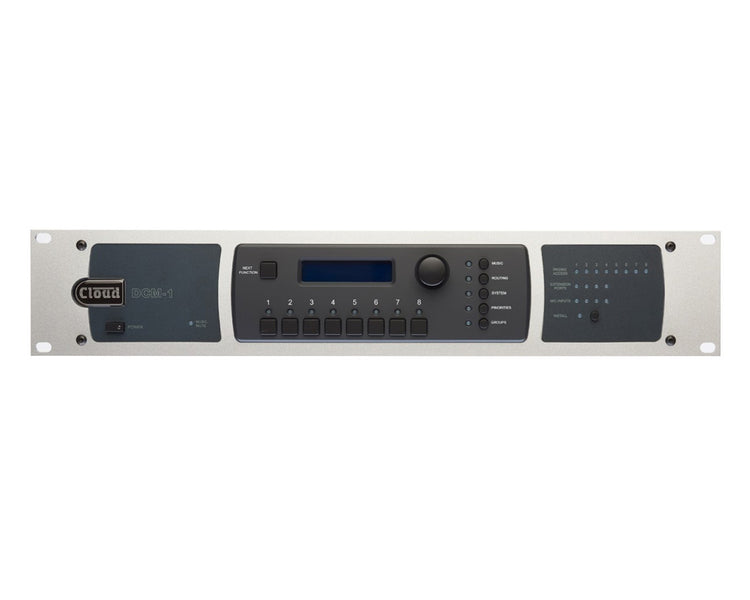

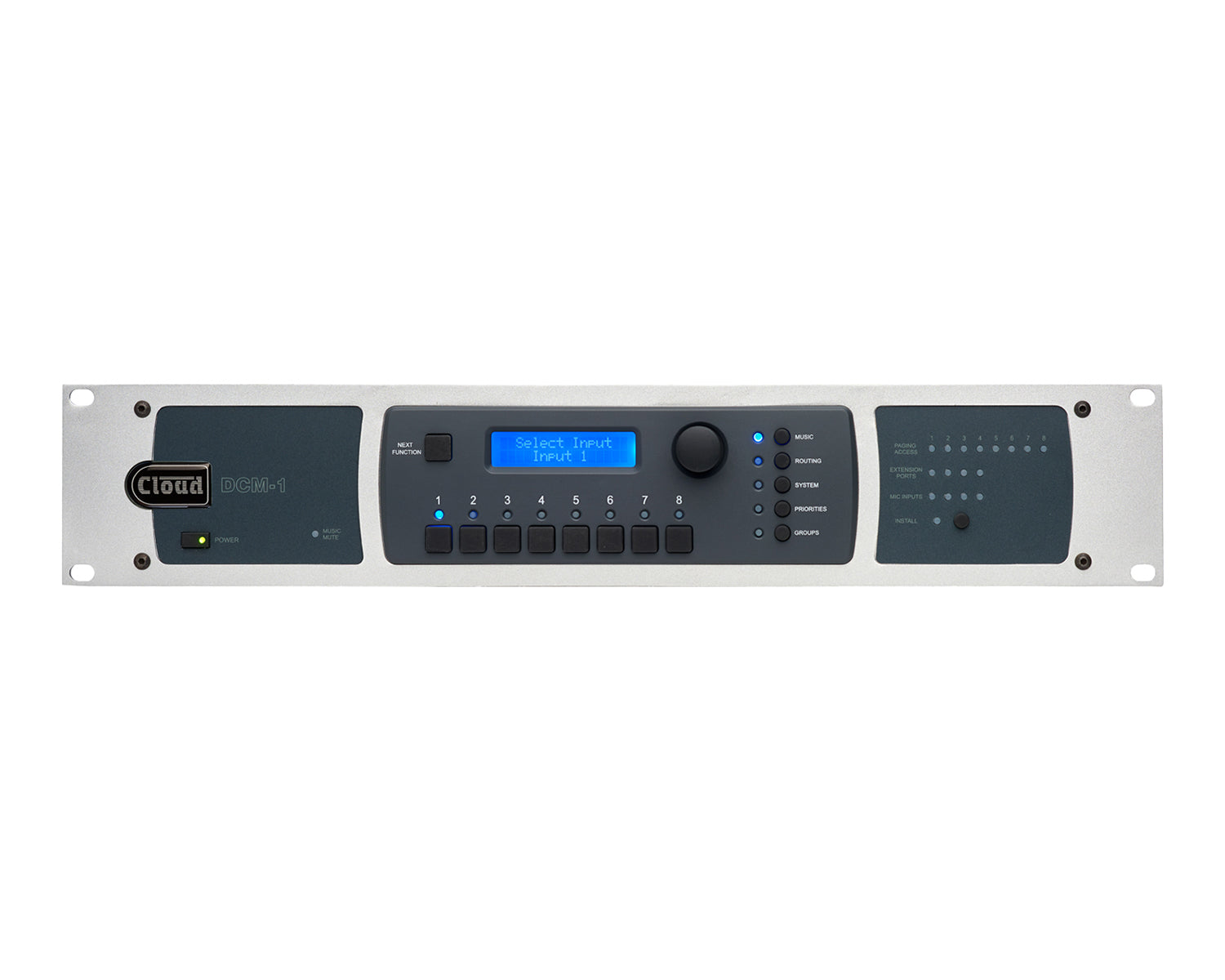

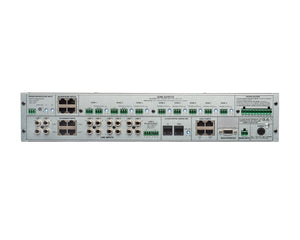

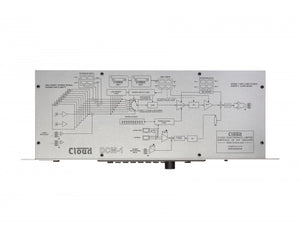

Clouds DCM-1, provides any space-conscious sound installation with a high level of flexibility, but without the need of a PC. It is ideal for contractors/installers who require flexible routing of line & mic signals.

The analogue zoner, with its simple-to-use digital control interface, can be controlled remotely via multiple LCD digital controllers. Optional active input modules extend the flexibility further. The DCM-1 is Cloud first ever microprocessor controlled multi zoner.

With traditional "installer friendly" analogue I/O and signal path, but giving the contractor the flexibility and adaptability of digital control the DCM-1 has the traditional simplicity of Cloud products, with far greater functionality.

Need help understanding which Cloud wall panel accessories are compatible with their range of amplifiers or mixers? Download our free guide now.

Product Features

• 8 Stereo Line Inputs (1 Balanced)
• 8 Balanced Line Outputs (2 Stereo + 6 Mono)
• 4 Dedicated Ports for Optional Line Inputs (LE-1)
• 4 Dedicated Ports for Optional Mic Inputs (ME-1)
• Mic Paging to all Zones with Fully Programmable Override Logic
• Seperate Analogue Paging Mic Input with Contact Closure Zone Selection
• Configurable Multiple Remote Controls
• 4 Definable Zone Group Options
• EQ can be set by Remote Controls
• Configurable Line Priority by zone
• Remote Active Line and Mic Modules (LE-1, ME-1 & BE-1)
• RS232 Interface for AMX/Crestron

• No PC Required but Optional Set/Back GUI Utility
• Requires one CDPM-PSU per paging microphone when multiple paging mics are connected to a single digital paging input

Product Specifications

Line Inputs

• Frequency Response: 20 Hz - 20k Hz ±1 dB
• Distortion: <0.05 %, 20 Hz - 20k Hz
• Sensitivity: 195 mV (-12 dBu) to 3.1 V (+12 dBu)
• Input Gain Control: 24 dB range
• Input Impedance: 47k Ω
• Headroom: >+10 dB
• Noise: -90 dB A weighted (0 dB gain)
• Equalisation
  • HF: ±14 dB/10k Hz
  • MID: ±14 dB/1200 Hz
  • LF: ±14 dB/50 Hz

Paging Microphone Inputs

• Frequency Response: 100 Hz / -3 dB(filter) to 20 kHz ±0.5dB
• Distortion: <0.05% 20 Hz-20k Hz
• Gain Range: 10 dB - 50 dB
• Input Impedance: >2k Ω (balanced)
• Phantom Power: +12 V (PCB jumper for on/off)
• Headroom: >20 dB
• Noise: -120 dB EIN 22 Hz - 22k Hz (150 Ω)
• Equalisation
  • HF: ±10 dB/5k Hz
  • LF: ±10 dB/100 Hz

Outputs

• Balanced Zone Outputs: 775 mV (0 dBu)
• Minimum load impedance: 600 Ω
• Maximum output level: +10 dBu (2.6 V)

External Power Supply

• External Supply Input: 100 V-240 V AC; 47-63 Hz; 1.35 A
• Power supply: +12 V, 3 A; -12 V 1 A

Physical & Dimensions

• Dimensions (w x h x d): 482.6 mm x 88 mm (2U) x 170 mm
• Dimensions (packed): 570 mm x 270 mm x 220 mm
• Weight net: 3.12 kg
• Weight packed: 4 kg packed

Accessories

• BOSE Loudspeaker EQ Card
• BE-1 Balanced Input Module - (DCM-1)
• CDR1 Remote Music Source Select (DCM-1)
• CDR1-F Remote Music Source Sel (DCM-1)
• LE-1 Line Input Module - (DCM-1)
• ME-1 Mic Input Module - (DCM-1)
• EQ Cards for Amina AIWX & LFiT Loudspeakers
• PM1 Paging Microphones
• PM4 Paging Microphone
• PM8 Paging Microphone
• PM12 Paging Microphone
• PM16 Paging Microphone
• PM4-SA & PM8-SA 4 & 8 Zone Paging Spot Announcer
