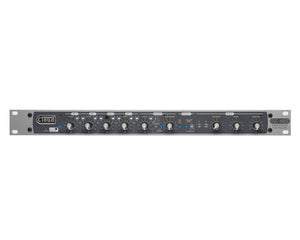

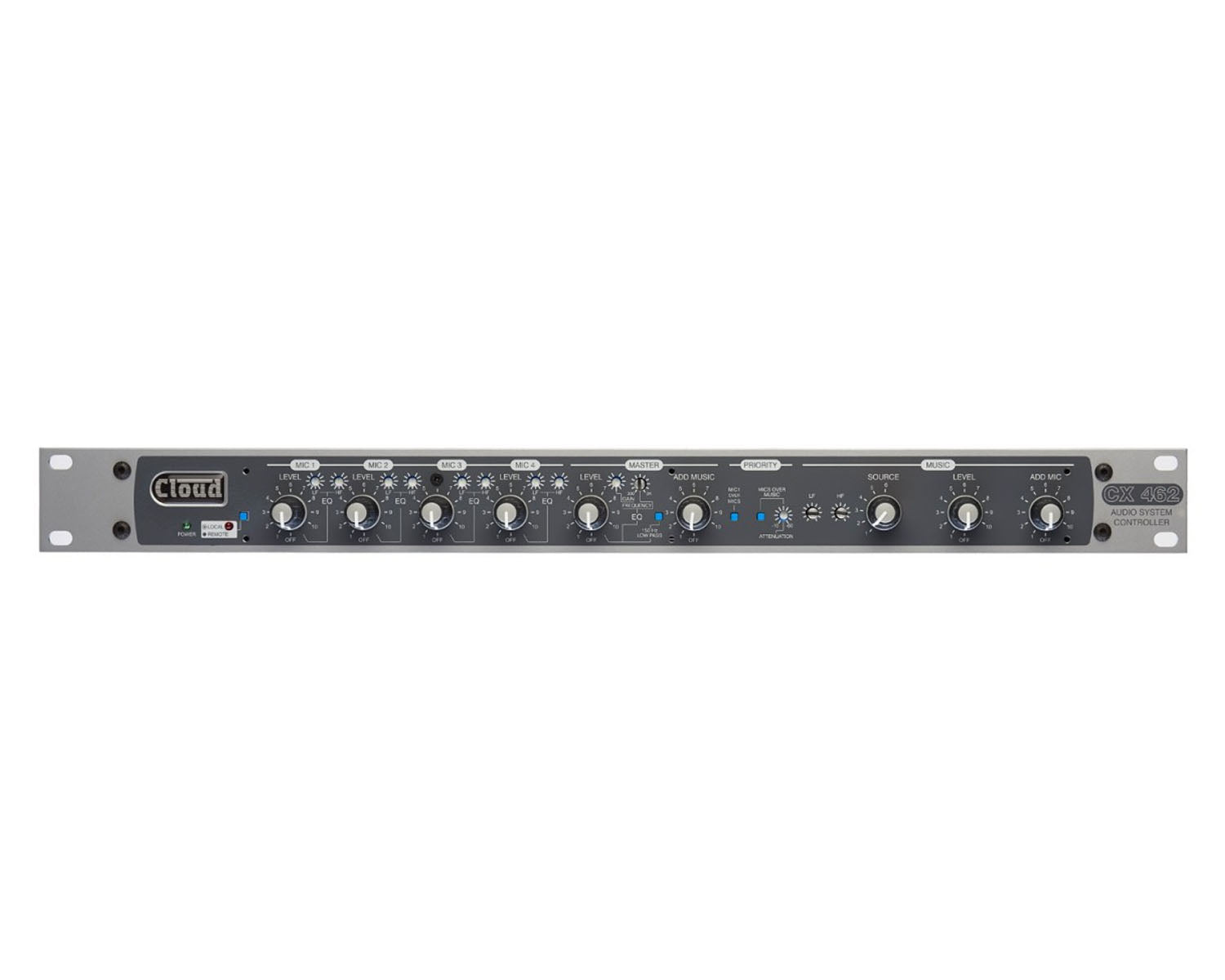

"Unique" best describes the CX462 Audio System Controller. We have included a set of features and configuration options that bring great diversity and make the unit the appropriate choice for applications such as AV presentations, places of worship, plus other sound systems often found in hotels, shops, bars and leisure venues.

Need help understanding which Cloud wall panel accessories are compatible with their range of amplifiers or mixers? Download our free guide now.

Product Features

• Independent music and microphone sections
• 6 line inputs with preset gain controls (music section)
• Line 6 can be configured for priority (music section)
• Music level and source selection with remote control
• HF & LF EQ (music section)
• Mic signal routable assignable to music section
• 4 Mic inputs with preset gain
• Individual HF & LF controls (mic section)
• Single parametric EQ (mic section)
• 150 Hz High pass filter
• Selectable priority for Mic 1
• Optional CDI-S100 serial interface (RS232)
• Optional EQ modules

Product Specifications

Line Inputs

• Frequency Response: 20 Hz - 20 kHz, -0.5/+0 dB
• Distortion: <0.03% typical, 80 kHz bandwidth
• Sensitivity: 100 mV (-17.8 dBu) to 1.5 V (+6 dBu)
• Input Gain Control: 24 dB range
• Input Impedance: 48 kΩ
• Headroom: >20 dB Noise <-91 dBu rms @ 0 dB gain, 22 kHz bandwidth
• Equalisation: LF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10 kHz

Microphone Input

• Frequency Response
  • 150Hz – 20kHz, -3/+0.5 dB _filter in)
  • 30Hz – 20kHz, -3/+0.5 dB _filter in)
• Distortion: <0.05%, 20 Hz – 20 kHz
• Gain Range: 10 dB to 60 dB
• Input Impedance: >2 kΩ (balanced)
• Common Mode Rejection: >70 dB typical @ 1 kHz
• Headroom: >20 dB
• Noise: -128 dB EIN, 22 kHz bandwidth
• Equalisation: LF: ±10 dB @ 150 Hz, HF: ±10 dB @ 5 kHz

Outputs

• Output: 0 dBu (775 mV) balanced
• Minimum load impedance: 600 Ω
• Maximum output level: +20 dBu

Physical & Dimensions

• Dimensions: (w x h x d) 482.6 mm x 44 mm (1U) x 152.5 mm
• Weight: 2.5 kg
• Power Input: 230 V/115 V ±10%
• Fuse Rating: T100 mA 230 V, T200 mA 115 V
• Fuse Type: 20 mm x 5 mm 250 V

Accessories

• RL-1 Remote Music Level Control
• RSL-6 Remote Music Source Select
• XLRF1 Female XLR Input Module
• XLRM1 Male XLR Input Module
• BOSE Loudspeaker EQ Card
• CDI-S100 Optional RS232 Module Card for CX462 Zone Mixer
• EQ Cards for Amina AIWX & LFiT Loudspeakers
• PM1 Paging Microphones
• PM4 Paging Microphone
