The CX263 is the ideal solution for leisure, licensed and retail venues. This compact unit has 6 line level inputs and 2 mic inputs with paging microphone access on Mic 1. The CX263 has one stereo and two mono zones. The line inputs and mics can be independently routed to any output zone via the front panel controls, alternatively the music signals on each zone can be controlled remotely by the RL-1 (level only) or RSL-6 (source and level).

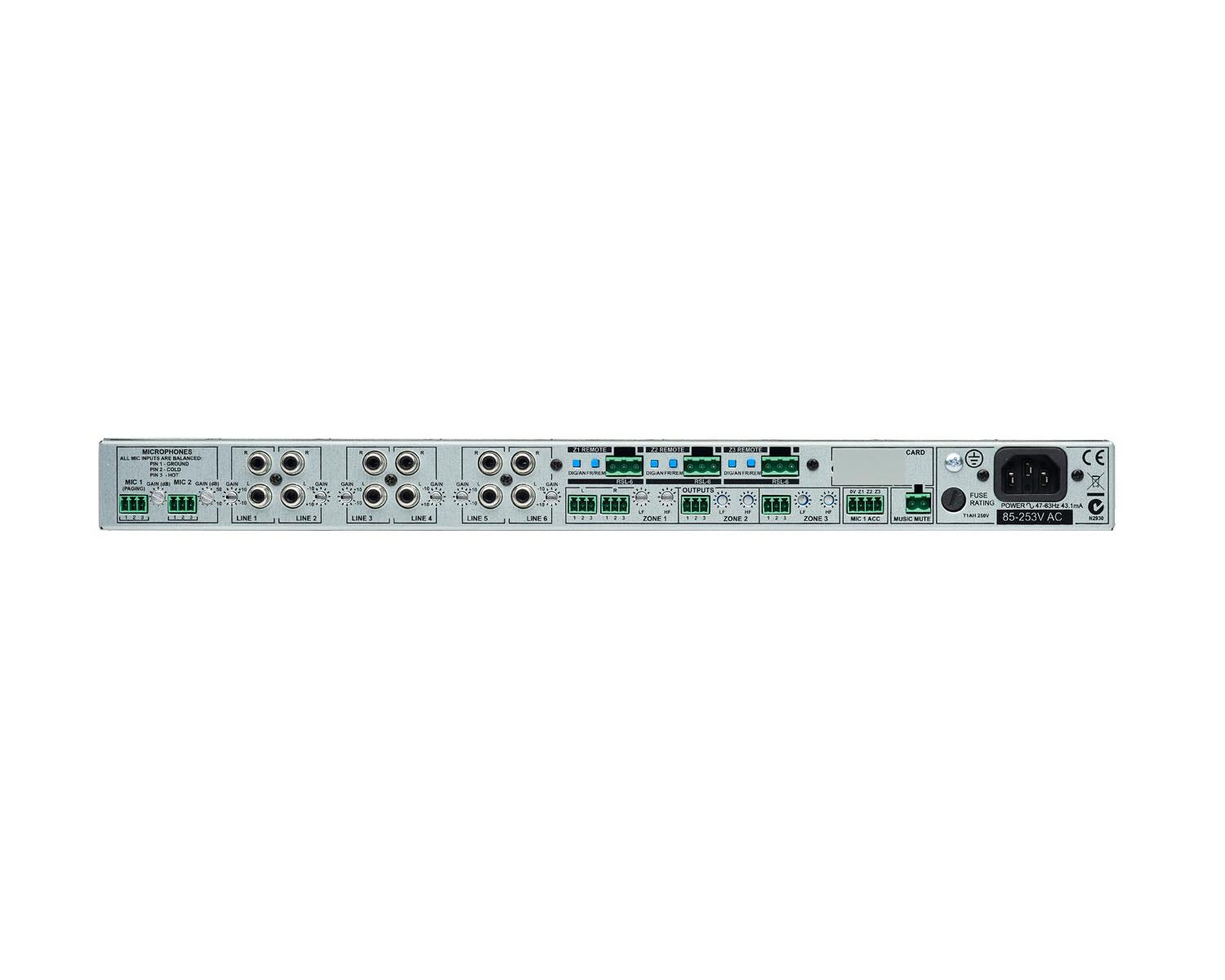

Additional remote control functions can be provided by the optional serial interface card (RS232) CDI-S200 shown fitted on the rear panel which can control the music level and source on each zone, access for Mic 1 on each zone, and access for Mic 2 on each zone. This compact unit is easy to install and operate but has the flexibility to provide a solution for many differing environments.

Need help understanding which Cloud wall panel accessories are compatible with their range of amplifiers or mixers? Download our free guide now.

Product Features

• 1 stereo zone and 2 mono zones
• Easy to use
• Easy to install and configure
• 6 stereo line inputs
• Line 6 priority over other input sources in all zones
• Remote music mute
• Paging microphone access for Mic 1 only
• Microphone over music priority
• Two band microphone EQ behind front panel facia
• 100Hz high pass filter on all microphone inputs
• Two band music EQ per zone on the rear panel

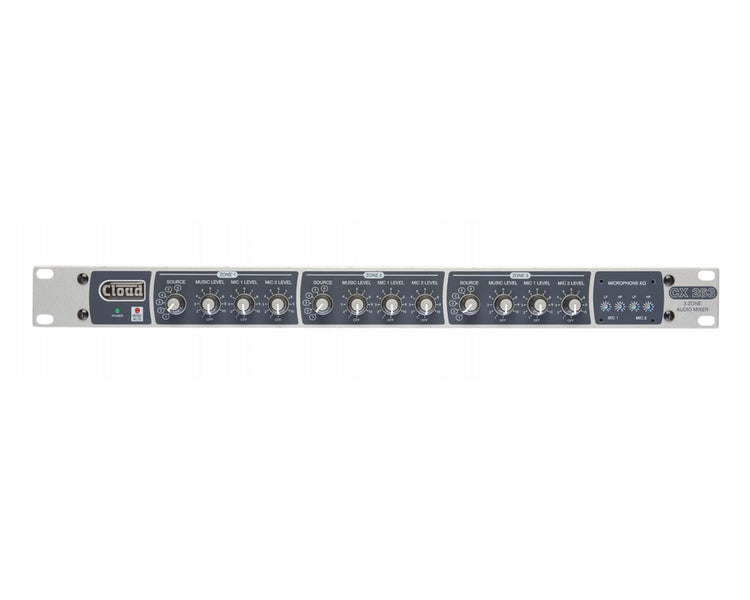

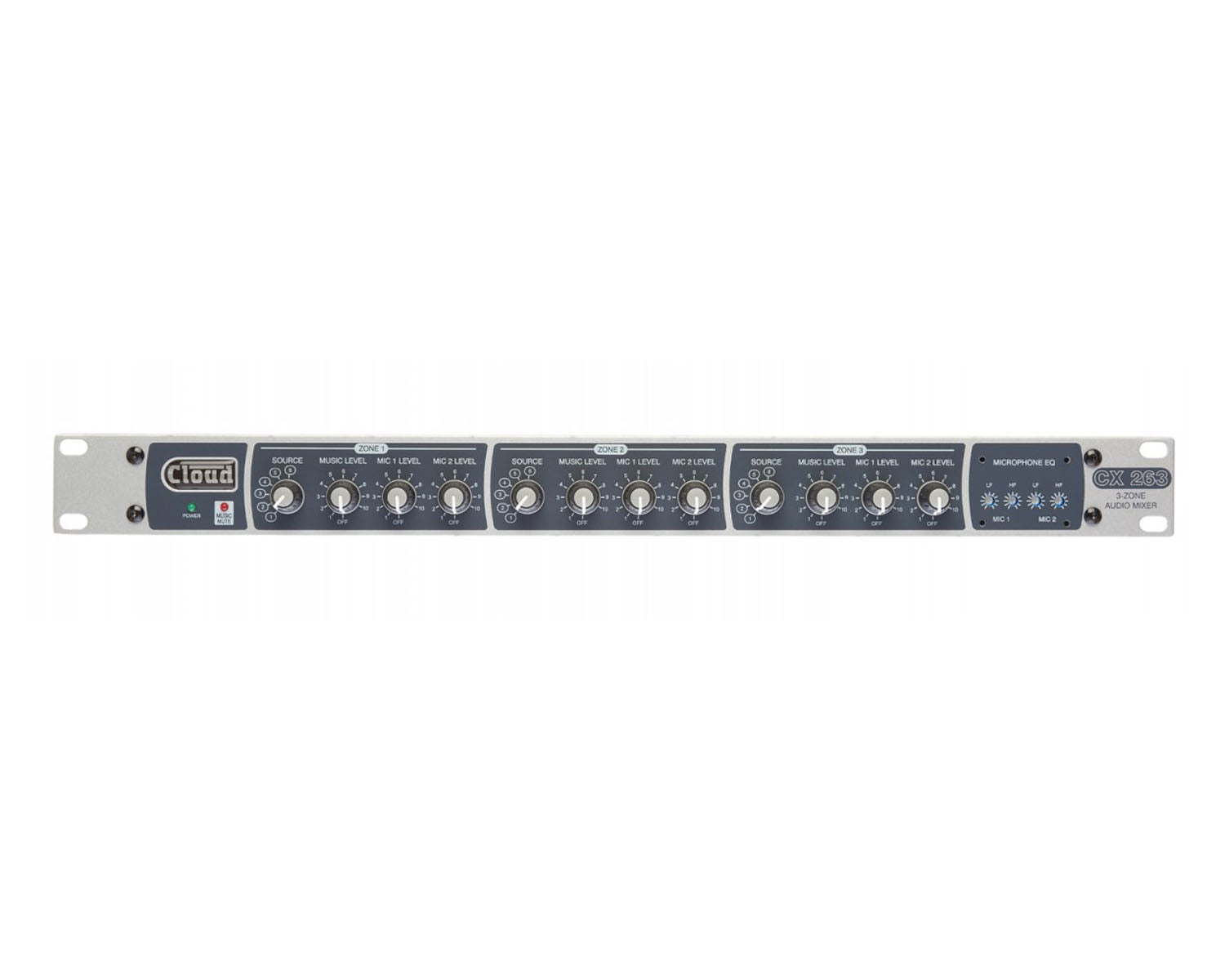

• Front panel gives Mic 1 level, Mic 2 level, music level and music source selection controls

• Optional CDI-S200 Serial Interface Card (RS232)

Product Specifications

Line inputs

• Frequency Response: 20 Hz - 20 kHz, +0, -0.3 dB
• Distortion: <0.05% typical, 20 Hz to 20 kHz
• Sensitivity: 100 mV (-17.8 dBu) to 1.5 V (+6 dBu)
• Input Gain Control: 24 dB
• Input Impedance: 48 kohms
• Headroom: >20 dB
• Noise: <-84 dB. 20 Hz to 22 kHz @ 0 dB gain
• Equalisation: LF: +/-10 dB @ 50 Hz, HF: +/-10 dB @ 10kHz

Microphone input

• Frequency Response: -3 dB @ 100 Hz (filter) to 20 kHz, +/-0.5 dB
• Distortion: <0.05%, 20 Hz to 22 kHz
• Gain Range: 10 dB to 50 dB
• Input Impedance: >2 kohms
• Common Mode Rejection: >70 dB @ 1 kHz
• Headroom: >20 dB
• Noise: -128 dB EIN, 20 Hz to 22 kHz @ 0 dB gain
• Equalisation: LF: +/-10 dB @ 150 Hz, HF: +/-10 dB @ 5 kHz

Outputs

• Output level (nominal): 0 dBu
• Maximum output level: +20 dBu
• Minimum load impedance: 1.2 kohms

Physical & Dimensions

• Dimensions (w x h x d): 482.6 mm x 44 mm (1U) x 152.5 mm
• Shipping Dimensions (w x h x d): 560 mm x 60 mm x 290 mm
• Weight: 2.15 kg
• Shipping Weight: 3.15 kg
• Power input: 85 V to 253 V AC, 50/60 Hz
• Current consumption: 43.1 mA at 240 V
• Fuse Rating: 1A
• Fuse Type: T1A, 20 x 5 mm

Accessories

• RL-1 Remote Music Level Control
• RSL-6 Remote Music Source Select
• XLRF1 Female XLR Input Module
• XLRM1 Male XLR Input Module
• BOSE Loudspeaker EQ Card
• CDI-S200 Optional RS232 Module Card for CX263 Zone Mixer
• EQ Cards for Amina AIWX & LFiT Loudspeakers
• PM1 Paging Microphones
• PM4 Paging Microphone
