The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, each zone can be split into two sub-zones each with its own remote level control (RL-1). Once installed this compact 1U unit is extremely simple and convenient to operate.

Product Features

• 2 zone stereo mixer with mono utility output
• Both stereo zones can be configured to run as mono
• Utility output is constant OdB
• Utility music source is selectable via internal jumper
• 6 stereo line inputs
• Line 6 priority over other input sources in zone 1 only
• Remote music mute
• Microphone access contacts for paging to all 3 zones
• 100Hz high pass filter on all microphone inputs
• Two band microphone EQ
• Remote level control in each zone using RL1

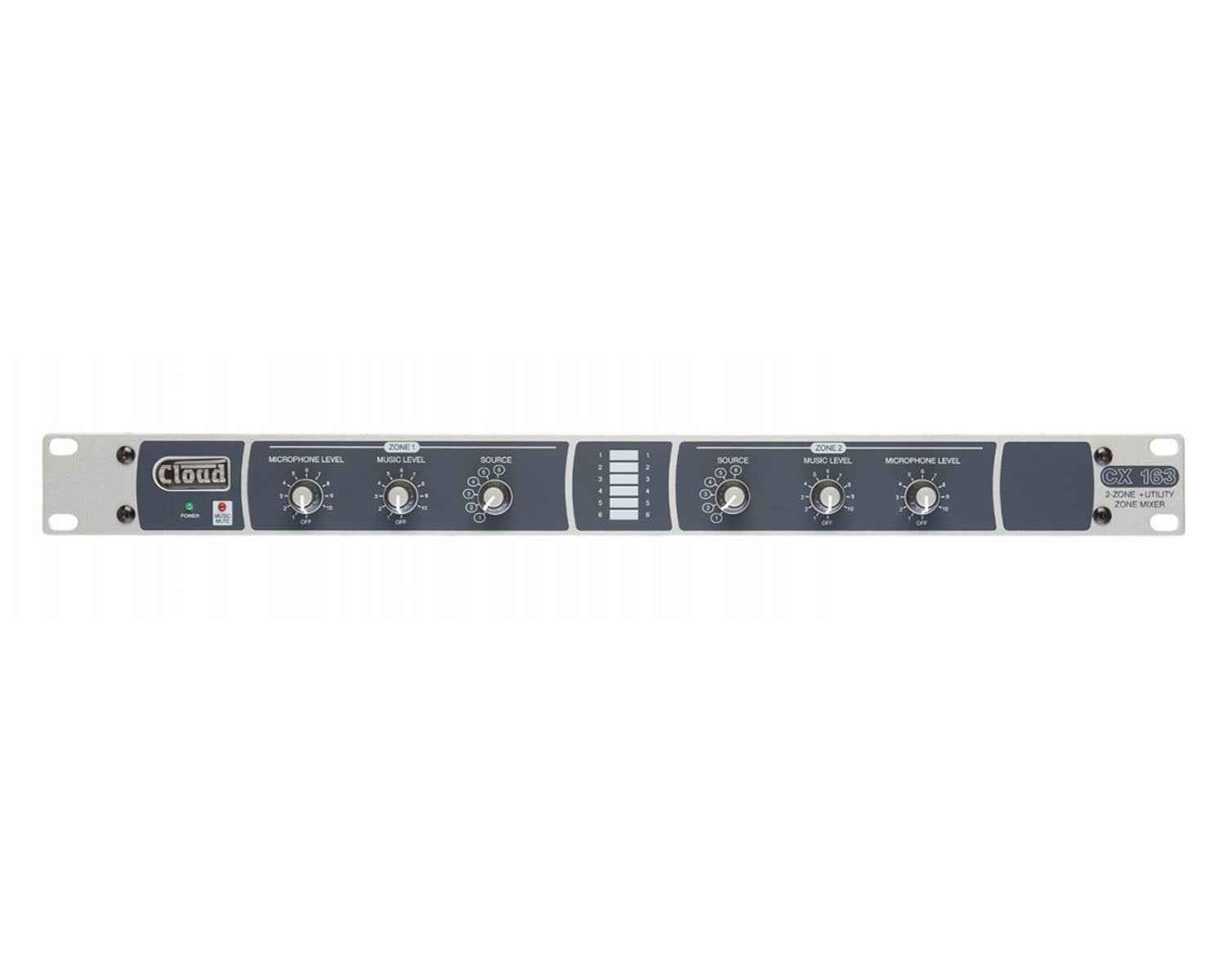

• Front panel controls give microphone level, music source and volume


Product Specifications

Line inputs

• Frequency Response: 20 Hz to 22 kHz, +0/-0.5 dB
• Distortion: <0.05% typical, 20 Hz to 20 kHz
• Sensitivity: 100 mV (-17.8 dBu) to 1.5 V (+6 dBu)
• Input Gain Control Range: 24 dB
• Input Impedance: 48 kohms
• Headroom: >20 dB Noise <-84 dB, 20 Hz to 22 kHz @ 0 dB gain
• Equalisation: LF: +/-10 dB @ 50 Hz, HF: +/-10 dB @ 10kHz

Microphone input

• Frequency Response: -3 dB @ 100 Hz (filter) to 20 kHz, +/-0.5 dB
• Distortion: <0.05%, 20 Hz to 22 kHz
• Gain Range: 10 dB to 50 dB
• Input Impedance: >2 kohms
• Common Mode Rejection: >70 dB @ 1 kHz Headroom >20 dB
• Noise -128 dB EIN, 20 Hz to 22 kHz @ 0 dB gain
• Equalisation: LF: +/-10 dB @ 100 Hz, HF: +/-10 dB @ 5 kHz

Outputs

• Output level (nominal) 0 dBu
• Maximum output level: +20 dBu
• Minimum load impedance: 1.2 kohms
• General Power input: 85 V to 253 V AC, 50/60 Hz
• Current consumption: 42.9 mA at 240 V
• Fuse Rating: 1A
• Fuse Type: T1A, 20 x 5 mm

Physical & Dimensions

• Dimensions (w x h x d): 482.6 mm x 44 mm (1U) x 152.5 mm
• Shipping Dimensions (w x h x d): 560 mm x 140 mm x 290 mm
• Weight: 2.10 kg
• Shipping Weight: 3.2 kg

Accessories

• RL-1 Remote Music Level Control
• XLRF1 Female XLR Input Module
• XLRM1 Male XLR Input Module
• BOSE Loudspeaker EQ Card
• EQ Cards for Amina AIWX & LFiT Loudspeakers
• PM1 Paging Microphones
• PM4 Paging Microphone
