Crown ComTech D Series amplifiers are designed for versatility, flexibility, and ease of installation. With both Dante inputs and outputs, built-in DSP, power sharing, Lo-Z/Hi-Z switching, and a simple to use web configuration interface, ComTech D amplifiers are ideal for meeting the changing demands of diverse installed audio applications.

The CTD-2125 delivers 125 watts per channel of legendary Crown amplification when all channels are driven equally. Asymmetrical power sharing enables the two channels to share the full 250W in any ratio, offering unparalleled flexibility.

Built-in DSP allows outputs to be tuned specifically for every application and provides the ability to create custom speaker tunings. Factory JBL SpeakerTunings for select JBL models, including Control 400 Series ceiling speakers, are included to simplify the optimisation of an all-HARMAN solution.

The amplifier can be configured through the intuitive web interface with any computer or tablet and without the need to install proprietary software. It uses HARMAN's HControl protocol to communicate natively with BSS OMNI Processors or AMX MUSE Automation Controllers and includes an easy-to-use API for integration with 3rd-party control systems.

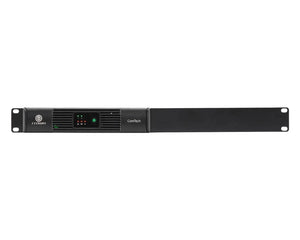

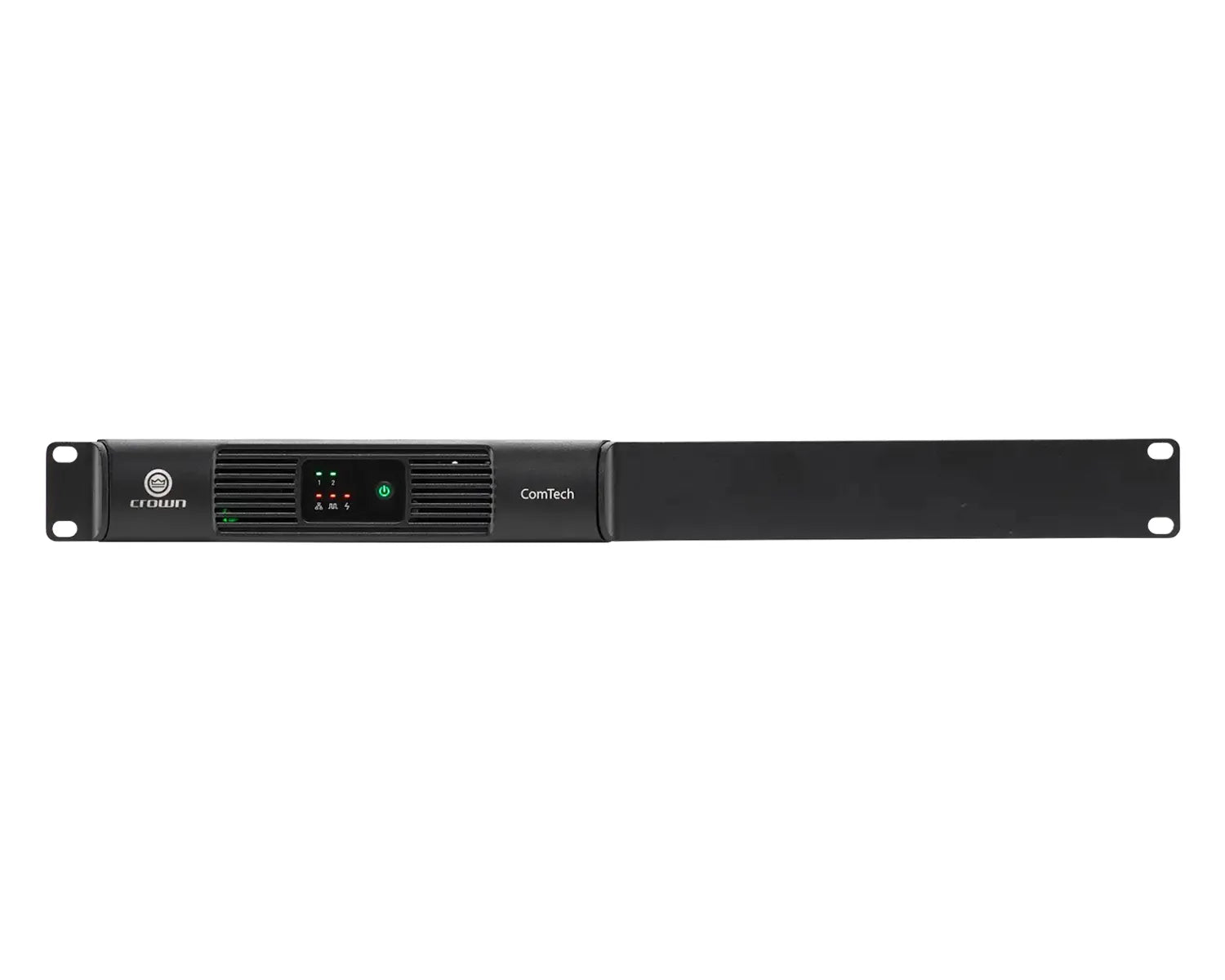

This compact 1RU, ½ rack width device can be installed in a rack, under a table, or on a wall using the included mounting hardware.

Product Features

• Dante Inputs and Outputs
• DSP for Room Tuning and Speaker Tuning
• Power Sharing
• WebUI Configuration
• Lo-Z/Hi-Z switchable outputs
• Compact Design
• Factory JBL SpeakerTunings
• Pilot Tone & Load Monitoring
• Source Priority Switching
• GPIO Interface
• HControl

Product Specifications

• Performance
  • Crosstalk 20 Hz to 1 kHz:  <-90dB
  • Common Mode Rejection (20 Hz to 1 kHz):  > 55 dB
  • Damping Factor (20Hz to 100Hz):  ≥100
  • Digital Signal Processing:  48kHz
  • Frequency response @ 4/8 ohm:  20 Hz - 20 kHz +/- 0.5 dB
  • Intermodulation Distortion (60Hz and 7kHz AT 4:1, From - 30dB To Full Rated Power): ≤0.35%
  • Input Impedance:  20k, balanced
  • Input Sensitivity @ 8 ohm:  1.12Vrms (2ch)
  • Maximum Fan Noise (Red. dB SPL @ 1M):  48dB
  • Maximum Input Level:  +20dBu
  • Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted):  104dB Analogue, 113dB Dante
  • THD+N at 4/8 Ω, 70V/100V, @1dB below rated power:  ≤0.1%
  • Voltage Gain (8Ω, 1kHZ, Vin = 100mV):  32dB
  • 100V Output Voltage (loaded to 250W/500W):  93Vrms

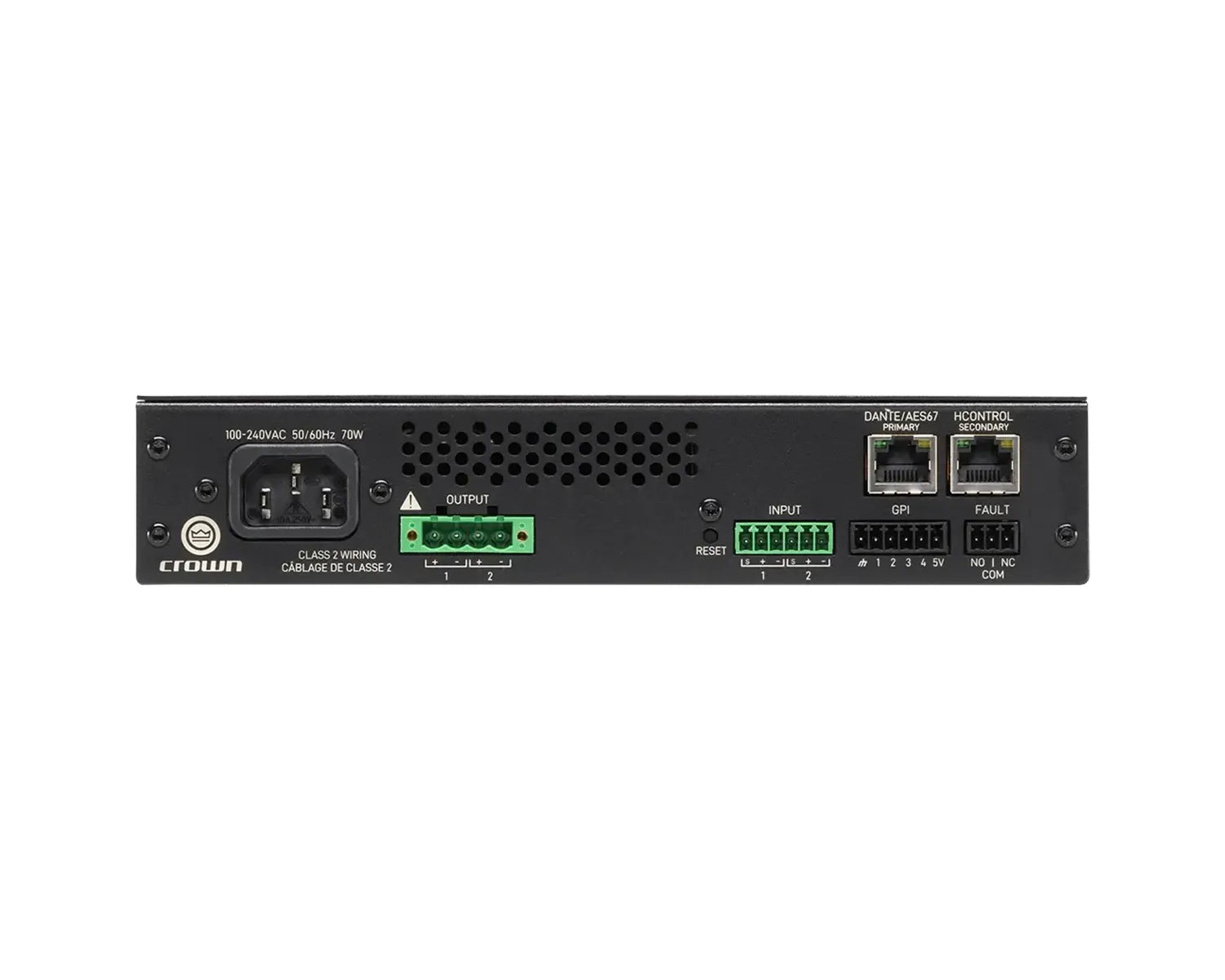

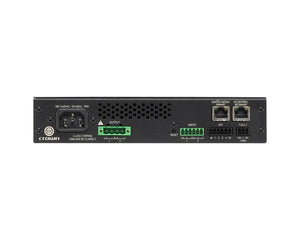

• Connectors
  • Analogue Audio Input:  3.5mm Phoenix Terminal Block connector
  • Digital Audio Input/Output (Dante/AES67):  2x RJ45
  • Speaker Output:  5.08mm Phoenix Terminal Block connector
  • GPI:  4in, 6pin 3.5mm Phoenix Terminal Block Connector
  • Fault Relay Output:  NO, COM, NC
  • Power:  Standard IEC
• Power
  • Power (1kHz, 20ms burst, all channels driven, 0.1% THD)
    • Rated Power (8Ω):  125W x 2
    • Rated Power (4Ω):  125W x 2
    • Rated Power (70V/100V):  125W x 2
  • Power (1kHz, 20ms burst, single channel driven, 0.1% THD)
    • Rated Power (8Ω):  250W x 1
    • Rated Power (4Ω):  250W x 1
    • Rated Power (70V/100V):  250W x 1
• Electrical
  • Power Supply:  Universal power supply, voltage:100-240VAC, 50/60Hz
  • Power Saving:
    • Standby Consumption
    • GPI Standby <0.5W
    • Auto Standby with Network Control <2W
  • Wakeup Time from Sleep:  <250ms
• Physical and Dimensions
  • Dimensions (DxWxH):  14.1 x 8.6 x 1.7 in. (358 x 220 x 43 mm)
  • Weight:  6.4 lbs (2.9 kg)
