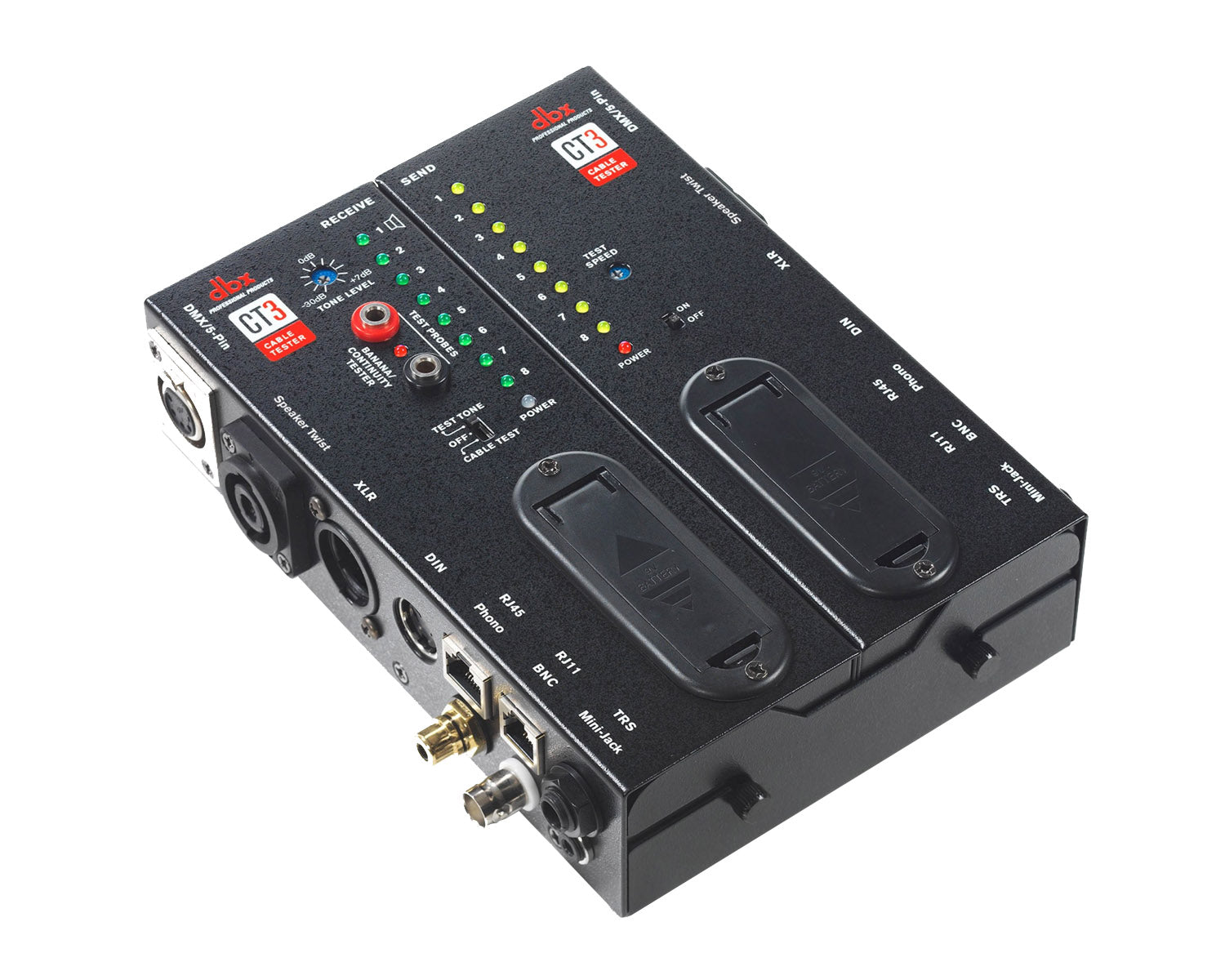

The dbx CT3 is an advanced cable testing unit allowing you to evaluate a large variety of cables with ease. The CT3 offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana. It can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested.

Product Features

The CT-3 Cable Tester
This useful gadget gives you the ability to evaluate a large variety of your cables with ease
It saves fustration, and time - you know which of your cables are good or bad!
Offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana
Can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested

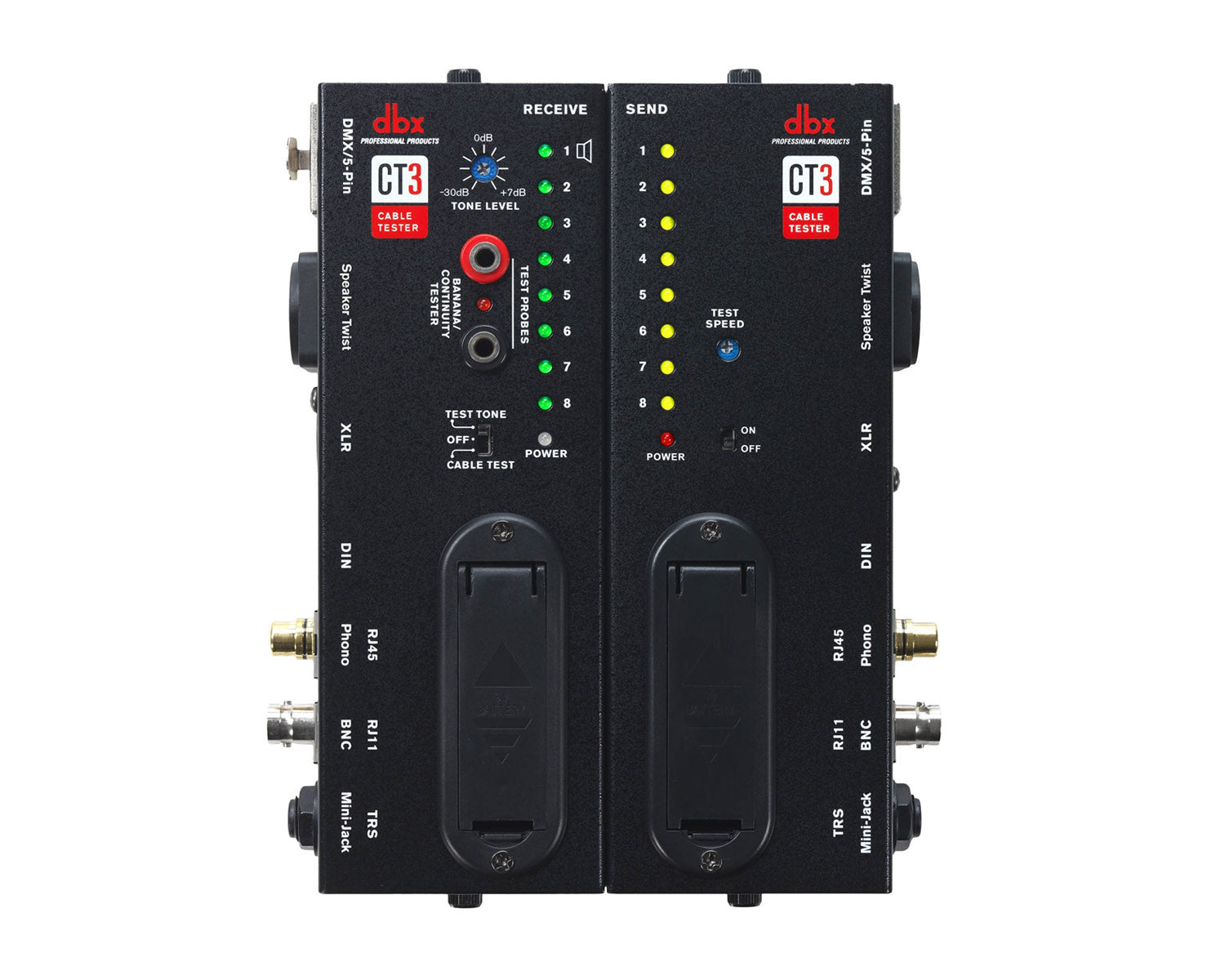

Well illuminated LED indicators and a simple rotary dial - quickly establish whether your cables are functioning properly
Tests up to 8-pin cables
2 piece chassis for testing installed cables
Test Tone Generator
Allows connection between different format connectors with ease
‘Banana’ connector continuity tester with beeper and LED indicator
Super-rugged construction for durability and longer life

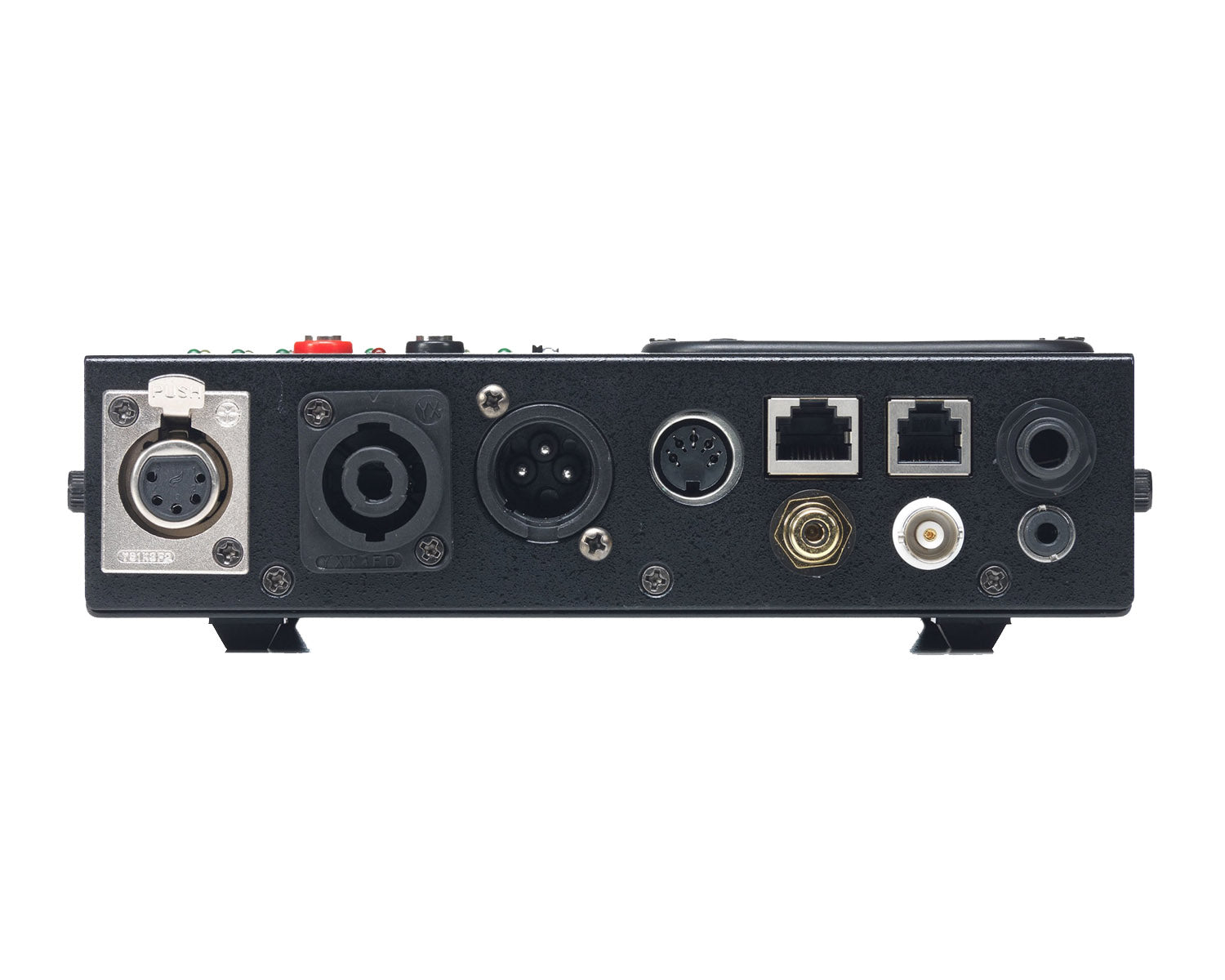

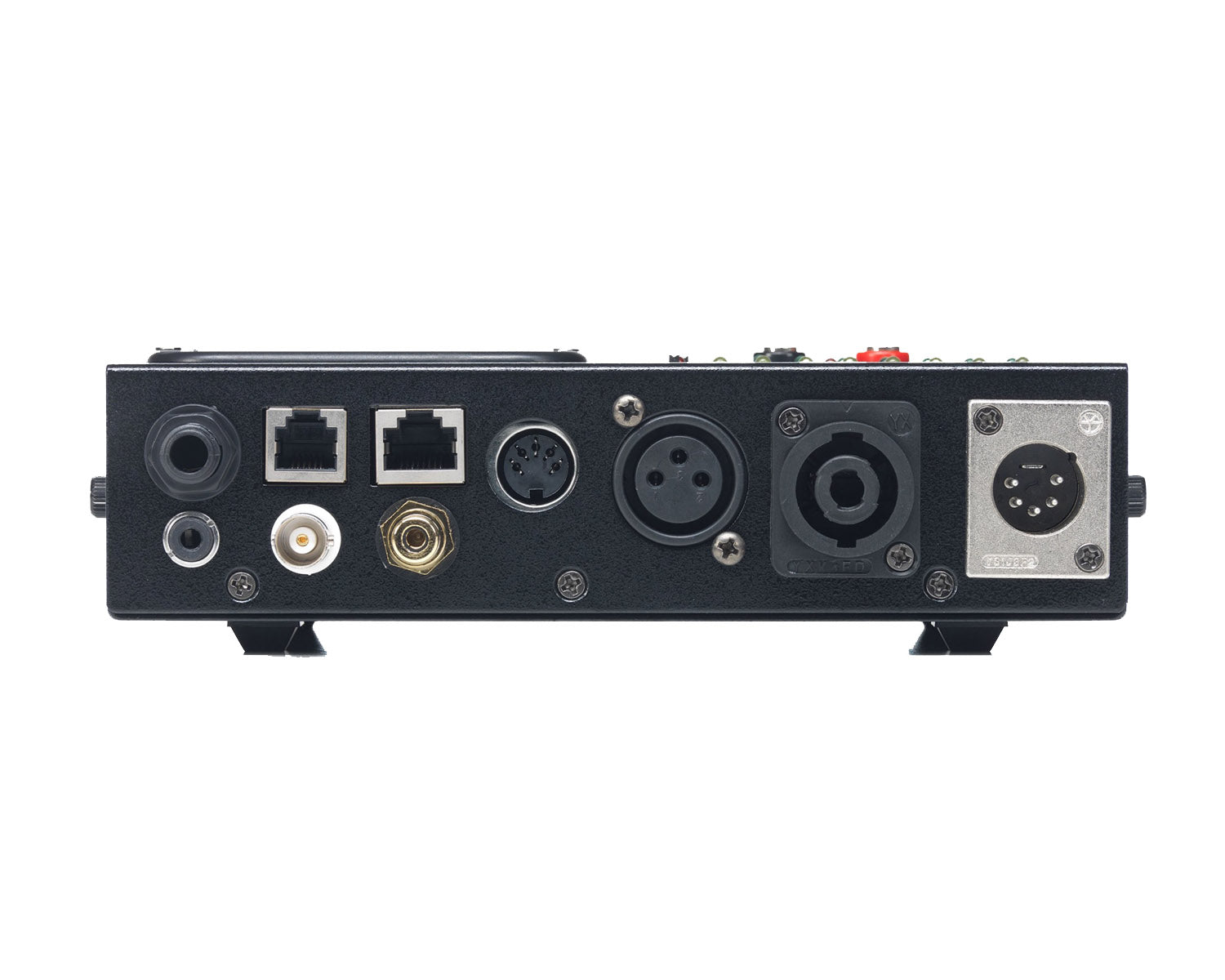

(2) DMX (5-pin) connectors for testing of 5 pin->to pin connections
(2) BNC connectors for testing of 2 pin->to pin connections
(2) RCA Phono connectors for testing of 2 pin->to pin connections
(2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections
(2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections
(2) Speaker Twist connectors for testing of 4 pin->to pin connections
(2) Banana connectors for testing of 1 pin->to pin connections
(2) 1/4” (6.3mm) TRS/TS connectors for testing of 3 pin->to pin connections
(2) RJ45 connectors for testing of 8P8C modular connections
(2) 1/8” (3.5mm) TRS/TS connectors for testing of 3 pin->to pin connections
