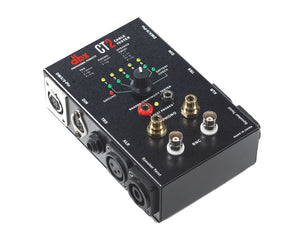

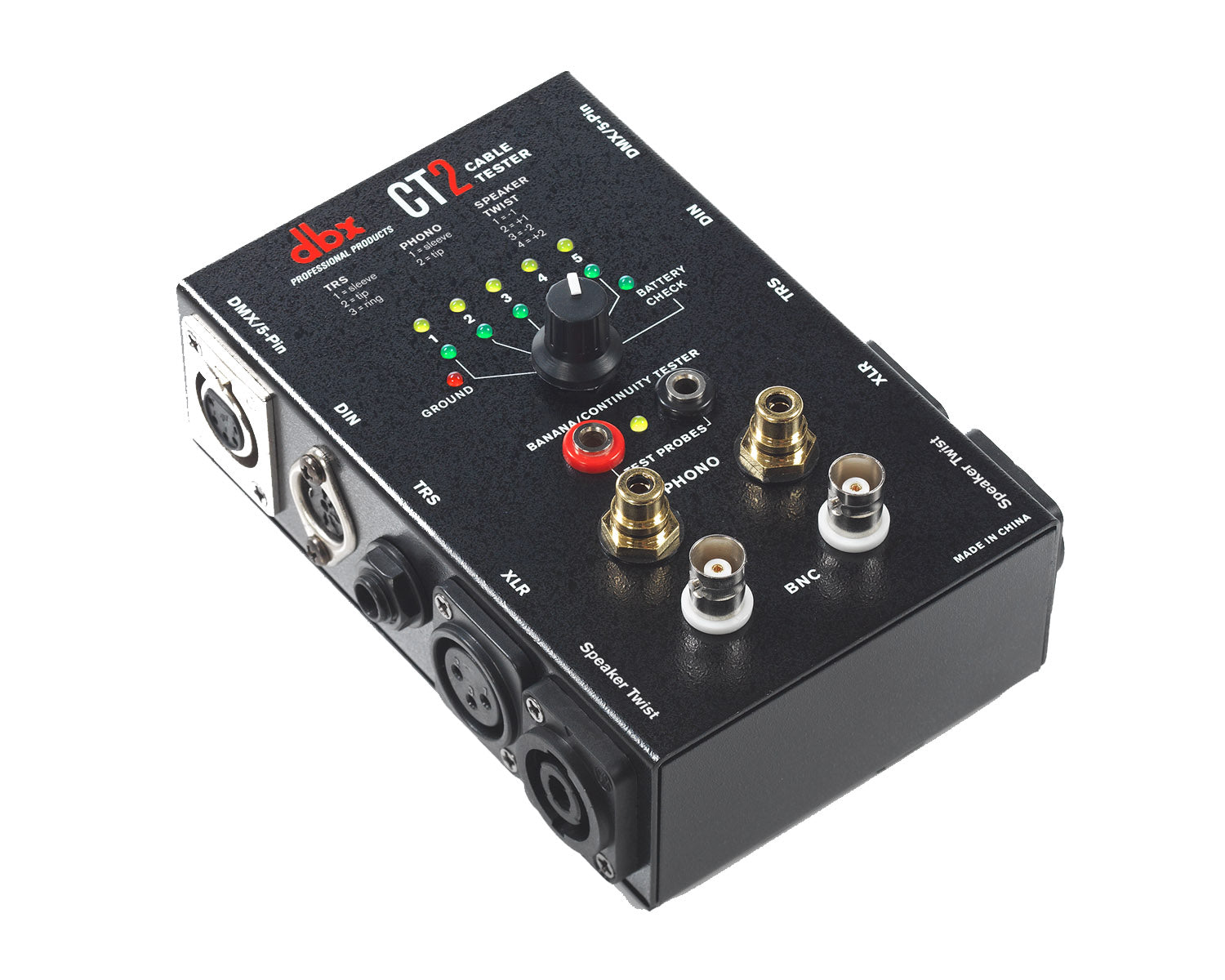

We all know how frustrating and time consuming it can be when your audio cables fail. With the dbx CT2 cable testing unit you can now evaluate a large variety of your cables with ease. The CT2 offers many common connectors such as Speaker Twist, XLR, Phono, BNC, DIN, TRS, TS, DMX, & Banana. The CT2 allows for testing cables even with different connectors at each end. For example, it is simple to test a TRS to XLR cable. With well illuminated LED indicators and a simple rotary dial, users can quickly establish whether a cable is wired and functioning correctly, or if it is dead and in need of repair.

Product Features

The CT-2 Cable Tester
This useful gadget gives you the ability to evaluate a large variety of your cables with ease
It saves fustration, and time - you know which of your cables are good or bad!
Offers many common connectors such as Speaker Twist, XLR, Phono, BNC, DIN, TRS, TS, DMX, & Banana
Allows for testing cables even with different connectors at each end

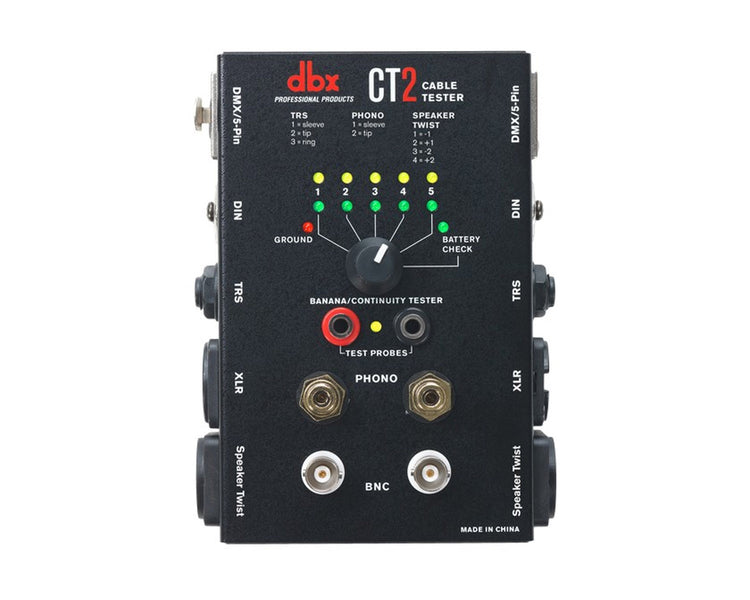

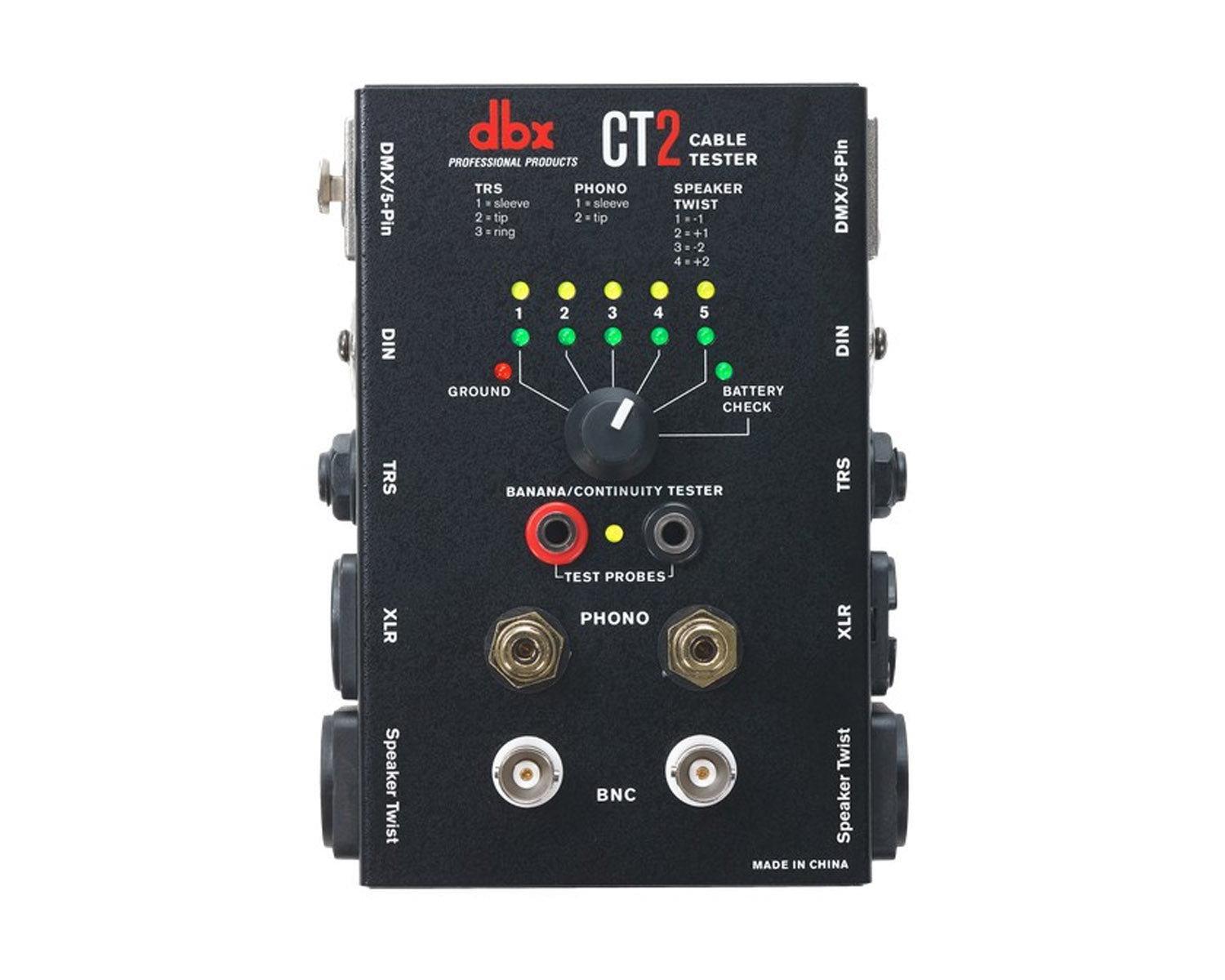

Well illuminated LED indicators and a simple rotary dial - quickly establish whether your cables are functioning properly
6-position rotary selector with individual LED’s for up to five pins plus internal battery life check
‘Banana’ connector continuity tester with beeper and LED indicator
Super-rugged construction for durability and longer life

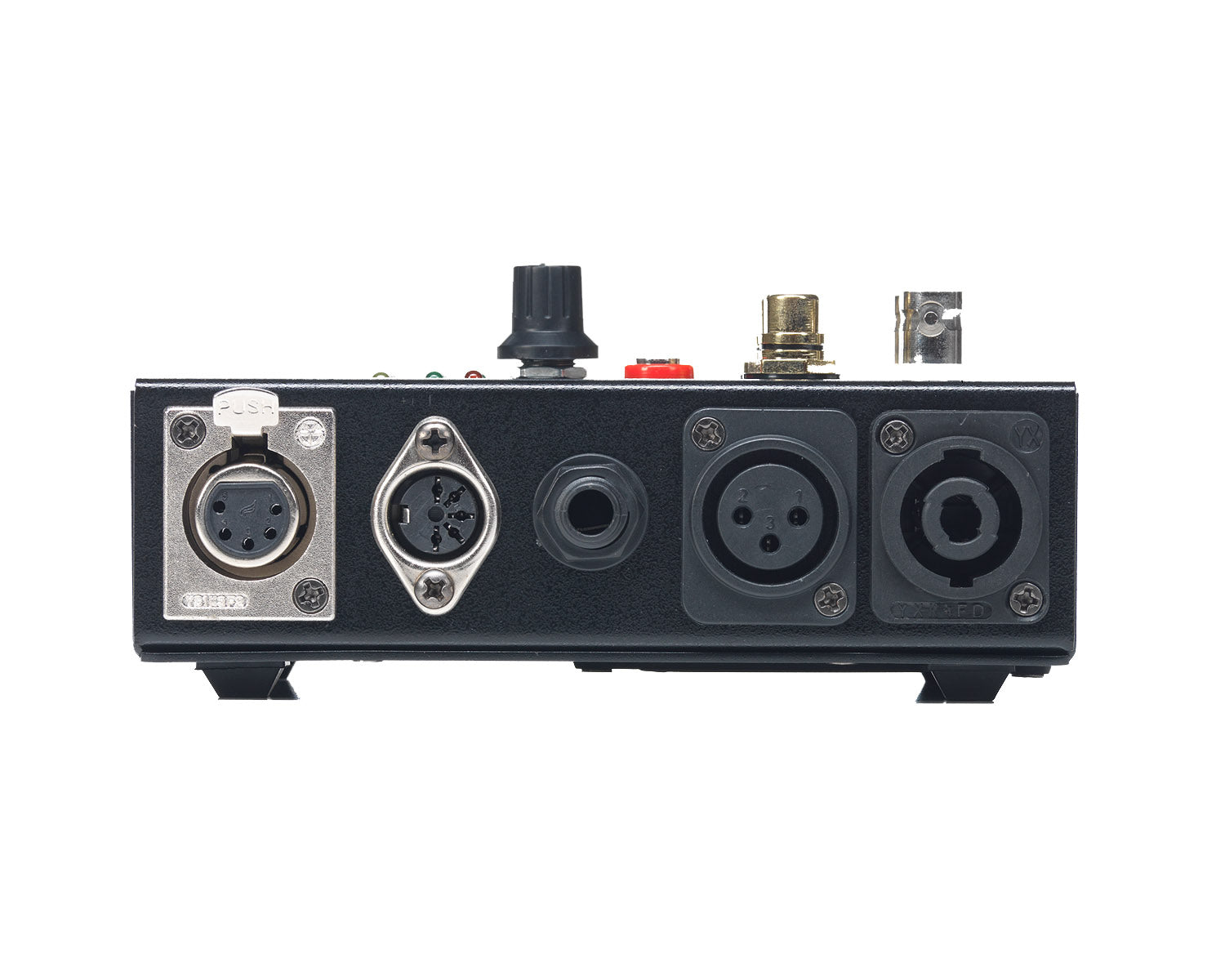

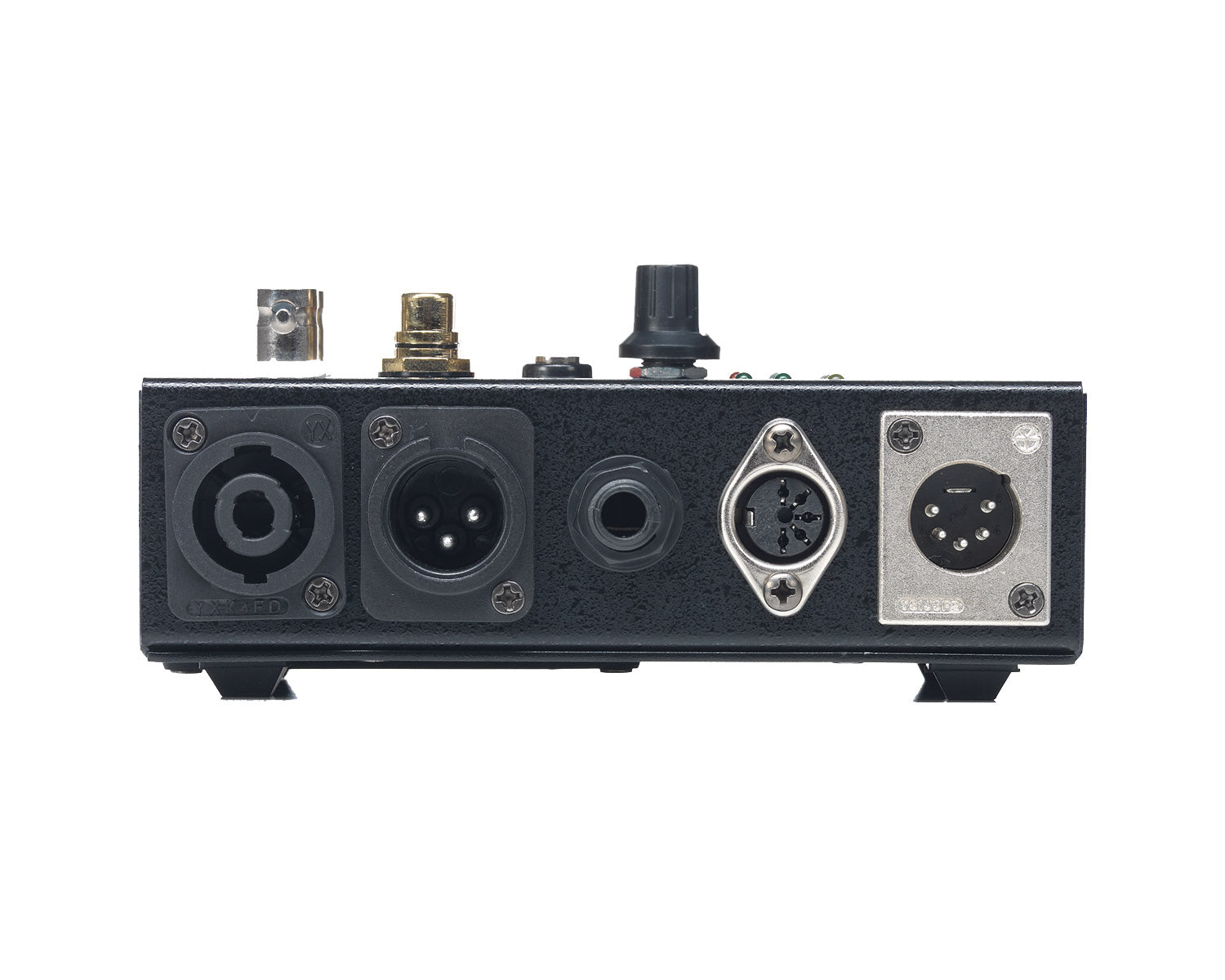

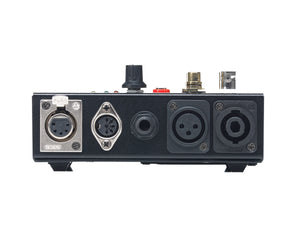

(2) Speaker Twist connectors for testing of 4 pin->to pin connections
(2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections
(2) RCA Phono connectors for testing of 2 pin->to pin connections
(2) BNC connectors for testing of 2 pin->to pin connections
(2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections
(2) DMX (5-pin) connectors for testing of 5 pin->to pin connections
(2) 1/4” TRS connectors for testing of 3 pin->to pin connections
(2) Banana connectors for testing of 1 pin->to pin connections
