The Laserworld CS-24.000RGB FB4 has graphic-capable scanners, with max. 30 kpps @ 8° speed and up to 50° scanning angle. Via the internal FB4 interface, the Laserworld CS-24.000RGB FB4 offers various control options, including DMX, ArtNet as well as direct computer control via network (QuickShow software or BEYOND software required).

The Laserworld CS-24.000RGB FB4 is an analogue modulated, full-colour RGB diode laser system with a guaranteed output power of 24\'000 mW. The red laser source has an output power of 5\'500 mW / 638 nm, the green of 6\'500 mW / 520 nm and the royal-blue laser source has an output power of 12\'000 mW / 450 nm. The diode laser sources provide strong laser beams. The projector has good beam specifications with a beam diameter of approximately ca. 6 mm and a beam divergence of 1.3 mrad. The galvo system has a scan speed of up to 30 kpps @ 8°. There is no air circulation in the optical area, the temperature is regulated via the separate heat sink section. This reduces maintenance and cleaning work to a minimum.

The pre-stored effects and animations (from QuickShow - BEYOND) can be called up via DMX / ArtNet and adjusted live in colour, position or with additional effects. The Laserworld CS-24.000RGB FB4 also offers direct computer control via Pangolin QuickShow or BEYOND. This allows you to project your own or pre-programmed laser shows, logos, texts or your own graphics and animations.

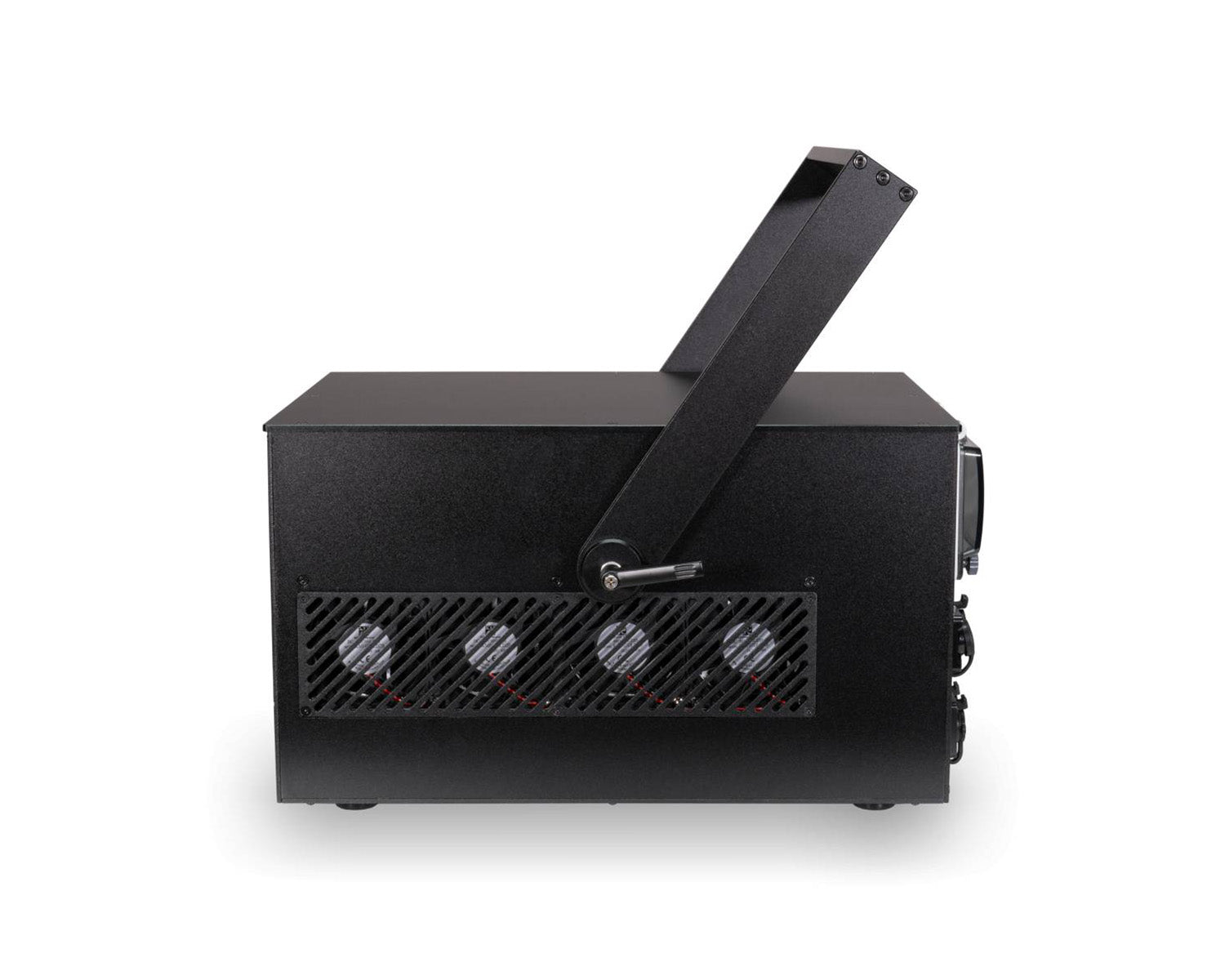

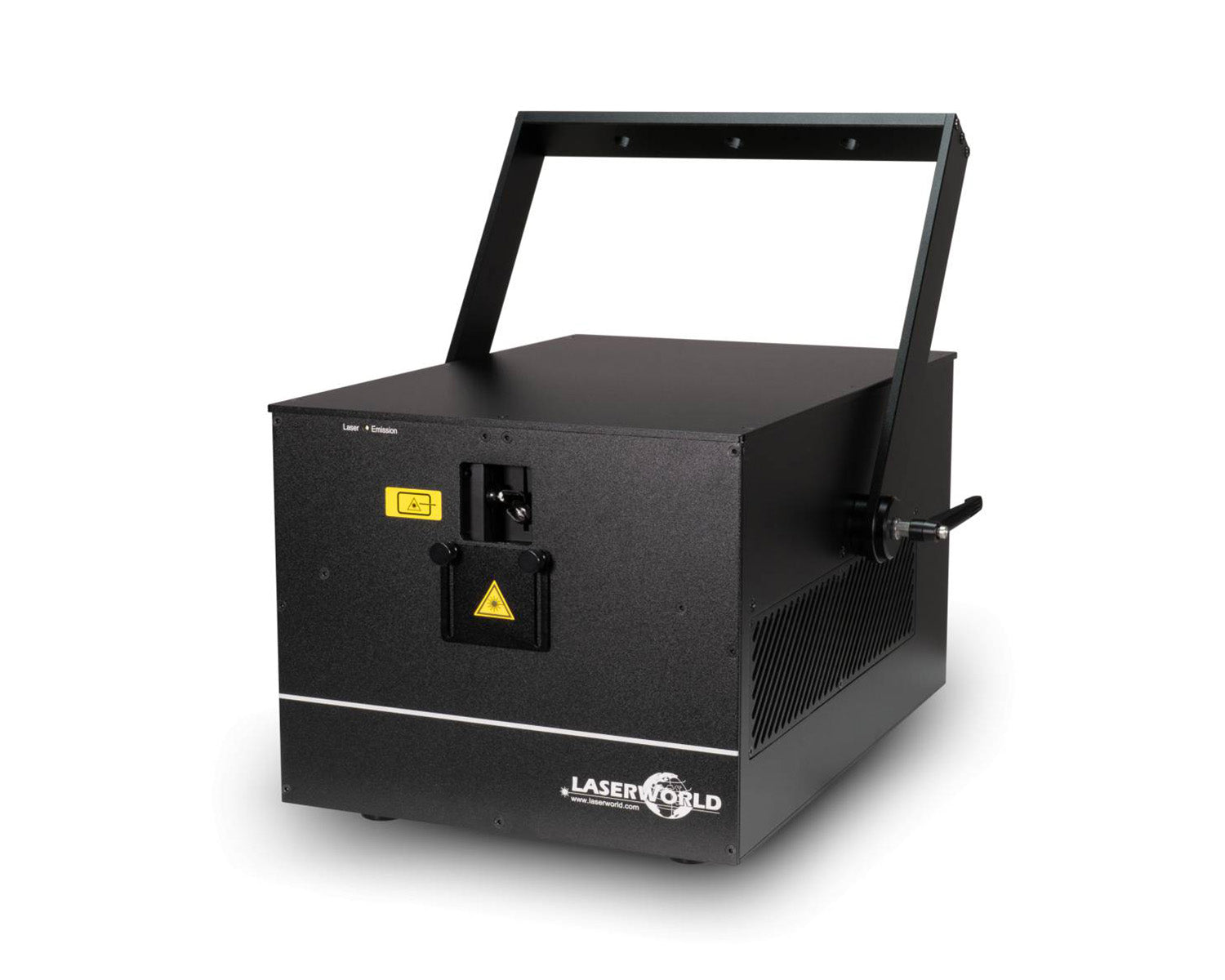

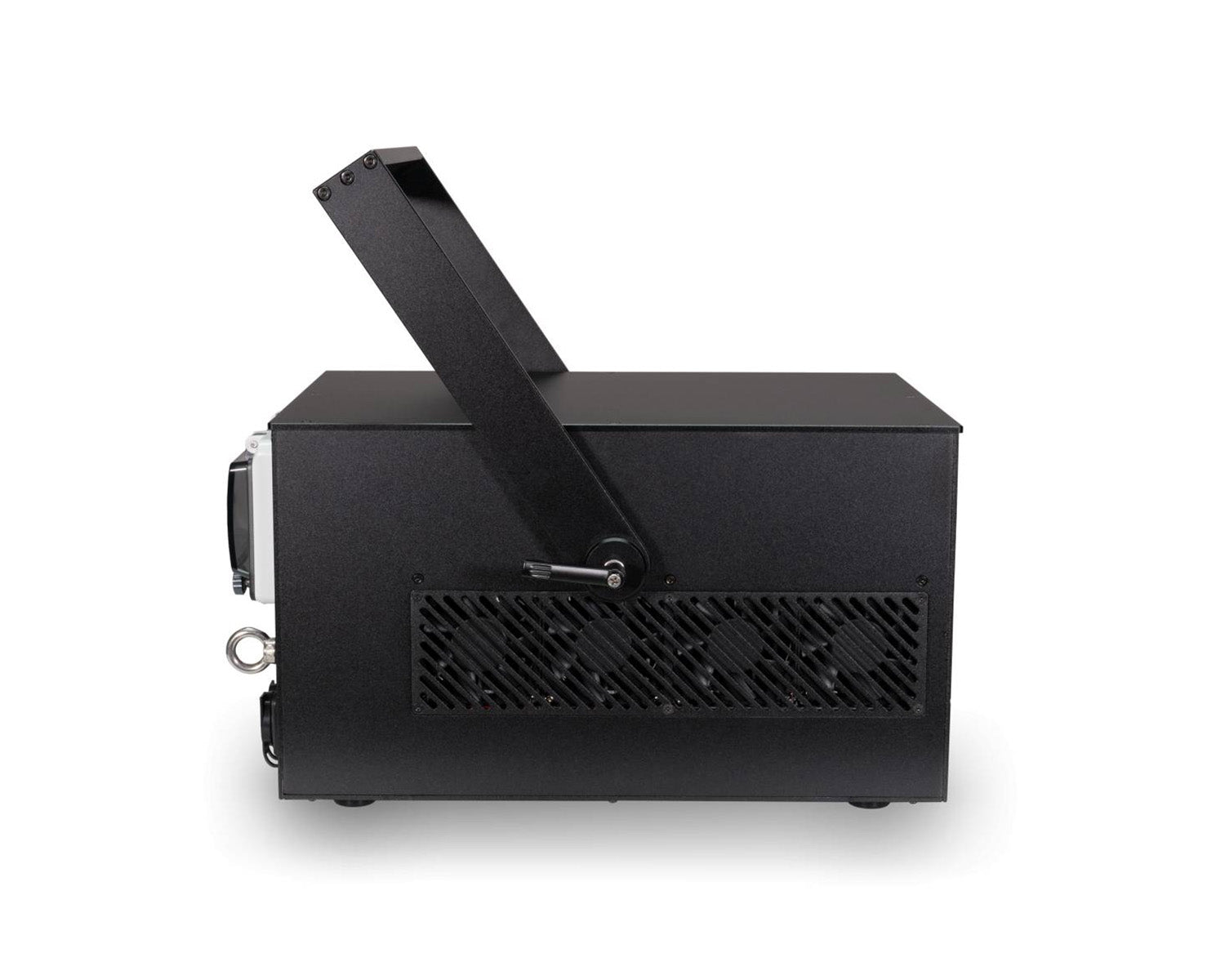

The Laserworld CS-24.000RGB FB4 show laser projector comes with a compact housing that is lightweight and has a stable 360° bracket. The bracket allows various mounting positions: both hanging and standing installations are possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations on a truss or on the ceiling. The Laserworld CS-24.000RGB FB4 is ideal for semi-professional applications and is perfect for medium to large clubs and discotheques as well as for smaller festivals or stages and in any other party location.

Product Features

• 24\'000 mWRGB pure diode laser system
• Pangolin FB4 interface
• DMX / ArtNet controllable
• Stand-alone mode
• Computer controllable via FB4 interface (requires QuickShow or BEYOND software)
• Basic graphics capability - 30 kpps @ 8° scanners
• Analogue modulation
• Laser beam masking plate on front panel
• 360° mounting bracket
• IP54 enclosure

Product Specifications

• Guaranteed Power: 24\'000 mW
• Power Red: 5\'500 mW / 638 nm
• Power Green: 6\'500 mW / 520 nm
• Power Blue: 12\'000 mW / 450 nm
• Beam Specifications*: ca. 6 mm / 1.3 mrad
• Scanner: 30 kpps @ 8°
• Max. Scan Angle: 50°
• Laser Source: Diode
• Laser Class: 4
• Operation Modes: FB4, ILDA, DMX, ArtNet
• Basic Patterns: Available for download
• Accessories: power cable, manual, interlock, key
• IP rating: IP54
• Power Supply: 85 V - 250 V AC, 50/60 Hz
• Power Consumption: 300W
• Dimensions: 400 x 240 x 220 mm
• Weight: 19.0 kg
