Controlling volume levels in the variety of spaces that often exist within a commercial sound system requires careful preparation, especially for remote areas found in bars & restaurants, shopping malls, hotels, corporate offices or educational facilities, etc. The CRC-VEU-WH installs on the wall in these remote locations and puts volume control in the hands of the operator.

The CRC-VEU-WH is the very model of simplicity; a single knob controls the volume level. A maximum user volume can be set with the master volume on the amplifier which keeps the operator knob within a desired range. The CRC-V is easy to install and provides direct connectivity between Lab Gruppen CA, CM, CMA and CPA series products via inexpensive and readily available CAT5 or CAT6 cabling and RJ-45 connectors. The available illumination makes it easy for users to find the wall panel even in the darkest of rooms.

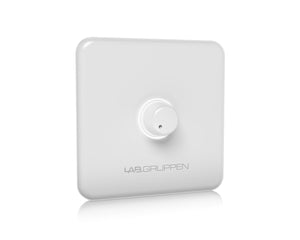

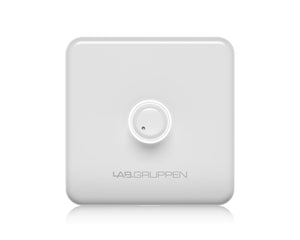

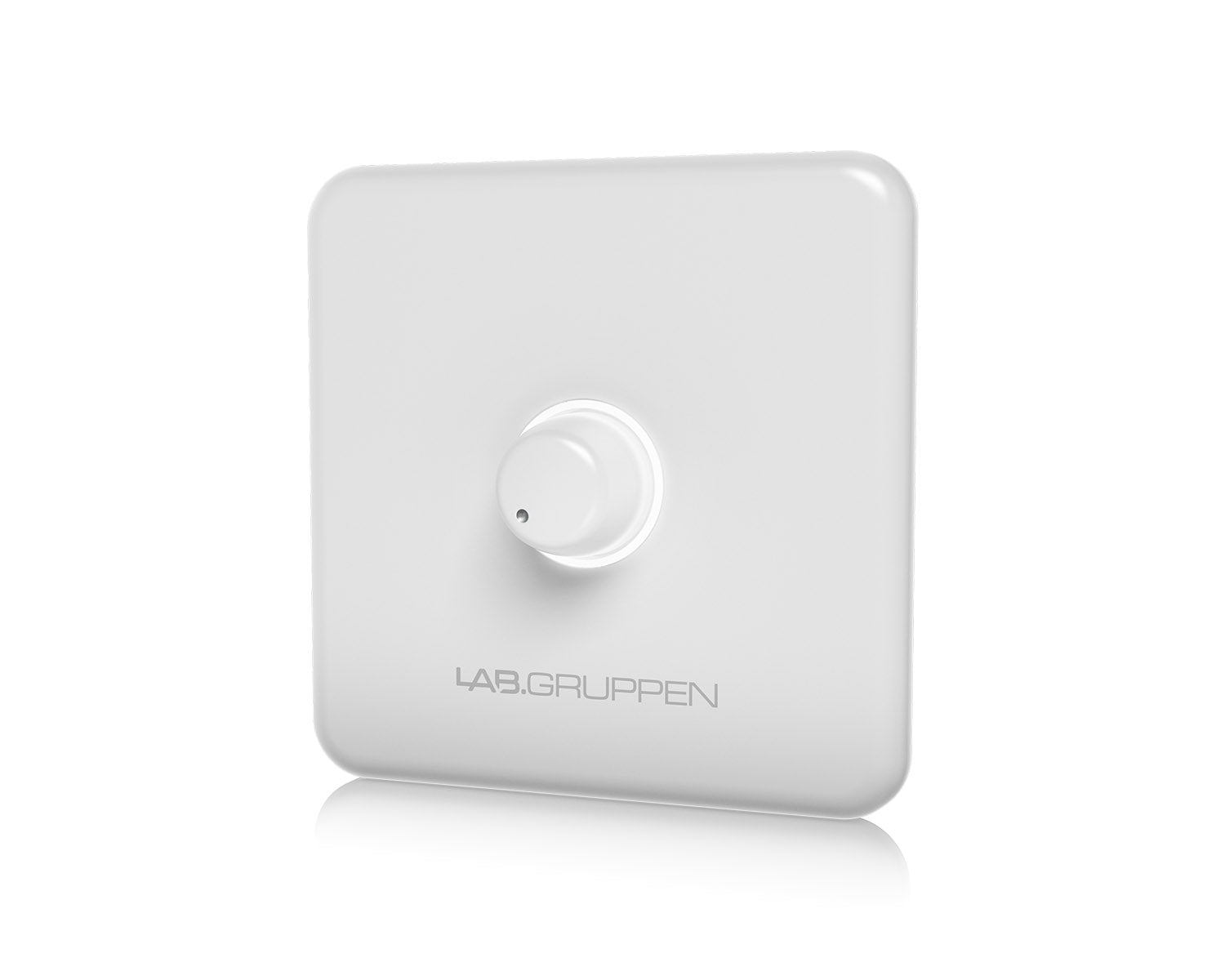

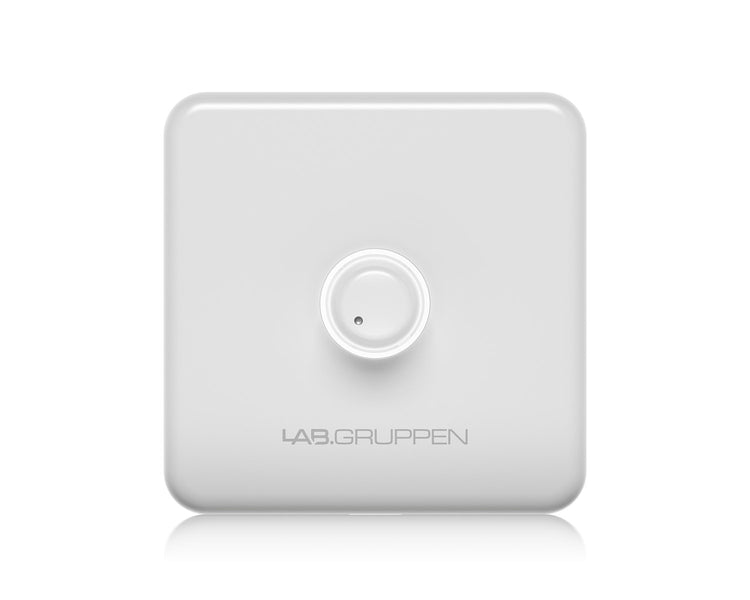

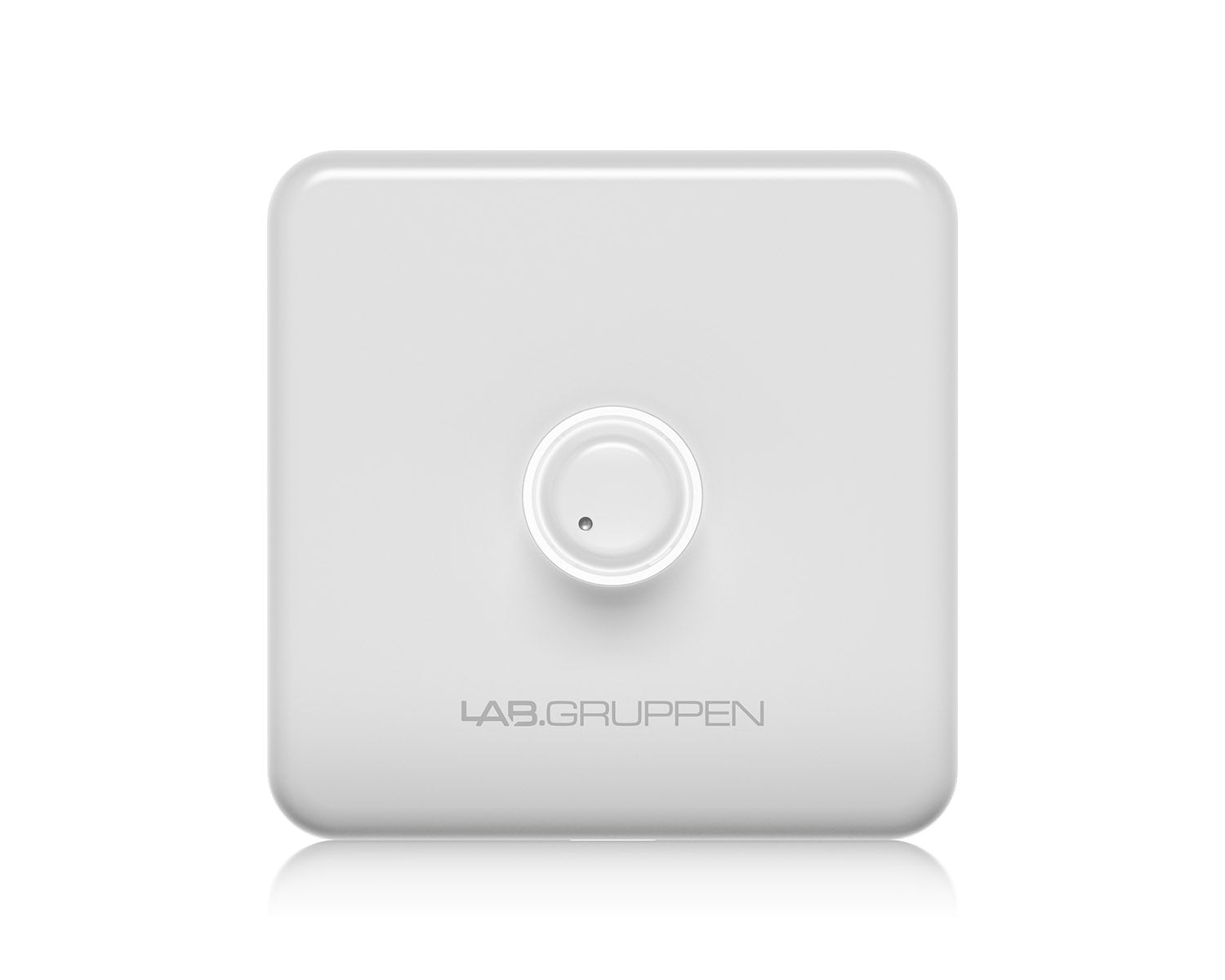

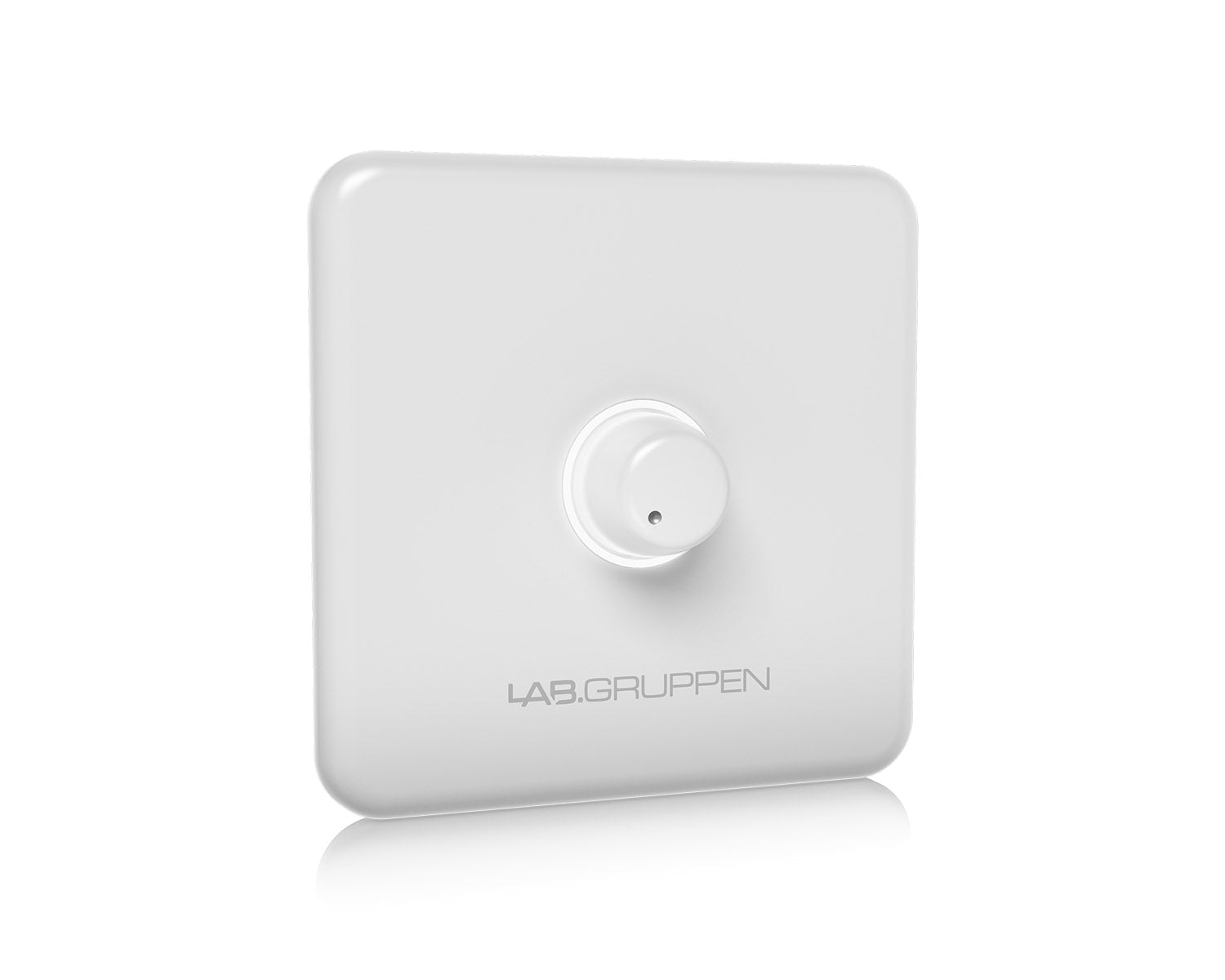

Designed to blend into the most sophisticated environments, the CRC-VEU-WH features a white faceplate with ample room for labelling. The device is perfectly sized to fit in standard format EU wall enclosures.

Product Features

• Volume Control or CA Amps
• Designed to blend in to the most sophisticated environments
• CRC-VEU features a single volume knob with an illuminated LED ring
• LED ring illumination can be configured with a switch on the PCB
• The CRC-VEU fastens into the installation enclosure with two screws beneath the front plate


Product Specifications

• Volume: 1 x rotary control
• Connector: 1 x RJ45
• Cable: Cat5/6
• Cable length: Up to 305 m (1000 ft)
• Potentiometer: 20 kΩ linear
• Dimensions (H x W x D): 80 x 80 x 41 mm (3.1 x 3.1 x 1.6")
• Weight: 0.05 kg (0.11 lbs)
