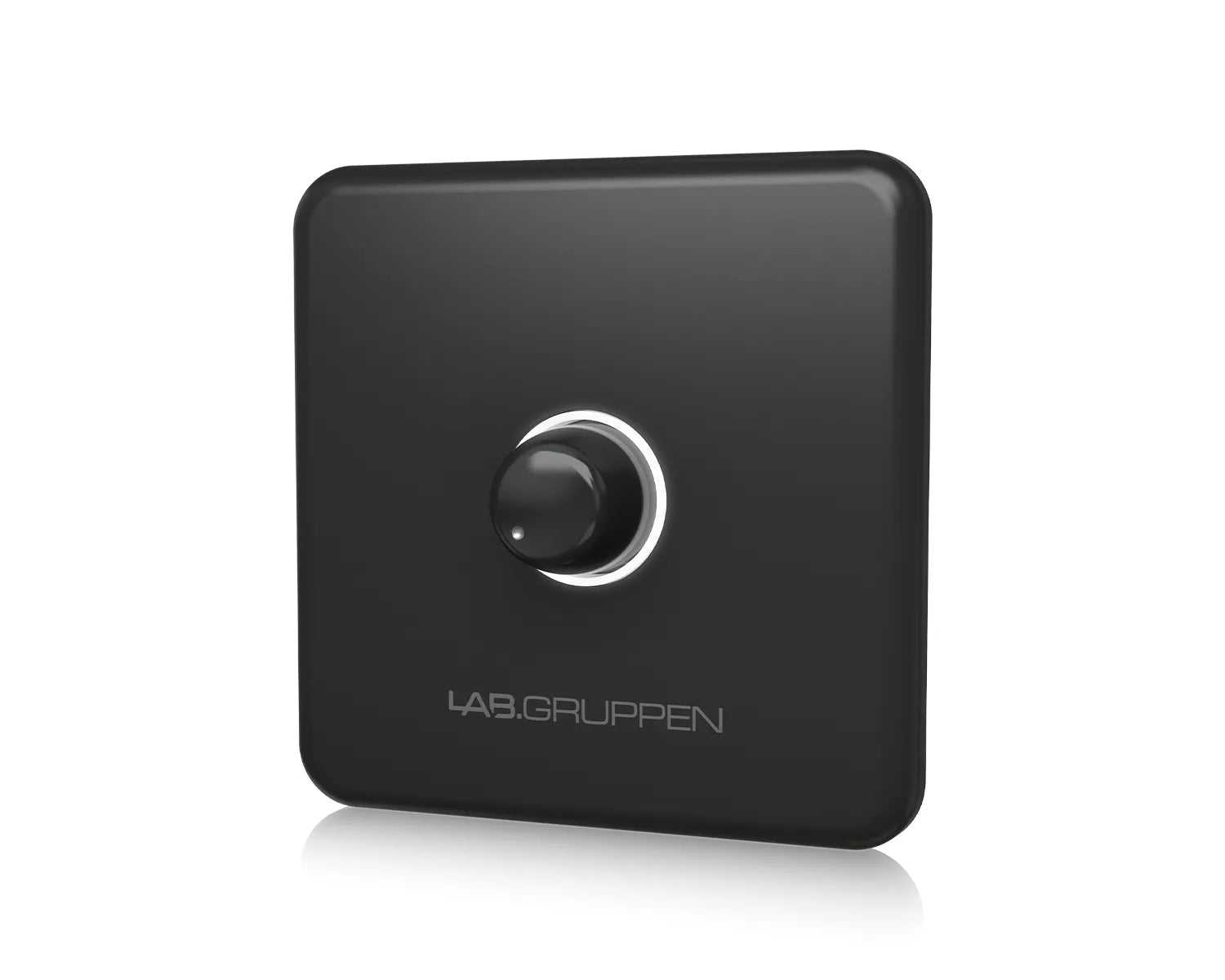

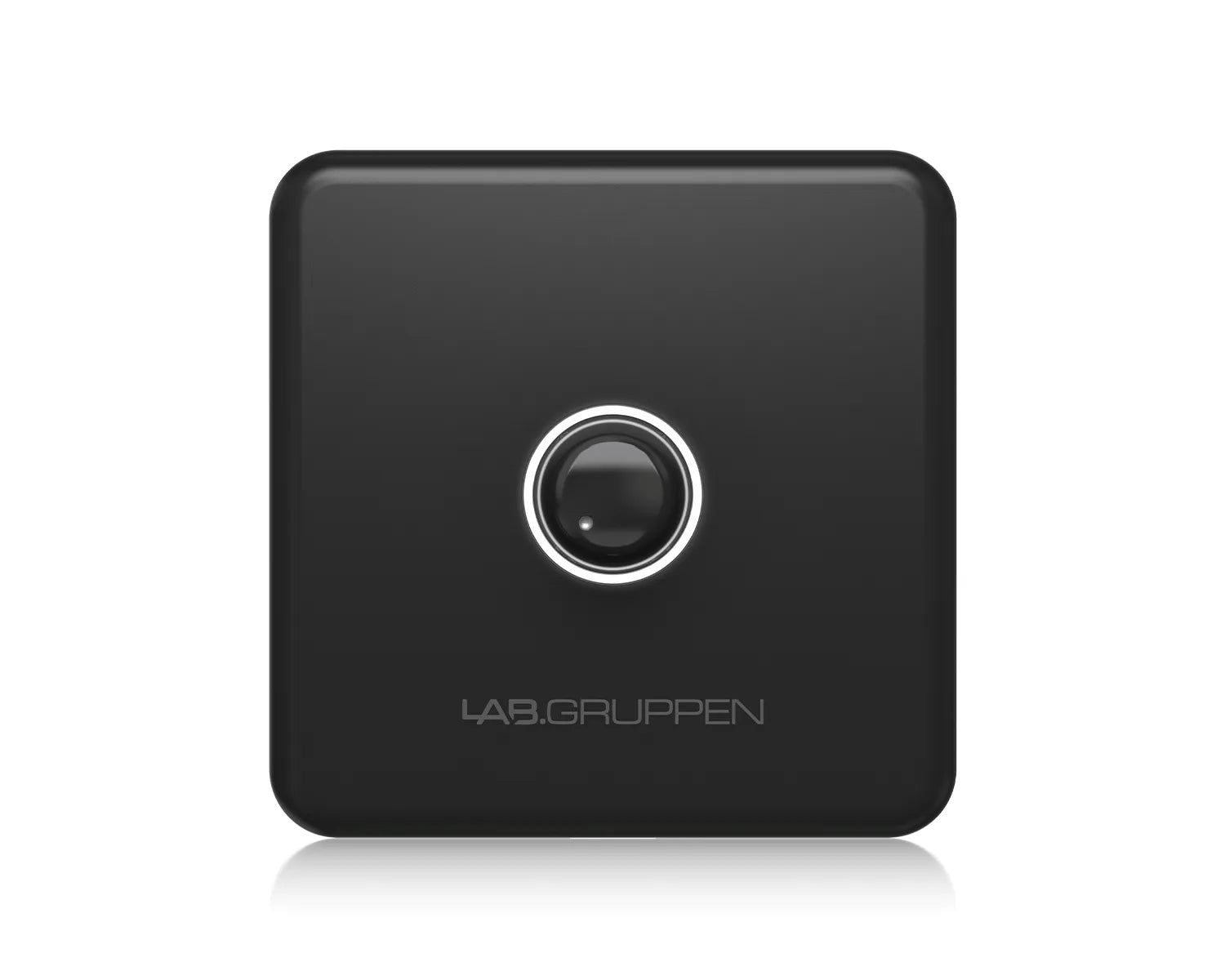

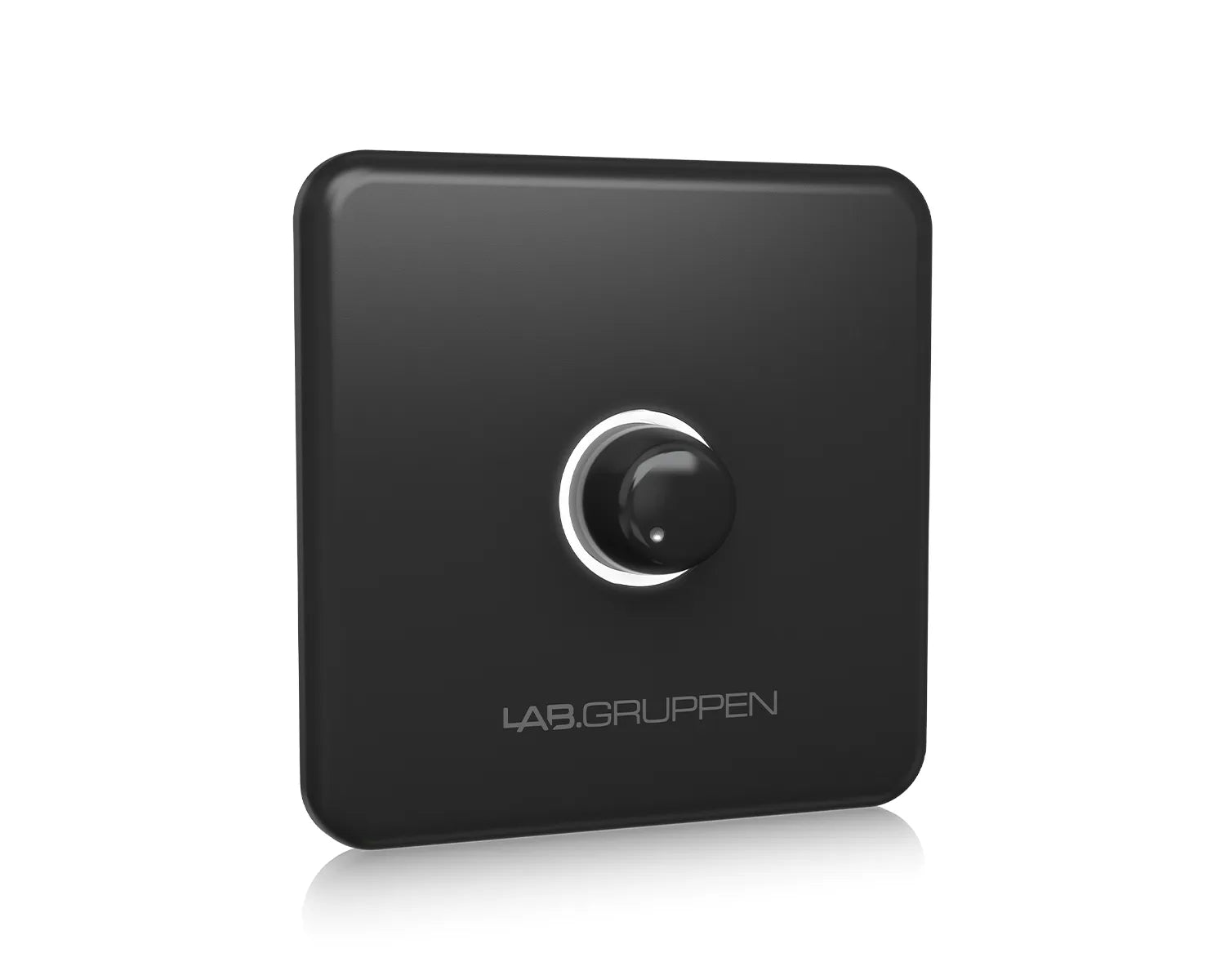

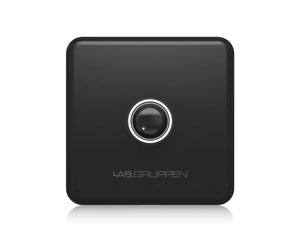

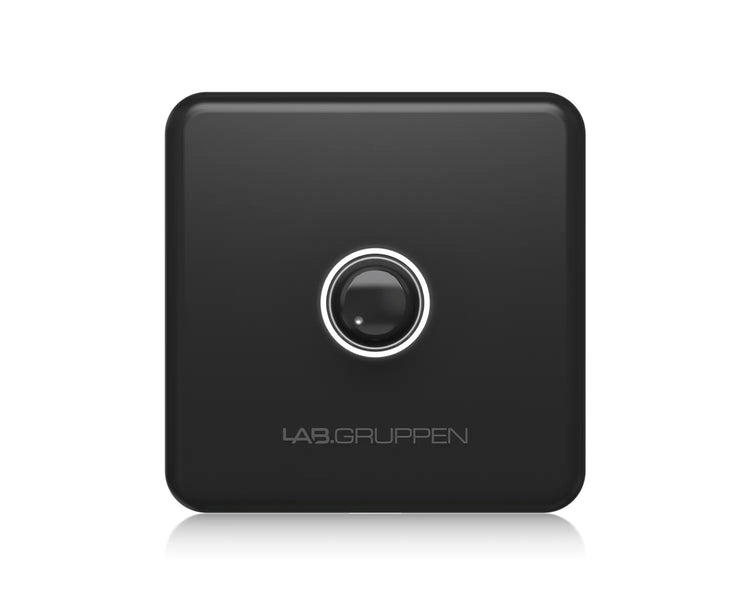

Controlling volume levels in the variety of spaces that often exist within a commercial sound system requires careful preparation, especially for remote areas found in bars & restaurants, shopping malls, hotels, corporate offices or educational facilities, etc. The CRC-VEU-BK installs on the wall in these remote locations and puts volume control in the hands of the operator.

The CRC-VEU-BK is the very model of simplicity; a single knob controls the volume level. A maximum user volume can be set with the master volume on the amplifier which keeps the operator knob within a desired range. The CRC-V is easy to install and provides direct connectivity between Lab Gruppen CA, CM, CMA and CPA series products via inexpensive and readily available CAT5 or CAT6 cabling and RJ-45 connectors. The available illumination makes it easy for users to find the wall panel even in the darkest of rooms.

Designed to blend into the most sophisticated environments, the CRC-VEU-BK features a black faceplate with ample room for labelling. The device is perfectly sized to fit in standard format EU wall enclosures.

Product Features

• Wall plate remote volume control accessory for standard format EU wall enclosures
• Compatible with CA, CM, CMA and CPA Series
• Illuminated single control knob for volume attenuation
• RJ-45 connector for use with any CAT5 or CAT6 cables
• Generous space provided for labelling
• Black faceplate and discreet styling matches any decor

Product Specifications

• Volume: 1 x rotary control
• Connector: 1 x RJ45
• Cable: Cat5/6
• Cable length: Up to 305 m (1000 ft)
• Potentiometer: 20 kΩ linear
• Dimensions (H x W x D): 80 x 80 x 41 mm (3.1 x 3.1 x 1.6")
• Weight: 0.05 kg (0.11 lbs)
