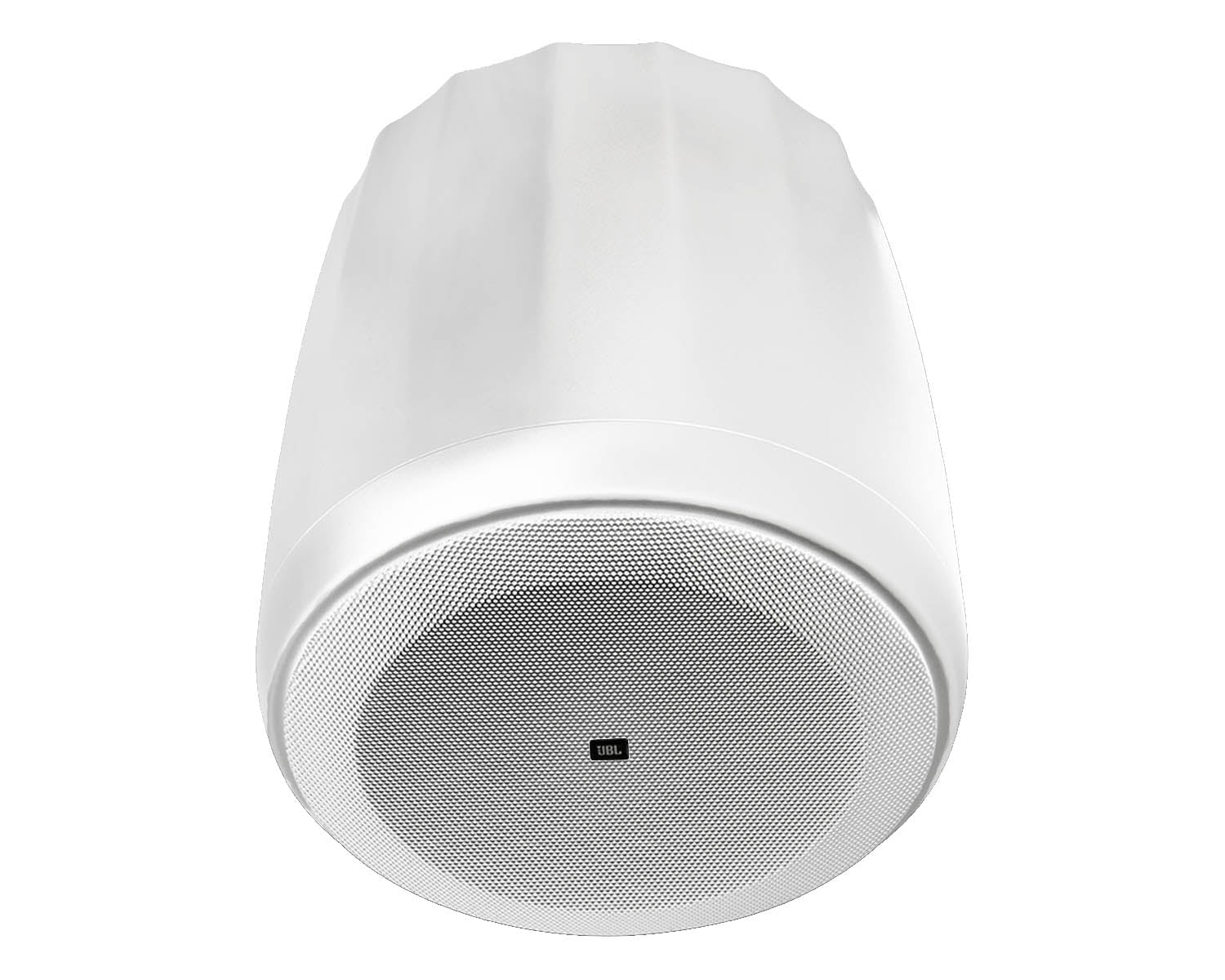

JBLC67HCTW - JBL Control 67HC or T WH 6.5inch Pendant Speaker 75degree 75W 100V White Image 1

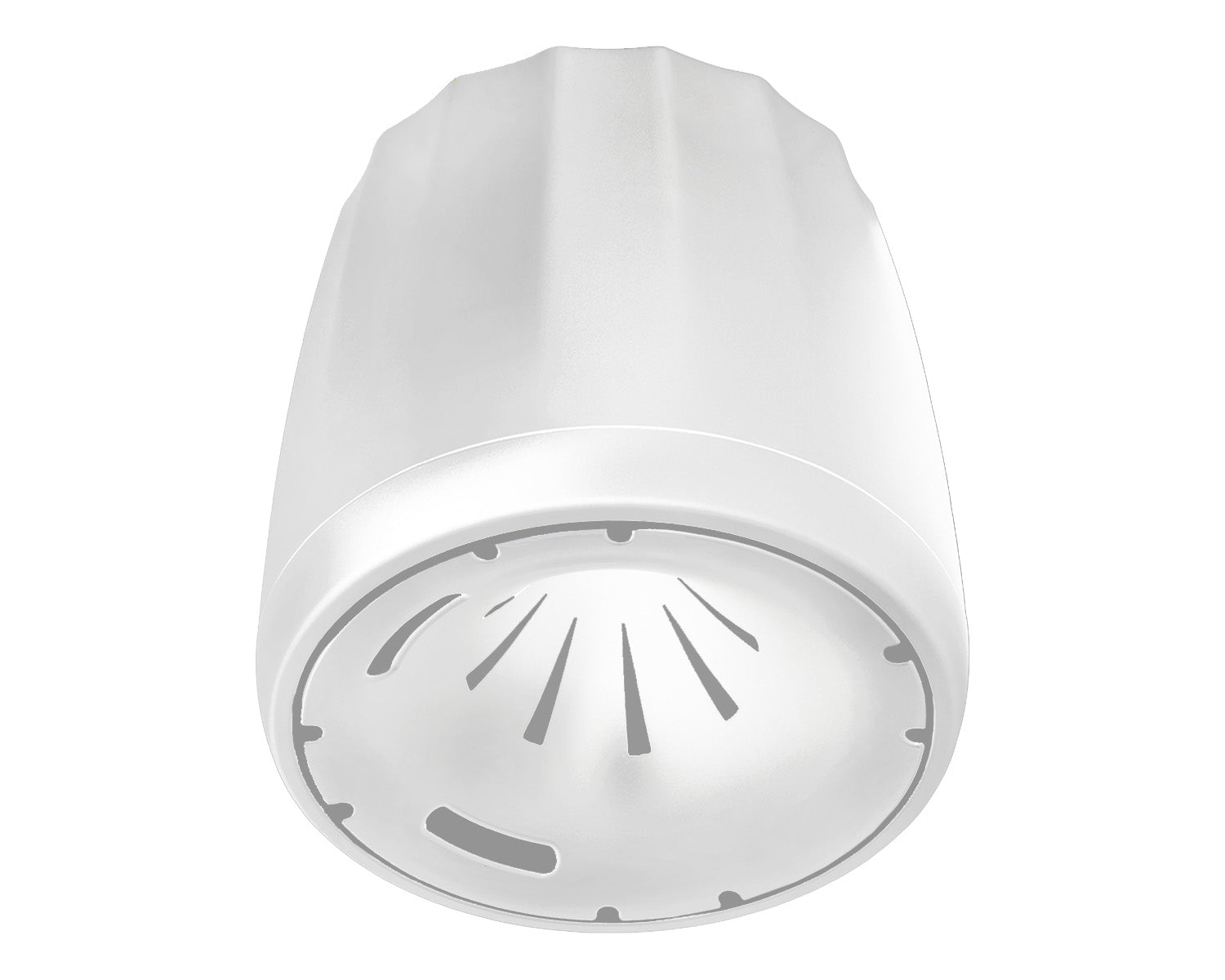

JBLC67HCTW - JBL Control 67HC or T WH 6.5inch Pendant Speaker 75degree 75W 100V White Image 2

Control 67HC’s well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics, such as convention centers, transit centers, exhibit venues and hotel atrium areas.

Product Features

RBI Radiation Boundary Integrator Technology
Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
High 93 dB sensitivity
75 Watts, 8 ohms and 60W multi-tap transformer
Black or white

Product Specifications

General

Frequency Response (-10 dB): 75 Hz – 17 kHz
Frequency Range (±3 dB): 110 Hz – 16 kHz
Power Capacity:
- 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
- 150 Watts Continuous Program Power
Nominal Sensitivity: 93 dB
Nominal Coverage Angle: 75° (+15°/-20°)
Directivity (Q): 10.4
Directivity Index (DI): 9.8 dB
Rated Maximum SPL @ 1m: 112 dB continuous pink noise, 118 dB peak
Rated Impedance: 8 ohms
Transformer Taps:
- 70V: 60W, 30W, 15W & 7.5W
- 100V: 60W, 30W, 15W
Transformer Insertion Loss: 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
LF Driver:
- 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround,
- 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF Driver: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure Material: High impact polystyrene
Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Termination: Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
