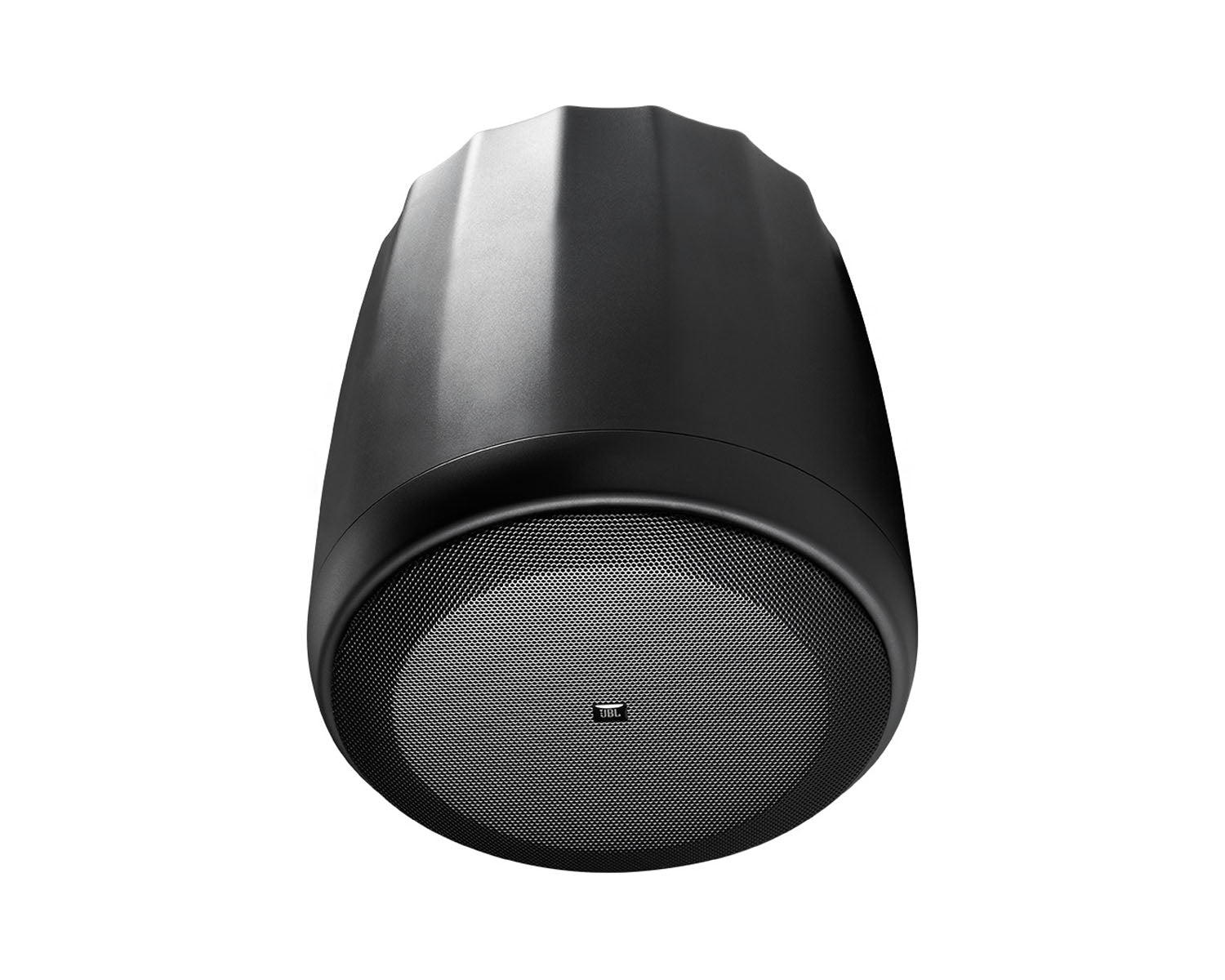

The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilised. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high dutycycle, working conditions.

Product Features

• High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
• 200 mm (8 in) long-excursion driver.
• 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
• Hanging hardware with 4.5 m (15 foot) galvanised steel cable and easy to adjust clamp.
• Stylish design, available in black or white (-WH).
• UL listed (speaker and hanging cable system).

Product Specifications

General

• Frequency Response (-10dB): 42 Hz – 350 Hz
• Frequency Response (±3 dB): 55 Hz – 125 Hz
• Power Rating: 300 Watts Continuous Program Power, 100 hrs 150 Watts Continuous Pink Noise, 100 hrs
• Nominal Sensitivity (2.83V/1m): 88 dB
• Maximum SPL (1m): 107 dB @ 1 m (3.3 ft) average, 113 dB peak
• Impedance: 8 ohms
• Transformer Taps: 110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8
• Transformer Insertion Loss: 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
• Drivers: 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.
• Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating
• Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension: Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb).
• Safety Agency: Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Physical

• Dimensions (H x W x D): 333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
• Net Weight (each): 7.6 kg (16.7 lb)
• Shipping Weight: 17.6 kg (38.7 lbs) per pair-packed carton
• Included Accessories: Two suspension cable systems (see “suspension”, above), six removable locking 2-pin euro-block connectors, six rubber cover boots for euroblock connectors.
• Optional Accessories: MTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.
• Colours: Available in black or white (-WH).
• Enclosure Material: High impact polystyrene
• Grille: Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)
