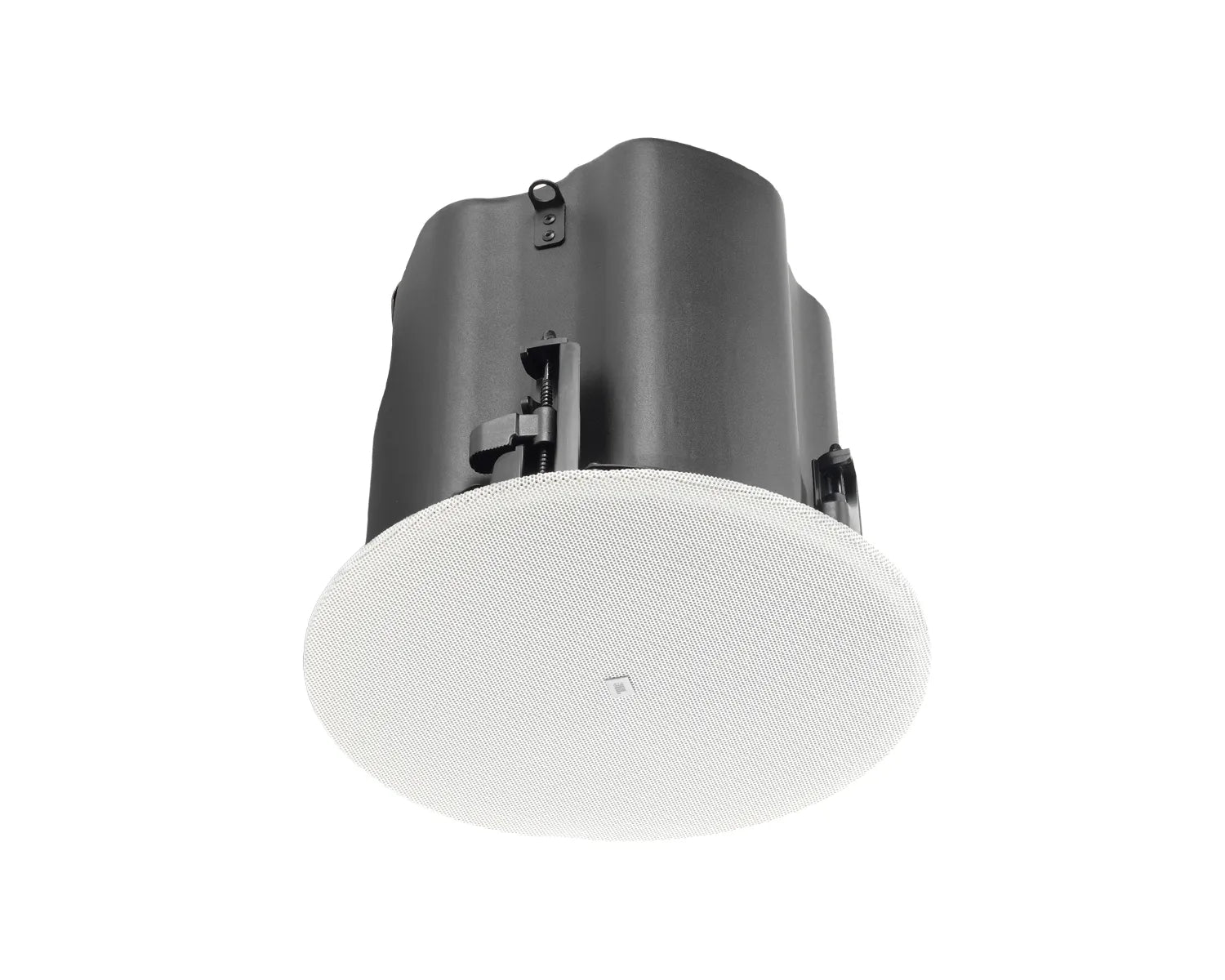

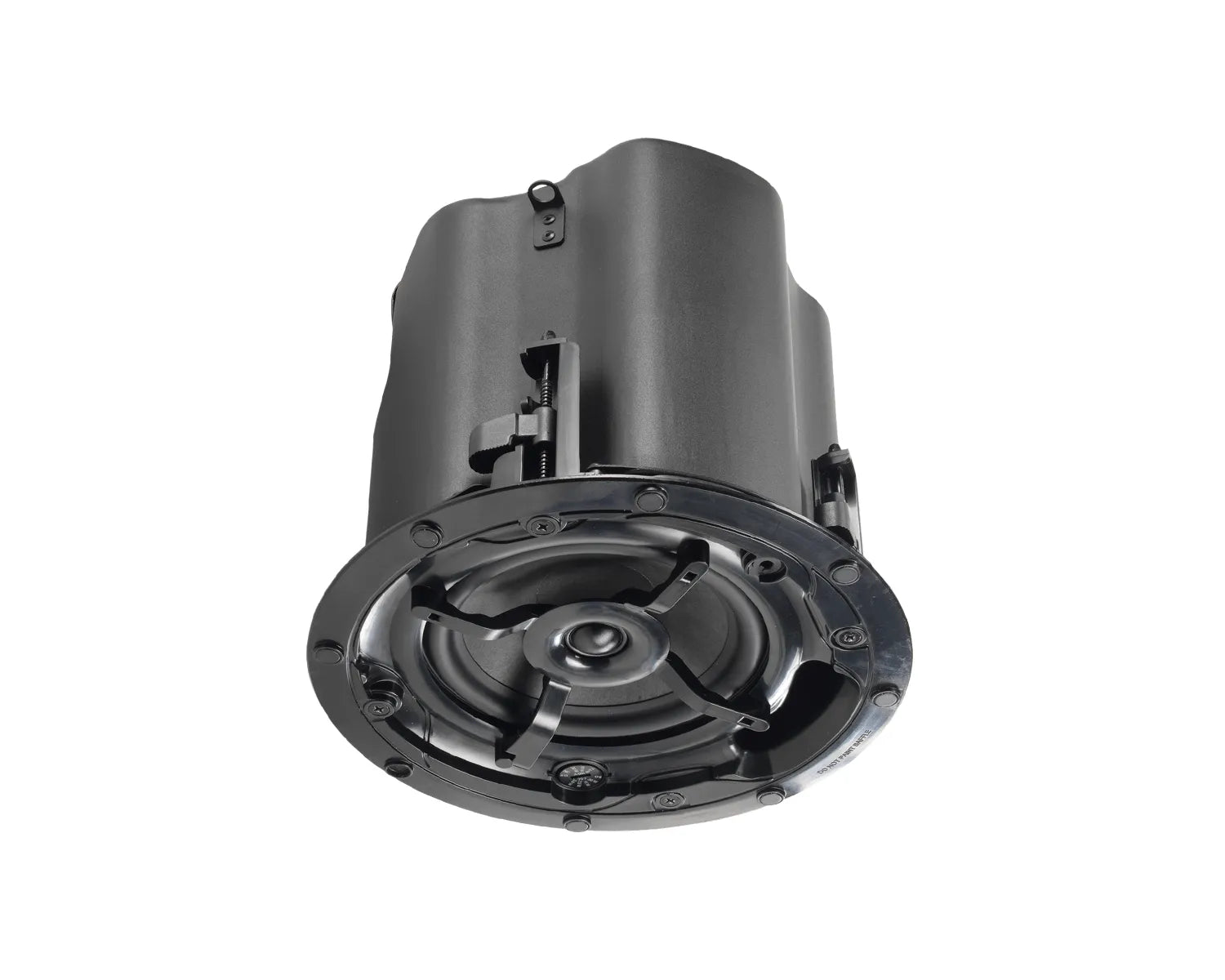

The JBL Control 416C/T-VA, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces. This model is EN54-24 certified, making it suitable for life safety applications.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customisation.

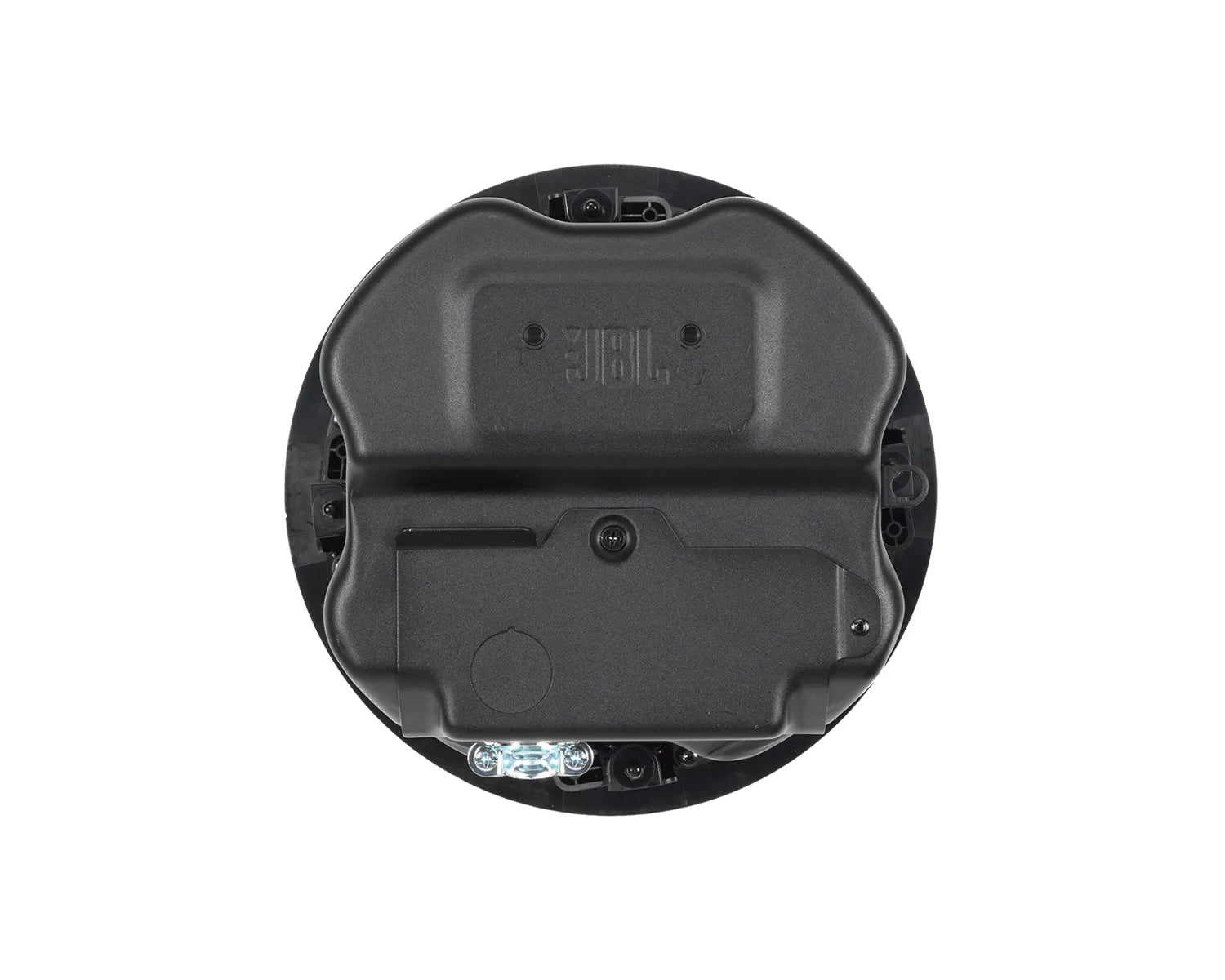

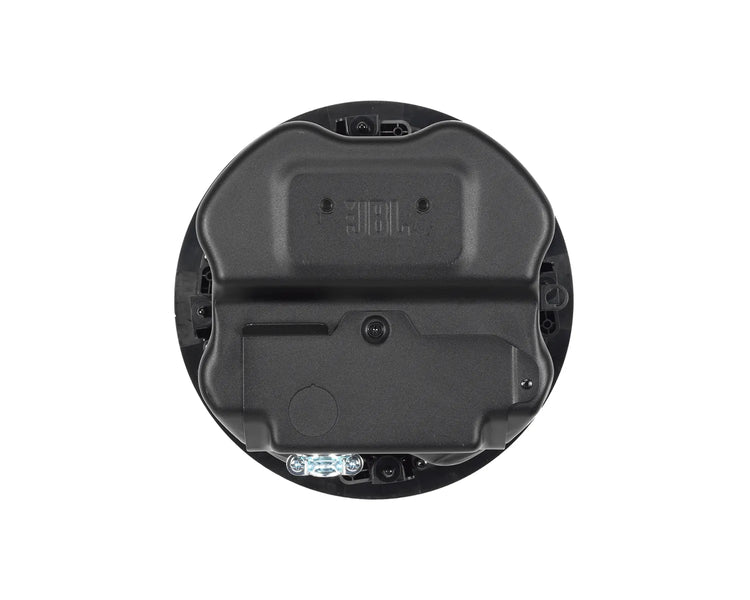

The Control 416C/T-VA includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 416C/T-VA supports both 70V/100V and low impedance applications.

Product Features

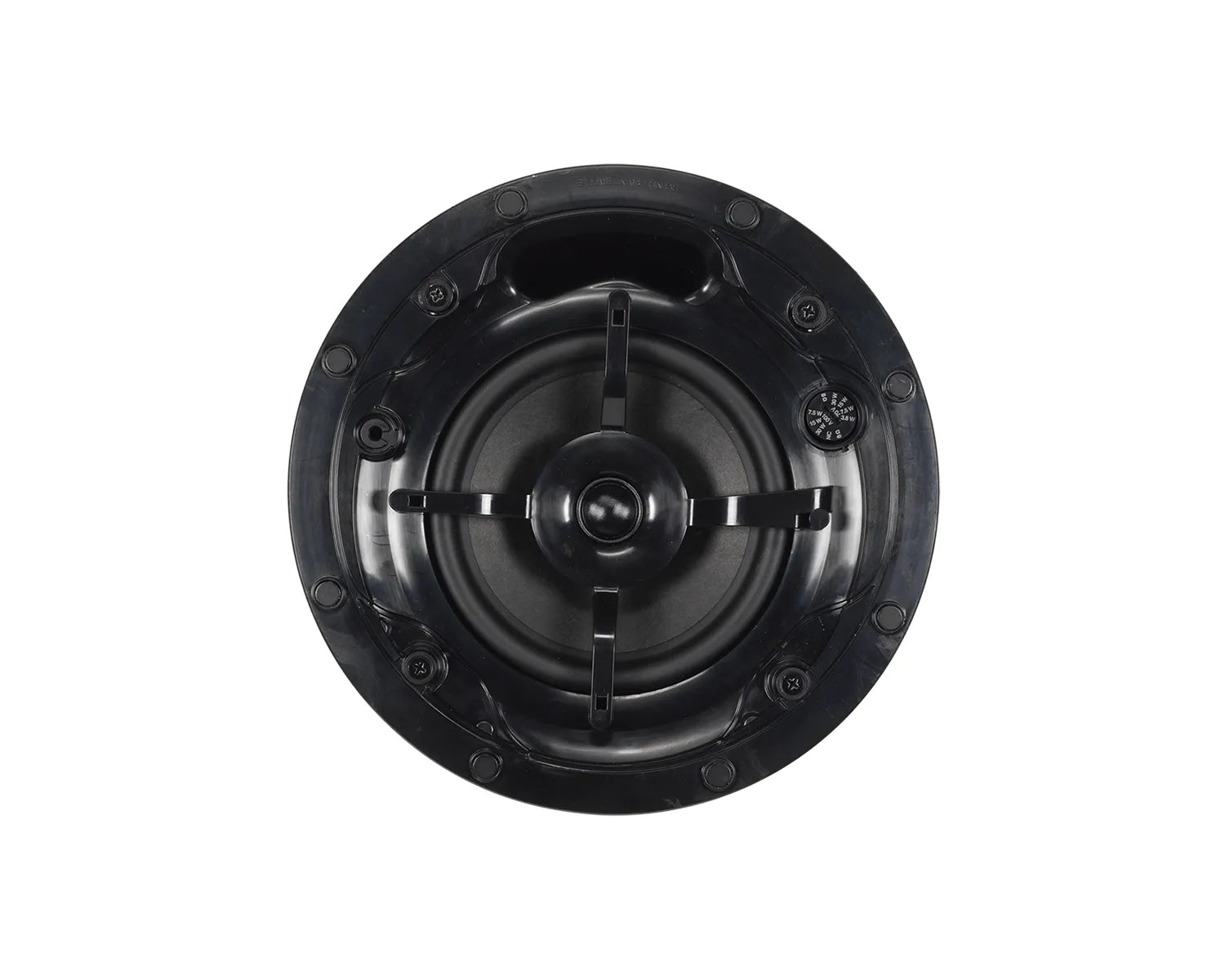

• 165 mm (6.5 in) woofer and 19 mm (0.75 in) soft-dome tweeter
• Integrated enclosure that is ideal for installation in most ceiling plenum spaces
• Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
• Full-face, easily paintable magnetic grilles
• Top and side cable entry options

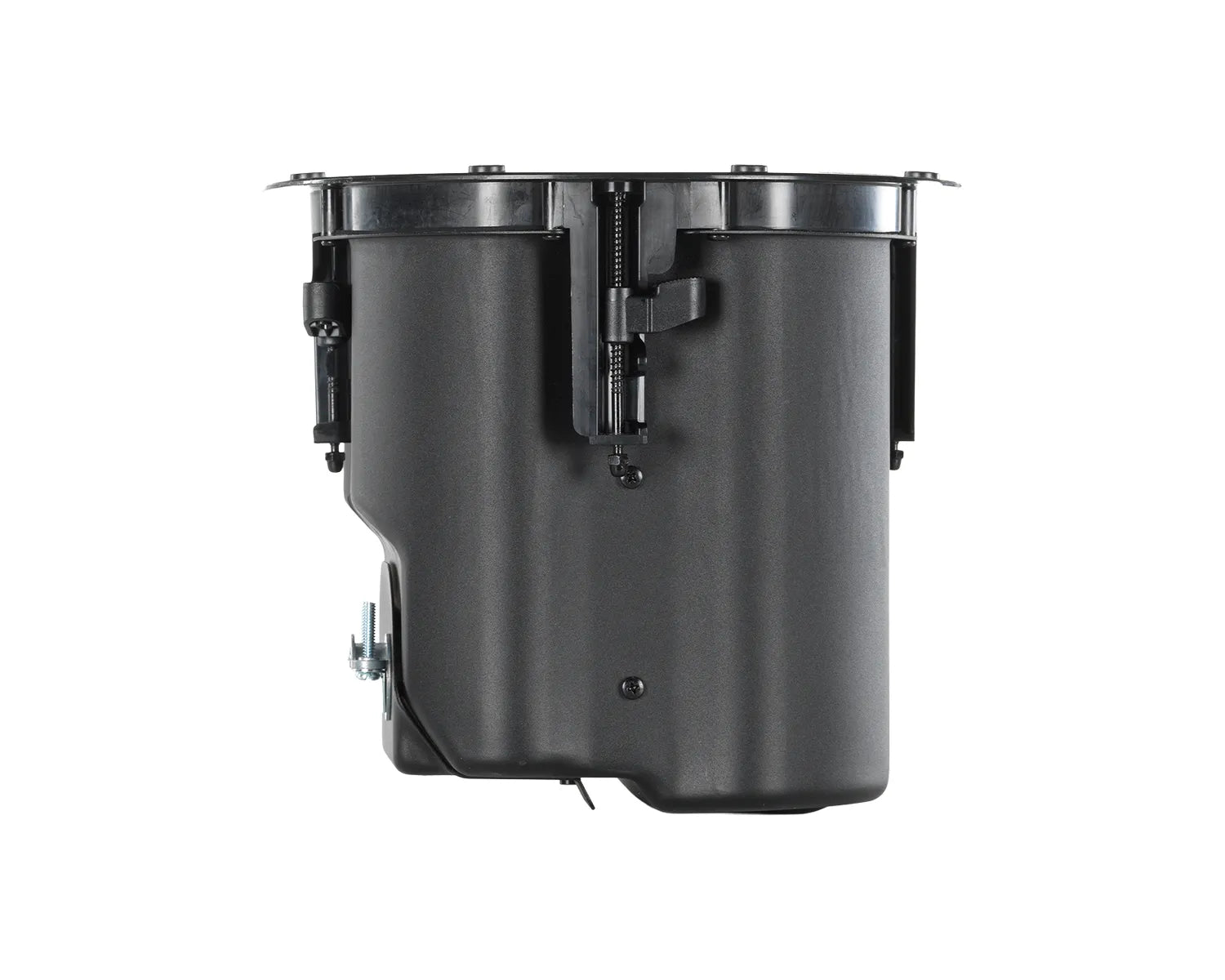

• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated
• EN54-24 Certified for Standard for Life Safety applications

Product Specifications

• Frequency Range (-10 dB):  61Hz - 20kHz
• Power Capacity:
  • 75W (300W Peak) Cont. Pink Noise (2 hrs)
  • 50W (200W Peak) Cont. Pink Noise (100 hrs)
• Sensitivity (1m/1W):  89dB
• Coverage Angle:  120° conical
• Maximum SPL (1m):  108 dB continuous pink noise (114 dB peak)
• Nominal Impedance:  8Ω
• Transformer Taps:
  • 70 V:  30 W, 15 W, 7.5 W & 3.8 W
  • 100 V:  30 W, 15 W, 7.5 W

• Drivers:
  • LF:  165 mm (6.5 in) with paper cone, SBR surround.
  • HF:  20 mm (0.75 in) soft dome
• Ceiling Cutout Size:  223 mm (8.8 in)
• Dimensions:
  • 249 mm (9.9 in) H x 261 mm (10.4 in) dia.
  • 238 mm (9.5 in) from bottom of ceiling tile to top of gland nut.
• Safety Agency Rating:  EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental:
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Optional Accessories:
  • JBL-MTC-416BG black (RAL9004) round grille
  • JBL-MTC-416SG white (RAL9003) square grille
  • JBL-MTC-416WG weather grille
  • JBL-MTC-426NC new construction bracket
  • JBL-MTC-426MR mud-ring construction bracket
  • JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Colour:  Stock grille is white (RAL9003), paintable.
• Net Weight (each):  3.76 kg (8.29 lbs)
