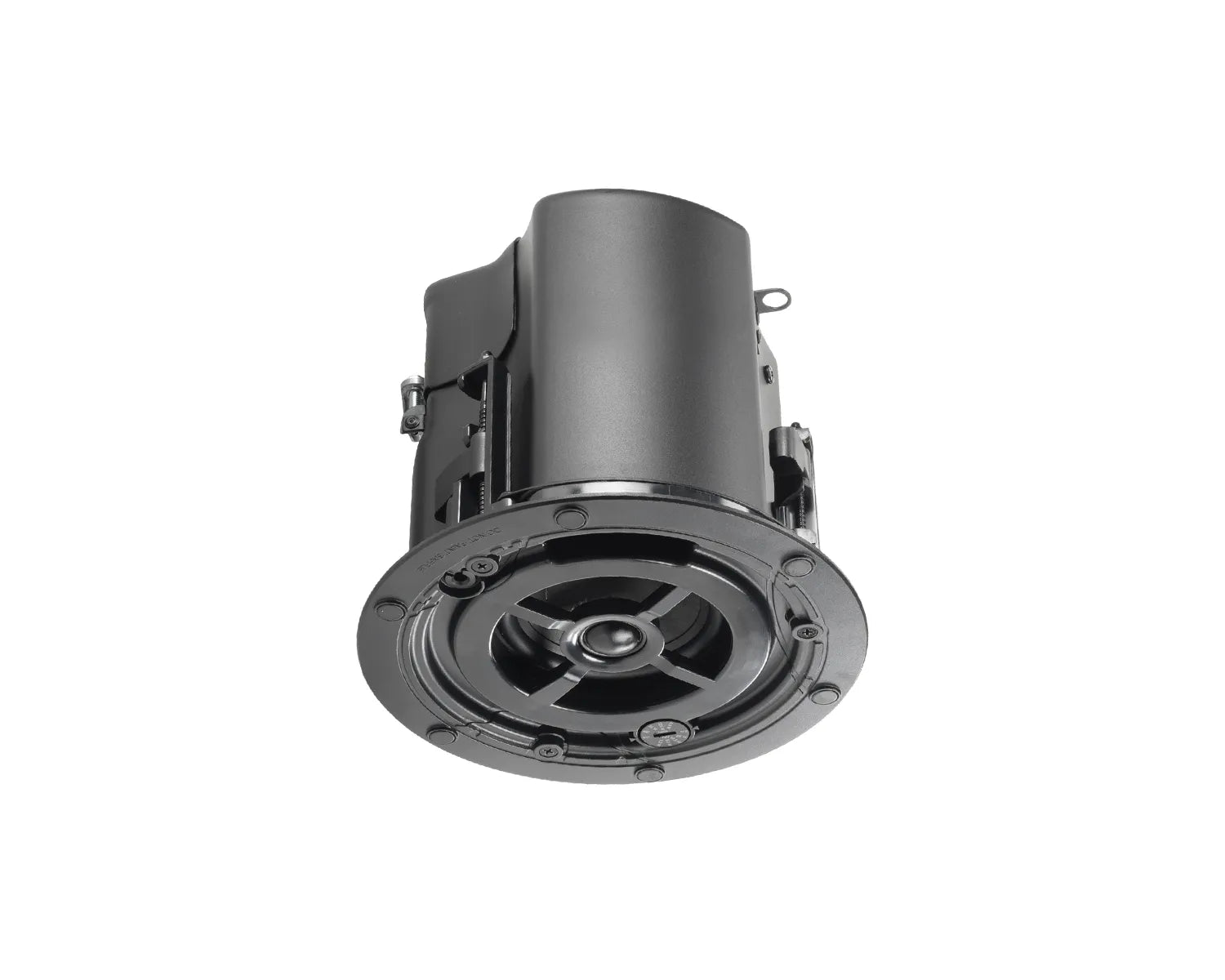

The JBL Control 414C/T-VA, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces. This model is EN54-24 certified, making it suitable for life safety applications.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customisation.

The Control 414C/T-VA includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 414C/T-VA supports both 70V/100V and low impedance applications.

Product Features

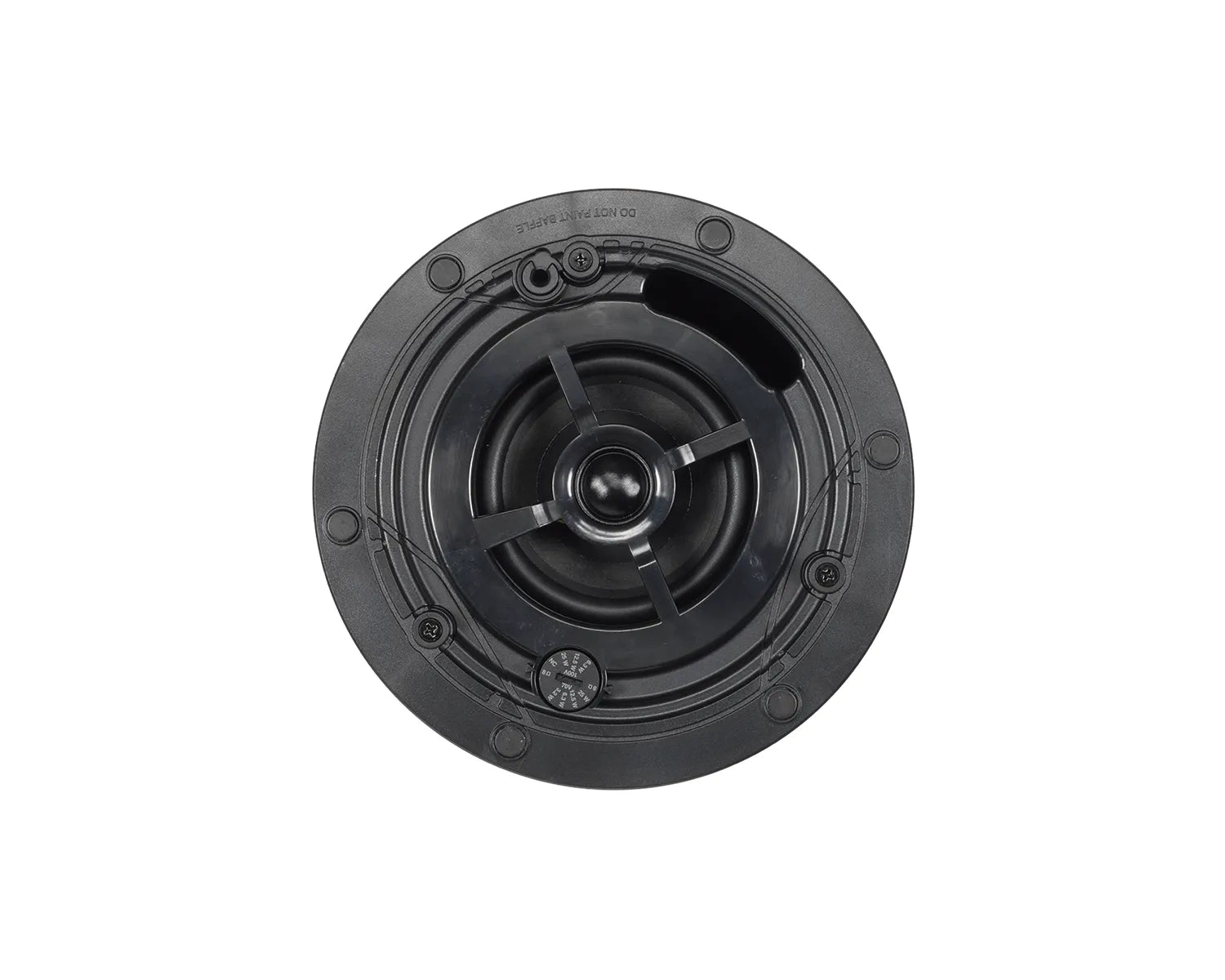

• 100 mm (4 in) woofer and 20mm (0.75 in) soft-dome tweeter
• Integrated enclosure that is ideal for installation in most ceiling plenum spaces
• Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

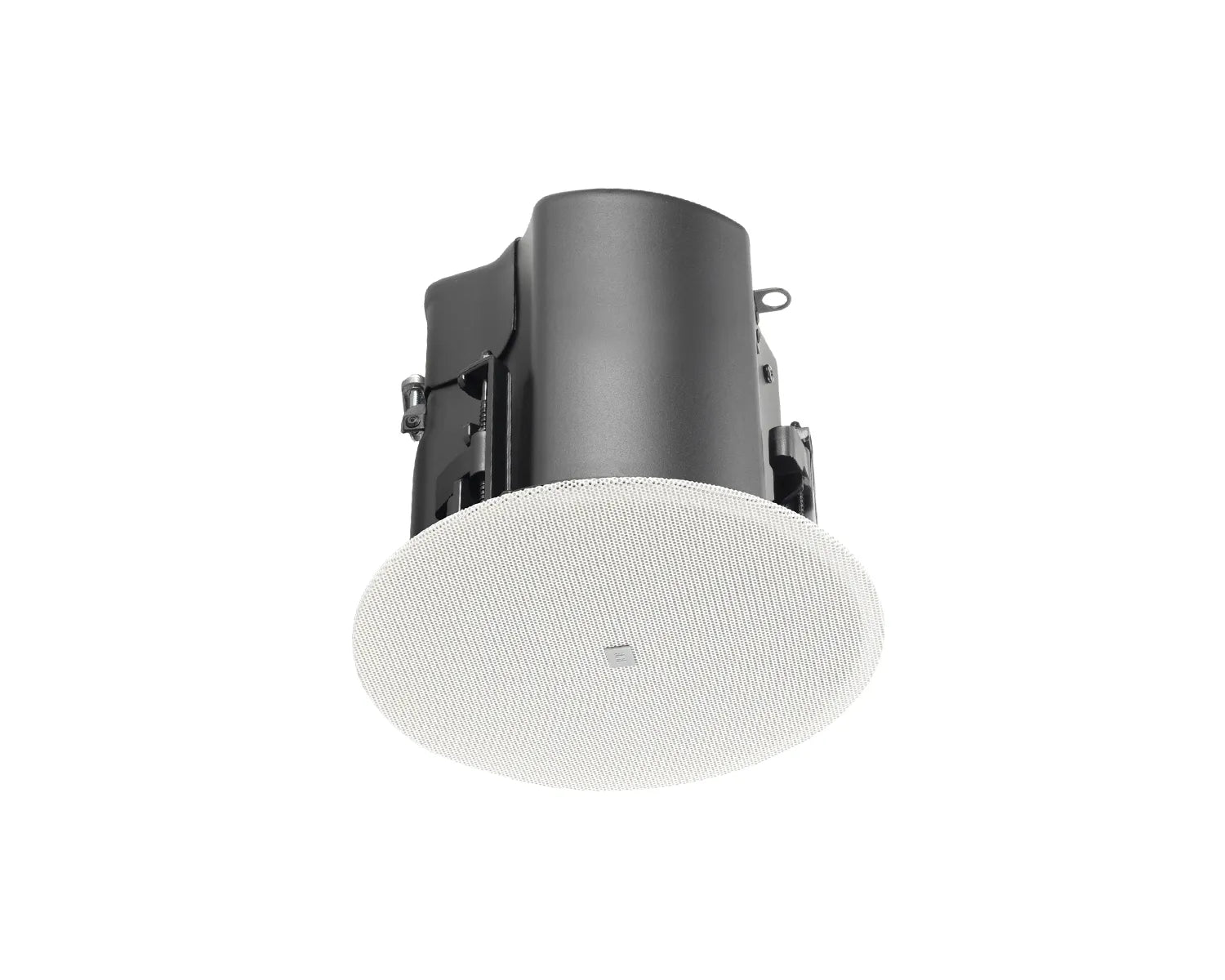

• Full-face, easily paintable magnetic grilles

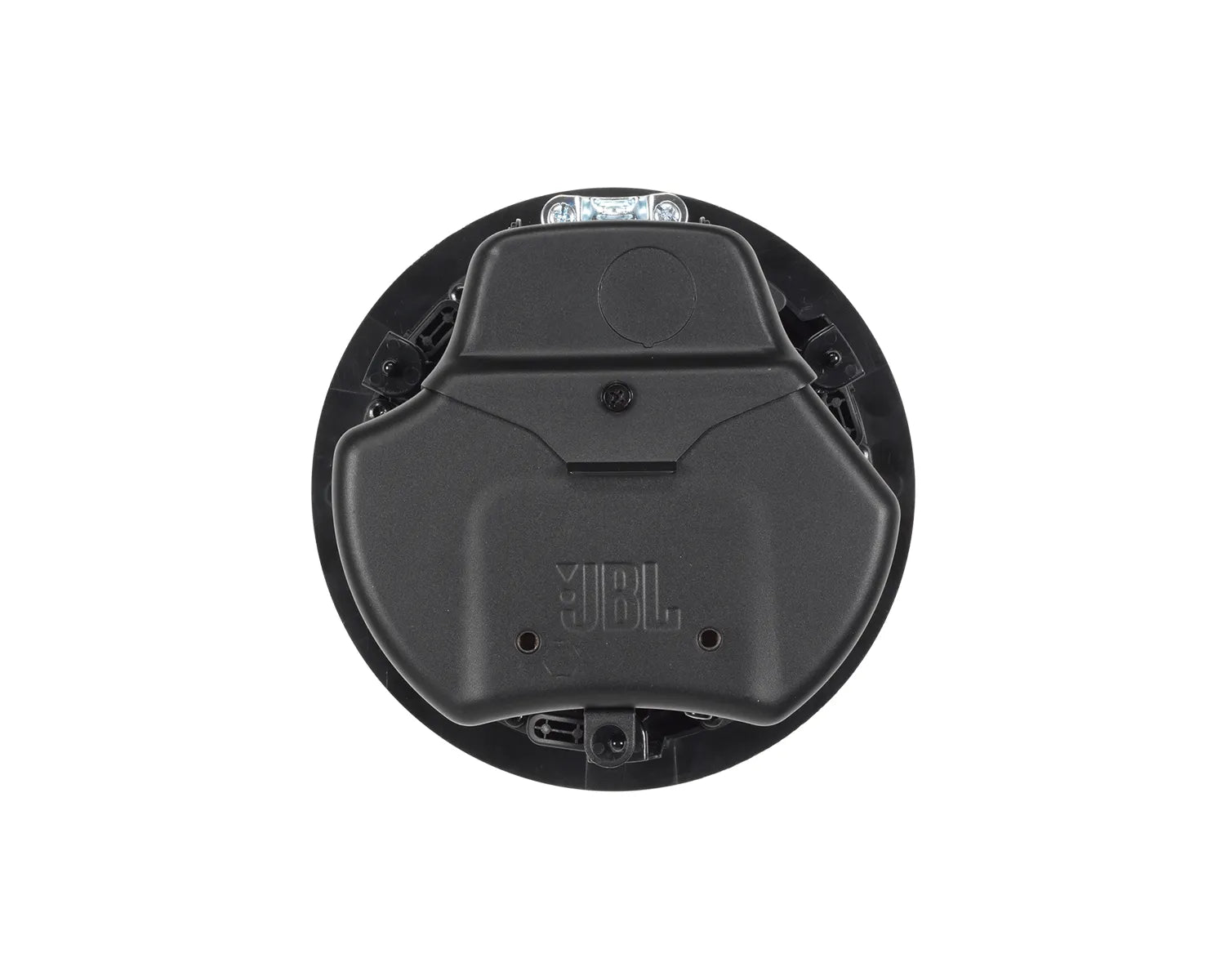

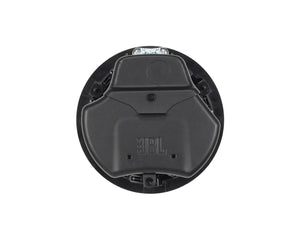

• Top and side cable entry options

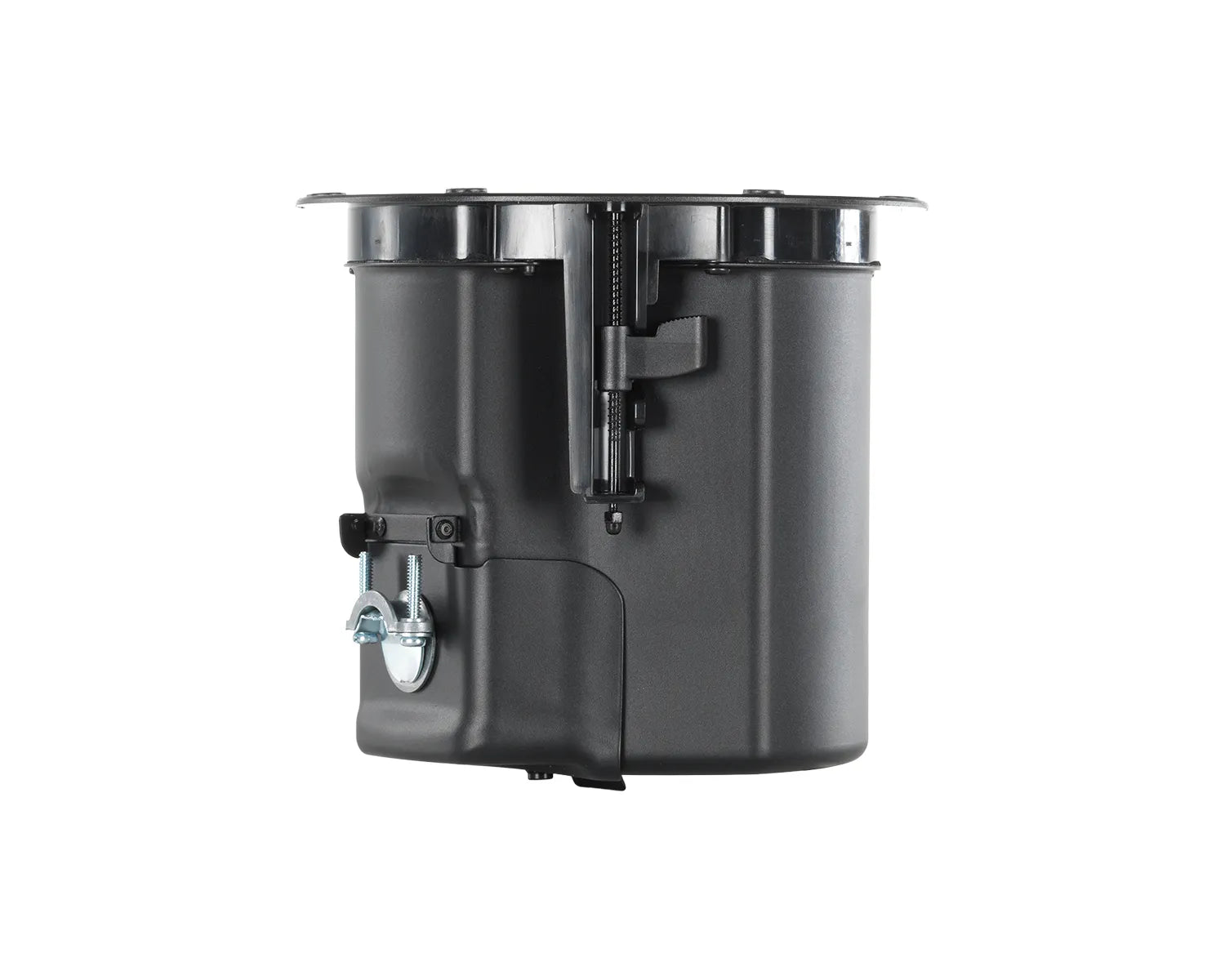

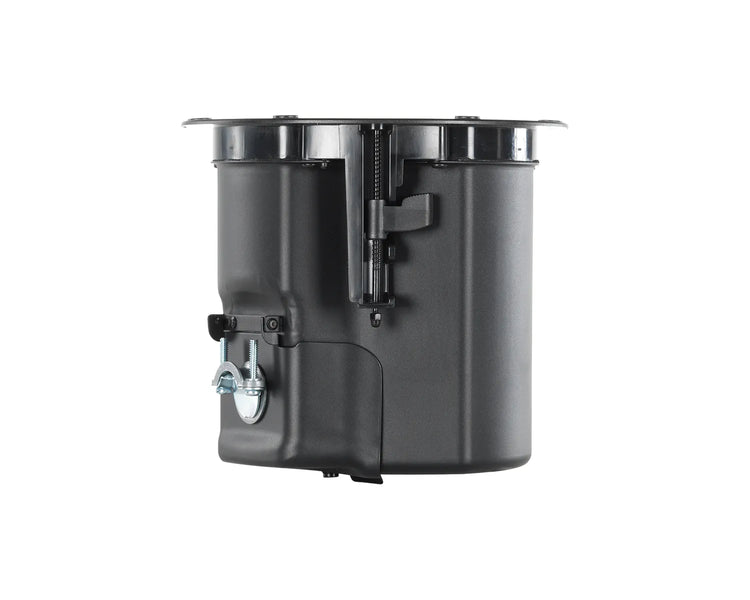

• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated
• EN54-24 Certified for Standard for Life Safety applications

Product Specifications

• Frequency Range (-10 dB):  65Hz - 20kHz
• Power Capacity:
  • 45W (180W Peak) Cont. Pink Noise (2 hrs)
  • 30W (120W Peak) Cont. Pink Noise (100 hrs)
• Sensitivity (1m/1W):  86dB
• Coverage Angle:  130° conical
• Maximum SPL (1m):  103 dB continuous pink noise (109 dB peak)
• Nominal Impedance:  8Ω
• Transformer Taps:
  • 70 V:  25 W, 12.5 W, 6.3 W & 3.2 W
  • 100 V:  25 W, 12.5 W, 6.3 W

• Drivers:
  • LF:  100 mm (4.0 in) with paper cone, SBR surround.
  • HF:  20 mm (0.75 in) soft dome
• Ceiling Cutout Size:  168 mm (6.6 in)
• Dimensions:
  •  206 mm (8.2 in) H x 203 mm (8.1 in) dia.
  • 197 mm (7.9 in) from bottom of ceiling tile to top of gland nut.
• Safety Agency Rating:  EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental:
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Optional Accessories:
  • JBL-MTC-414BG black (RAL9004) round grille
  • JBL-MTC-414SG white (RAL9003) square grille
  • JBL-MTC-414WG white (RAL9003) weather grille
  • JBL-MTC-424NC new construction bracket
  • JBL-MTC-424MR mud-ring construction bracket
  • JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Colour:  Stock grille is white (RAL9003), paintable.
• Net Weight (each):  2.50 kg (5.51 lbs)
