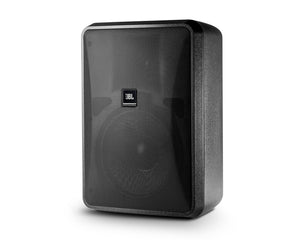

JBLC281LB - JBL Control 28 1L 8inch High Output 2 Way Loudspeaker 120W Black Image 1

The Control® 28-1L is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Product Features

8” woofer with woven fiberglass cone
1” PEI diaphragm tweeter with fluid cooling
Contemporary, high-design appearance
Built-in InvisiBall® mounting hardware, plus available U-bracket
Weather resistant enclosure and transducers
Wide 100° x 100° coverage
120 Watt power handling (240 Watt program)
High fidelity sound character with broad frequency response of 45 Hz – 20 kHz.

Product Specifications

General

Frequency Response (-10dB): 45 Hz to 20 kHz
Frequency Response (±3 dB): 62Hz - 16 kHz
Power Rating: 240 W Continuous Program (2 hrs)
Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
Maximum SPL (1m): 112 dB ave. Continuous Pink Noise (118 dB peak)
Sensitivity (1W, 1m): 91 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
Coverage Angle: 100° x 100° *Coverage angle (-6 dB) average between 600 Hz and 12 kHz.
Directivity Factor (Q): 7.3 (averaged 1kHz – 16kHz)
Impedance: 8 ohms
Crossover Type: 2nd order low-pass, 1st order high-pass, plus conjugate shaping
Recommended Protective High-Pass: 45 Hz high-pass (24 dB/oct)
Drivers:
- LF: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
- HF: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure: High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Outdoor Capability: IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.)
Safety Agency: ROHS-compliant

Physical

Colors: Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D): 386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight (each): 6.2 kg (13.5 lbs)
Shipping Weight: 13.4 kg (29.5 lbs) pair-packed (for 2 speakers)
