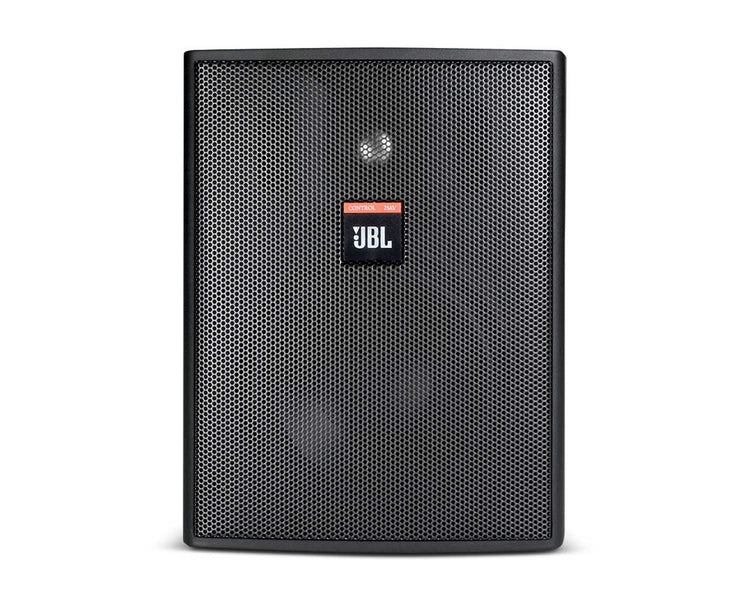

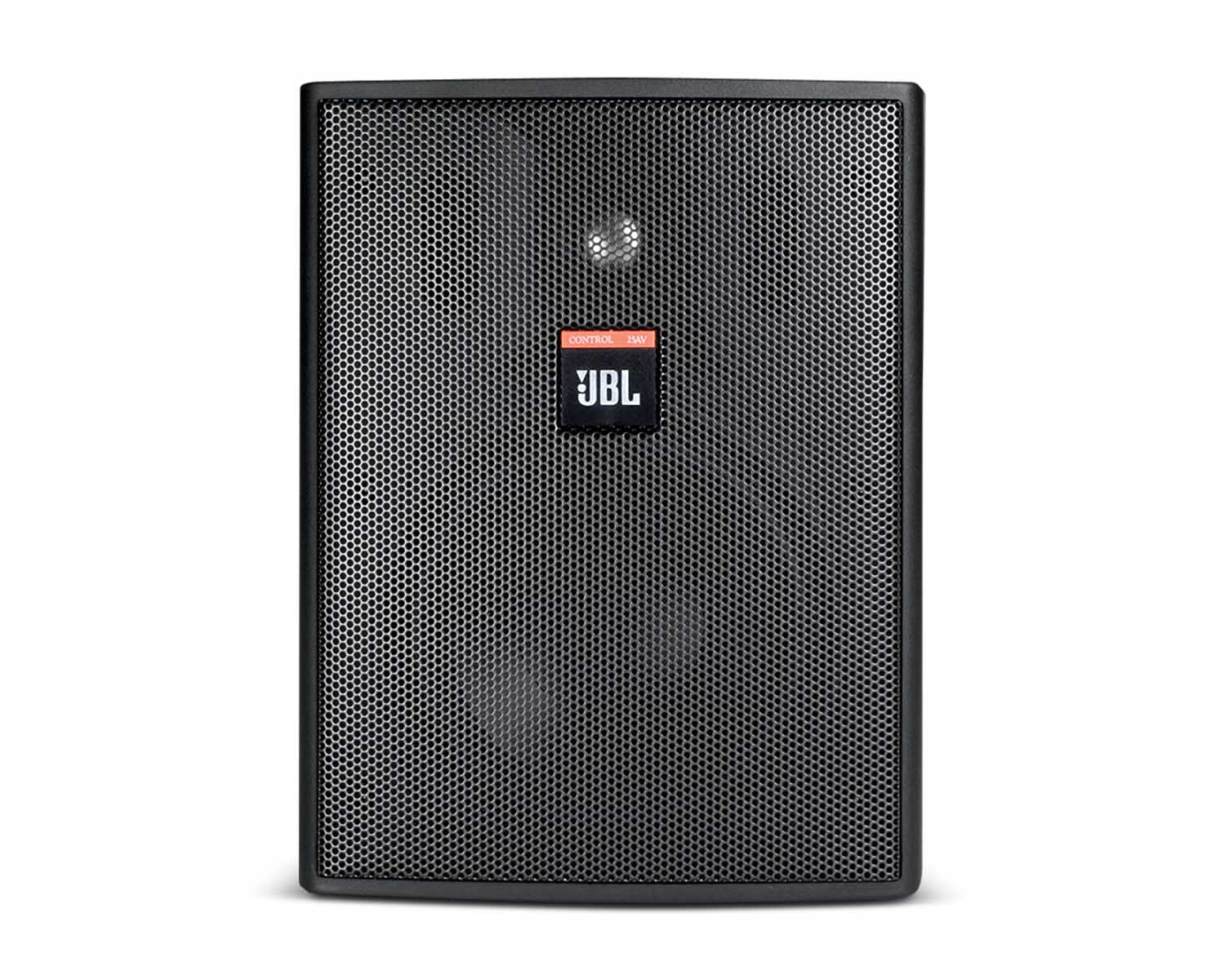

JBLC25AVB - JBL Control 25AV 5.25inch Compact 2 Way Loudspeaker 100W 100V Black Image 1

The Control® 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.

Product Features

Video shielded for use near video monitors.
Extremely smooth frequency response.
Stainless steel grill for harsh environments.
60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
SonicGuard™ overload protection.
130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
Includes InvisiBall® mounting hardware and sealed input panel cover.
Screw-down input terminals.
100° x 100° high frequency horn.

Product Specifications

General

Frequency Range: 70 Hz - 23 kHz (-10 dB)
Power Capacity: 200 W Continuous Program Power; 100 W Continuous Pink Noise
Transformer Taps:
- 70V: 60 W, 30 W, 15 W, 7.5 W
- 100V: 60 W, 30 W, 15 W
Nominal Sensitivity: 87 dB SPL, 1 W @ 1 m (3.3 ft)
Midrange (±1.5 dB, typical): 130 Hz - 14 kHz
Nominal Coverage: 100° x 100°
Maximum SPL @ 1m: 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
Directivity Factor (Q): 4.9 dB, averaged 500 Hz to 4 kHz
Directivity Index (DI): 6.9 dB, averaged 500 Hz to 4 kHz
Nominal Impedance: 8 ohms
Minimum Impedance: 6.7 ohms at 230 Hz
Crossover Network: Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
Low Frequency: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
High-Frequency: 20 mm (.75 in) titanium coated PEI
Enclosure Material: High Impact polystyrene
Grille: Painted stainless steel, black or white to match cabinet, paintable
Overload Protection: Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
Terminations: Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
Safety Agency Rating: Transformer is listed per UL1876
Rotation: Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44° all directions
