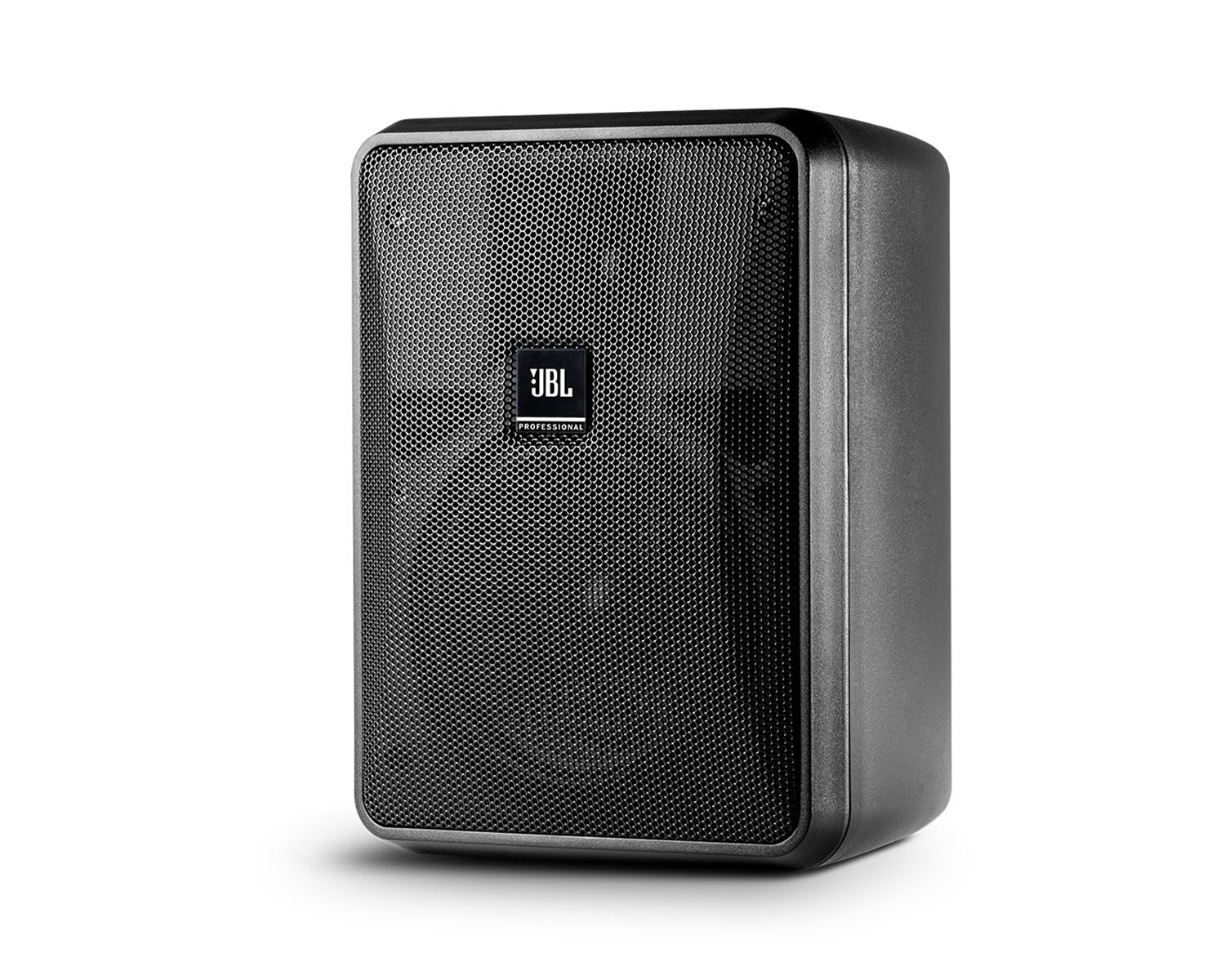

JBLC251LB - JBL Control 25 1L 5.25inch Compact 2 Way Loudspeaker 100W Black Image 1

The Control® 25-1L is a two-way 5-¼” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Product Features

5-¼” woofer with woven fiberglass cone
3/4” PEI diaphragm tweeter with fluid cooling
Contemporary, high-design appearance
Built-in InvisiBall® mounting hardware, plus available U-bracket
Weather resistant enclosure and transducers
Wide 100° x 100° coverage
100 Watt power handling (200 Watt program)
High fidelity sound character with broad frequency response of 60 Hz – 20 kHz.
Finish: Black

Product Specifications

General

Frequency Response (-10dB): 60 Hz to 20 kHz
Frequency Response (±3 dB): 85Hz - 17 kHz
Power Rating: 200 W Continuous Program (2 hrs)
Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL (1m): 110 dB ave. Continuous Pink Noise (116 dB peak
Sensitivity (1W, 1m): 90 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
Coverage Angle: 100° x 100° *Coverage angle (-6 dB) average between 1 kHz and 12 kHz.
Directivity Factor (Q): 6.04 (averaged 1kHz – 16kHz)
Directivity Index (DI): 7.6dB (averaged 1kHz – 16kHz)
Impedance: 8 ohms
Crossover Type: 2nd order low-pass, 3rd order high-pass
Recommended Protective High-Pass: 60 Hz high-pass (24 dB/oct)
Drivers:
- LF: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
- HF: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Outdoor Capability: IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.)
Safety Agency: ROHS-compliant

Physical

Colours: Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D): 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight (each): 3.0 kg (6.7 lbs)
Shipping Weight: 7.3 kg (16.0 lbs) for the pair-pack (for 2 speakers)
