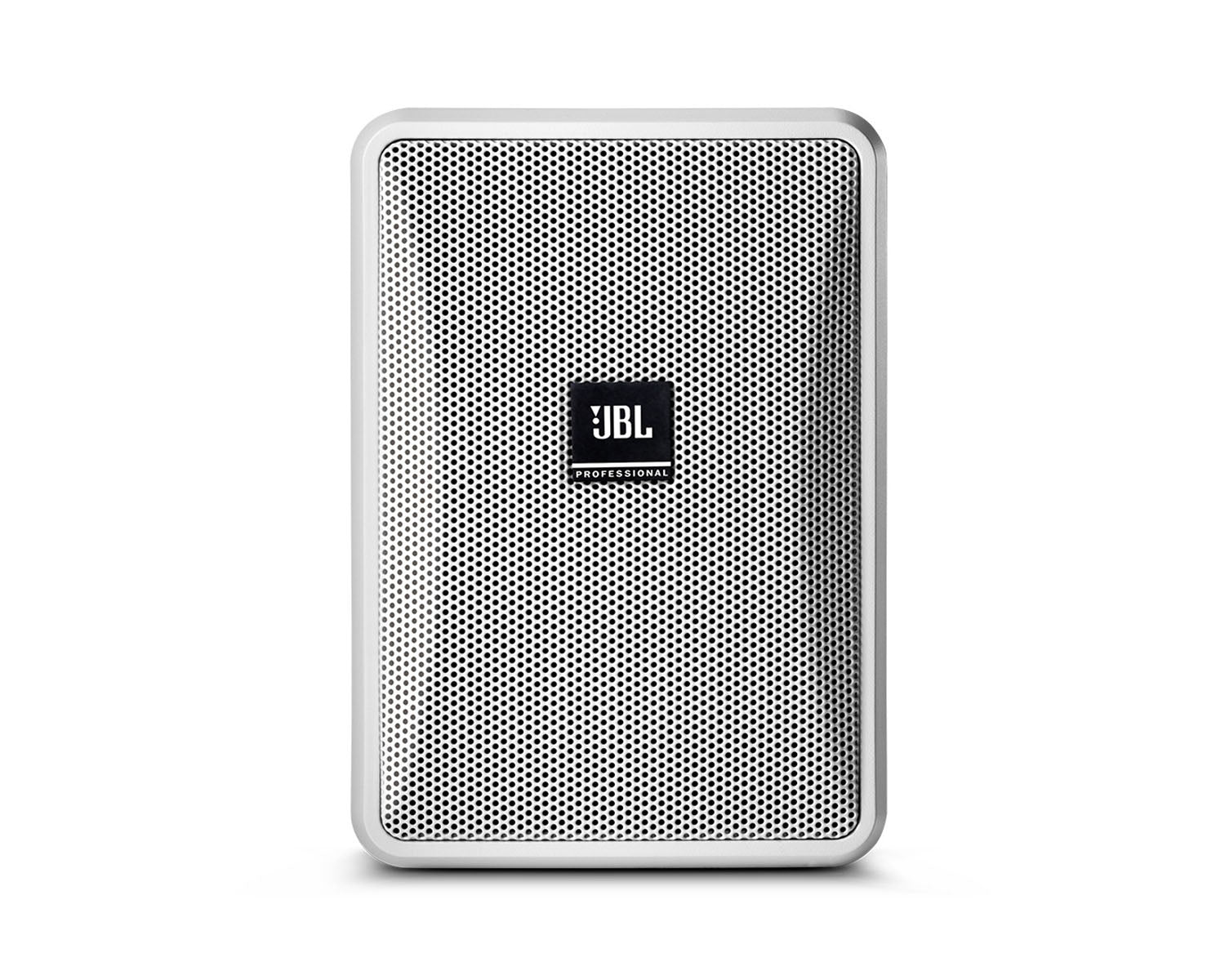

JBLC231WL - JBL Control 23 1L WH 3inch Compact 2 Way Loudspeaker 50W White Image 1

The Control® 23-1L is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 23-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.

Product Features

3” woofer with woven fiberglass cone
1/2” PEI diaphragm tweeter with fluid cooling
Contemporary, high-design appearance
Built-in InvisiBall® mounting hardware, plus available U-bracket
Weather resistant enclosure and transducers
Wide 100° x 100° coverage
50 Watt power handling (100 Watt program)
High fidelity sound character with broad frequency response of 70 Hz – 20 kHz
Finish: Black

Product Specifications

General

Frequency Response (-10dB): 70 Hz to 20 kHz
Frequency Response (±3 dB): 95 Hz - 19 kHz
Power Rating: 100W Continuous Program (2 hrs)
Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak
Maximum SPL (1m): 103 dB ave. Continuous Pink Noise (109 dB peak)
Sensitivity (1W, 1m): 86 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
Coverage Angle: 100° x 100° *Coverage angle (-6 dB) average between 1.5 kHz and 12 kHz.
Directivity Factor (Q): 5.8 (averaged 1kHz – 16kHz)
Directivity Index (DI): 7.2 dB (averaged 1kHz – 16kHz)
Impedance: 8 ohms
Crossover Type: 2nd order low-pass, 2nd order high-pass
Recommended Protective High-Pass: 70 Hz high-pass (24 dB/oct)
Drivers:
- LF: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
- HF: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Outdoor Capability: IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.)
Agency Rating: ROHS-compliant

Physical

Colours: Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D): 200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation
Net Weight (each): 1.6 kg (3.4 lbs)
Shipping Weight: 3.5 kg (7.6 lbs) for the pair-pack (for 2 speakers), 11.0 kg (24.3 lbs) for master-pack (for 6 speakers)
