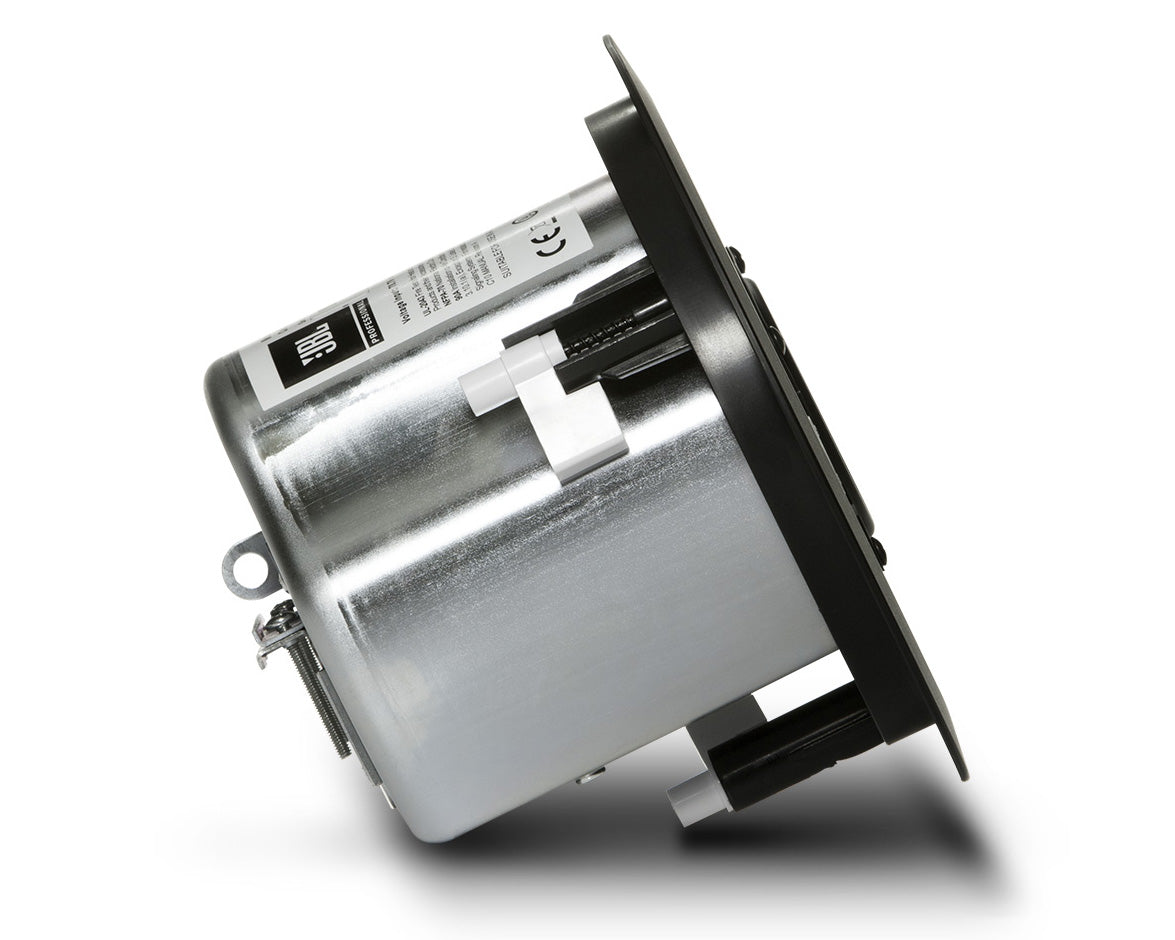

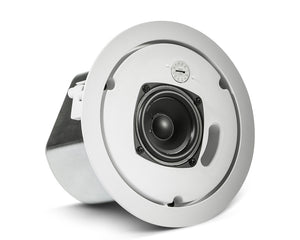

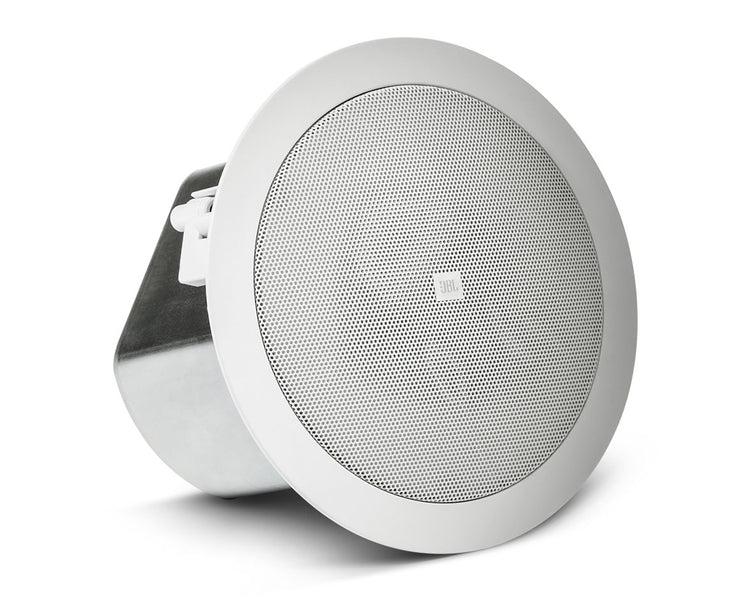

Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.

Product Features

• 76mm (3 in) full-range driver
• Blind-mount backcan for quick and easy install
• Combined 70V/100V and low impedance direct operation
  • 20 Watts at 8Ω nominal setting
  • 15W multi-tap at 70V/100V
• 68 Hz – 17 kHz bandwidth with wide 130° coverage

Product Specifications

General

• Frequency Range (-10 dB): 68 Hz – 17 kHz
• Power Capacity (at low-Z):
  • 40 Watts Continuous Program Power
  • 20 Watts Continuous Pink Noise
• Transformer Taps: 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
• Frequency Response (±3 dB): 95 Hz – 15 kHz
• Nominal Sensitivity: 84 dB
• Nominal Coverage Angle: 130° conical coverage
• Directivity Factor (Q): 9.8
• Directivity Index (DI): 7.4 dB
• Rated Maximum SPL: 97 dB @ 1 m (3.3 ft) average, 103 dB peak
• Nominal Impedance: 8 ohms (in direct/bypass 8Ω setting)
• Full-Range Driver: 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
• Input Connectors:
  • Removable locking 4-pin connector with screw-down terminals.
  • Max wire size 12 AWG (2.5 mm2)
• Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
• Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
• Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
• Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
• Safety Seismic Attachment: One point, top surface

Physical & Dimensions

• Diameter: 196mm
• Depth from back of baffle: 138mm
• Ceiling Cutout Size: Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
• Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm 2.2 in) ceiling thicknesses.
• Net Weight: 1.6kg
• Shipping Weight: 6.7kg

What's in the Box?

• 1 C-ring Support Backing Plate
• 2 Tile Support Rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans)
• 1 Cutout Template
• 1 Paint Shield
• 1 Removable Locking Multi-pin Connector
• 1 Grille
