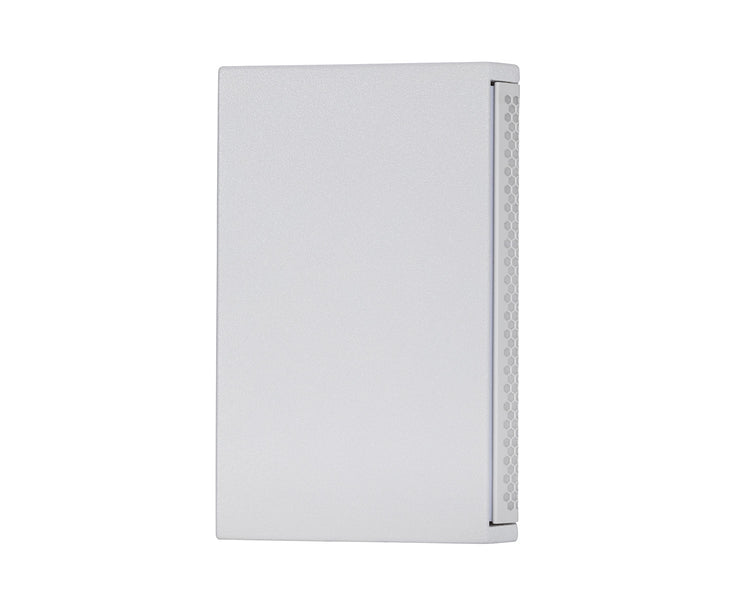

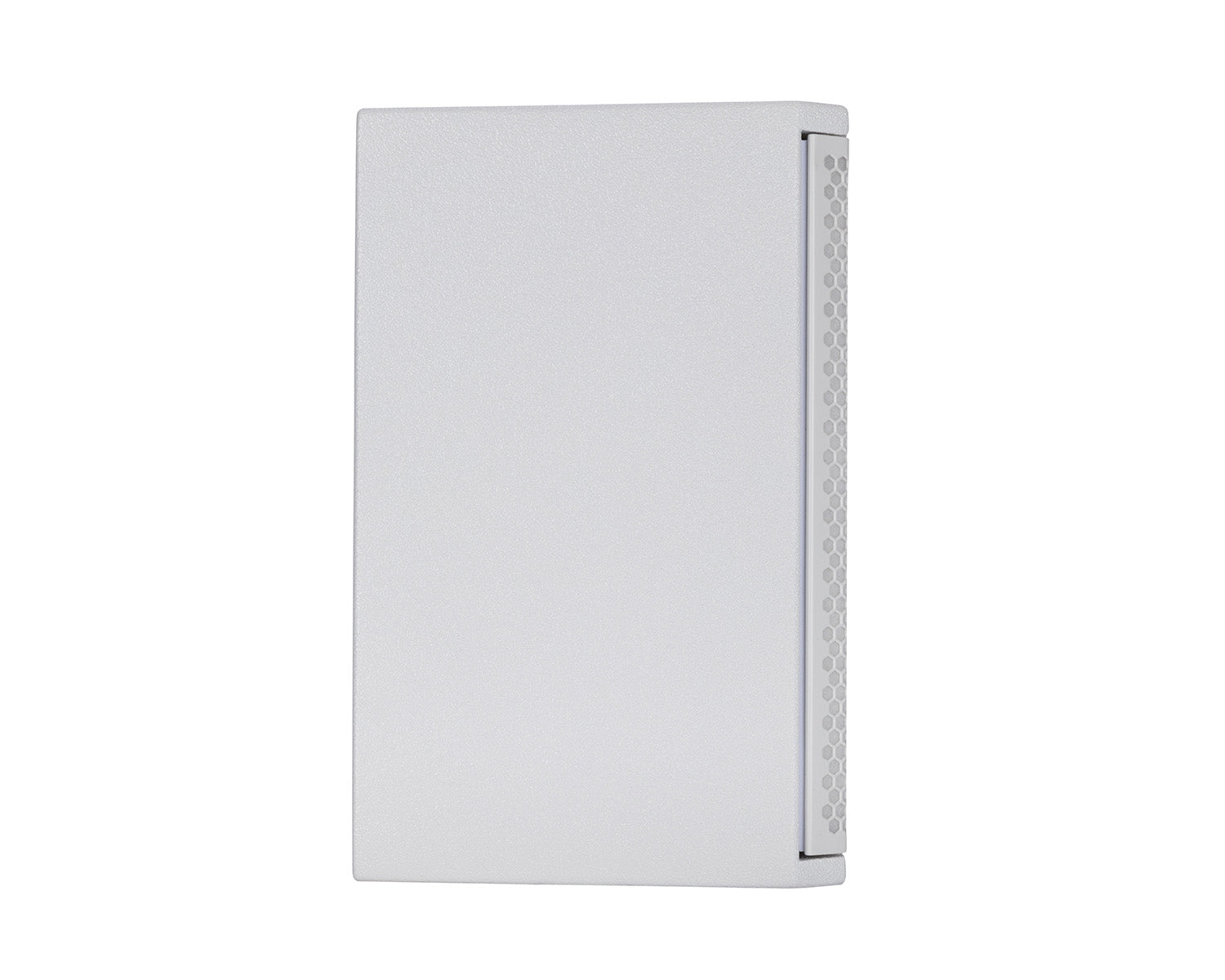

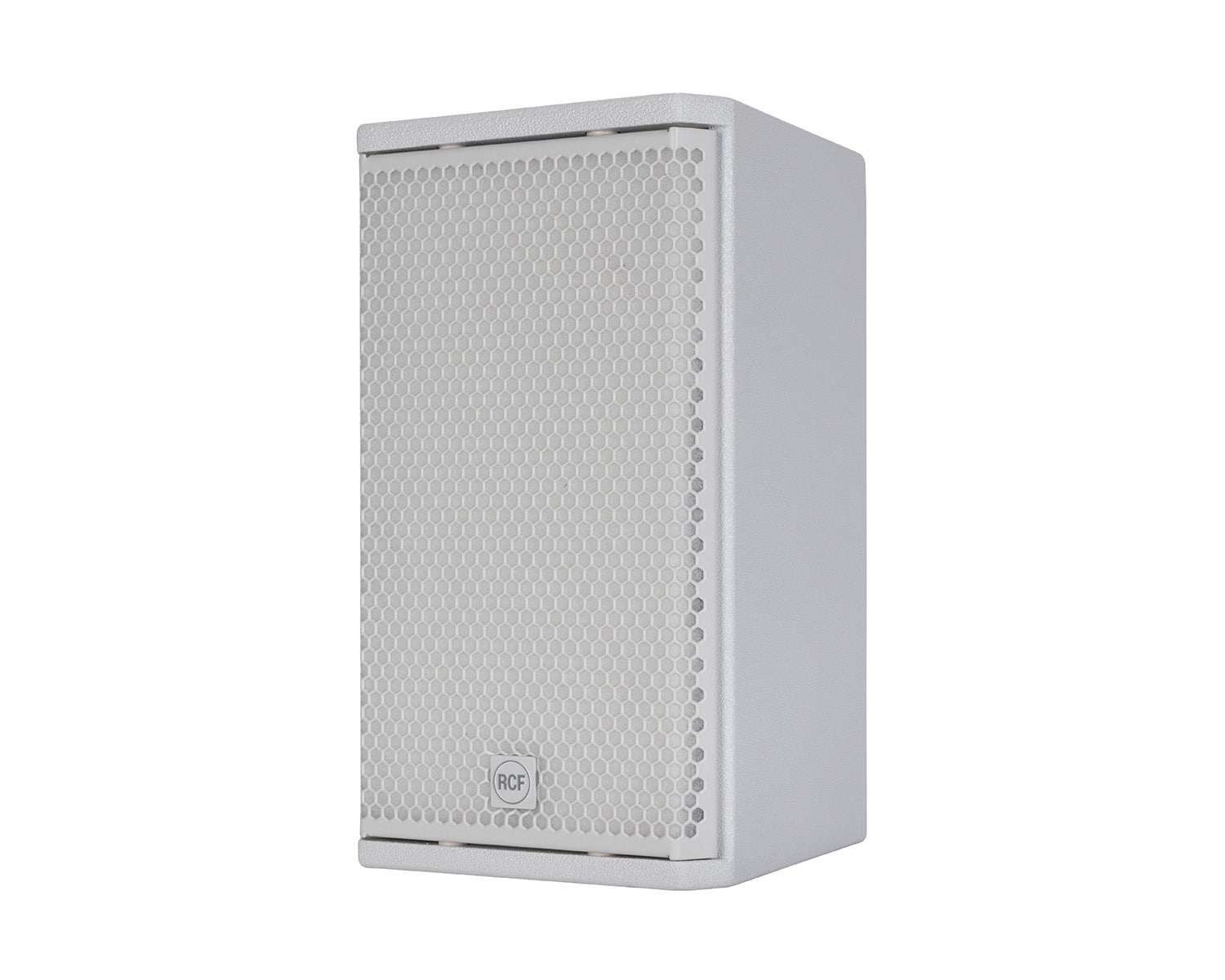

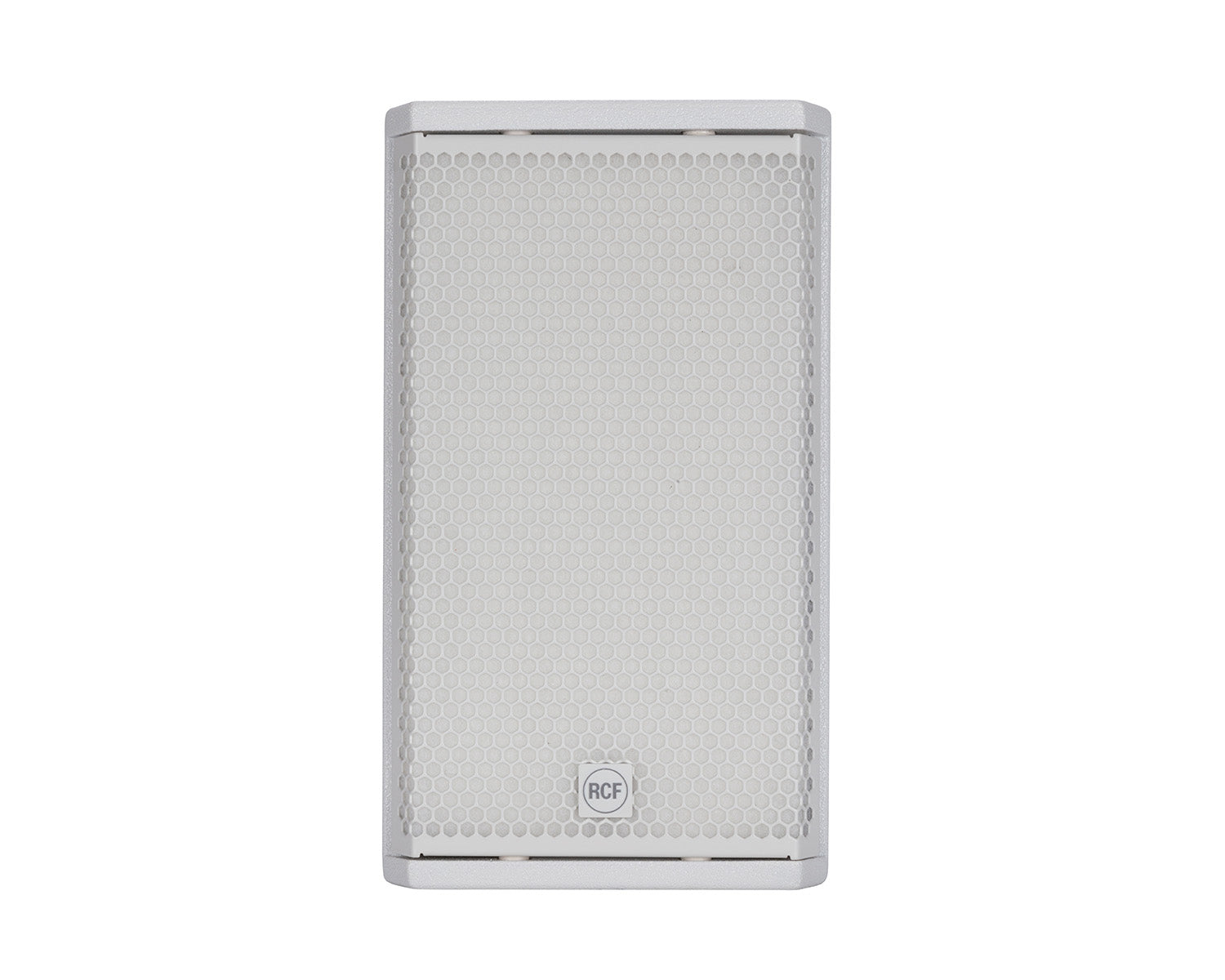

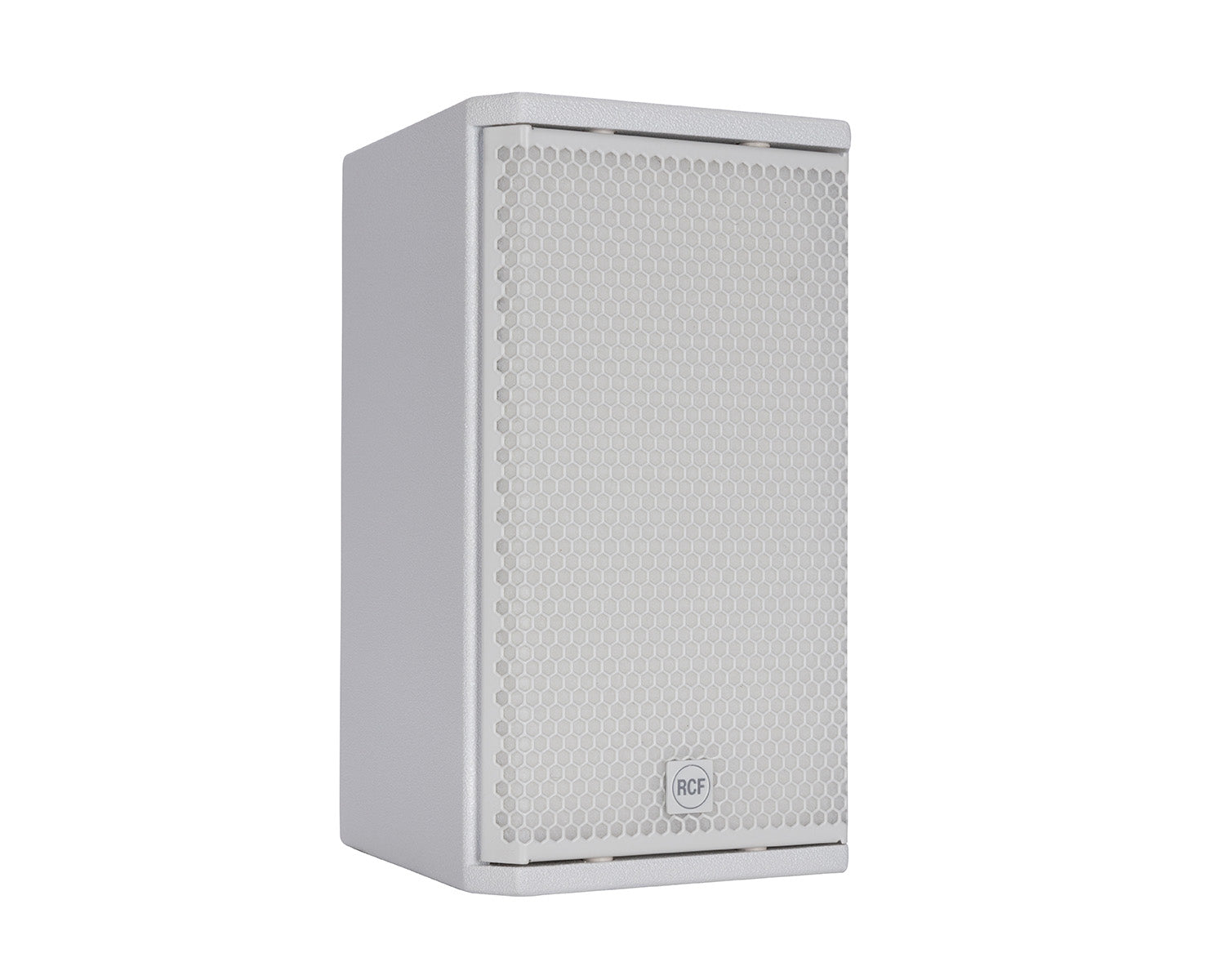

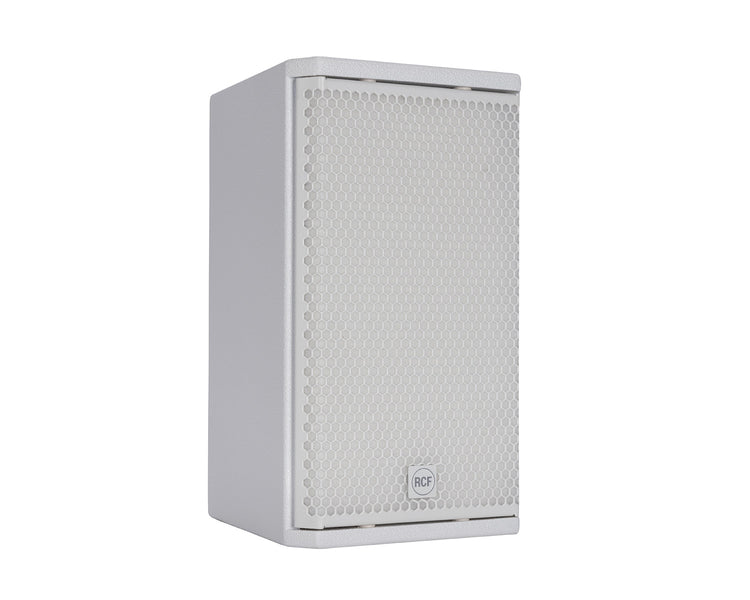

COMPACT M 06 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 06 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 06 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 06 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 06 on wall or ceiling installations.

Product Features

• 100 W RMS power handling
• 116 dB max SPL
• 60 ÷ 20000 Hz frequency range
• 120° x 80° constant directivity coverage angle
• 1 x 6" high power woofer
• 1 x 1" voice coil neodymium dome tweeter
• High quality plywood cabinet
• Steel front grille with clothing

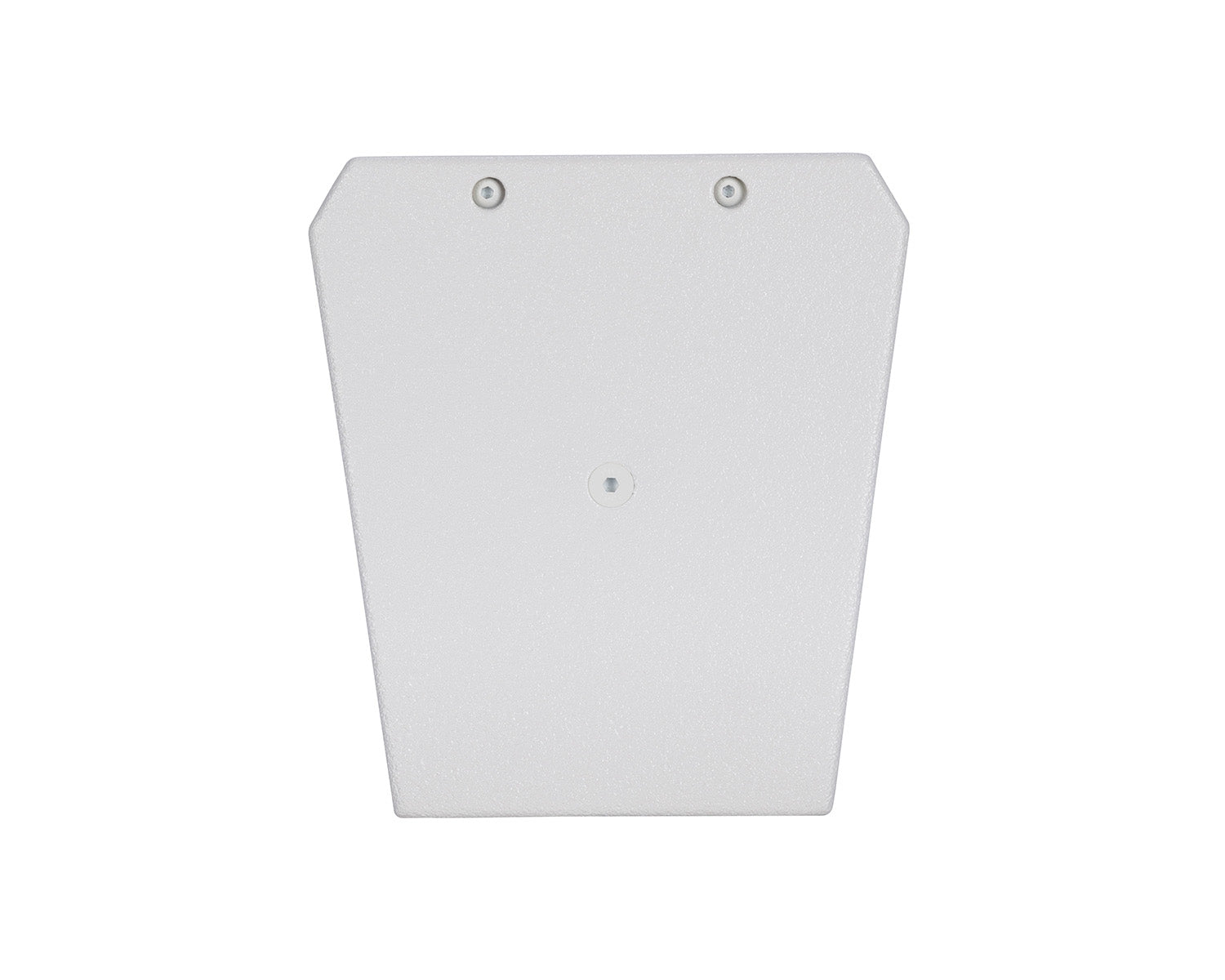

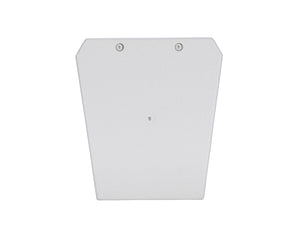

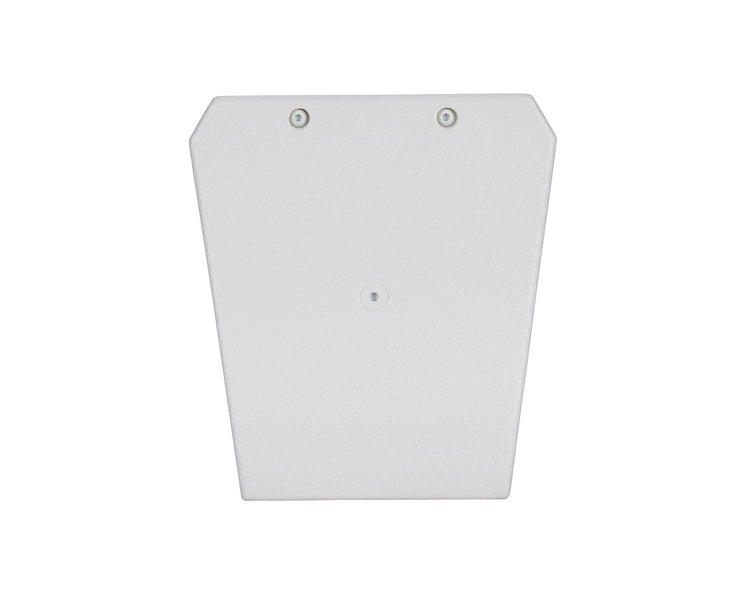

• Installation points available on rear, top and bottom panels

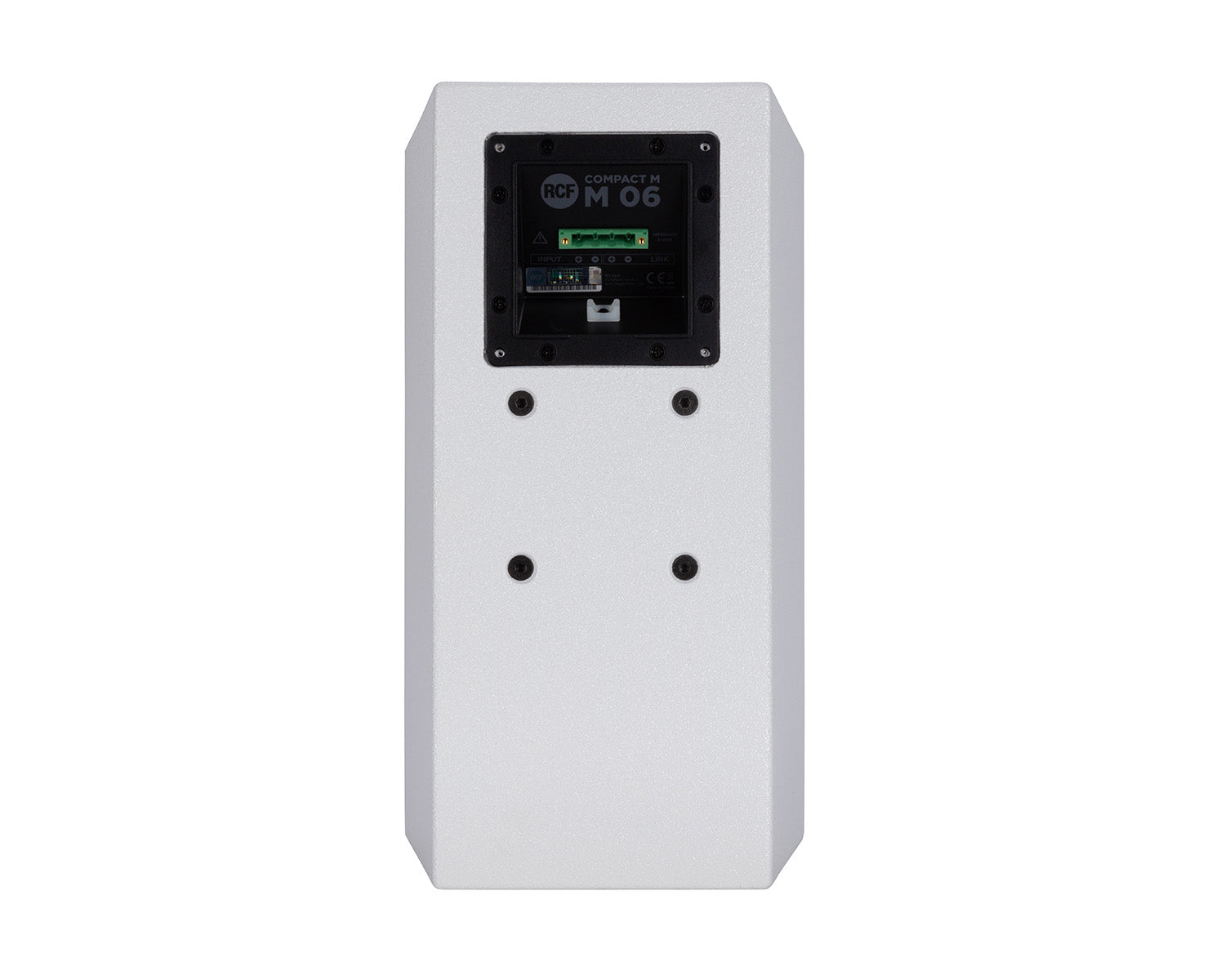

• 4 pole EUROBLOCK connector (audio input and parallel link output)

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 60 Hz ÷ 20000 Hz
• Max SPL @ 1m: 116 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 80°
• Directivity index Q: 7
• System Sensitivity: 90 dB

Power section

• Nominal Impedance (ohm): 8 ohm
• Power Handling: 100 W RMS
• Peak Power Handling: 400 W PEAK
• Recommended Amplifier: 200 W
• Protections: Dynamic active mosfet
• Crossover Frequencies: 2200 Hz

Transducers

• Dome Tweeter: 1.3\'\' neo, 1.0\'\' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 15 W AES, 30 W PROGRAM POWER
• Sensitivity: 92 dB, 1W @ 1m
• Woofer: 6.0\'\', 1.5\'\' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 100 W AES, 200 W PROGRAM POWER
• Sensitivity: 90 dB, 1W @ 1m

Input/Output section

• Input connectors: Euroblock
• Output connectors: Euroblock

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: Plywood
• Hardware: 4 x M6, 2 x M8
• Grille: Steel with clothing
• Colour: White - RAL 9003

Size

• Height: 365 mm / 14.37 inches
• Width: 211 mm / 8.31 inches
• Depth: 232 mm / 9.13 inches
• Weight: 5.5 kg / 12.13 lbs

Shipping information

• Package Height: 386 mm / 15.2 inches
• Package Width: 256 mm / 10.08 inches
• Package Depth: 235 mm / 9.25 inches
• Package Weight: 7 kg / 15.43 lbs
