Original ColorSource fixtures use an RGB-L array where the ‘B’ represents the use of blue LEDs. ColorSource Deep Blue replaces those blue LEDs with a deeper ‘Royal Blue’ (indigo) LED.

Original ColorSource fixtures can reach any colour within the dark shaded triangle while the ColorSource Deep Blue fixtures can reach any colour within the light shaded triangle. While much of these areas overlap, there is a portion of each range that can only be reached by the respective colour arrays.

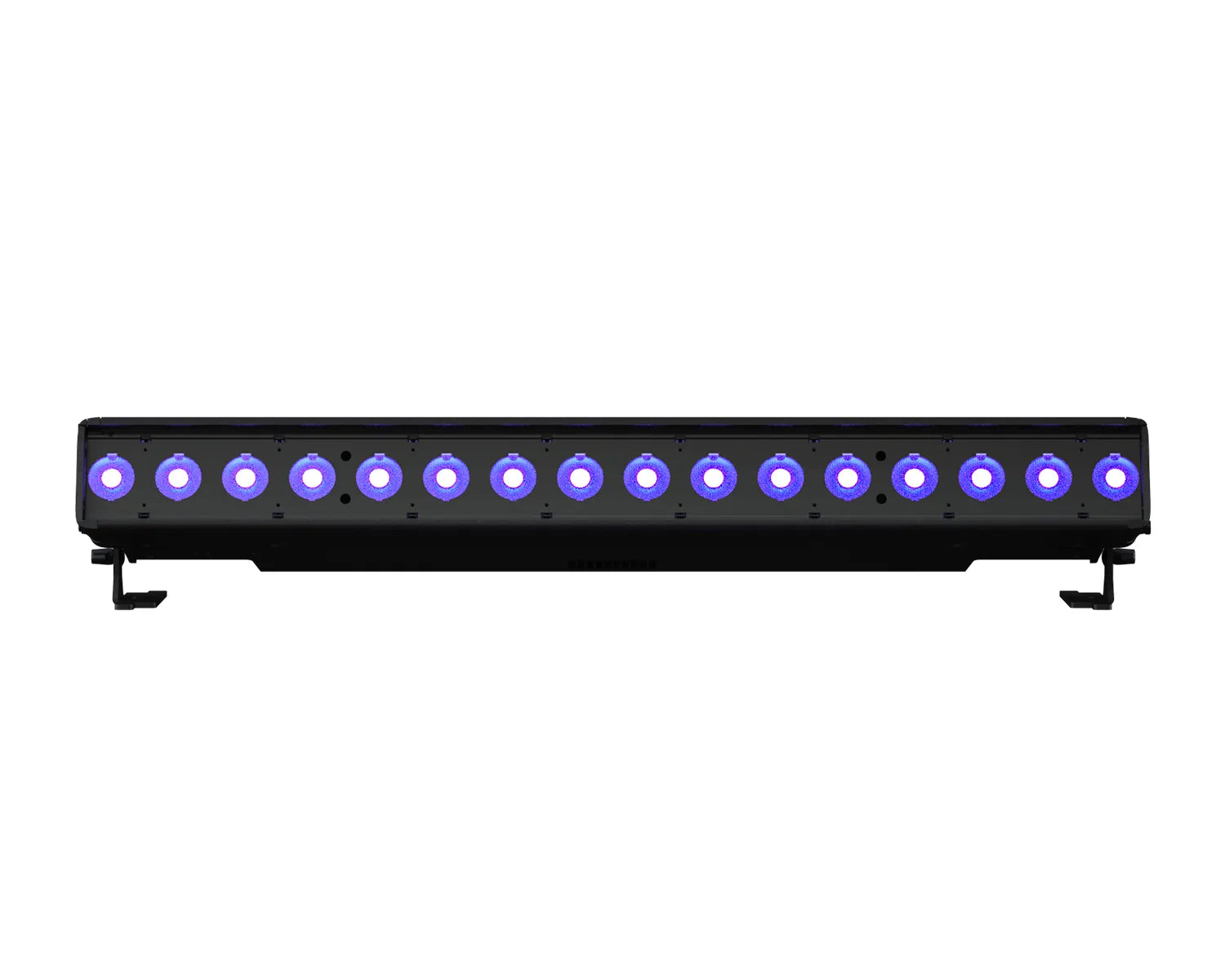

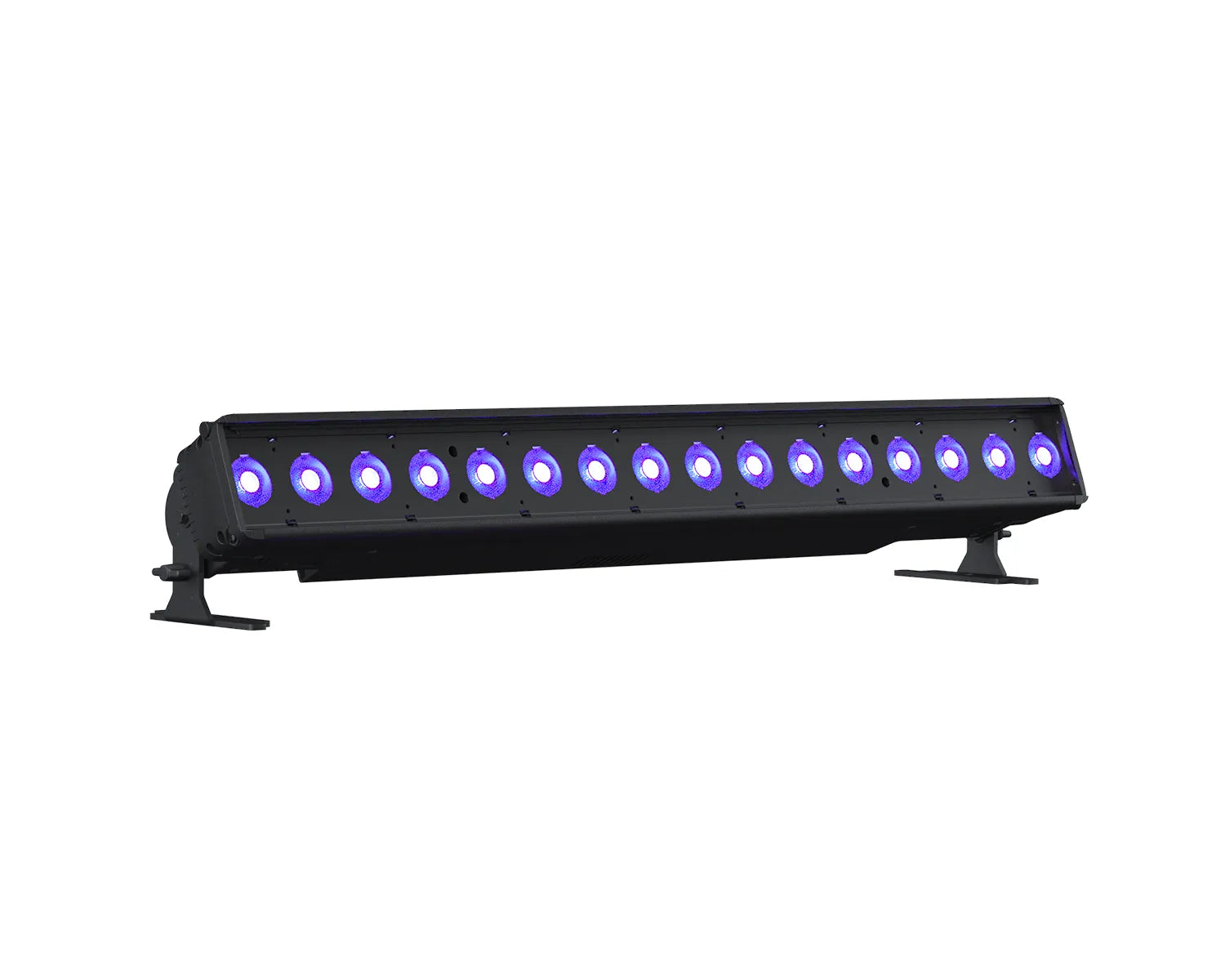

Available in 0.5 metre, 1 metre, and 2 metre lengths, ColorSource Linear enables multiple fixtures to be mounted end to end with even spacing of their homogenised optics.

ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-colour mixing system offering bright, vibrant colours and perfectly-mixed pastels.

The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colours you get during the show.

Product Features

• Available in three lengths:
  • Linear 1 (0.5 metres) - one cell of control
  • Linear 2 (1 metre) - two cells of control
  • Linear 4 (2 metres) - four cells of control
• ETC’s "Deep Blue" array (red, green, indigo and lime)
• Deep Blue replaces the blue LEDs with indigo for rich, saturated blues and magentas
• Homogenised optics
• Simple user interface with seven-segment display
• powerCON® in and thru power connections
• DMX in and thru (5-pin XLR)
• RDM or local configuration
• LED droop compensation for consistent output
• Optically calibrated
• Tour-ready, aluminium housing
• Fixtures are also available in White and Silver housing, contact our team for more information

Product Specifications

Source

• LED details:  40 Lumileds LUXEON® Z LEDs (per segment)
• Max lumens:
  • Linear 1: 3,039
  • Linear 1 DB: 2,978
• Lumens per watt
  • Linear 1: 28.1
  • Linear 1 DB: 27.6
• L70 rating (hours to 70% output):  55,000 hours

Colour

• Colours used: Red, green, blue, lime
• Colour temperature range:  Colour mixing fixture
• Calibrated array:  Yes
• Red shift:  No

Optical

• Beam angle range:  15.6° (Secondary lenses available for multiple beam-spread options)
• Gate size:  N/A
• Aperture size:  7.5 in / 190 mm
• Pattern projection:  No
• Pattern size:  N/A
• Camera flicker control/Hz range:  1,200 Hz (default) and 25,000 Hz (via RDM)

Control

• Input method:  DMX512 via 5-pin XLR connector
• Protocols:  DMX512, RDM
• Modes (footprint):  4 modes, see page 8
• RDM configuration:  Yes
• UI type:  Seven-segment, three-button interface
• Local control:  Yes
• Onboard presets:  Yes (12)
• Onboard sequences:  Yes (5)
• Onboard effects:  No
• Fixture-to-fixture control:  Yes
• Notes:  15-bit virtual dimming engine

Electrical

• Voltage range:  100–240 VAC 50/60 Hz
• Input method:  powerCON in and thru
• Inrush (First half-cycle):
  • 35 A / 35.6 A / 67.5 A at 120 V
  • 49 A / 85.6 A / 153 A at 240 V
• Fixtures per circuit* 9 cells (15 A power thru connector) or 10 cells (R20 module or similar)
• Wattage (120 V / 240 V):
  • Linear 1:  115 W / 112 W
  • Linear 2:  218 W / 213 W
  • Linear 4:  438 W / 426 W
  • Linear 1 DB:  110 W / 108 W
  • Linear 2 DB:  218 W / 214 W
  • Linear 4 DB:  440 W / 428 W
• Current draw (120 V / 240 V):
  • Linear 1:  0.95 A / 0.48 A
  • Linear 2:  1.82 A / 0.91 A
  • Linear 4:  3.68 A / 1.82 A
  • Linear 1 DB:  0.92 A / 0.46 A
  • Linear 2 DB:  1.82 A / 0.91 A
  • Linear 4 DB:  3.70 A / 1.83 A

Thermal

• Ambient operating temp:  0°C to 40°C (32°F to 104°F)
• Fan (controllable):  Yes (No)
• Droop compensation:  Yes
• dB range (average at 1 m):
  • Linear 1: 24.8 dBA
  • Linear 2: 28.4 dBA
  • Linear 4: 31.0 dBA
• BTUs/hour (120 V / 240 V):
  • Linear 1: 392.38 / 382.14
  • Linear 2: 743.82 / 726.76
  • Linear 4: 1,494.46 / 1,453.51
  • Linear 1 DB: 375.32 / 368.50
  • Linear 2 DB: 743.82 / 730.19
  • Linear 4 DB: 1,501.28 / 1,460.34

Warranty

• Fixture:  5 years
• LED array:  10 years

Regulatory and Compliance

• Approved regulatory standards
  • cETLus Listed
  • Conforms to UL 1573
  • Certified to CSA C22.2 No. 166
  • CE Compliant
  • EAC Compliant

Physical

• Materials:  Die-cast aluminum
• Colour options:  Black, white, silver, or custom colour
• Mounting options:  Yoke (1 cell - optional), trunnions
• IP rating IP20
• Dimensions (HxWxD):  109 mm x 1000 mm x 153 mm
• Weight:  9.12 kg


What's in the Box?

• Power cable
• Trunnions
