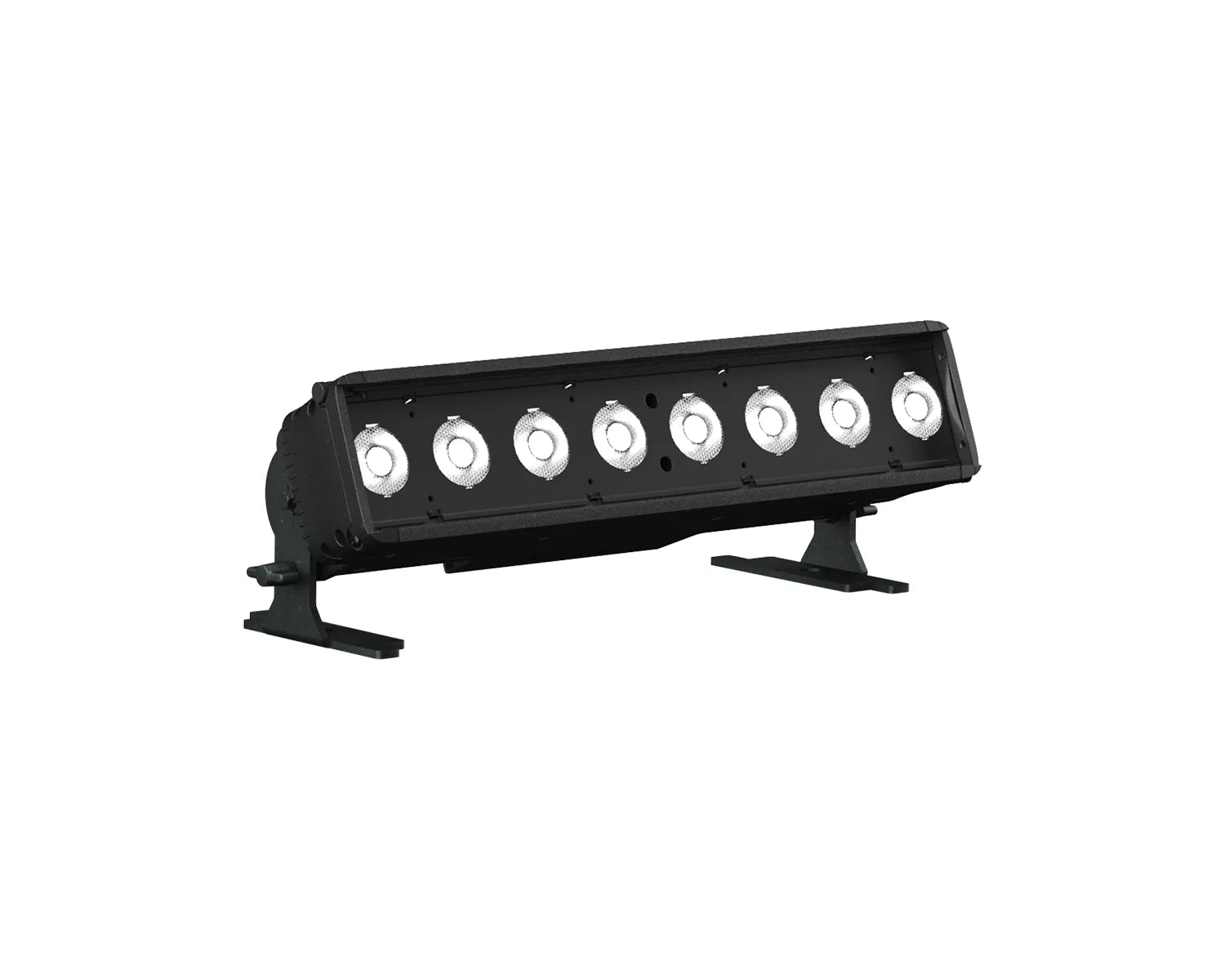

ColorSource Linear Pearl is a variable white-light LED wash fixture that utilises a mix of two different white LEDs—a mix that lets you set the colour temperature anywhere between 2700 K and 6500 K. The Pearl array provides the same high quality construction and great feature set as its full colour siblings, including an impressively bright output and simple user interface.

Designed for installations that depend heavily on white light such as studios, houses of worship, and architectural installations, this array features flicker-free operation and a smooth dimming curve.

Product Features

• Available in three lengths
  • Linear 1 (0.5 metres) - one cell of control
  • Linear 2 (1 metre) - two cells of control
  • Linear 4 (2 metres) - four cells of control
• 2700 K to 6500 K variable white light
• Homogenized optics
• Simple user interface with seven-segment display
• powerCON® in and thru power connections
• DMX in and thru (5-pin XLR)
• RDM or local configuration
• LED droop compensation for consistent output
• Optically calibrated
• Tour-ready, aluminium housing
• Fixtures are also available in White and Silver housing, contact our team for more information

Product Specifications

Source

• LED details:  40 / 80 / 160 Lumileds LUXEON® Z LEDs
• Max lumens:  5,649 (per segment)
• Lumens per watt:  50
• L70 rating (hours to 70% output):  >60, 000 hours

Colour

• Colours used:  Warm white, cool white
• Colour temperature range:  2700–6500 K
• Calibrated array:  Yes
• Red shift:  No

Optical

• Beam angle range:  15 degrees
• Gate size:  N/A
• Aperture size:  N/A
• Pattern projection:  No
• Pattern size:  N/A
• Camera flicker control/Hz range:  1,200 Hz (default) and 25,000 Hz (via RDM)

Control

• Input method:  DMX512 via 5-pin XLR connector
• Protocols:  DMX512, RDM
• Modes (footprint):  3 modes
• RDM configuration:  Yes
• UI type:  7-segment address display and buttons
• Local control:  Yes
• Onboard presets:  Yes (12)
• Onboard sequences:  Yes (5)
• Onboard effects:  No
• Fixture-to-fixture control:  Yes
• Notes:  Local level control via UI

Electrical

• Voltage range:  100–240 VAC 50/60 Hz
• Input method:  powerCON in and thru
• Inrush (First half-cycle):
  • 35 A / 35.6 A / 67.5 A (first half-cycle) at 120 V
  • 49 A / 85.6 A / 153 A (first half-cycle) at 240 V
• Fixtures per circuit:  10 Cells (20 A switched circuit, R20 module or similar)
• Wattage (120 V / 240 V):
  • (1) 113 W / 1.5 W at 120 V
  • (2) 219 W / 3 W at 120 V
  • (4) 444 W / 5.3 W at 120 V
  • (1) 112 W / 2.6 W at 240 V
  • (2) 214 W / 2.6 W at 240 V
  • (4) 431 W / 4.7 W at 240 V
• Current draw:
  • 0.95 A / 1.83 A / 3.74 A at 120 V
  • 0.50 A / 1.00 A / 1.90 A at 240 V

Thermal

• Ambient operating temp:  0°C to 40°C (32°F to 104°F)
• Fan (controllable):  Yes (No)
• Droop compensation:  Yes
• dB range (average at 1 m):
  • Linear 1: 24.2 dBA
  • Linear 2: 28.4 dBA
  • Linear 4: 31.0 dBA
• BTUs/hour (120 V / 240 V):
  • Linear 1:  385
  • Linear 2:  747
  • Linear 4:  1,514

Warranty

• Fixture:  5 years
• LED array:  10 years

Regulatory and Compliance

• Approved regulatory standards
  • cETLus Listed
  • Conforms to UL 1573 Listed
  • Conforms to UL 924 Listed
  • Certified to CSA C22.2 No. 166 Listed

  • Certified to CSA C22.2 No. 141 Listed

  • CE Compliant
  • EAC Compliant

Physical

• Materials:  Die-cast aluminum
• Colour options:  Black, white, silver, or custom colour
• Mounting options:  Yoke (1 cell - optional), trunnions
• IP rating IP20
• Dimensions (HxWxD):  109 mm x 499 mm x 153 mm
• Weight:  2.9 kg

What's in the Box?

• Power cable
• Trunnions
