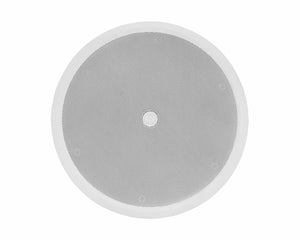

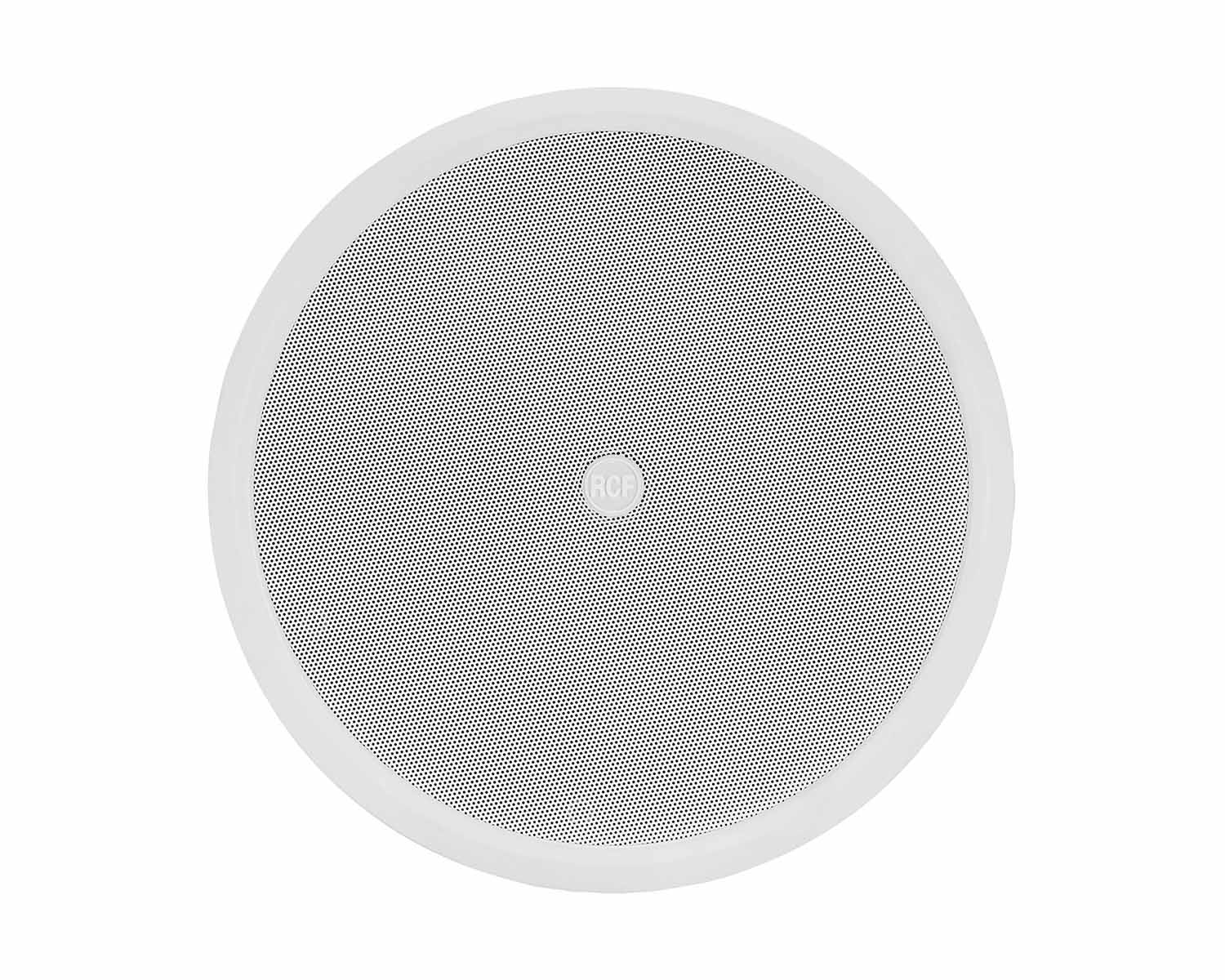

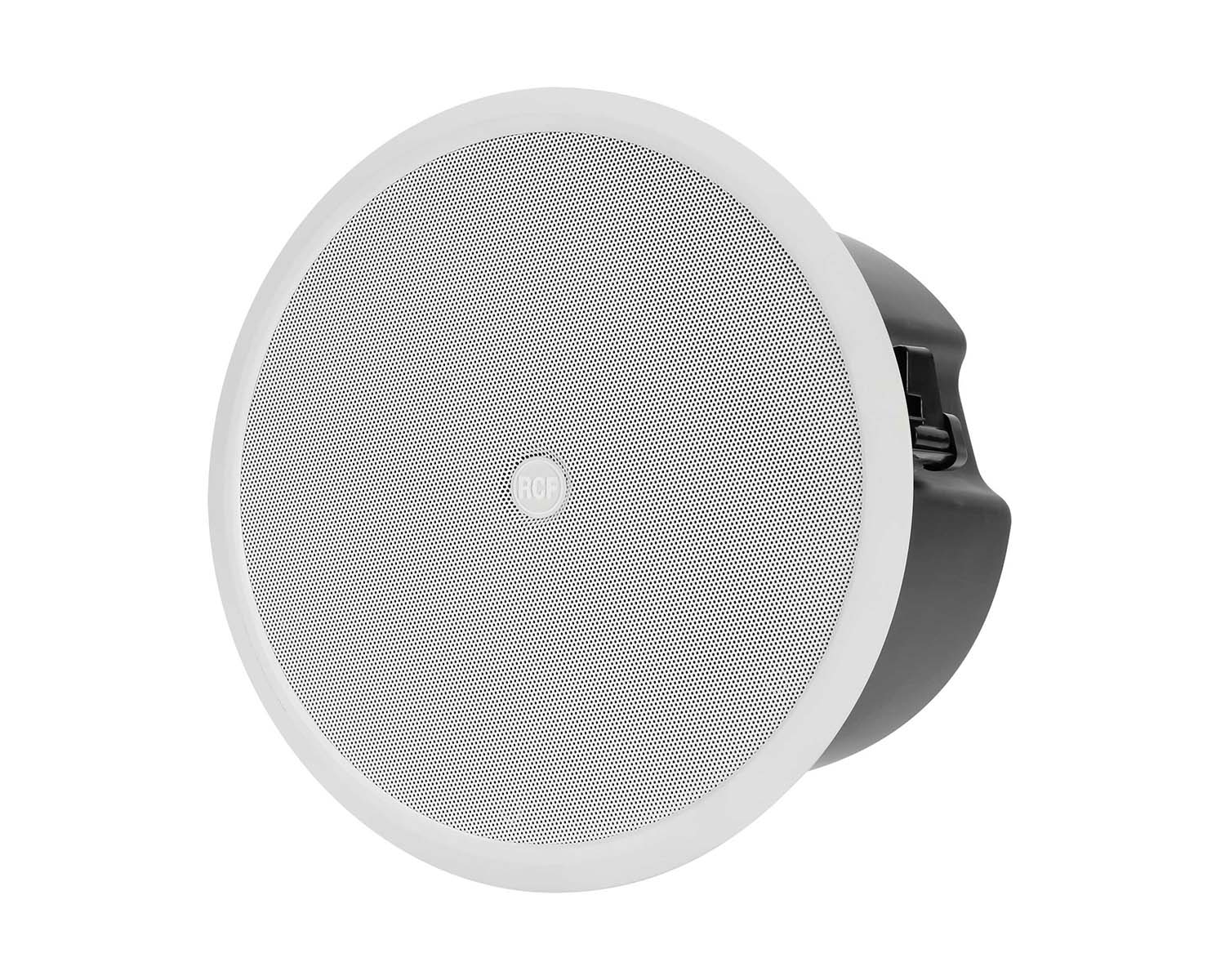

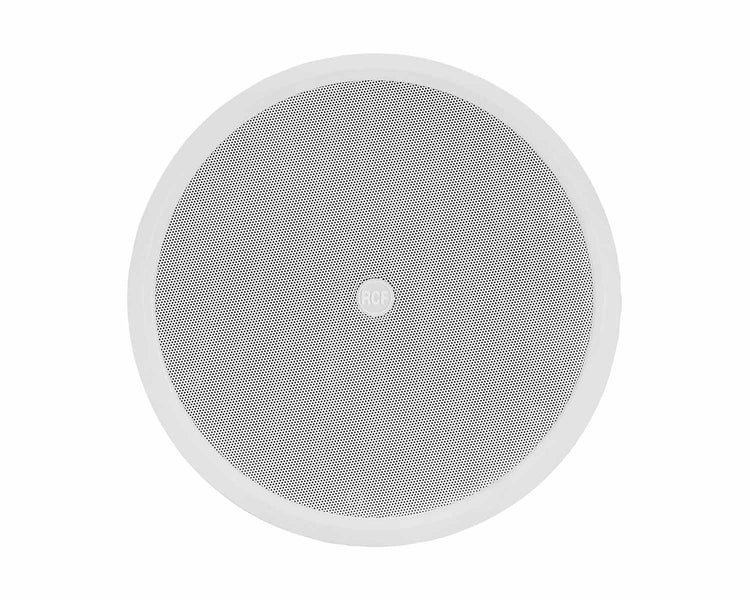

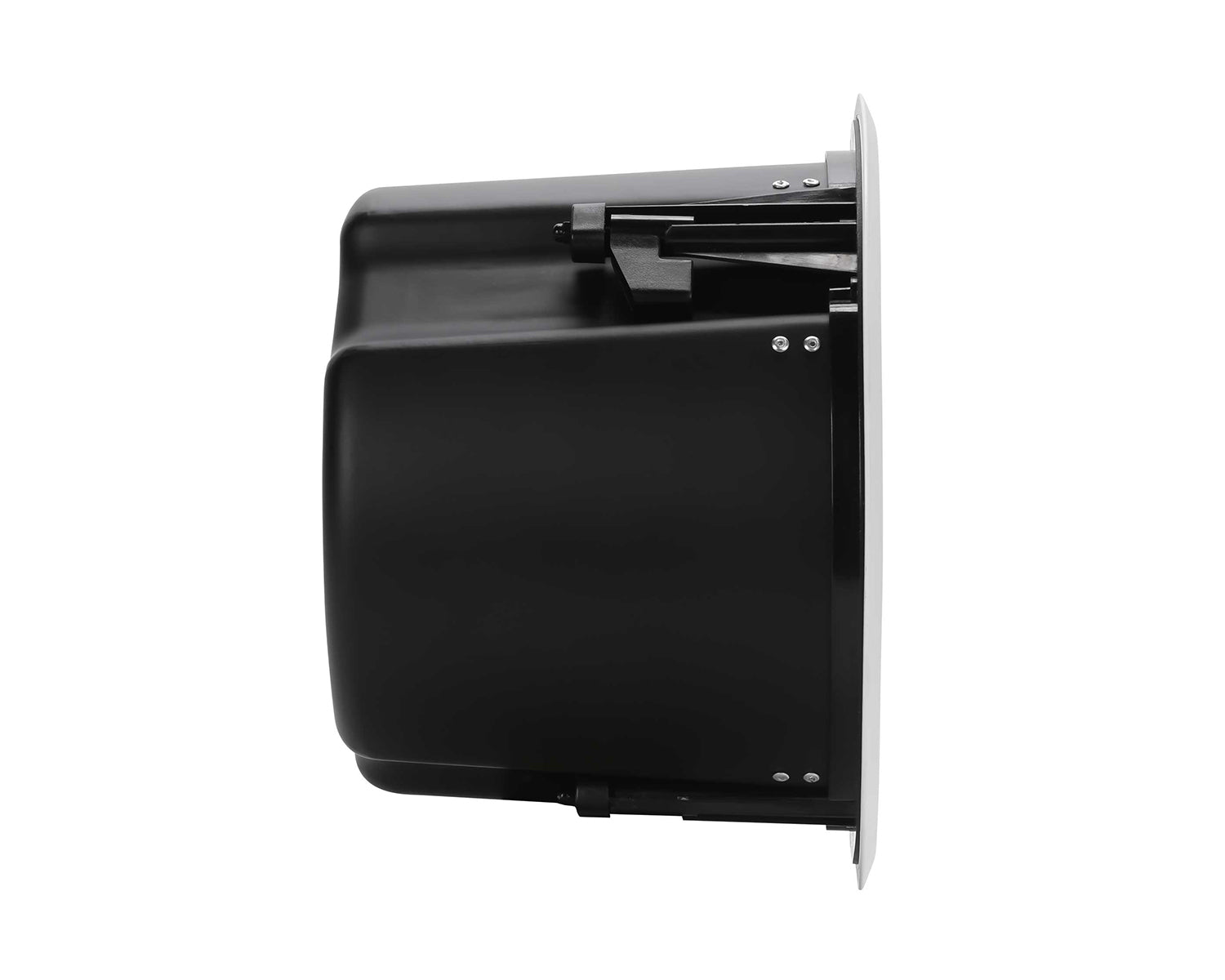

CMR 60T is a multipurpose two-way in-ceiling speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, CMR 60T pairs any building aesthetic. The high-quality transducers, aligned in a coaxial configuration, guarantees a precise music reproduction of the entire frequency band and provides impressive sound pressure levels for such a compact enclosure. Installation is easy with three long travel clamps. The magnetic grille allows immediate access to the power selector on the front shell: the line transformer provides 80W full power on 70V and 100V constant voltage lines, and five different power levels.

Product Features

• 80W RMS power handling
• 114 dB max SPL
• 70 ÷ 20000 Hz frequency range
• 130° constant directivity conical coverage angle
• 6.5" high power woofer
• 1" neodymium dome tweeter
• Self extinguishing plastic body and metal backcan
• Steel magnetic front grille

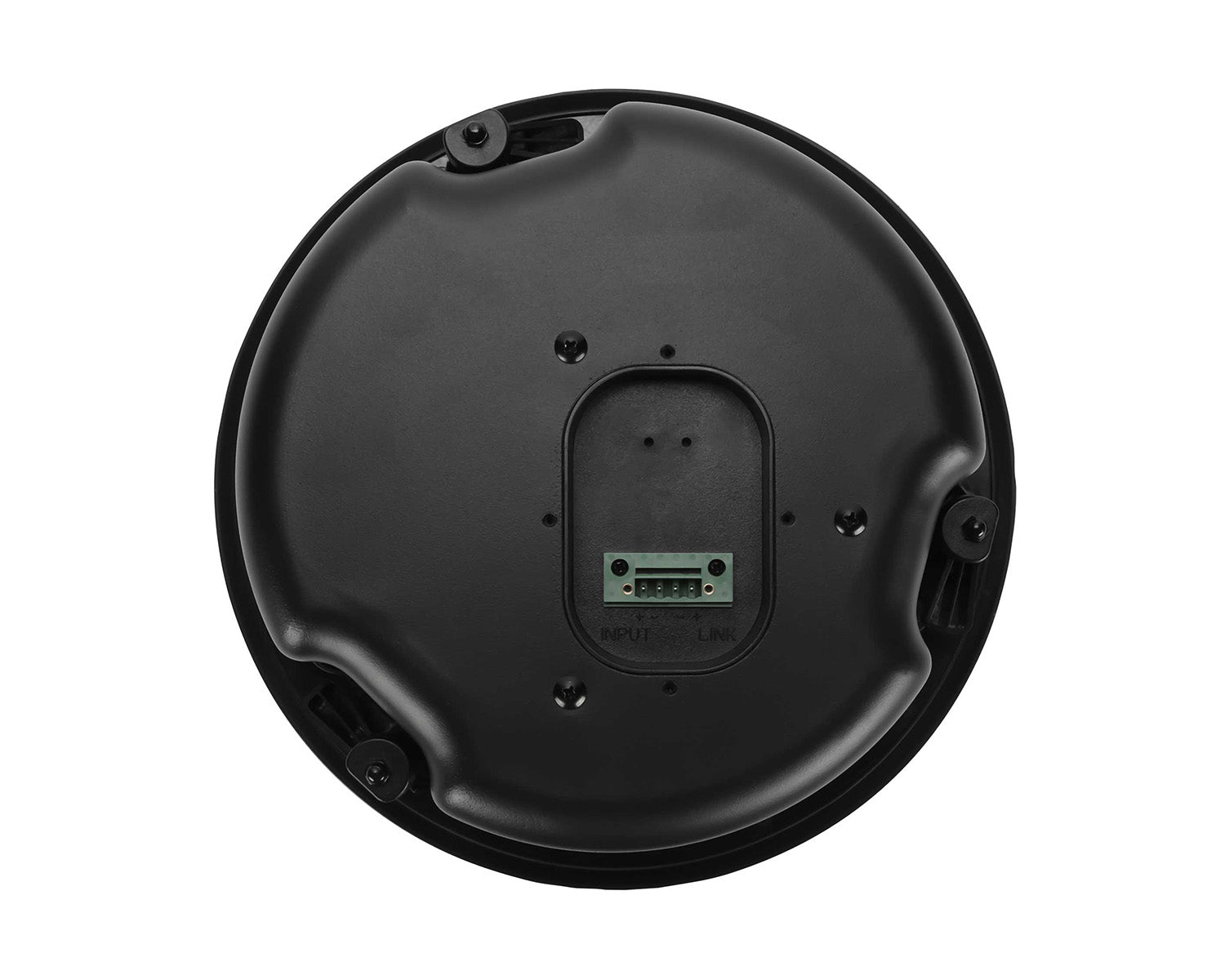

• 4 pole EUROBLOCK connector (audio input and parallel link output)
• 5 different power levels selectable

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
• Max SPL @ 1m: 114 dB
• Coverage angle: 130°
• System Sensitivity: 89 dB
• Power section Nominal Impedance: 8 ohm
• Power Handling: 80 W RMS
• Peak Power Handling: 320 W PEAK
• Recommended Amplifier: 160 W
• Crossover Frequencies: 2500

Transducers

• Dome Tweeter: 1.0\'\' neo, 1.0\'\' v.c
• Woofer: 6.5\'\', 1.2\'\' v.c

Input/Output section

• Input connectors: Euroblock
• Output connectors: Euroblock
• Constant Voltage Transformer: 70/100 V
• Power selection 1: 80 W - 125 ohm
• Power selection 2: 40 W - 250 ohm
• Power selection 3: 20 W - 500 ohm
• Power selection 4: 10 W - 1000 ohm
• Power selection 5: 5 W - 2000 ohm

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: ABS
• Hardware: Steel backcan
• Grille: Steel
• Colour: White - RAL 9003

Physical & Dimensions

• Depth: 202 mm / 7.95 inches
• Recessed Depth: 193 mm / 7.6 inches
• Diameter: 300 mm / 11.81 inches
• Cut out diameter: 260 mm / 10.24 inches
• Weight: 4.5 kg / 9.92 lbs
