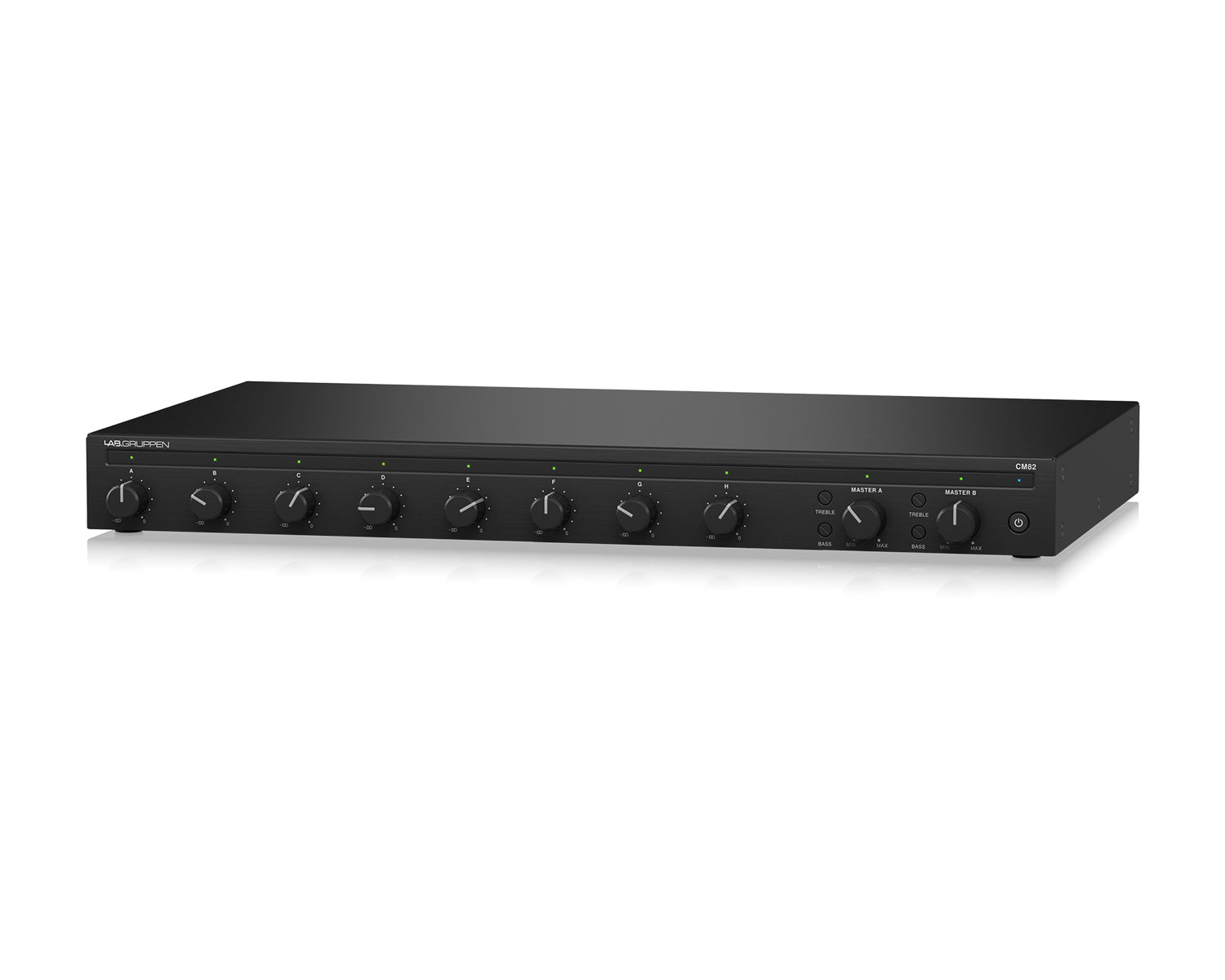

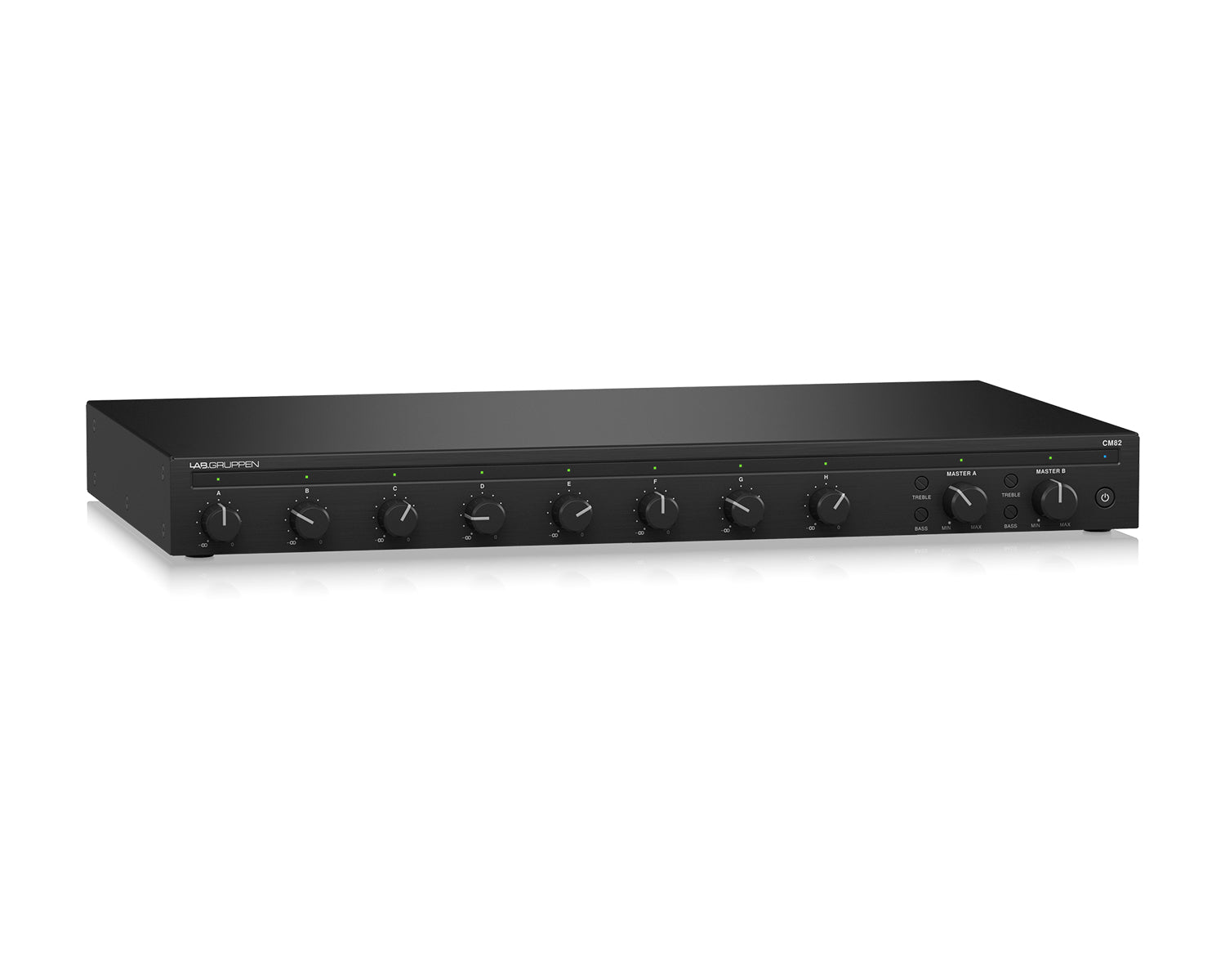

Commercial Mixer provides the perfect mixer solution for commercial and industrial applications requiring great sounding distributed audio. CM82 is easy to install and operate – even for non-technical personnel. Simply put, the CM82 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

Product Features

• 8 input / 2 output mixer for commercial and industrial applications
• 8 mic/line inputs with individual volume controls and output routing
• Individual front panel master volume and bass/treble controls for each output
• Configurable priority muting function for background music override
• GPI remote volume control using standard RJ-45 connector and Ethernet cable
• Front panel power control button for direct access
• Aux output for expansion to connect with amplifiers
• Rack-mountable 1U, 19" enclosure with brackets for rack mounting
• Euroblock type mic/line input and output connectors

Product Specifications

Mixer

• Mixing capability: 8 inputs - 1 output

Audio Inputs

• Mic/Line with priority/ducking input: 2 x 5-pin Euroblock connector (channel A, E)
• Mic/Line with summed RCA:
  • 6 x 3-pin Euroblock connector
  • 6 x stereo RCA (channel B, C, D)
• Impedance:
  • Balanced mic/line: 20 kΩ
  • Unbalanced line and RCA: 10 kΩ
• Maximum input level: 4.88 V (+16 dBu)
• Microphone phantom power: 48 V

Audio Outputs

• Output: 2 x 3-pin Euroblock connector
• Gain range: -(infinity sign - +10dB
• Output max level: 9.6 V (+22 dBu)

Controls

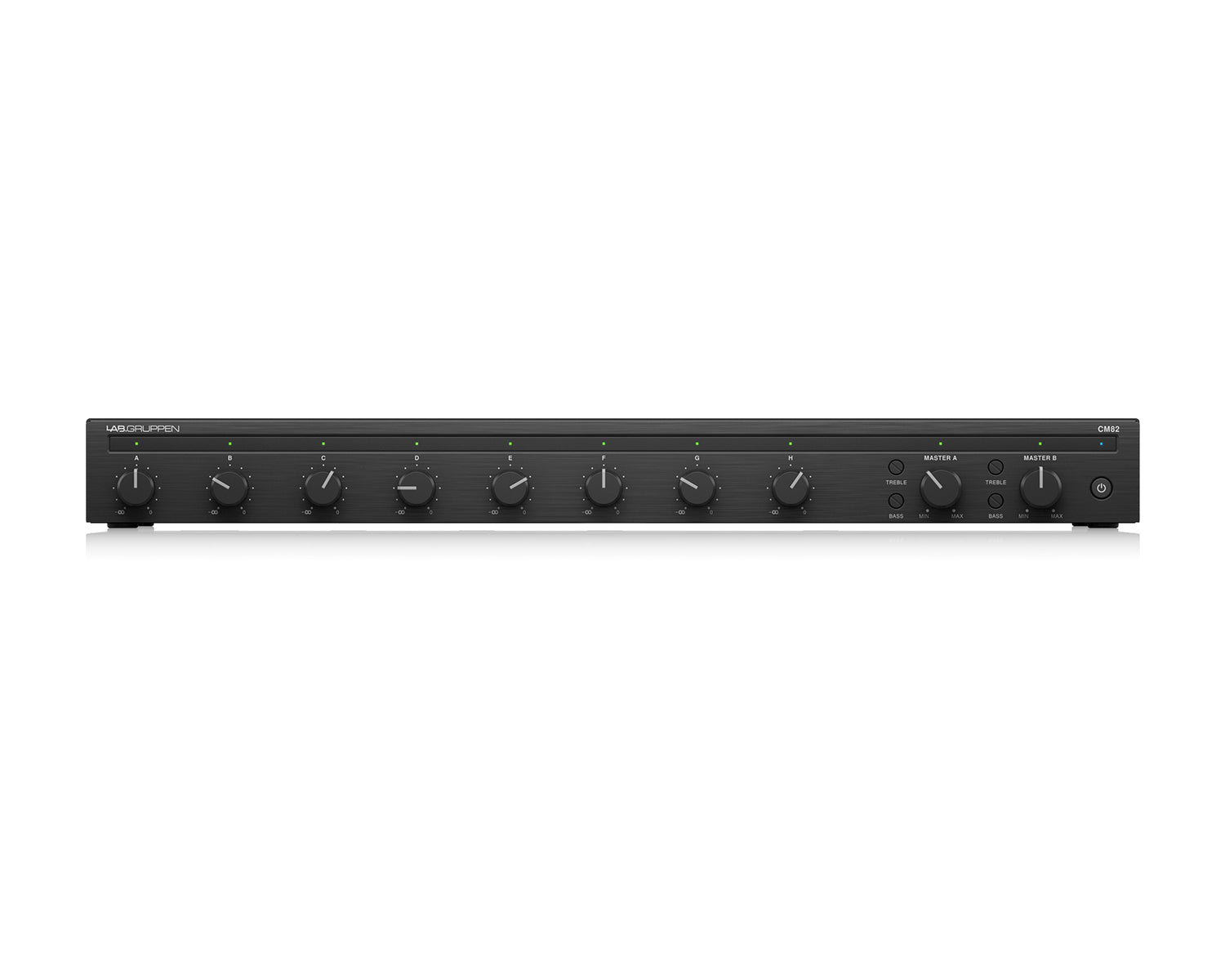

• Front: Power standby button, input and output gain control, tone controls - bass and treble

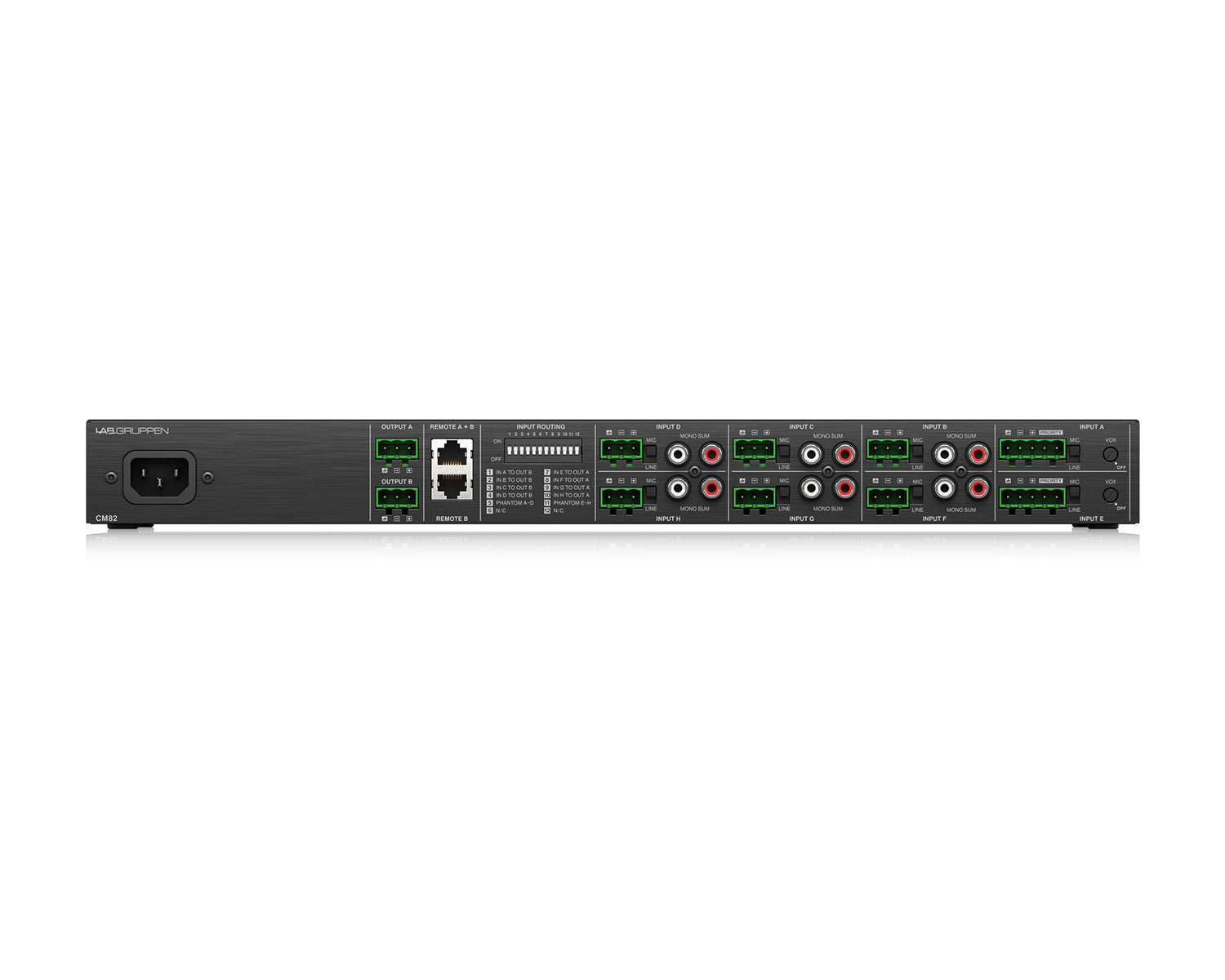

• Rear: Mic/line switch, vox/ducking threshold control, phantom power, input routing (2-channel models only)

Tone Controls

• Bass: ±10 dB @ 100 Hz
• Treble: ±10 dB @ 10 kHz

Indicators

• Power: On (blue), force standby (red), standby (yellow)
• Inputs:
  • Signal (green LED): >12.3 mV (-36 dBu)
  • Clip (red LED): 4.88 V (+16 dBu)
• Master:
  • Signal (green LED: >-50 dBu
  • Limit (red LED): 3 V (+12 dBu)

System

• Remote connector: 2 x RJ45 Ethernet connector

Performance

• Distortion: <0.05%
• Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
• Crosstalk (2 channel models): >70 dB
• Signal-to-noise: >97 dBA

Power Supply, Voltage (Fuse)

• Power Supply, Voltage (Fuse) Main voltage: Universal 100-240 V~, 50/60 Hz
• Fuse: T 3.15 A L 250 V
• Power consumption: 20 W
• Mains connector: Standard IEC connector

Physical and Dimensions

• Dimensions (H x W x D): 44 x 437 x 248 mm (1.7 x 17.2 x 9.8")
• Weight: 2.4 kg (5.3 lbs)
• Finish: Brushed black anodized aluminium chassis with black painted steel bottom
• Approvals: CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
