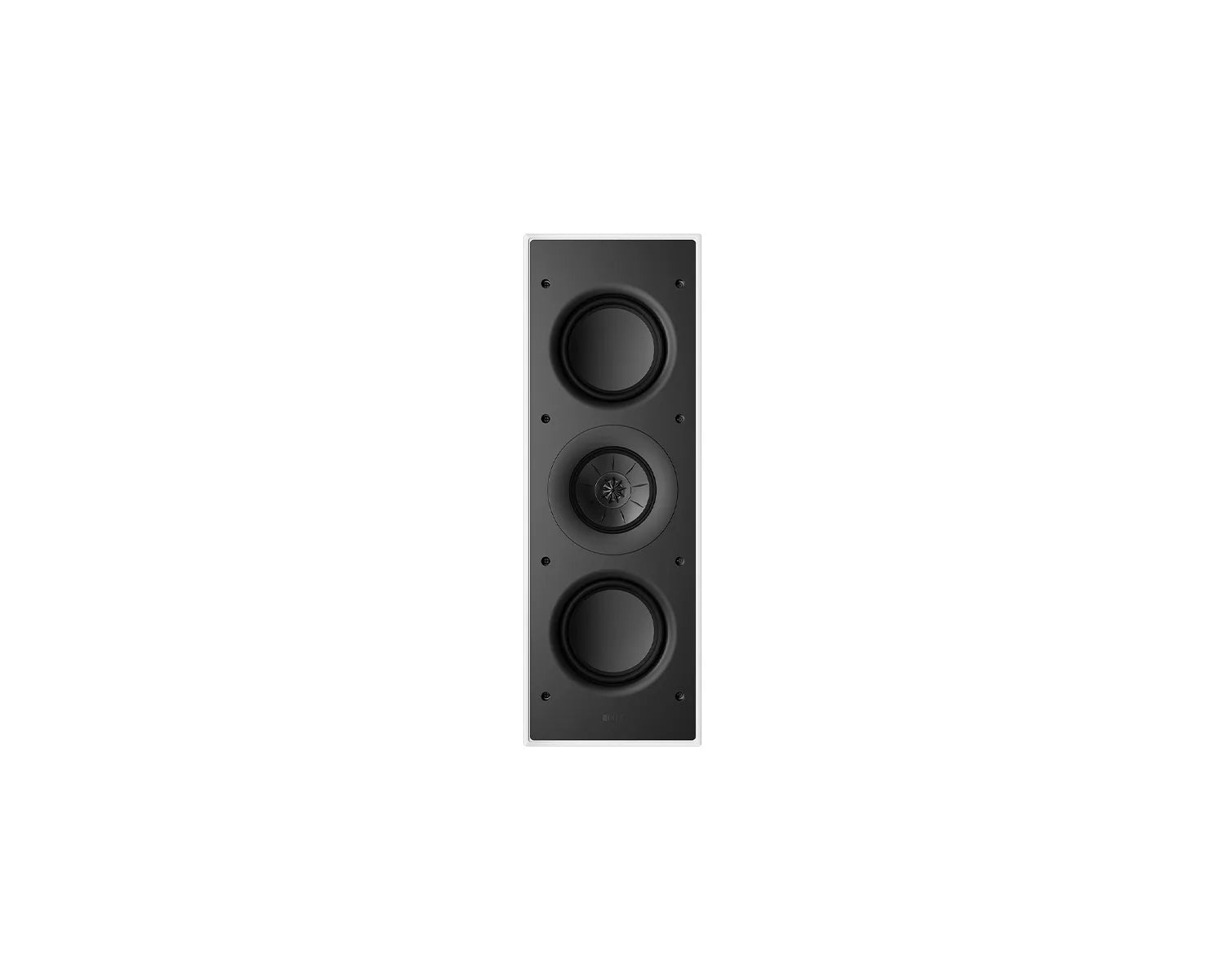

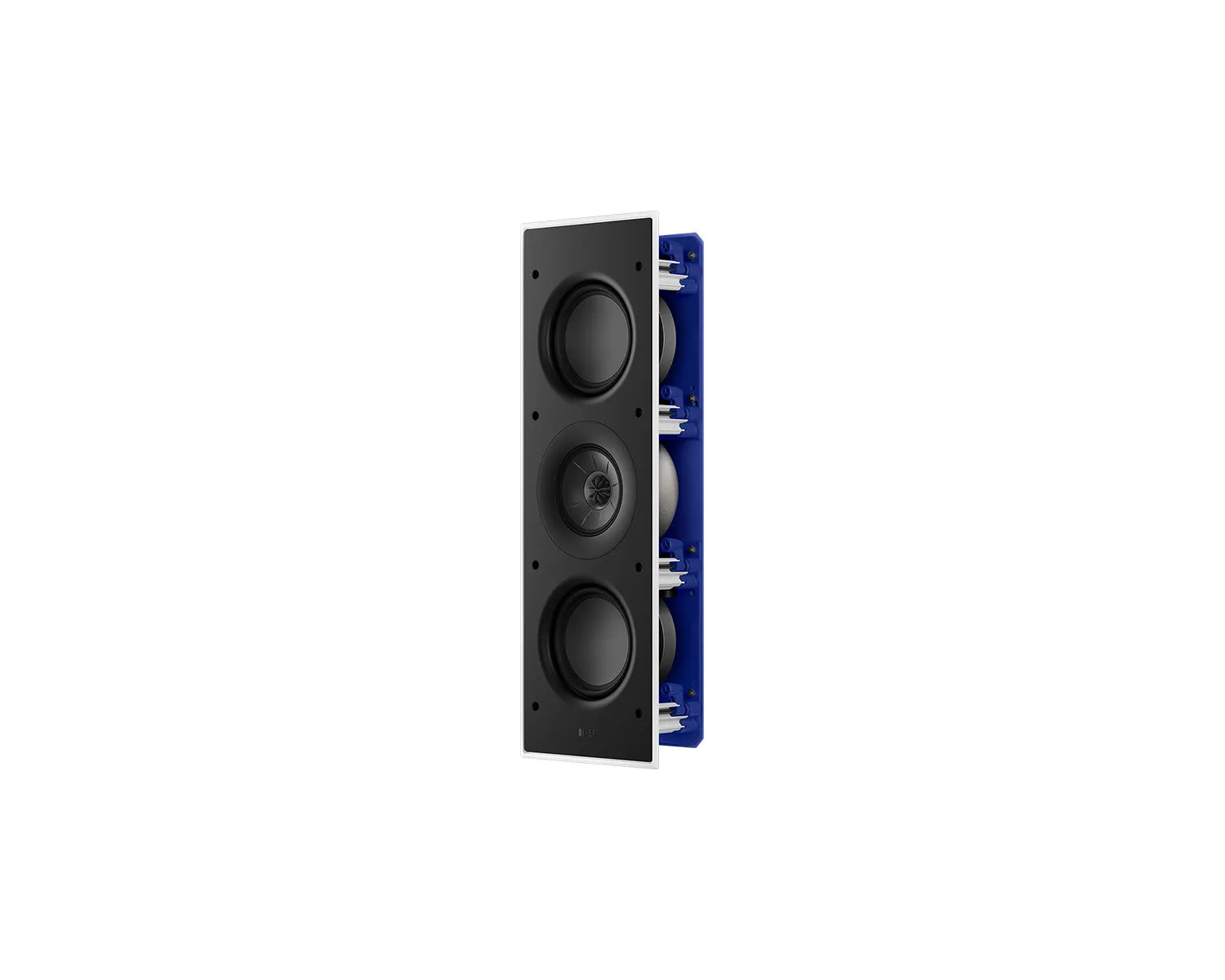

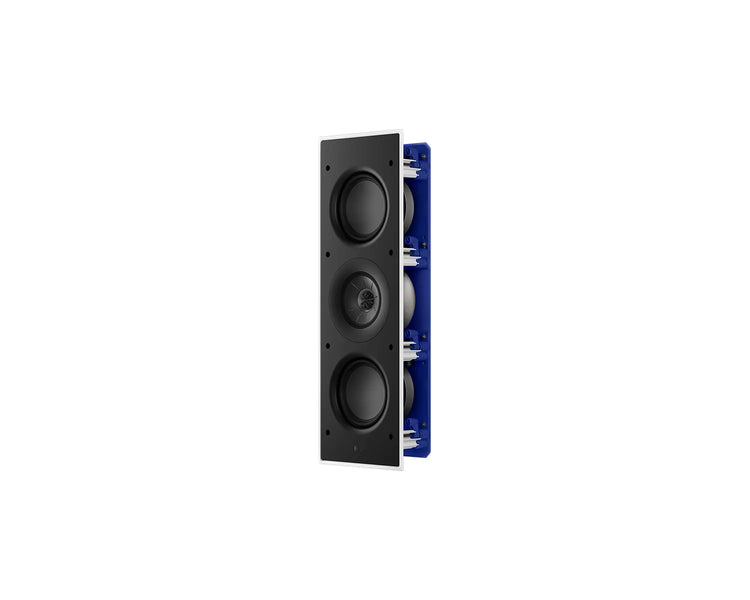

The Ci3120QLM-THX in-wall architectural speaker meets the growing demand for high-performance home theatre solutions in multipurpose rooms, where dedicated spaces are less common. Featuring a 12th generation Uni-Q driver array and our groundbreaking Metamaterial Absorption Technology (MAT), the Ci3120QLM-THX is THX Certified Select. It recreates high-impact cinema sound with best-in-class audio fidelity, making it ideal for medium-sized rooms.

Product Features

• Metamaterial Absorption Technology - Absorbs 99% of the unwanted sound
• Uni-Q® - Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly

• THX Certified - Ci3120QLM-THX delivers ultra-high performance with true theatre sound quality for medium-sized theatres and living rooms and it is THX® Certified Select

• Ultra-deep, clean bass - Two specially designed 120mm (4.75 in.) bass drivers provide long throw capabilities and low distortion

• Detailed, balanced sound - The 3-way system design and fully optimised crossovers allow each driver to be optimally configured for its specific role, elevating performance to another level

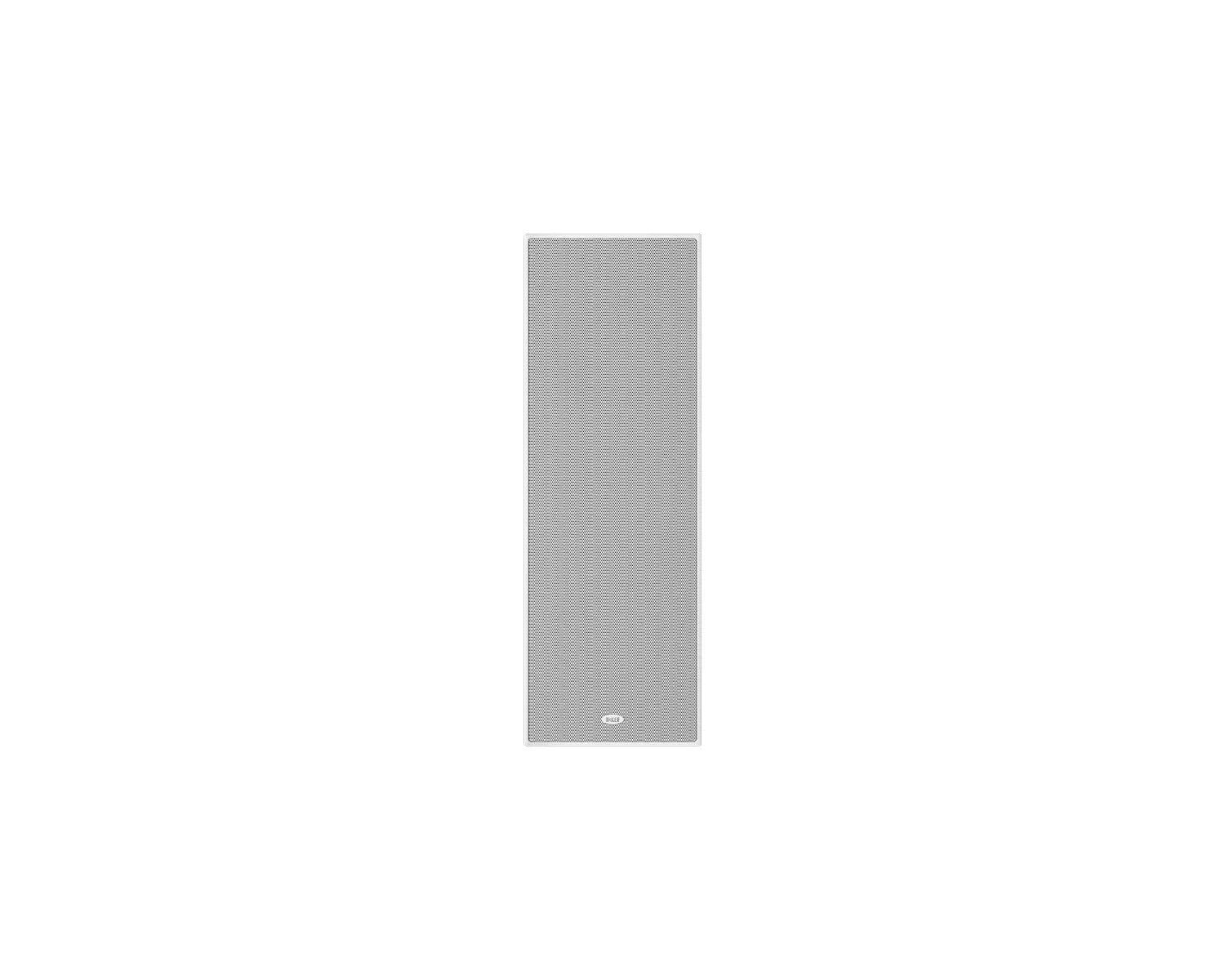

• Hide your speakers, not your sound - The paintable magnetic metal grille and Ultra-Thin Bezel (UTB) give it the appearance of a hidden speaker, allowing it to blend seamlessly into any environment


Product Specifications

• Drive Units
  • LF: 2 x 120mm (4.75 in.)
  • MF: 100mm (4 in.) Uni-Q
  • HF: 19mm (0.75 in.) vented aluminium dome with Metamaterial Absorption Technology

• Frequency Response Range:  50Hz - 20kHz
• Frequency Response Remark:  (±6dB) open-backed
• Frequency Range:  42Hz - 20kHz
• Sensitivity:  89dB
• Nominal Impedance:  4Ω
• Nominal Coverage:  150°
• Maximum SPL Measured at 1m:  105 dB
• Crossover Frequency:  440Hz, 2.75kHz
• Recommended Amplifier Power:  25 - 250 W
• Recommended High-Pass Filter:  35Hz-100Hz
• Safety And Regulatory Compliance:  IP64
• THX Certification:  THX Certified Select
• Mounting Thickness
  • Maximum:  36 mm (1.42 in.)
  • Minimum:  6 mm (0.24 in.)
• Ideal Rear Volume (L):  40
• Minimum Rear Volume (L):  20
• Cut-Out Dimensions (H x W):  513 mm x 163 mm (20.2 in. x 6.4 in.)
• Mounting Depth From Surface:  90mm (3.6")
• Net Weight:  6.2KG (13.7 lbs.)
• Product External Dimensions (H x W x D):  536 mm x 186 mm x 96 mm (21.1 in. x 7.3 in. x 3.8 in.)

What's in the Box?

• 1 x Ci3120QLM-THX
• 1 x Metal grille
• 1 x Cutout template
• Warranty booklet
• Manual
