The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|600 offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more. Designed for ease-of-use in a variety of applications, the 2|600 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Product Features

• Exclusive multi-patented DriveCore™ Technology
• BLU link digital audio transport – Up to 256 Channels of digital audio over Category 5e cabling
• Supports configuration and control using HiQnet® Audio Architect™
• Monitoring and control over TCP/IP

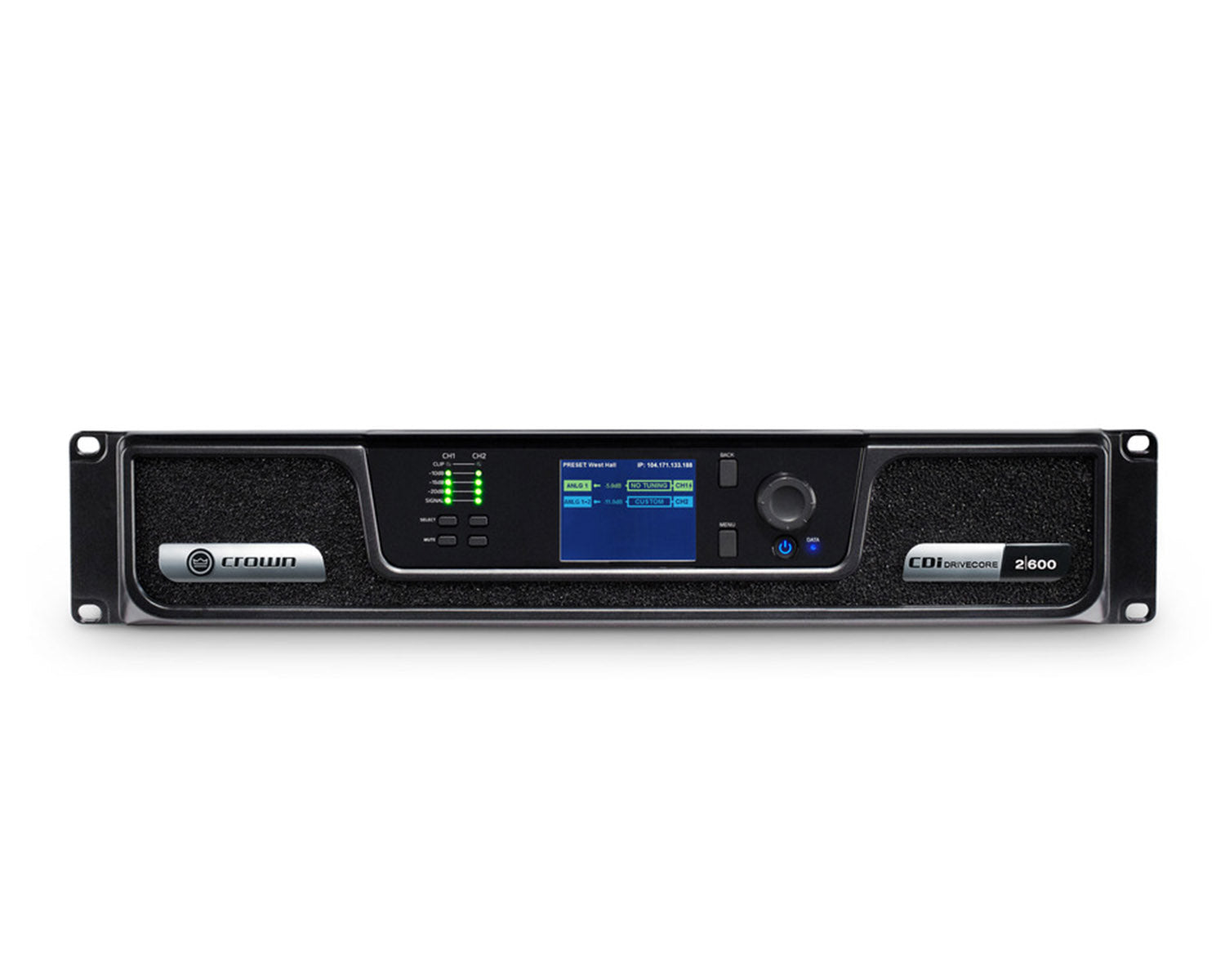

• Colour LCD and front panel user interface for amplifier configuration, control, and monitoring
• Programmable GPIO (general purpose input/output) control port
• Digital signal processing (Input/output EQ filters, crossover, input/output delay, LevelMAXTM limiters)
• Support for importing of FIR filter coefficients
• 20 device presets – 1 factory and 19 user
• 96kHz/32-bit floating-point signal processing
• Universal power supply with PFC for reduced current draw and industry-leading efficiency
• Power saving modes
• Remote power off – Sleep mode activated via AUX port
• 70Vrms/100Vrms direct drive
• Each channel independently configurable for low z or high z operation
• Advanced protection circuits – Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over/under-voltage, and high-frequency overload

Product Specifications

• Output Power: Dual Mode - All Channels Driven
  • Channels:  2
  • 2Ω:  300W
  • 4Ω:  600W
  • 8Ω:  600W
  • 16Ω:  300W
  • 70Vrms:  600W
  • 100Vrms:  600W
• Output Power: Bridge Mono Mode - All Channels Driven
  • 4Ω:  600W
  • 8Ω:  1200W
  • 16Ω:  1200W
  • 140Vrms:  1200W
  • 200Vrms:  1200W
• Digital Signal Processing:   96kHz, 32-bit floating point
• Voltage Gain (at maximum level setting) 4/8Ω, 70Vrms and 100Vrms Operation:  34dB
• Frequency Response (8Ω, 20Hz - 20kHz):  +/-0.5dB
• BLU link Signal-to-Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz):  >108dB
• Total Harmonic Distortion (at full rated power, from 20Hz - 20kHz):  0.35%
• Analogue Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz):  >104dB
• Intermodulation Distortion (60Hz and 7kHz at 4:1, from - 30dB to full rated power):  ≤0.35%
• Damping Factor (20Hz to 100Hz):  >1000
• Crosstalk (below rated power, 20Hz to 1kHz):  >80dB
• Common Mode Rejection (20Hz to 1kHz, typical):  >70dB
• DC Output Offset (with inputs shorted):  ±10mV
• Input Impedance (Nominally balanced, nominally unbalanced):  20 kΩ balanced, 10 kΩ unblanced
• Maximum Input Level (Low Amp Gain Mode):  +20dBU
• Required AC Mains (±10%):  100V – 240V~50/60Hz
• Cooling:  Continuously variable speed forced air, front-to back airflow
• Power Supply Connector:  Standard IEC type 320 inlet for detachable connector 100 – 240V~
• Load Impedance Stereo/Dual Mode:  2Ω - 16Ω; 70Vrms and 100Vrms
• Load Impedance Bridge Mono:  4Ω - 16Ω; 140Vrms and 200Vrms
• Maximum Fan Noise (re dB SPL @ 1M):  51dBA
• Dimensions (HxWxD):  8.9 cm x  48.3 cm x 34.42 cm
•  Weight:  6.6 kg
