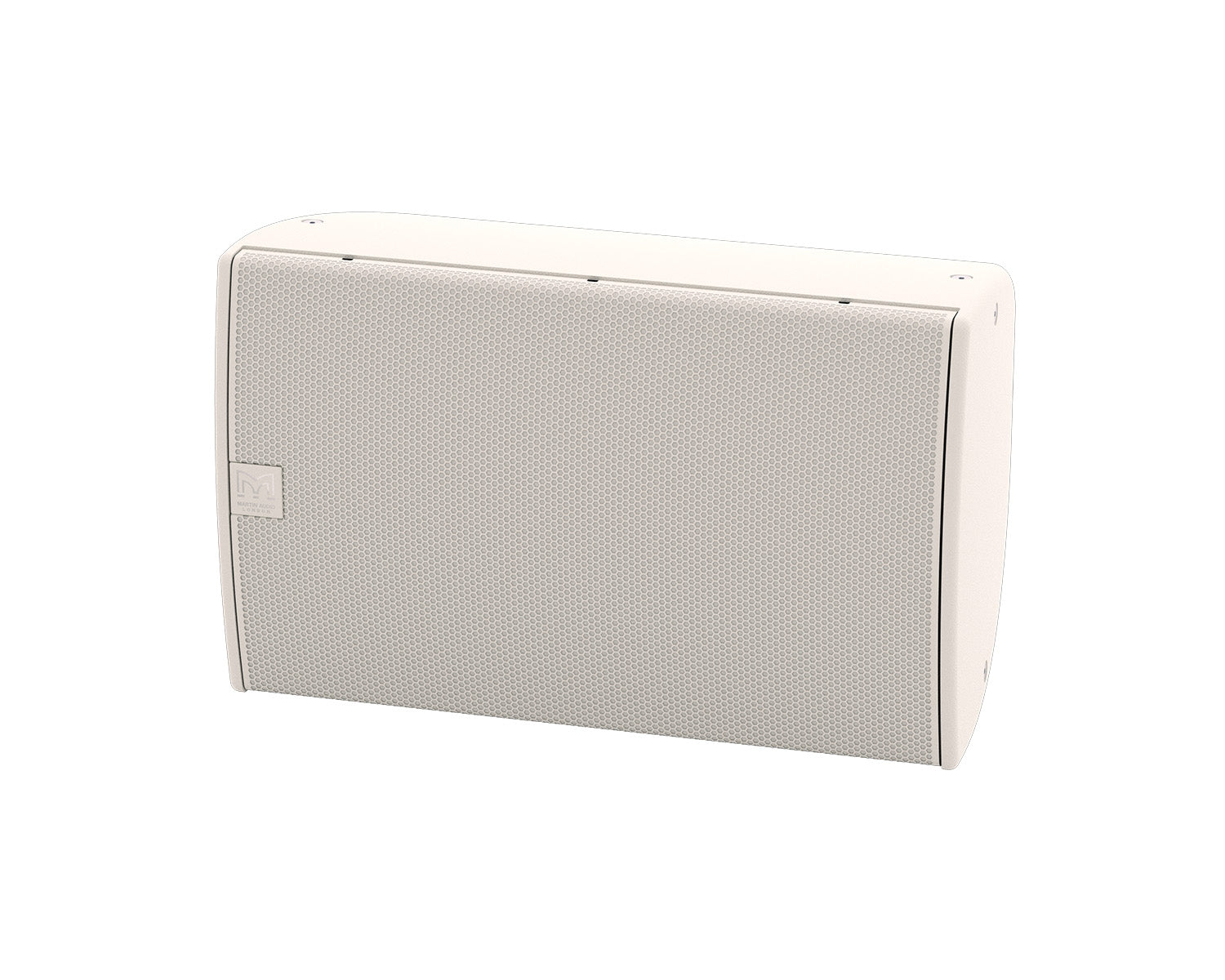

CDD15-WR is a very high-power, weatherised, passive two-way system designed for outdoor installations that demand the ultimate in sonic performance from a single enclosure and suitable for applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements.

The Coaxial Differential Dispersion technology employed in the CDD15-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

The visually-distinctive composite enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The CDD15 can be suspended by eyebolts or by means of an optional horizontal weatherised yoke.

A full-range, passive two-way system, the CDD15-WR may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximise its capabilities. When used with a CSX subwoofer, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.

Finished in black (RAL9005) or white (RAL9016) as standard and can be supplied in any RAL colour to order (Please call our friendly sales team for details)

Product Features

• Compact, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant UPM Formi composite enclosure
• Outdoor operation when sheltered from direct exposure to elements
• Operating temperature -20°C to +70°C
• Environmentally tested to meet IP54
• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free water and particle resistant grille
• 8Ω nominal impedance
• Integral inserts for eyebolt suspension
• Black or white standard colour options

Product Specifications

• TYPE: High-output, Coaxial Differential Dispersion passive two-way system
• FREQUENCY RESPONSE: 55Hz-18kHz ± 3dB, -10dB @ 45Hz
• RATED POWER: 400W AES, 1600W peak
• Recommended Amplifier: MA3.0, MA5.2K
• SENSITIVITY: 100dB
• MAXIMUM SPL: 126dB continuous, 132dB peak
• NOMINAL IMPEDANCE: 8 ohms
• DISPERSION (-6dB): 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)
• CROSSOVER: 1.6kHz passive
• CONNECTORS: Low profile 20A push-lock, weatherproof input panel cover with cable gland
• PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link+

Driver

• LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
• HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver

Physical & Dimensions

• ENCLOSURE: 68 litre, composite material
• FINISH: Black or white as standard
• PROTECTIVE GRILLE: Zinc plated mild steel with powder coated finish and weatherised backing
• FITTINGS: 10 x M8 fly points
• DIMENSIONS: (W) 429mm x (H) 691mm x (D) 413mm | (W) 16.9ins x (H) 27.2ins x (D) 16.3ins
• WEIGHT: 28.3kg (62.4lbs)

Accessories

• CDDYA15B yoke assembly black
• CDDYA15W yoke assembly white
