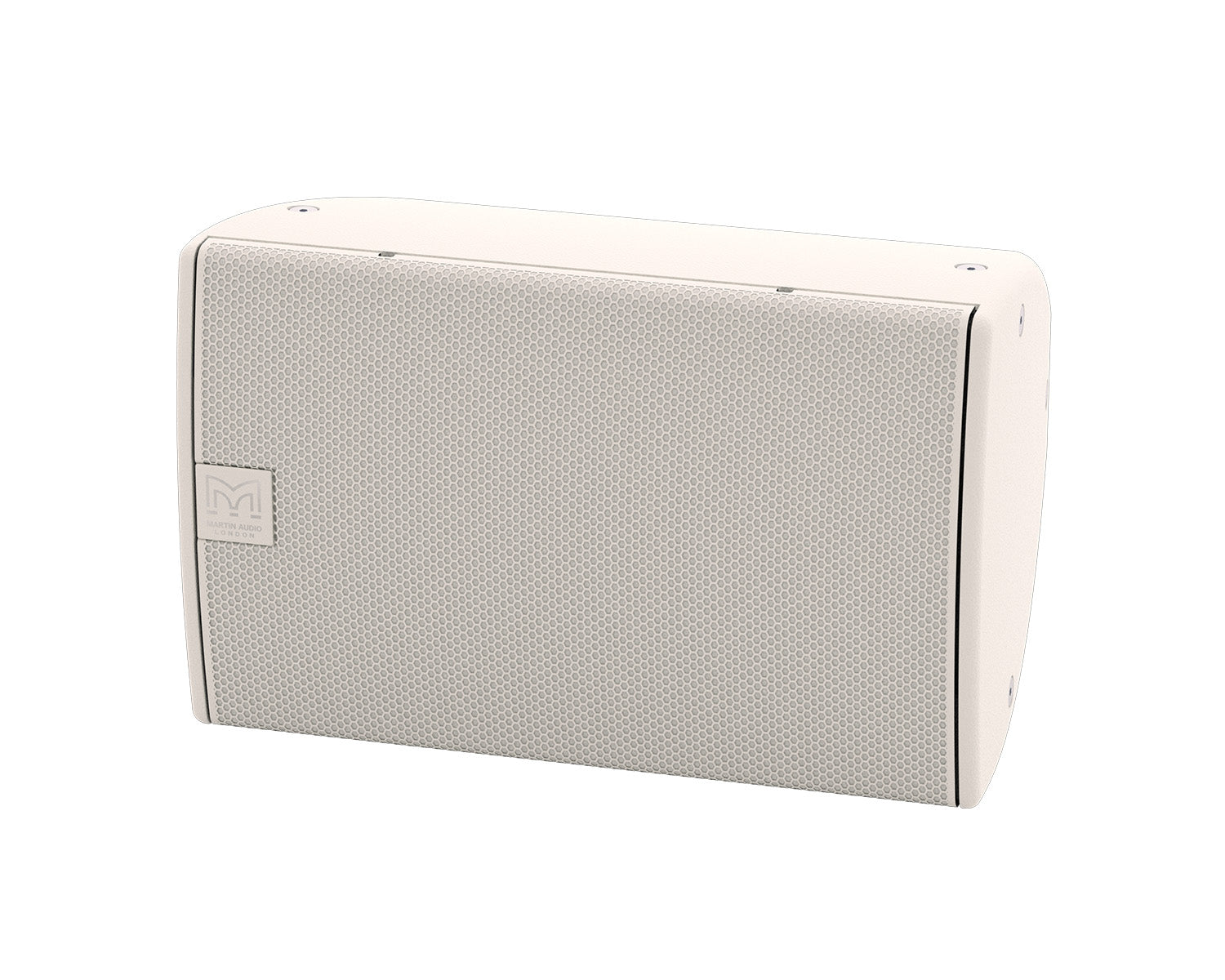

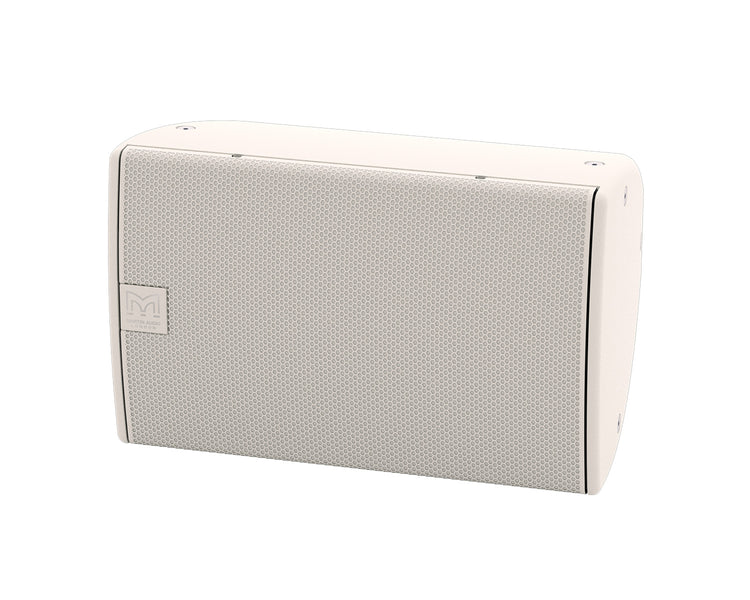

The CDD10-WR is a weatherised very compact two-way passive loudspeaker system suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver and features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.

The Coaxial Differential Dispersion technology employed in the CDD10-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

The visually-distinctive composite enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD10-WR allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option A full suite of weatherised accessories are available and fixings on the loudspeaker are stainless steel.

Finished in black (RAL9005) or white (RAL9016) as standard and can be supplied in any RAL colour to order (Please call our friendly sales team for details)

Product Features

• Compact, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant UPM Formi composite enclosure
• Outdoor operation when sheltered from direct exposure to elements
• Operating temperature -20°C to +70°C
• Environmentally tested to meet IP54
• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free water and particle resistant grille
• 8Ω nominal impedance
• Integral inserts for eyebolt suspension
• Discreet weatherised mounting accessories
• Black or white standard colour options

Product Specifications

• TYPE: Compact, Coaxial Differential Dispersion passive two-way system
• FREQUENCY RESPONSE: 65Hz-20kHz ± 3dB, -10dB @ 55Hz
• RATED POWER: 250W AES, 1000W peak
• Recommended Amplifier: MA2.0
• SENSITIVITY: 96dB
• MAXIMUM SPL: 120dB continuous, 126dB peak
• NOMINAL IMPEDANCE: 8 ohms
• DISPERSION (-6dB): 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)
• CROSSOVER: 2kHz passive
• CONNECTORS: Low profile 20A push-lock, weatherproof input panel cover with cable gland
• PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link+

Driver

• LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF
• HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver

Physical & Dimensions

• ENCLOSURE: 28 litre, composite material
• FINISH: Black or white
• PROTECTIVE GRILLE: Zinc plated mild steel with powder coated finish and weatherised backing
• ENVIRONMENTAL: Rated at IP54
• FITTINGS: 6 x M8 inserts for wall bracket, 10 x M8 fly points
• DIMENSIONS: (W) 323mm x (H) 513mm x (D) 310mm | (W) 12.7ins x (H) 20.2ins x (D) 12.2ins
• WEIGHT: 15.5kg (34.2lbs)

Accessories

• CDDWB10/12B wall bracket black
• CDDWB10/12W wall bracket white
• CDDYA10B yoke assembly black
• CDDYA10W yoke assembly white
