Designed for applications that require sound to radiate from a central location, the Commercial CCA-80D bundles dual constant coverage asymmetric loudspeakers with a mounting bracket for fast, low cost installations.

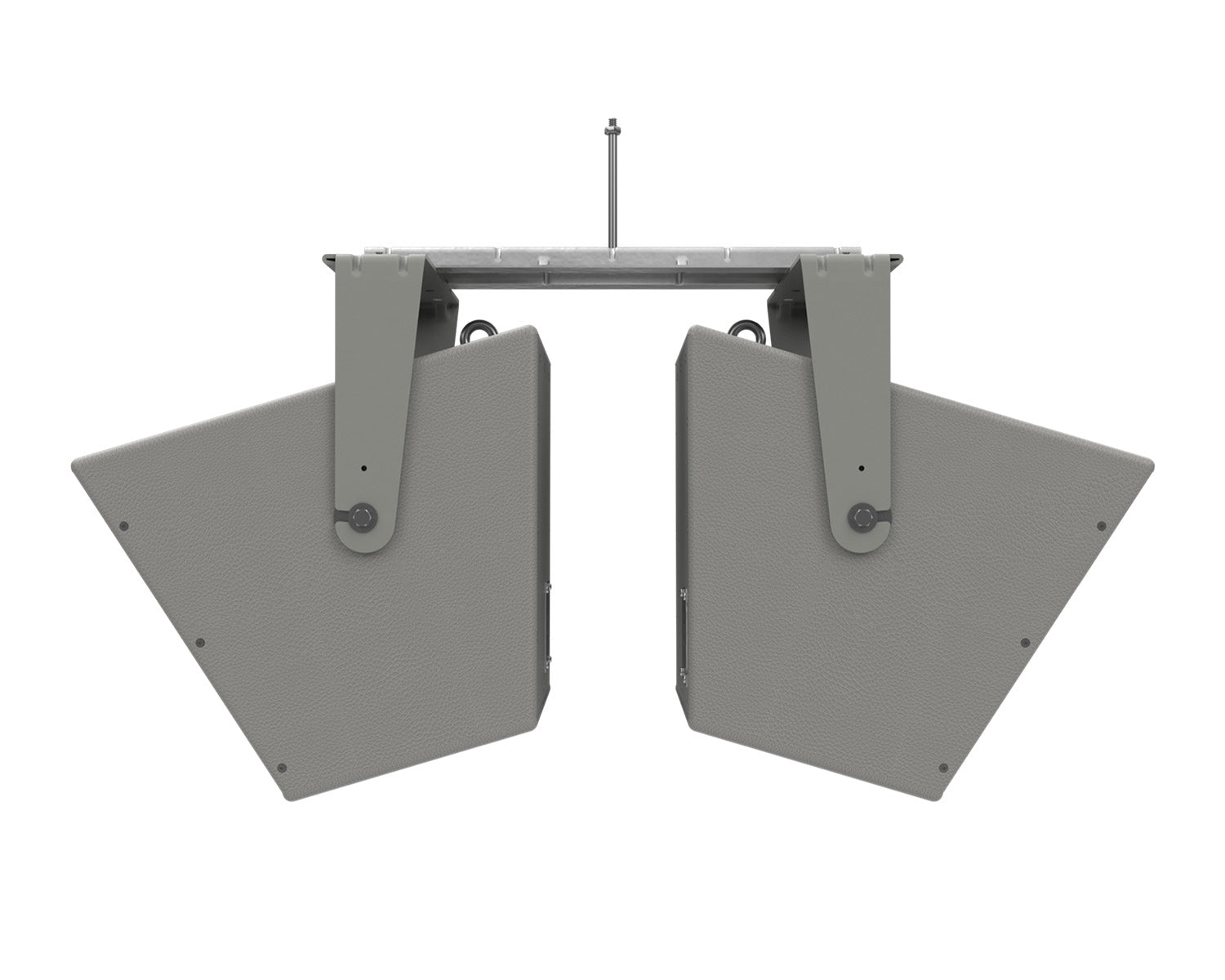

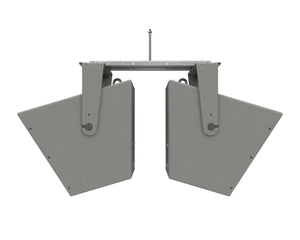

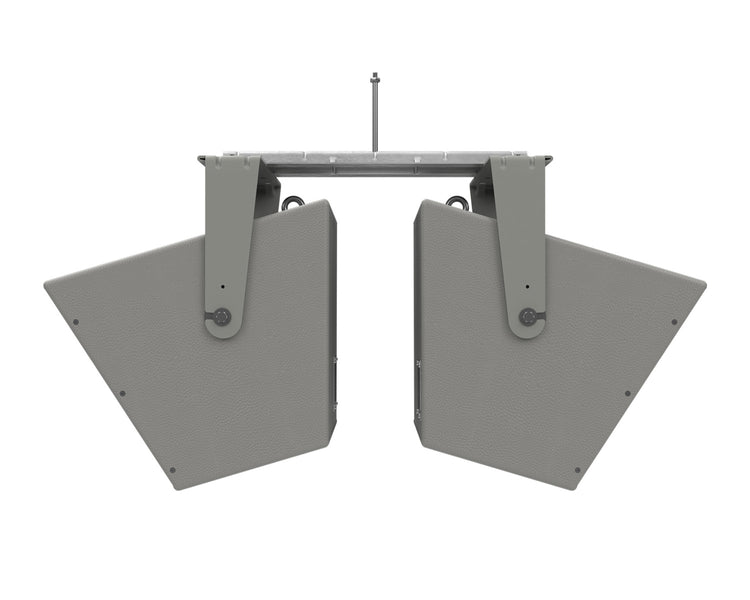

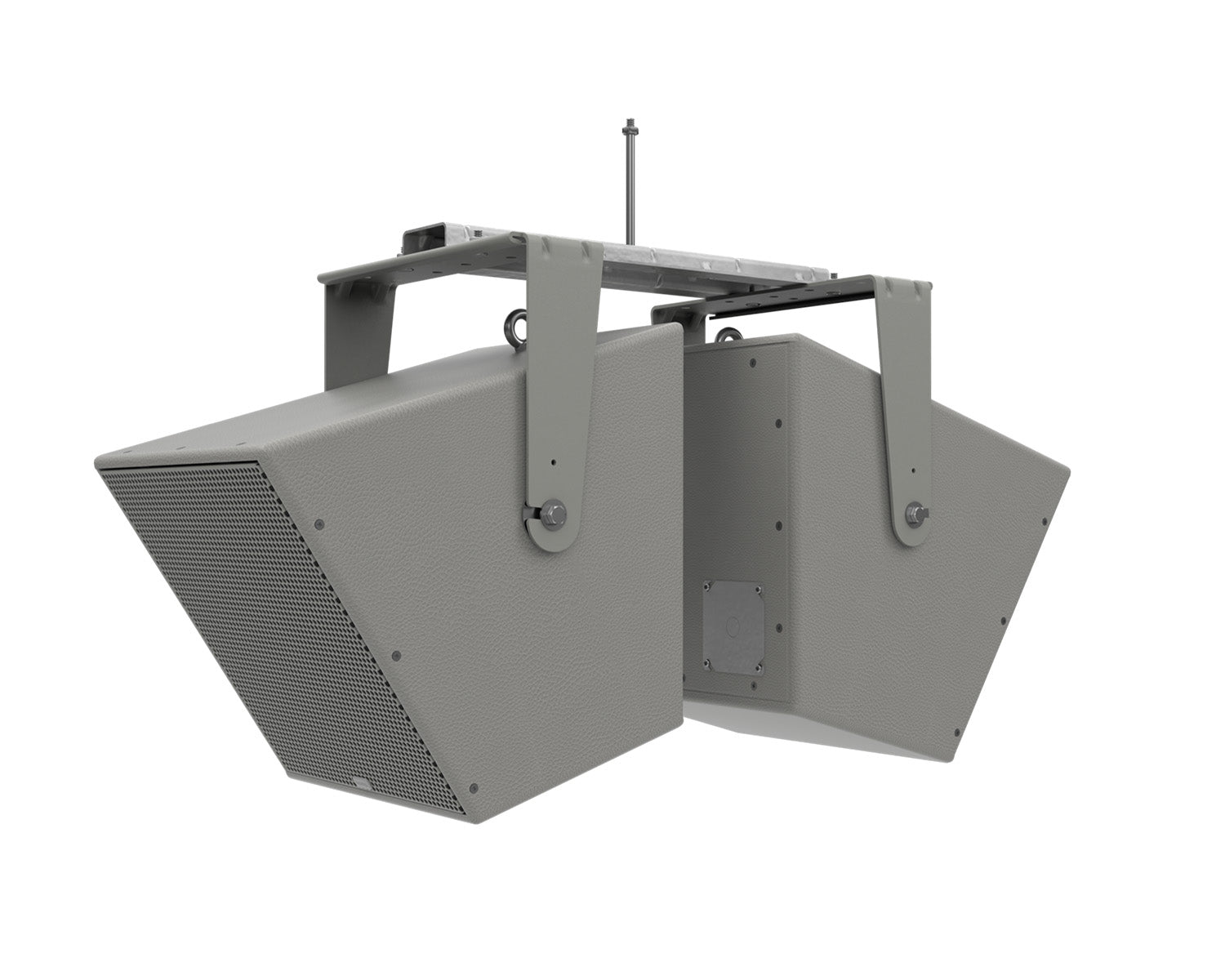

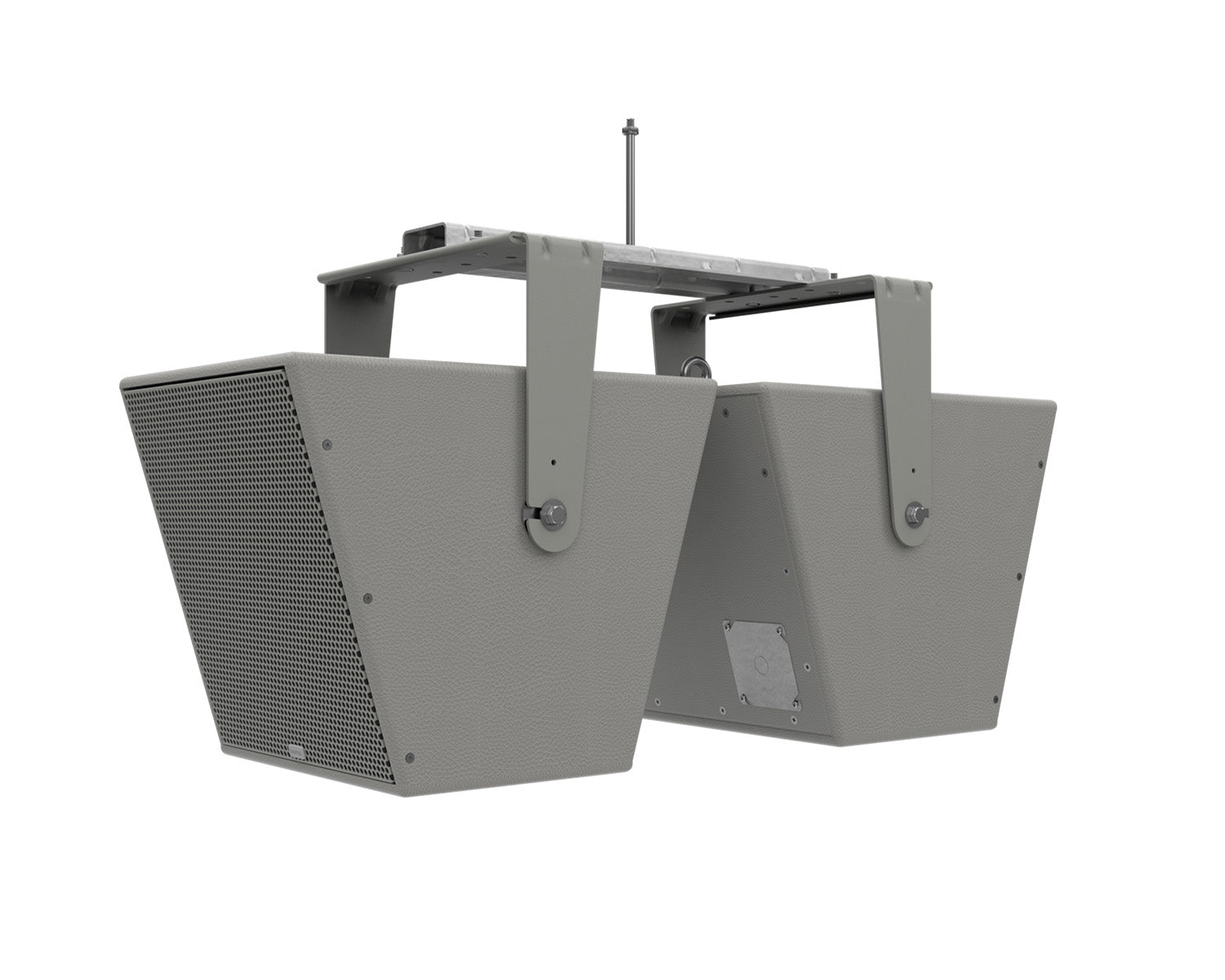

The CCA-80D consists of dual CCA-80 speakers mounted back to back, reducing the number of mounting positions, amplifier channels, and delay alignment channels required. A joiner/ single-point mounting bracket is shipped with the CCA-80D.

The CCA-80 constant coverage aisle loudspeaker is an asymmetric, full-range, three-way, triaxial loudspeaker engineered for optimal performance in long, high-ceilinged narrow spaces such as aisles and corridors.

The asymmetric waveguide design offers precise, uniform coverage with a throw ratio of 6:1. The narrow upper portion of the horn provides extended coverage for distant areas, while the progressively wider, but attenuated, lower portion of the horn ensures full coverage directly beneath the mounting position. The horn is titled downward within the enclosure, a unique design that minimizes aiming precision requirements and guarantees coverage directly beneath the speaker, outperforming traditional horns.

The CCA-80 produces an unrivaled consistent SPL level within its coverage pattern, unlike typical speakers where SPL falls off with distance, making it ideal for background music and voice paging in large spaces. It is optimized to work in the most challenging applications, like warehousing, with mounting heights up to 36 feet.

This speaker delivers full-range 110 Hz to 13 kHz audio, ensuring superior music reproduction and voice clarity. The triaxial design maximizes coherency, resulting in a loudspeaker suitable for both clear voice paging and full range music playback.

This system offers a significant cost advantage, reducing total system costs by over 50% compared to existing premium solutions. No other product on the market offers this level of innovation and efficiency in asymmetric paging speakers.

Product Features

• Commercial CCA-80D dual-speaker option provides additional system design flexibility, reducing total system costs further
• Purpose-built for long aisles and concourses in warehouses, sports complexes, shopping malls, hotels, themed entertainment venues, and more
• Triaxial asymmetric, amplitude shaded vertical waveguide with a 6:1 throw ratio for extended distance coverage
• Efficient design with 70V/100V transformers for cost-effective sound reinforcement
• Unique extended coverage distance significantly reduces the number of speakers required in a system
• High system efficiency minimizes required amplifier power resulting in lower overall system costs
• 5-year warranty

Product Specifications

• Operating Mode: Passive, selectable low-impedance or 70 V / 100 V operation
• Operating Environment: Indoor
• Operating Range (-10 dB): 110 Hz to 13 kHz
• Constant Coverage Pattern: The horizontal coverage varies as a function of the vertical angle to provide consistent SPL
• Transducers
  • LF: (1) 8" (200 mm) with 1.2" (31 mm) CCAW voice coil
  • MF: (1) 2.6" (65 mm) diaphragm coaxial midrange compression driver
  • HF: (1) 1.3" (33 mm) diaphagm coaxial high-frequency driver
• Sensitivity @ 1 m: 98 dB (2.83 V) / 98 dB (1 W, 8 Ω)
• Nominal Continuous Power Handling at Rated Impedance: Passive 20 V (50 W, 8 Ω Rated Impedance)
• Nominal Maximum SPL (Processed):
  • Passive
  • Continuous: 114 dB
  • Peak: 120 dB
• Rated Continuous Voltage: Passive 20.0 V (26 dBV)
• Rated Maximum SPL (Processed):
  • Passive
  • Continuous: 114 dB
  • Peak: 126 dB
• Transformer / Autoformer:
  • 70 V: 50 W, 25 W, 12.5 W, 6.25 W 3.125 W;
  • 100 V: 50 W, 25 W, 12.5 W, 6.25 W
• Crossover: 950 Hz, 3.1 kHz crossovers
• Required Processing:
• 100 Hz, 12 dB / oct. Butterworth high pass filter;
• DSP preset for ALC and Voltera amplifiers
• Recommended Amplifiers: Passive 50 W - 100 W, 8 Ω (20 V - 28 V)
• Input Connection: 8-position, 2-sided pluggable terminal block
• Controls: 70 V / 100 V operation jumper
• Mounting Provisions:
  • Two (2) M10 rigging points for U-Bracket
  • One (1) M10 rigging point for safety cable
• Dimensions: H x W x D 15.6" x 14.8" x 19.6" [396 x 377 x 499 mm]
• Weight (with mounting bracket): CCA-80: 31.9 lbs [14.5 kg]

What's in the Box?

• Dual mounting bracket and (2) U-brackets
