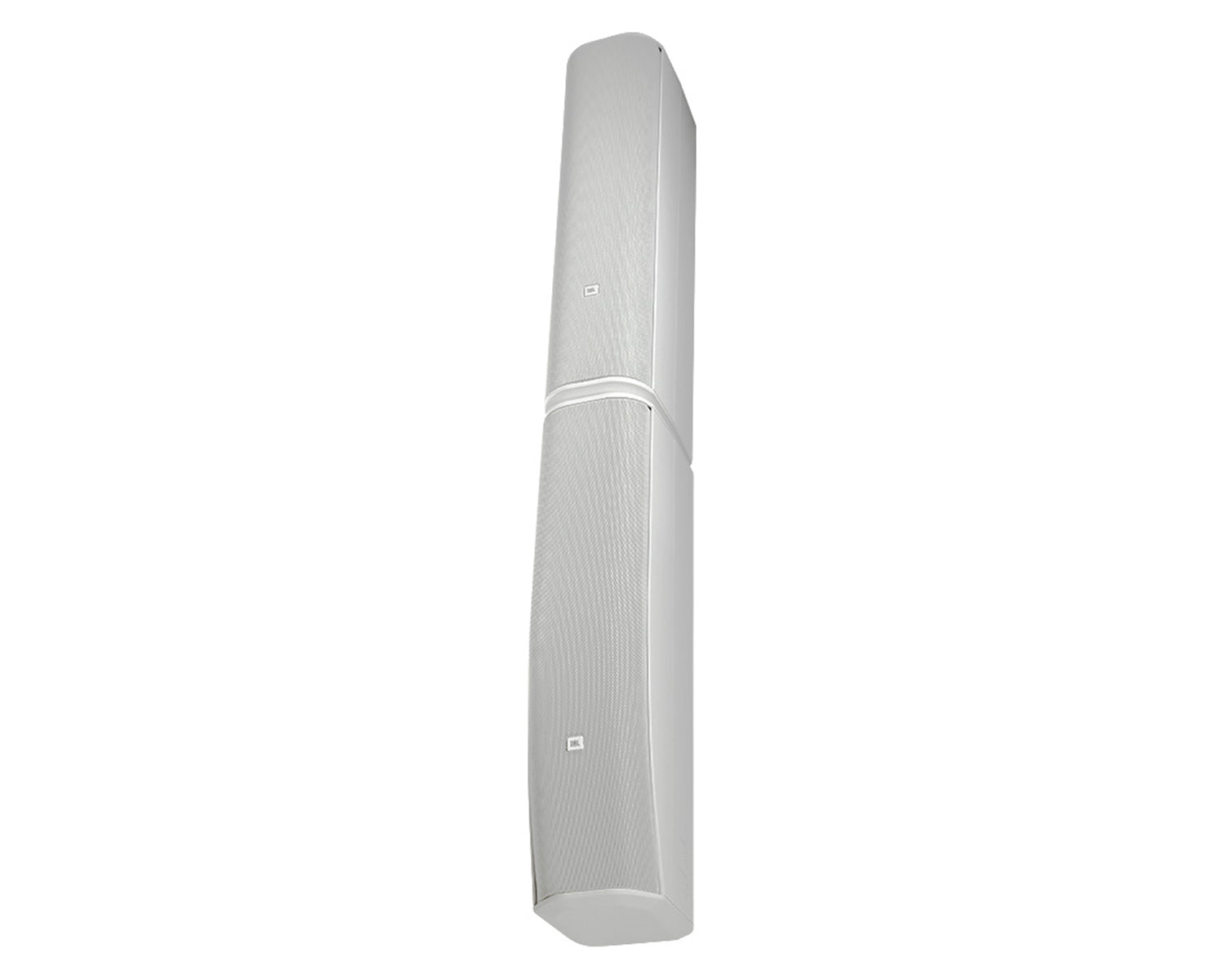

When connected to a CBT 70J-1 line array column speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.

Product Features

• Components: Four 125 mm (5 in) high-power LF drivers (70JE-1)
• 500 Watt power handling (70JE-1)
• Built-in purpose-designed crossover network, for combining with CBT 70J-1 (70JE-1)
• Coupler plate included (70JE-1)
• Extended pattern control (to 400 Hz for ± 20° control, to 200 Hz for substantial off-axis cancellation)
• Extended bass response to 45 Hz.

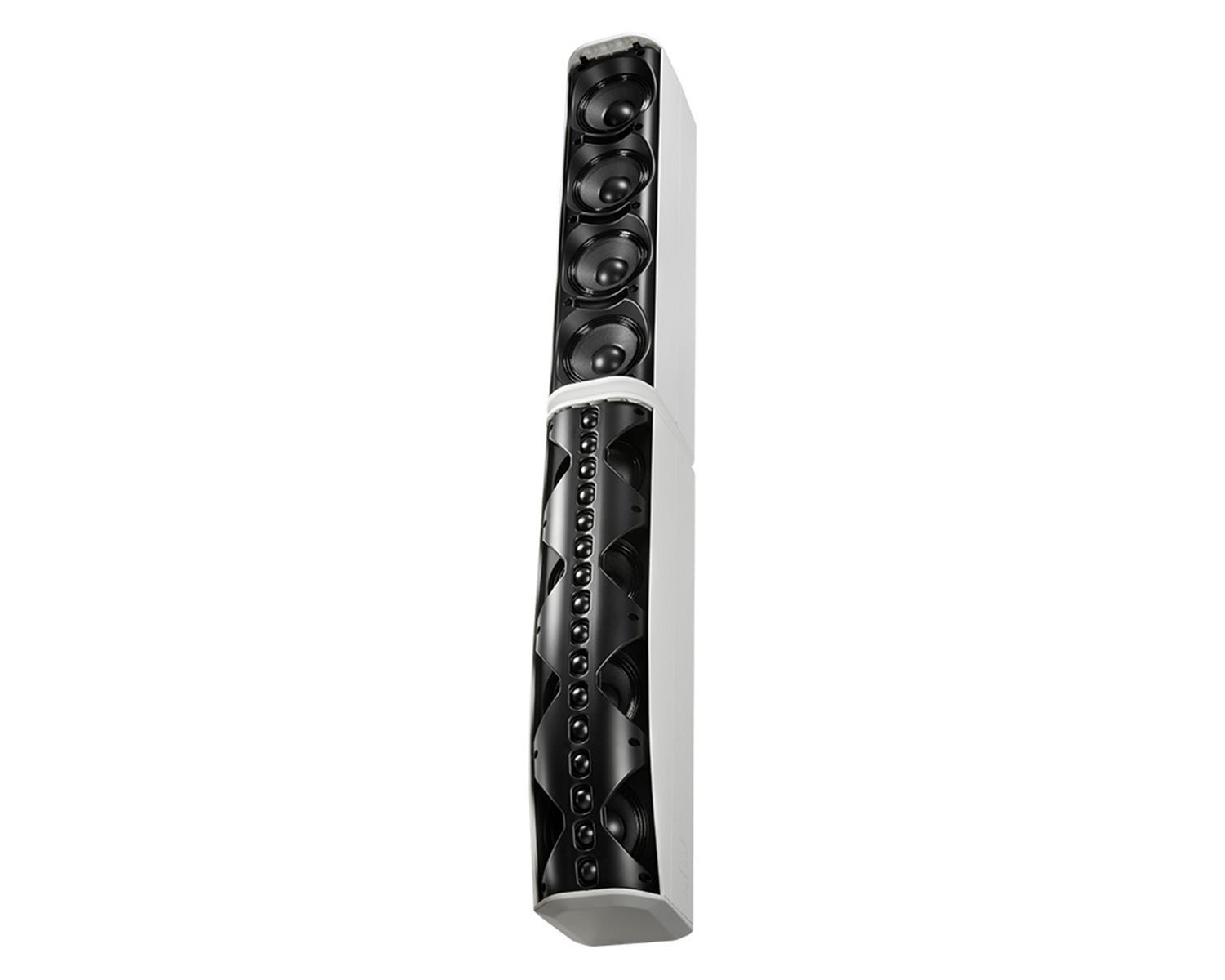

• Components: Sixteen 25 mm (1 in) soft dome tweeters and eight 125 mm (5 in) high-power LF drivers.
• Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for long-throw applications.
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Coupler plate and wall swivel (pan)/tilt bracket included (rear insert-point pattern fits standard third-party brackets)

Product Specifications

General

• Components:
  • Eight (8) 130 mm (5 in) LF drivers
  • Sixteen (16) 25 mm (1 in) HF drivers
• Frequency Range (-10 db): 45 Hz – 20 kHz
• Coverage:
  • Vertical (selectable via switch)
  • Narrow Mode: 25° (2 kHz – 16 kHz) (±10°)
  • Broad Mode: 45° (350 Hz – 16 kHz) (±10°)
  • Horizontal 150° (500 Hz – 18 kHz, ±20°)
• Sensitivity (@1m):
  • Narrow:
    • (speech mode) 98 dB @ 2.83V, 95 dB @ 2.0V (150 Hz – 8 kHz)
    • (music mode) 94 dB @ 2.83V, 91 dB @ 2.0V (80 Hz – 18 kHz)
  • Broad:
    • (speech mode) 97 dB @ 2.83V, 94 dB @ 2.0V (100 – 8 kHz)
    • (music mode) 93 dB @ 2.83V, 90 dB @ 2.0V (70 Hz – 18 kHz)
• Nominal Impedance: 4 ohms
• Power Capacity:
  • 1000 W (4000 W peak), 2 hrs
  • 700 W (2800 W peak), 100 hrs
• Max SPL:
  • Narrow:
    • (speech mode) 125 dB cont ave (131 peak)
    • (music mode) 121 dB cont ave (127 peak)
  • Broad:
    • (speech mode) 124 dB cont ave (130 peak)
    • (music mode) 120 dB cont ave (126 peak)
• Transducers
  • Low Frequency Drivers: 8 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV and salt resistance, shielded.
  • High Frequency Drivers16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
• Enclosure: Fiberglass-reinforced ABS cabinet, painted aluminum grille.
• Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
• Insert Points: 20 insert points total, 8 utilized for coupler plate, M6 (16 mm deep) on back panel
• Mounting: Coupler plate joins the CBT70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accepts OmniMount™ 60.0 Series and 120.0 Series compatible wall-mount brackets, as well as points for the swivel (pan)/tilt wall bracket that is included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension.

Physical & Dimensions

• Height: 1388mm
• Width: 170mm
• Depth: 237mm
• Weight: 20.4kg
