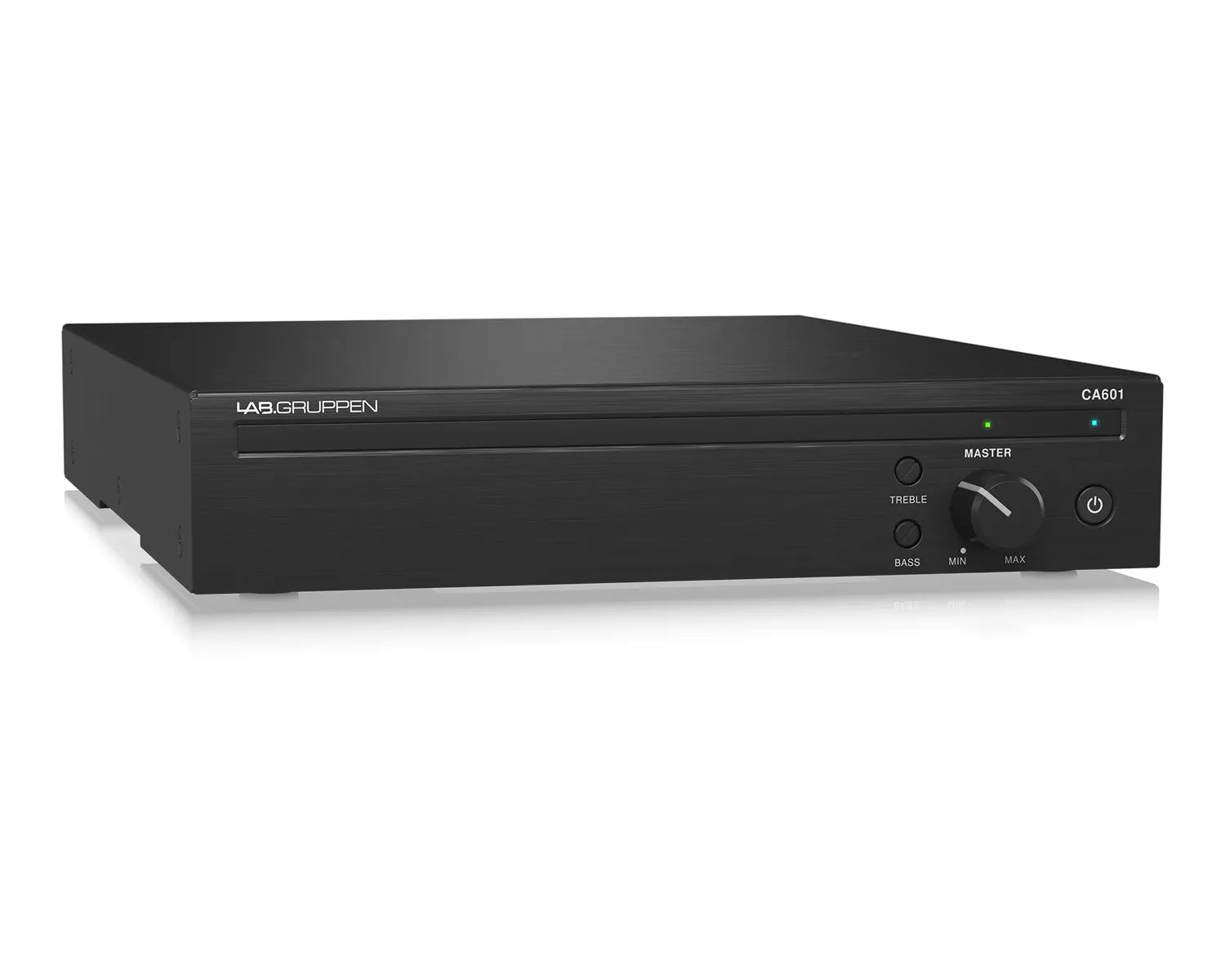

The CA601 60-Watt Commercial Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. The CA601 is easy to install and operate – even for non-technical personnel. Simply put, the CA601 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

Not only does CA601’s direct drive constant power technology provide superior audio performance and reliability, it also consumes less mains power than competing models, which has earned it Energy Star certification. This amazing technology makes it possible to design and build powerful amplifier systems that not only save money on the electrical bill, but also reduce the requirements and cost at the installation for the mains supply. In fact, it is likely that installation can be done utilising the in-place mains infrastructure. This adds up to significant installation and operational savings and protects the environment.

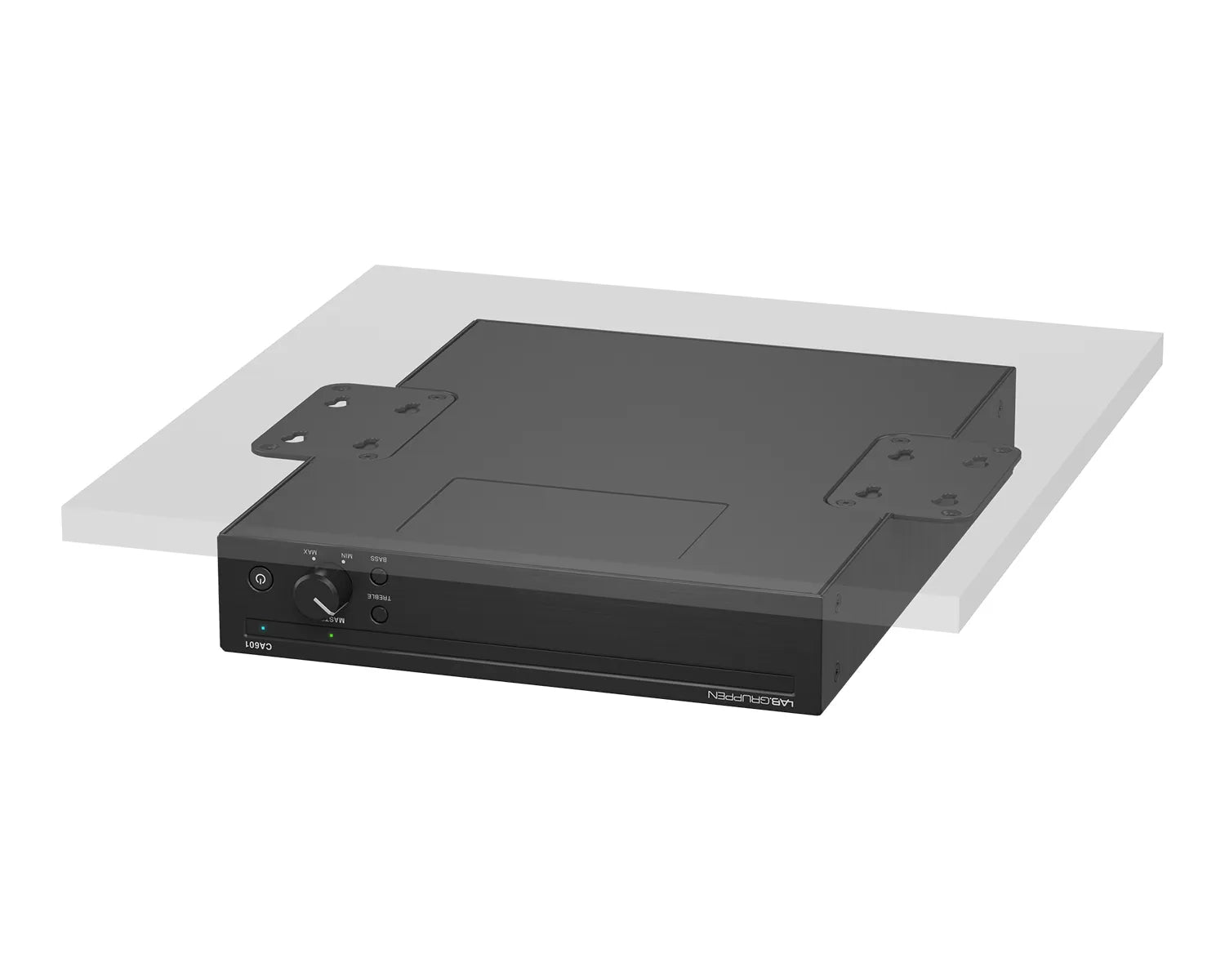

The CA601 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.

Product Features

• 60 Watt amplifier for commercial and industrial applications
• Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
• Energy Star certified design conserves energy and drastically reduces operational cost
• Direct drive, constant power technology for superior audio performance and reliability
• GPI remote volume control using standard RJ-45 connector and Ethernet cable

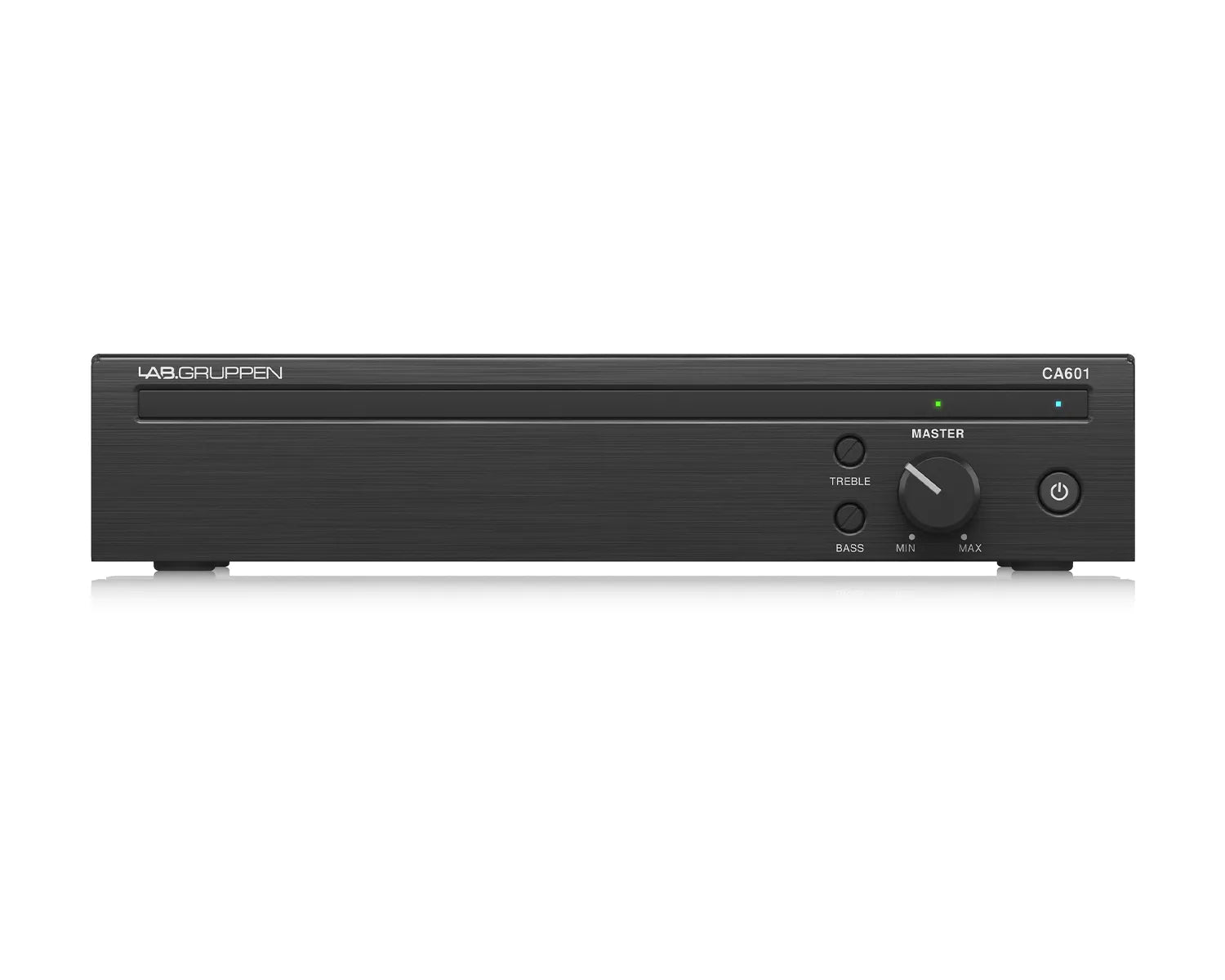

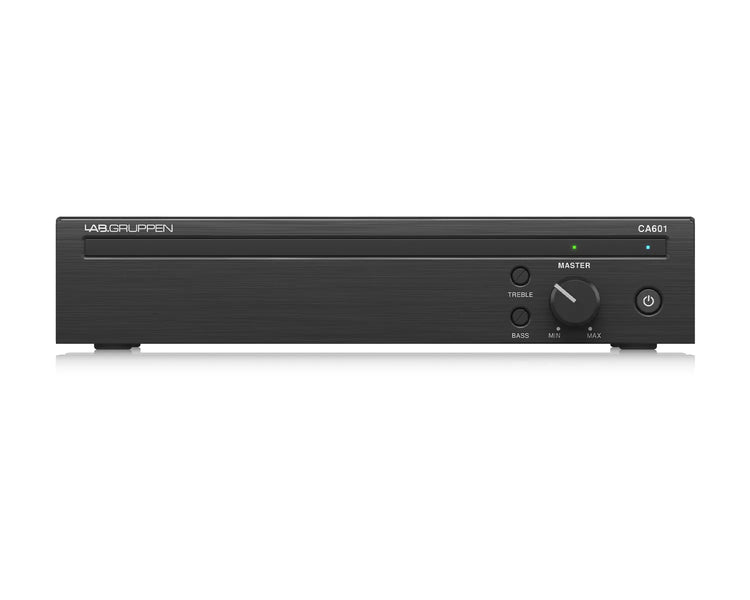

• Individual front panel master volume and bass/treble controls
• Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
• Front panel power control button for direct access

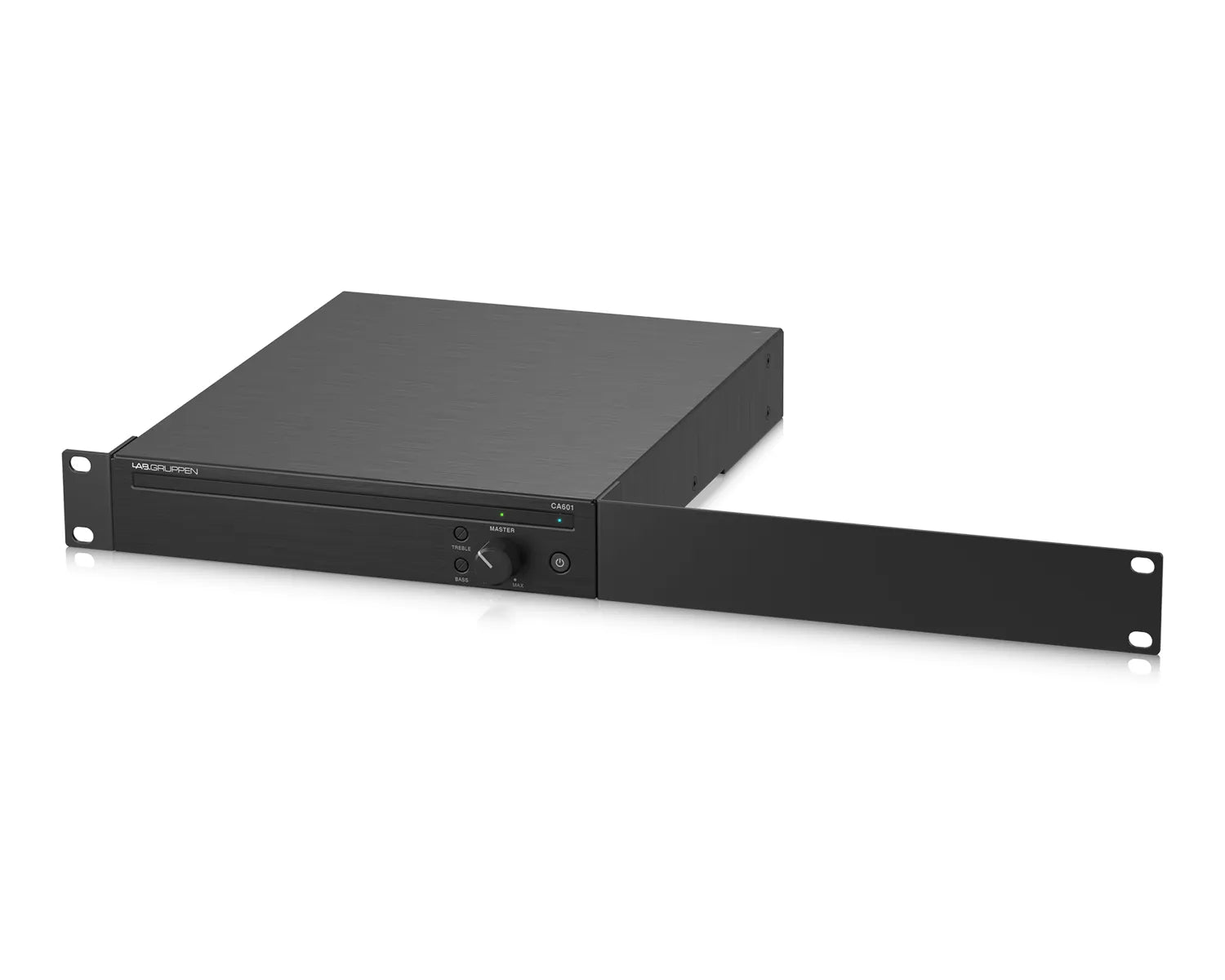

• Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
• Euroblock type amplifier input and output connectors
• Convection-cooled, fan-less amplifier technology for low noise

Product Specifications

Maximum Output Power

• 4 Ω per channel:  60 W
• 8 Ω per channel:  60 W
• 70 V per channel:  60 W
• 100 V per channel:  60 W

Number of Output Channels

• Number:  1

Minimum Load Impedance

• 4 Ω mode:  4 Ω
• 8 Ω mode:  8 Ω
• 70 V output mode:  82 Ω
• 100 V output mode:  166 Ω

Controls

• Front:  Power standby button, gain control, tone controls - bass and treble
• Rear:  Load config - (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter

Tone Controls

• Bass:  ±10 dB @ 100 Hz
• Treble:  ±10 dB @ 10 kHz

Indicators

• Power:  On (blue), force standby (red), sleep (yellow)
• Master
  • Signal (green LED):  >12.3 mV (-36 dBu)
  • Limit (red LED):  Input clip, output limit
  • Fault (red LED):  Overheat, DC fault, over current, etc

System

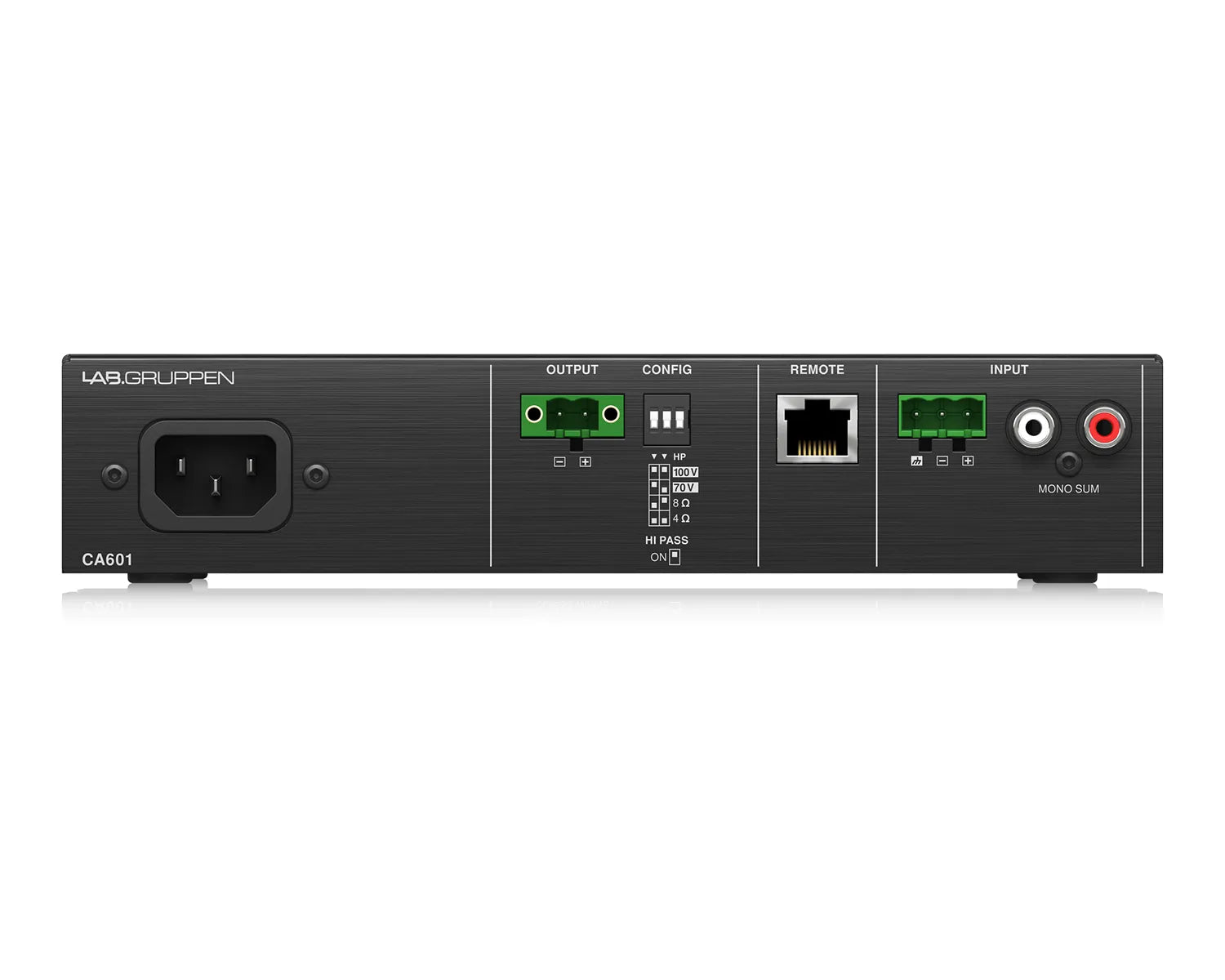

• Inputs:
  • 1 x 3-pin 5.08 mm Euroblock connector
  • 1 x RCA stereo summed
• Input impedance:  10 kΩ unbalanced and RCA, 20 kΩ balanced
• Input sensitive:  Balanced: 1.23 V (+4 dBu)
• RCA: 0.62 V (-2 dBu) each for mono sum RCA
• Maximum input level:  9.75 V (+22 dBu)
• Outputs:  1 x 2-pin 5.08 mm Euroblock connector
• Output circuit type:  Class D
• Remote connector:  1 x RJ45 connector

Performance

• Distortion, 1/8 rated power:  <0.05%
• Frequency response:  20 Hz to 20 kHz, +0.5 / -1 dB
• Crosstalk (2 channel models):  >85 dB
• Signal-to-noise:  >97 dBA
• High-pass filter:  80 Hz HPF

Circuit Protection

• Cooling:  Convection-cooled, fanless
• Amplifier protection:  Thermal protection, over current protection, DC protection, high frequency protection
• Load protection:  Controlled start and shutdown behaviour, DC-fault protection

Power Supply, Voltage (Fuse)

• Main voltage:  100-240 V~, 50/60 Hz
• Fuse:  T 3.15 A L 250 V
• Power consumption 1/8th rated power @ 4 Ω:  40 W
• Mains connector:  Standard IEC connector

Physical and Dimensions

• Dimensions (H x W x D):  44 x 218 x 299 mm (1.7 x 8.6 x 11.8")
• Weight:  2.2 kg (4.9 lbs)
• Finish:  Brushed black anodised aluminium chassis with black painted steel bottom
• Approvals:  CE, cTUVus, PSE, CCC, RoHS, FCC part 15 Class B and Energy Star 3.0

What's in the Box?

• Euroblock input connector(s)
• Euroblock output connector
• Coupling plate (x2) with necessary screws
• Long angle bracket
• Front angle bracket (x2)
• Rear flat bracket
• Rear angle bracket with shoulder screw
• Power cable with mains plug
• Quick Start Guide
