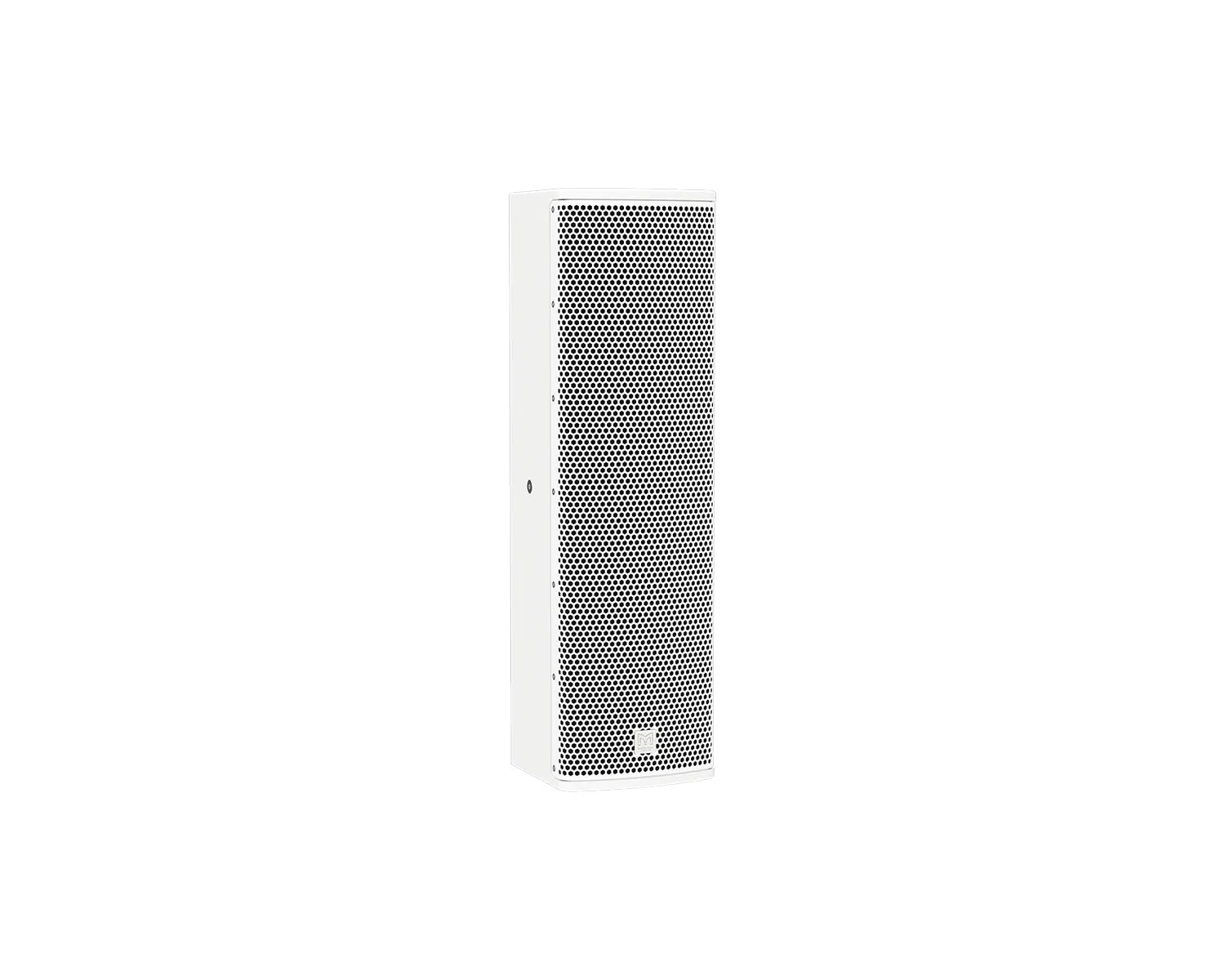

Designed for venues where clarity and control are paramount, Blackline Q26 is a compact column loudspeaker that delivers a peak SPL of 125dB (131dB with crest factor 4) with precise coverage from a discreet footprint.

It can operate as a stand-alone system or be supplemented by Blackline Q210 subwoofer, making it equally suited to performance venues, corporate events and worship spaces.

Q26 features a dual 6” (150mm) LF driver with a 1.5” (38mm) voice coil and a 1” (25mm) exit HF compression driver with a 1” (25mm) dome. A Differential Dispersion horn ensures wide, consistent coverage.

Constructed from durable plywood, Q26 is fitted with a screwtight steel grille and includes M8 inserts for wall brackets, yokes and eyebolt suspension. A pole-mount socket with a removable cover maintains clean lines for installation applications. It is finished in hard-wearing black or white paint.

Engineered for clarity and control, Q44 integrates seamlessly into larger systems or functions as a standalone solution where aesthetics and performance are equally important.

Q26 is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.

Product Features

• Compact passive two-way system
• Lightweight, portable with a discreet design
• Peak SPL of 125dB (131dB with crest factor 4)
• Differential Dispersion horn
• Dispersion: 100°–120° horizontal × 35° vertical
• Screw-tight, cloth-backed perforated steel grille
• Pole-mount cover maintains clean lines
• 8Ω nominal impedance
• NL4 connector
• Flexible mounting options via M8 inserts
• Finish: White
• 85% Post Consumer Recycled ABS Plastic
• FSC Certified Cardboard Packaging
• Biodegradable Box Sealing tape

Product Specifications

• Type:  Passive two-way compact column loudspeaker
• Frequency Response:  69 Hz – 17 kHz ± 3 dB, -10 db @ 53 Hz
• Driver (LF):  Dual 6” (150 mm) with 1.5” (38 mm) voice coil, ferrite motor system
• Driver (HF):  1" (25 mm) exit compression driver with 1" (25 mm) voice coil,
  PETP dome
• Rated Power:  300 W AES, 1200 W peak
• Required Electronics:  Processor and amplifier, or a combined amplifier-processor unit
• Recommended Electronics:  DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
• Sensitivity:  94 dB
• Maximum SPL:  119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4
• Nominal Impedance:  8 ohm
• Dispersion:  Dispersion: 100°–120° (horizontal) × 40° (vertical)
• Crossover:  2.4 kHz passive
• Enclosure:  Durable plywood
• Finish:  Black or white textured paint
• Protective Grille:  Black or white perforated steel grille with scrim cloth backing
• Connectors:  1 x NL4 connector
• Pin Connections (Input):  1+/1–
• Pin Connections (Link):  NA
• Fittings:
  • 3 x M8 inserts, 1 x M6 insert, 4 x M6 inserts for wall bracket
  • 1 x pocket handle made from recycled ABS
  • Pole-mount socket with removable cover
• Dimensions (WxHxD):  193 mm x 670 mm x 218 mm (7.6 in x 36.4 in x 8.6 in)
• Weight:  9.5 kg (20.9 lbs)
• Accessories (Optional):
  • Wall bracket WB6/8
  • M8 eye bolt HTKCT05, yoke, transit cover
