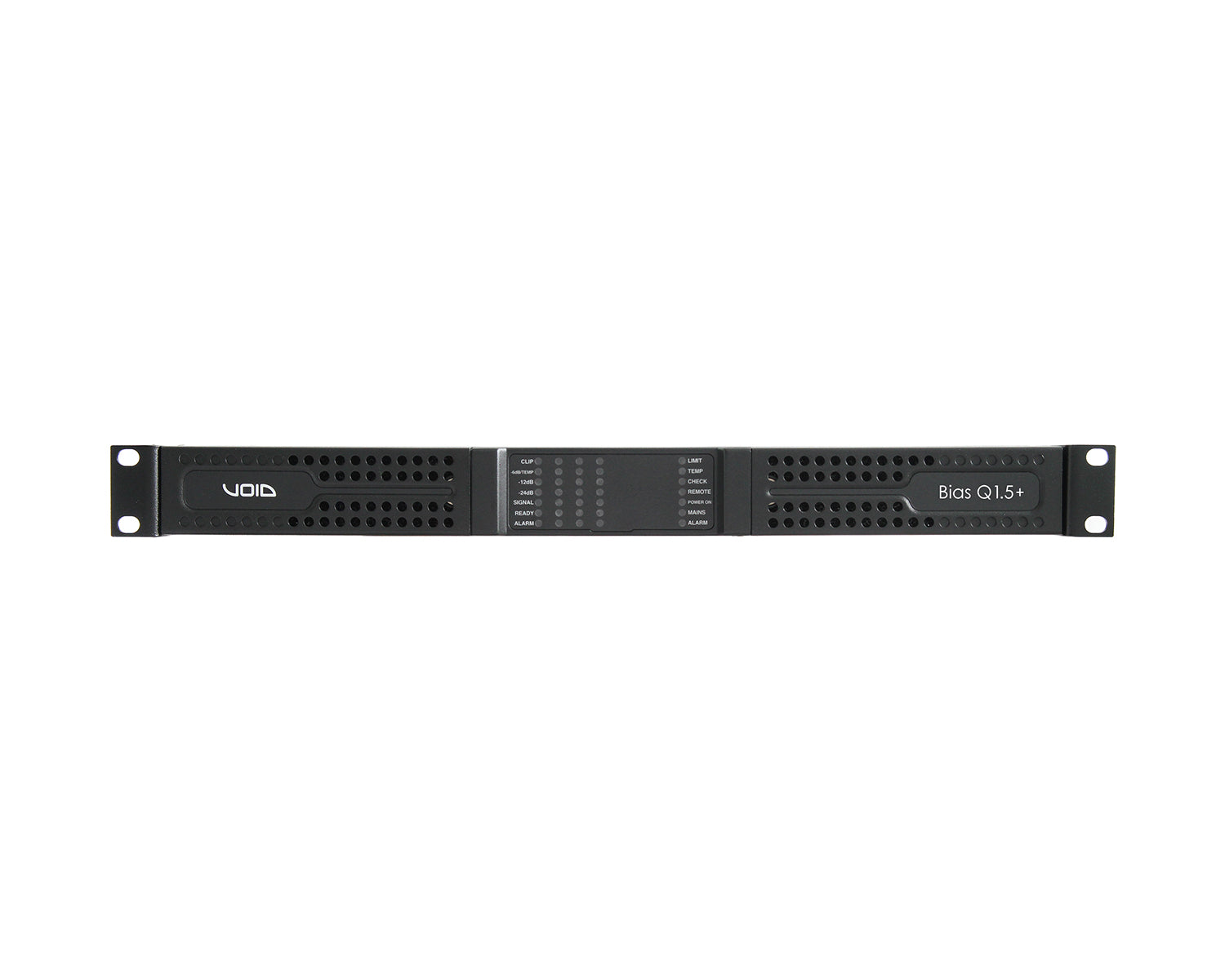

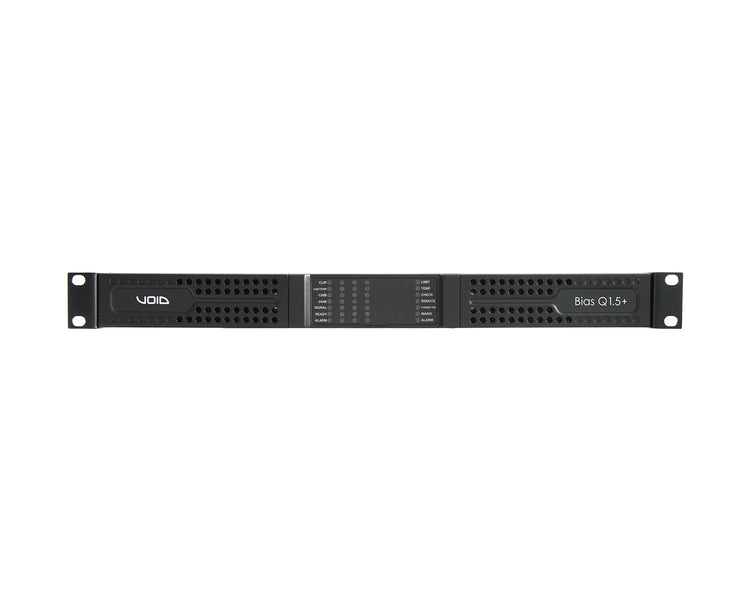

VOIBIASQ15P - Void Acoustics Bias Q1.5 and 4 Channel Power Amp with DSP 100V 4x600W @ 4ohm AES67 1U Image 1

2400W/4-channel Flexible Amplifier with DSP and AES67. 4 x 600 W at 8Ω

Bias Q1.5+ offers the amazing sound quality and reliability you would expect from all Void products. Offering a full suite of DSP tools via ArmoníaPlus control software. Delay, E.Q, Input trim, Gain and Polarity, Void speaker presets with FIR filters and Limiters.

The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Bias amplifiers feature extremely low thermal dissipation, reducing the need for external cooling devices.

Bias Q1.5+ is designed to operate with Lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two. DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.

The amplifier platform that can be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS. Install amplifier featuring standard Phoenix connectors

Product Features

4 x 600 W at 8Ω
Designed to operate with Lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two
Full suite of DSP tools
Delay, E.Q, Input trim, Gain and Polarity, Void speaker presets with FIR filters and Limiters
Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition
Bias amplifiers feature extremely low thermal dissipation, reducing the need for external cooling devices

Product Specifications

Channel Handling

Number of output channels: 4 Hi-Z or Lo-Z (bridgeable per ch. pair) | Phoenix PC 5/8-STF1-7,62
Number of input channels
- Analog: 4 | Phoenix MC 1,5/12-ST-3,81
- AES67: 4 | 1 x RJ45

Audio

Gain: 26 dB | 29 dB | 32 dB | 35 dB
Input sensitivity @ 8 Ω: 3.54 Vrms | 2.51 Vrms | 1.78 Vrms | 1.26 Vrms
Max input level: 20 dBu
Frequency Response ( ±0.5 dB , 1 W @ 8 Ω): 20 Hz - 20 kHz
Crosstalk (1 kHz): typical -70 dB
S/N (32 dB gain, analog input 20 Hz - 20 kHz @ 8 Ω): > 108 dB(A)
Input impedance: 20 kΩ balanced
THD+N (from 0.1 W to Full Power): < 0.1% (typical < 0.05%)
DIM (from 0.1 W to Full Power): < 0.05%
Slew Rate (input filter bypassed @ 8 Ω): > 50 V/µs

DSP

AD converters: 24 Bit Tandem™ @ 48 kHz 125 dB-A Dynamic Range - 0.005 % THD+N
DA converters: 24 Bit Tandem™ @ 48 kHz 117 dB-A Dynamic Range - 0.003 % THD+N
Sample rate converter: 24 Bit @ 44.1 kHz to 192 kHz 140 dB Dynamic Range - 0.0001 % THD+N
Internal precision: 32 bit floating point
Latency: 2.5 ms fixed latency architecture
Memory/Presets: 128 MB (RAM) plus 512 MB flash for presets
Delay: 2 s (input) + 100 ms (output) for time alignment
Equalizer: Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Crossover: linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
Limiters: TruePower™, RMS voltage, RMS current, Peak limiter
Damping control: Active DampingControl™ and LiveImpedance™ measurement

Output Stage

Maximum output power per channel @ 8 Ω: 600 W
Maximum output power per channel @ 4 Ω: 600 W
Maximum output power per channel @ 2 Ω: 800 W
Maximum output power @ 4 Ω Bridged: 1600 W
Maximum output power @ 8 Ω Bridged: 1200 W
Maximum output power @ Hi-Z distributed line 100 V: 600 W
Maximum output power @ Hi-Z distributed line 70 V: 600 W
Maximum unclipped output voltage @ 8 Ω: 100 V peak
Maximum output current: 45 A peak

Networking

Standards compliance: auto-sensing Fast Ethernet (IEEE 802.3u, 100 Mbit/s)
Supported topologies: Star
Remote interface: Armonía Pro Audio Suite™

AC Mains Power

Power supply: Universal regulated switch mode with PFC, SRM
Nominal voltage (±10%): 100-240 V @ 50-60Hz
Power factor (> 500 W ouput): > 0.95
Consumption/current draw: @ 115 V | @ 230 V
Idle (DSP+): 31.1 W | 0.45 A | 31.5 W | 0.25 A
1/8 Max Output Power @ 4 Ω: 405 W | 3.7 A | 405 W 2.1 A
AC Mains connector: IEC C20 inlet (20 A max) region-specific power cord provided

Thermal

Operating temperature: -10° - 35° C / 14° - 95° F Cooling Fan, continuously variable speed, temperature controlled, front to rear airflow
Thermal dissipation: @ 115 V | @ 230 V
Idle: 106 BTU/h | 26.7 kcal/h | 107 BTU/h | 27 kcal/h
1/8 Max Output Power @ 4 Ω: 360 BTU/h | 90.8 kcal/h | 360 BTU/h | 90.8 kcal/h
