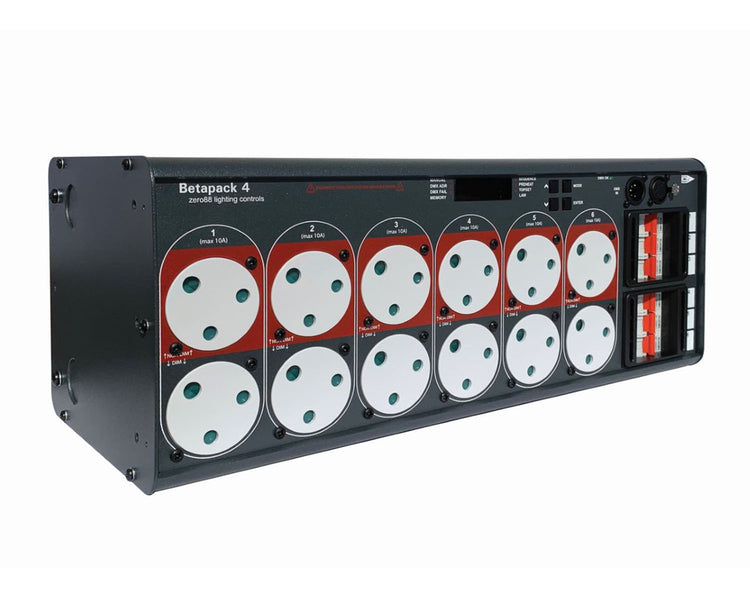

ZERBP41215 - Zero 88 Betapack 4 6x10A DMX Dimmer Pack 12x15A Outlet 4U Image 1

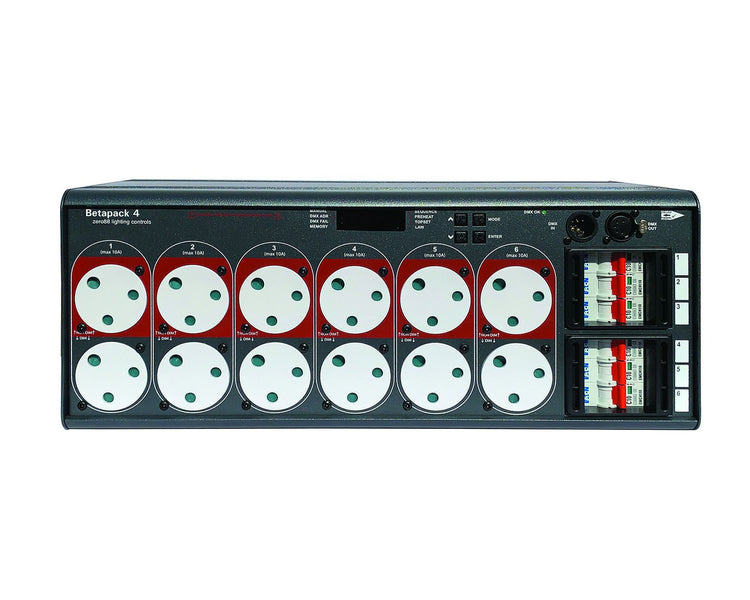

ZERBP41215 - Zero 88 Betapack 4 6x10A DMX Dimmer Pack 12x15A Outlet 4U Image 2

Betapack has served the industry for 30 years with legendary reliability, robustness, versatility and value for money.

Betapack 4 builds on this heritage by distributing both dimming and “hot power” to a mixed rig of both tungsten and LED fixtures in a single, affordable device. Betapack 4 continues to serve the most modern applications in lighting rental, installation and portable situations for many thousands of venues worldwide.

Betapack 4 includes variants with sockets to match most global standards, and is supplied with MCBs on every channel. The versatility of the Betapack 4 means it can be 19” rack mounted or installed on a wall using the brackets supplied, or made portable by using the included Easicarry kit consisting of a handle and four feet. Its legendary reliability and durability make it the dimmer of choice for many thousands of venues worldwide.

Product Features

12x15A Outlet
6 Dimming Channels
10 Amps per channel
MCB protection
Isolated DMX input
Patchable per channel
Preheat, Topset and Dimmer Law selectable per channel
12 backup memories
3 x 99-step sequences with adjustable times
Automatic DMX termination when loop-through plug is removed
RDM Enabled
Auto frequency tracking
Lock and Reset functions
Temperature monitoring
Convection cooled
DMX addressing via front panel or RDM
DMX Status indication
19” Rack Mount and Wall Mounting options (brackets included)
Optional Easicarry handle for portable use (included)
CE compliant to all relevant standards
Designed and manufactured to ISO9001:2015 standards

Model Variants

0011-000023-00 Betapack 4 UK 15A
0011-000024-00 Betapack 4 Schuko
0011-000025-00 Betapack 4 Swiss
0011-000026-00 Betapack 4 CEE17 & UK 15A
0011-000027-00 Betapack 4 CEE17
0011-000028-00 Betapack 4 PowerCON TRUE1 TOP

Product Specifications

Whole unit

Number of channels: 6
Channel capacity: 0.1A min / 10A max
Total dimmer capacity: 60A
Supply Voltage:
- Single Phase (2 wire) 230V
- Three Phase Star (4 wire) 250/444V
- Three Phase Delta (3 wire) 230/115V
Supply frequency: 50-60Hz auto tracking
Channel outlet options:
- 12 x UK 15A Sockets (6 x dimmed, 6 x hot power)
- 12 x 16A CEE17 Sockets (6 x dimmed, 6 x hot power)
- 6 x UK 15A (dimmed) & 6 x 16A CEE17 (hot power) Sockets
- 12 x Neutrik PowerCON TRUE1 TOP (6 x dimmed, 6 x hot power)
- 12 x 16A Schuko Sockets (6 x dimmed, 6 x hot power)
- 12 x 10A Swiss Sockets (6 x dimmed, 6 x hot power).
Channel protection: 10A, type C, single pole (thermal magnetic circuit breaker). (Schuko has neutral disconnect per channel). Breaking capacity to 6000A
Cooling: Convection via rear mounted heatsink with electronic temperature monitoring and progressive overheat shutdown
Operating Temperature: +5ºC to +40ºC
Humidity: 5% to 95% Non condensing

Dimmed sockets only

Dimmer duty cycle: 100%
Rise time: 80 uS
Control input: DMX via 5 Pin XLR mixed male with loop through connector with automatic termination, accepts USITT DMX512-A (isolated). Patch set via control interface
RDM Enabled
Dimmer Laws: 3 dimmer laws (Normal, Linear, Switch)
Patching: Full DMX patch and block address
Memories: 12 static
Sequences: 3 x 99 step programmable
User Interface: 7 segment display with 4 navigation keys
DMX fail mode: DMX Hold, Fade to Black, Fade to Memory or Fade to Sequence
Programmable channel attributes: Preheat per channel (5%), Topset, Dimmer Laws
